Across the American landscape, forward-thinking homeowners are choosing straightforward greywater systems to control water use in an eco-friendly manner.
Step into sustainable living with our helpful guide to greywater systems. Learn how to repurpose household water with ease, from setup to filtration, and join the movement towards a greener home—ideal for those in tiny spaces or anyone looking to reduce their environmental footprint.
In this article, we’ll help you get eco-friendly water conservation system that actually works and fits your tiny home. There are plenty of greywater system benefits and one simply cannot ignore it.
What is the basic GREY water system?
A basic greywater system is a simple yet effective way to conserve water and reduce your environmental impact at home. Slightly used water is recycled and collected from various non-fecal domestic sources, such as shower, and washers prioritizing environmental preservation via reduction of waste.

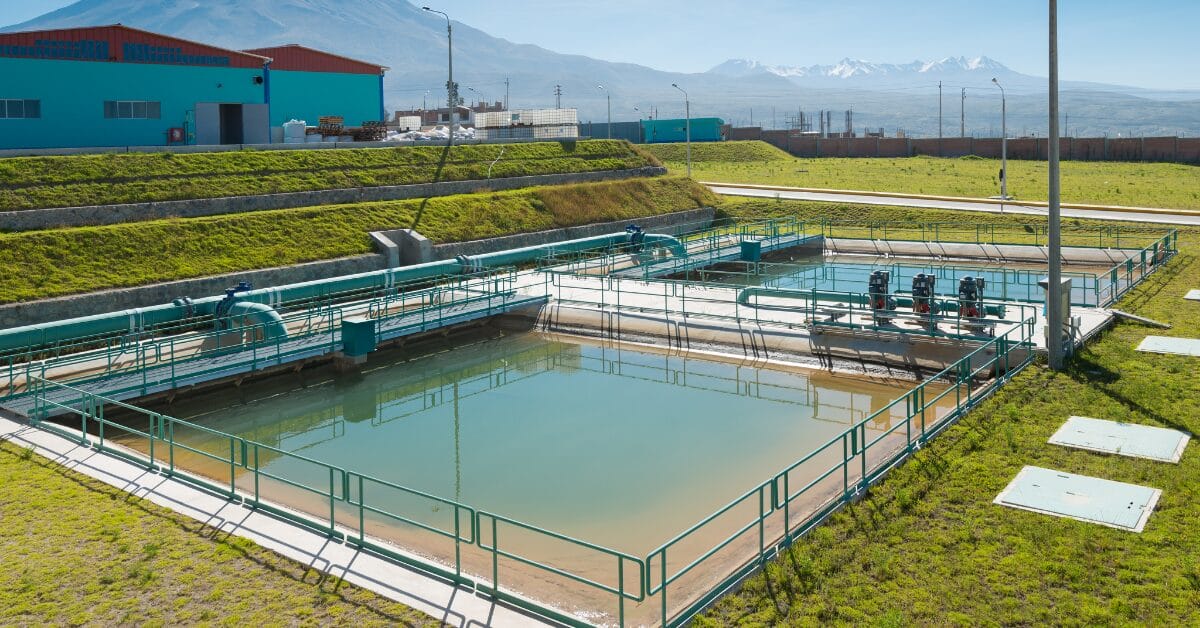

The impressive greywater treatment plant in Arequipa, Peru, features a couple of tanks.
Greywater systems are designed to recycle water from sources like sinks, showers, and laundry for use in watering gardens or landscaping. For your off-grid tiny house, it would be a small tank storing water coming for greywater sources.
Clean water is potable, greywater is gently used from sinks and showers, and blackwater is heavily contaminated water.
Why save water? 40 out of 50 state water managers expect water shortages under average conditions in some portion of their states over the next decade, according to a 2014 Government Accountability Report.
We can all use at least 20 percent less water by installing water-efficient fixtures and appliances. The average family can save more than $380 annually from retrofitting with WaterSense labeled fixtures and ENERGY STAR certified appliances.
How Do Grey Water Systems Work?
Imagine a simple system in your home that collects water from your bathroom sinks, showers, and washing machine. This water, called greywater, goes on a special journey to be cleaned and reused.
First, the greywater goes into a holding tank. Then, it passes through screens that remove any big pieces of dirt or debris. After that, the water rests in a special chamber where smaller particles sink to the bottom, making the water cleaner.
Next, tiny helpful bacteria and other microorganisms break down any remaining organic matter, turning it into harmless substances. Finally, the water is disinfected to remove any remaining germs.
Now, the cleaned greywater is ready to be used again! It can water your garden, flush your toilets, or even be used in your washing machine. By reusing this water, you save money on your water bills and help protect the environment.
So, the next time you use water in your home, remember the amazing journey it can take with a greywater system, all while helping you and the planet!
Installation Process and Design Considerations
Installing a greywater system in your home requires careful planning and execution to ensure that it functions effectively and complies with local regulations. Do you want to install your DIY greywater system? Here’s a step-by-step guide to help you design and install your greywater system:
- Identify greywater sources:Locate all potential greywater sources in your home, such as bathroom sinks, showers, bathtubs, and washing machines.
- Determine greywater quantity: Estimate the amount of greywater generated from each source to help you design a system that can handle the volume.
- Check local regulations: Familiarize yourself with local building codes, plumbing codes, and health department regulations regarding greywater systems to ensure compliance.
- Create a site plan: Develop a detailed site plan that includes the locations of greywater sources, drainage paths, and the area where treated greywater will be used (e.g., garden or lawn).
- Select a treatment method: Choose an appropriate treatment method based on the intended use of the treated greywater and local regulations. Options include simple filtration, sedimentation, and biological treatment.
- Design the collection system: Plan the layout of pipes and drains to collect greywater from each source and direct it to the treatment area. Consider factors such as pipe size, slope, and venting.
- Install the collection system: Install the pipes and drains according to your design, ensuring proper slope and connections to prevent leaks and backflow.
- Set up the treatment system: Install the chosen treatment system, such as a filtration unit or biological treatment container, as per the manufacturer’s instructions.
- Connect the distribution system: Install pipes or irrigation lines to distribute the treated greywater to the desired areas, such as gardens or toilets.
- Test and maintain: Test the system for proper functionality and regularly maintain it by cleaning filters, removing sediment, and monitoring the quality of the treated greywater.
As much as 50 percent of the water we use outdoors is lost due to inefficient irrigation methods and systems. Hiring a certified professional to install or audit your landscape irrigation system can reduce a household’s irrigation water use by 15 percent.
Design Considerations for Eco-Friendly Conservation
When implementing a greywater system, efficiency stands as the cornerstone of design. Take care of these factors.
- Ensure that the system is sized appropriately to handle the expected volume of greywater.
- Provide proper ventilation to prevent odors and maintain a healthy environment for beneficial microorganisms.
- Install backflow preventers to protect the potable water supply from contamination.
- Use non-toxic and environmentally friendly cleaning products to maintain the quality of the greywater and protect the treatment system.
- Consider the climate and seasonal changes in your area, as they may affect the performance of your greywater system.
By following these steps and considering the design factors mentioned, you can successfully install a greywater system that meets your needs while conserving water and benefiting the environment.
Read also: How to live off the grid with no money? It’s easy.

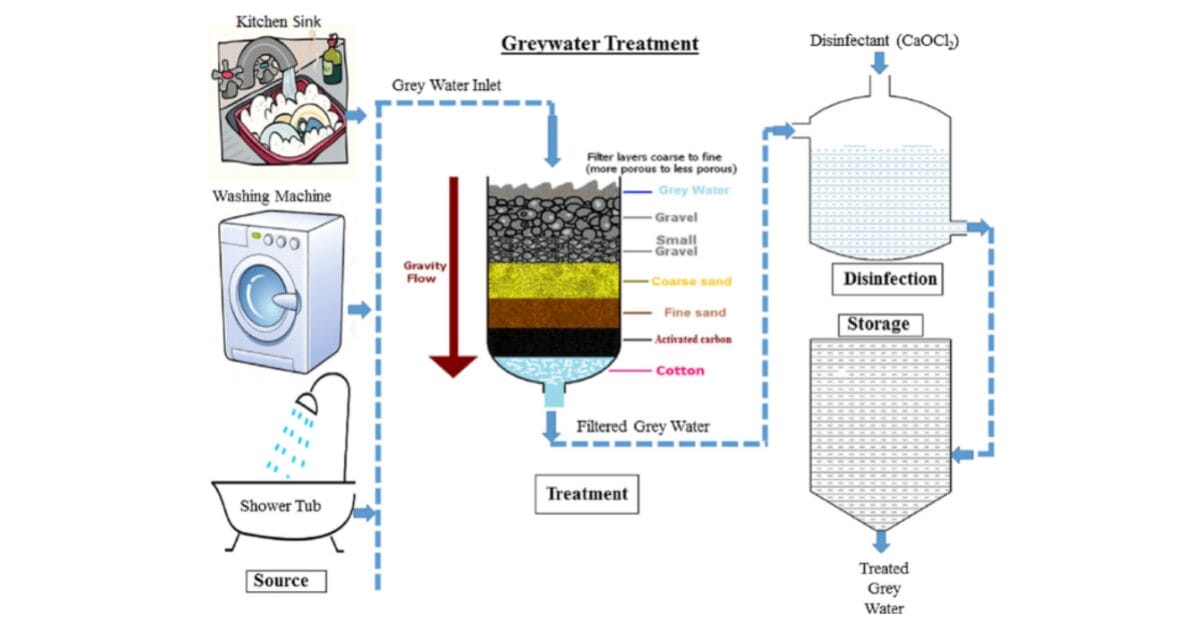

Grey Water System Diagram
In the diagram below, you can see the basics of a system. You’ll see how the washer can be switched with a branched valve to either go to the sewer or to the outside irrigation. The water then travels outside, into the garden, and finally into drip points above mulch beds.
The Importance of Greywater Conservation
Let’s have a look at the some of the eco-friendly greywater systems advantages:
Environmental Benefits
Greywater conservation through the use of greywater systems has a significant positive impact on the environment. By reusing water from sources like laundry and sinks for watering gardens or landscaping, these systems reduce the strain on freshwater resources and decrease the amount of wastewater requiring treatment.
Across the country, it is estimated that landscape irrigation contributes to almost one-third of residential water consumption, amounting to nearly 9 billion gallons per day.
Adopting greywater systems is a simple yet effective way for individuals to actively contribute to water conservation efforts and promote environmental stewardship. With the increasing scarcity of water resources worldwide, harnessing this alternative water source for non-potable uses becomes imperative in preserving the environment for future generations.
Reduction in Water Bills
In addition to the environmental benefits, greywater systems offer practical advantages to homeowners by significantly reducing their water bills over time. By reusing water that would typically go to waste, households can conserve greywater for activities like irrigation, leading to cost savings and efficient water management within residential properties.
Implementing these systems allows homeowners to create an eco-friendly household while experiencing the financial benefits of reduced utility costs. The dual benefit of cost savings and sustainable water management makes greywater systems a valuable addition to homes seeking to enhance efficiency and environmental responsibility.
Sustainable Water Management
Greywater systems play a crucial role in sustainable water management practices. By diverting greywater for non-drinking purposes, households can contribute to the efficient and responsible utilization of water resources.
These systems exemplify an eco-conscious lifestyle choice that aligns with the broader goal of sustainable development. Reusing water for secondary purposes such as landscaping enables individuals to actively participate in water conservation efforts and promote responsible water resource management.
Types of Greywater Systems
Greywater systems offer a sustainable solution for reusing water within your household. There are three main types of greywater systems: Basic Diversion Type Systems, Advanced Treatment Systems, and Hybrid Greywater Systems. Each type has its own unique features and benefits to consider when setting up a greywater system in your home.
Basic Diversion Type Systems
Basic diversion type systems involve diverting water from sources like sinks, showers, and laundry machines to be used elsewhere, such as watering gardens or landscaping. These systems typically include a surge tank to capture water and allow solids to settle before directing cleaner water to the desired outdoor location. Basic diversion type systems are cost-effective and easy to install, making them a popular choice for homeowners looking to conserve water.
Gravity-based Systems
Gravity-based Systems rely on the natural flow of water, requiring minimal equipment and maintenance. By strategically placing pipes and valves, you can create a seamless flow of water that nourishes your plants and soil. These systems operate effortlessly, requiring little intervention once set up.
Pump-based Systems
Pump-based Systems provide an efficient mechanism for transporting greywater from your household to desired outdoor areas. With these systems, you have the flexibility to control the flow and direction of water, ensuring optimal distribution for your plants and landscaping. Pumps enable precise control over water distribution, ensuring efficient irrigation and minimal water wastage.
Direct Hose Diversion Systems
Direct hose diversion systems offer a simple yet effective approach to repurposing greywater. By directly diverting water from your household drains to outdoor areas, you can easily incorporate this system into your daily routine. These systems provide a seamless way to utilize greywater for gardening and landscaping purposes.
Surge Tanks and Settling Basins
Surge tanks and settling basins are crucial components of a comprehensive greywater system. By incorporating these elements, you can effectively filter and store greywater before redirecting it to outdoor areas. They play a crucial role in ensuring water quality and promoting efficient irrigation practices.
Read: Tiny House Off the Grid: From Scratch to Serenity
Advanced Treatment Systems
Advanced treatment systems take greywater recycling to the next level by incorporating filtration methods to further purify the water for reuse. These systems often include in-line water filters or settling tanks to remove remaining particles before the water is redistributed.
While more complex and costly than basic diversion type systems, advanced treatment systems provide cleaner water for irrigation and other non-potable uses.
Understanding the key differences between these greywater system types can help you choose the best option for your home. Whether you opt for a Basic Diversion Type System, an Advanced Treatment System, or a Hybrid Greywater System, implementing a greywater system can significantly reduce water waste and contribute to a more sustainable lifestyle.
Are Grey Water Systems Legal?
The legality of greywater systems varies depending on your location and the specific regulations set by your city, county, and state. Building codes, zoning laws, and public health department guidelines all play a role in determining the permissibility of greywater system.
See this: Rules governing the use of greywater vary by state and locality
In some cases, people may choose to build septic systems to pass inspection and then modify them to allow for grey water usage and sometimes people just use it under the radar.

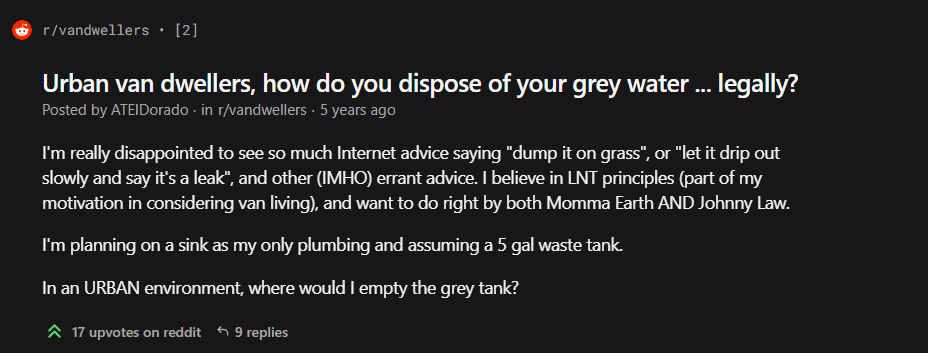

Seek out RV dump stations, which are designed for the disposal of grey water and black water from mobile dwellers. Many campgrounds, some gas stations, and various service centers have facilities you can use, often for a small fee or sometimes free if you’re a customer. Websites and apps dedicated to RVing often have directories of dump stations for convenience.
How to install grey water systems in vancouver? Installing a greywater system in Vancouver can be a great way to make more efficient use of water resources, especially considering the water restrictions in the region. However, it’s important to note that regulations and requirements for greywater systems can vary by location, so it’s advisable to check with the City of Vancouver or the Greater Vancouver Sewerage and Drainage District (Metro Vancouver) for specific guidelines and permits related to greywater systems.
Simple Greywater Setup For Tiny House
In a tiny house, disposing of water safely can be a challenge when not connected to the city’s system. Inspired by a simple greywater system on a Spanish olive farm, we created a DIY setup to irrigate a small garden using water from the tiny house’s sinks and showers.
Do you know? Compared to a typical home, on average, a WaterSense labeled home can save a family 50,000 gallons of water a year or more!

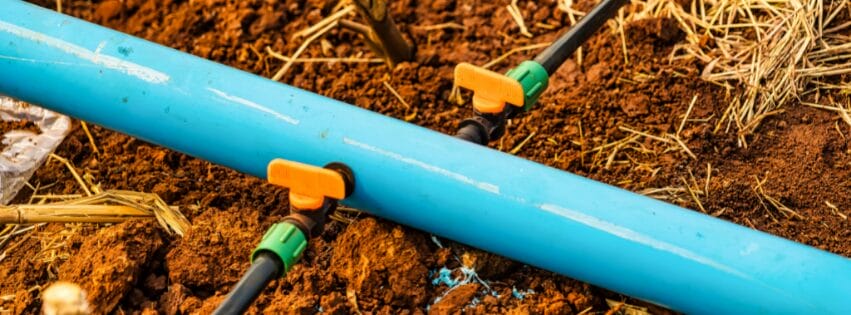

A 1 1/2″ PVC pipe with small holes drilled along its length was attached to the house’s plumbing and buried in a 2-foot deep gravel-lined ditch covered with landscape fabric. To protect the soil, plants, and watershed, only biodegradable soaps and shampoos were used, and no solids were put down the drain. This simple French drain-like system allowed for the safe and sustainable recycling of greywater in the tiny house.
Despite the convenience and environmental benefits of greywater systems, selecting the right one for your home requires careful consideration. Take care of these things.
Assessing Your Water Usage
Before selecting a greywater system for your home, it’s essential to assess your water usage patterns. Systematically track your daily water consumption and identify the main sources of greywater production in your household, such as sinks, showers, and washing machines.
Evaluate peak usage times and the frequency of water discharge to optimize the capacity and distribution of your greywater system. Conducting a comprehensive audit of your water usage habits will help you tailor the system to match your specific requirements, ensuring minimal wastage and maximum efficiency in recycling water for secondary uses.
Considering Local Building Codes and Regulations
Compliance with local building codes and regulations is a primary consideration when setting up a greywater system. These guidelines vary by region and may outline specific requirements for system installation, maintenance, and safety standards.
Consult with relevant authorities or a professional installer to navigate the legal aspects of integrating a greywater system into your home. Ensuring that your system meets all regulatory obligations safeguards your property against potential violations and guarantees eco-friendly operation in alignment with environmental standards.
Evaluating System Maintenance Requirements
Regular maintenance and upkeep are crucial for the long-term performance and efficiency of your greywater system. Understand the maintenance requirements, such as filter replacements, pipe inspections, and surge tank cleaning, to preserve the system’s functionality and durability over time.
Regularly monitor the system components and address any issues promptly to prevent costly repairs. Implement a maintenance schedule and conduct routine checks to optimize the system’s performance and prolong its lifespan. Adhere to manufacturer recommendations and seek professional assistance for complex maintenance tasks to streamline the upkeep process.
Budgeting and Return on Investment
Determine the initial costs and long-term benefits of installing a greywater system to budget effectively for the project. Assess the financial outlay required for purchasing materials, labor, and installation, and estimate the return on investment from reduced water bills and ecological impact.
How much does a greywater system cost to install? Generally, homeowners should budget for a span between $500 and $2,500 to bring a greywater system online. Within this range, the bulk of your expenses typically fall on labor since the parts required—think PVC pipes, a capture tank, and the like—won’t break the bank. However, labor isn’t a corner to cut, as expert installation ensures your system operates seamlessly and adheres to local codes.
Explore government incentives or rebates for eco-friendly initiatives to further offset the installation costs and enhance the economic viability of the greywater system.
Identifying a Suitable Greywater Source
The first step in installing a greywater system is identifying a suitable greywater source in your home. Consider various sources like sinks, showers, and laundry, and evaluate your household’s water usage habits to determine the most suitable source for your system. Repurposing water from these sources can effectively conserve water for tasks like watering your garden.
Determining the System Capacity and Design
To ensure the efficiency and effectiveness of your greywater system, determine the system capacity and design based on your specific needs. Identify the amount of greywater produced daily and design your system considering factors like soil drainage and water flow patterns. Capacity planning will help you align your system with your water consumption needs and landscaping requirements to maximize water reuse.
Selecting the Right Plumbing Fittings and Materials
The choice of plumbing fittings and materials is vital for the longevity and functionality of your greywater system. Consider factors like compatibility with greywater, ease of maintenance, and environmental sustainability when selecting materials such as PVC pipes, fittings, and filters. Opting for durable, efficient, and eco-friendly materials will ensure the success and sustainability of your greywater system.
Installing Diversion Valves and Drain Pipes
Proper installation of diversion valves and drain pipes is crucial for efficiently redirecting greywater to desired areas like gardens or landscapes. Ensure proper installation techniques and alignment with your system design to prevent clogs, leaks, and other issues that may compromise the system’s functionality. Valves and pipes play a vital role in controlling water flow and optimizing the use of greywater in your home.
Planning for Overflows and Backups
When installing a greywater system, it’s important to plan for potential overflows and backups. Determine potential overflow points and incorporate backup solutions to prevent water accumulation and system failures.
Implement overflow prevention measures and contingency plans to ensure the smooth operation of your greywater system. Diverting excess water and having backup strategies in place will minimize potential risks and maintain the sustainability of your greywater system.
Here is the checklist to follow.
Tips For Your DIY Grey Water System
Crafting a functional, clog-free greywater system is entirely within reach when you apply a touch of ingenuity and a few strategic tips. By incorporating a surge tank and a basic filter, you’re already on the right path to ensuring that your DIY system operates smoothly.
Prevent Clogging with a Surge Tank and Filter
One of the biggest challenges in creating a DIY greywater system is preventing drain pipes from getting clogged with food particles and hair from your drains. To combat this issue, employ two key features in your system: a surge tank to settle out particles and a simple filter. The surge tank slows down the water flow, allowing dirt, hair, skin cells, and food particles to settle out before moving on in the process.
It’s important not to let the water sit for too long, ideally no more than 24 hours. Additionally, use a basic filter to catch any remaining particles that might be floating along, preventing clogs further down the line.
Consider Winter Drainage
When designing your greywater system, consider how your drain lines will work during the winter months. Freezing pipes can lead to major problems, so ensure that your lines are draining to pipes buried below the frost line. You can also consider installing a valve at your branched piping inside, allowing you to turn off the system during the winter season.
Grey Water Systems For Off Grid Living
Greywater systems shine in off-grid scenarios, handling waste water with ease. If you’re like me, living in an off-grid space with minimal water waste, a modified French drain could be all you need. Partner it with a rain catchment setup and you’re golden – collect, repurpose, and enhance your garden’s water supply.
Assess Soil Drainage
When implementing a greywater system for off-grid living, such as in a cabin or tiny house, it’s crucial to ensure that your soil drains well. Conduct a simple percolation test (water infiltration test) on your soil to assess its drainage capabilities. If your soil drains effectively, design your system to handle the estimated daily greywater production plus a 25% margin.
Plan for Proper Drainage
Proper drainage is essential for the success of your off-grid greywater system. Plan your drain lines to be downhill from the point of use, digging ditches deeper if necessary to achieve a steep slope for adequate drainage. The water should move away from your house to avoid moisture issues, so aim to drain the water at least 30 feet away from your dwelling.
Focus on Efficient Use and Repurposing
When designing your off-grid greywater system, prioritize efficient use and repurposing of the water rather than trying to treat it for drinking purposes. Direct the greywater to your gardens for food production, maximizing its utility and minimizing waste. Pairing your greywater system with a rain catchment system can further enhance your water collection and usage efficiency.
By following these tips and considering the specific needs of your off-grid setup, you can create a functional and sustainable greywater system that conserves water, reduces waste, and supports your self-sufficient lifestyle.
Common Challenges and Solutions
Eco-friendly water systems advantages are numrious but there are a few challanges to take care of. Here are some of them:
Dealing with High Contaminant Levels
High contaminant levels in greywater can pose a challenge in effectively reusing the water for irrigation purposes. The key solution is implementing an efficient filtration system that removes impurities and ensures the water is safe for use in the garden. Investing in quality filters and regularly maintaining them can address the issue of high contaminant levels.
Addressing Changes in Water Demand
Solutions for addressing changes in water demand and seasonal adjustments in a greywater system include implementing water storage tanks to store excess water during periods of low demand and using it when needed. This ensures efficient utilization of greywater without wastage.
Adapting your watering schedule based on seasonal variations can also help optimize the use of greywater in your garden. By being conscious of the changing water requirements of plants during different seasons, you can adjust your irrigation practices accordingly to maximize the benefits of your greywater system.
Managing System Upgrades and Expansions
Seasonal upgrades and expansions to your greywater system may be necessary to accommodate changing needs or increased water usage. It is important to plan these upgrades meticulously to ensure seamless integration with your existing system and prevent any disruptions in water flow.
Considering factors such as the capacity of your system, the layout of your garden, and potential future water requirements can help you make informed decisions when upgrading or expanding your greywater system.
FAQs on Greywater Systems
What is a basic greywater system?
A basic greywater system captures water from sinks, showers, and washing machines. After filtration, the water is diverted for landscape irrigation or toilet flushing.
What are the negatives of a greywater system?
- Maintenance requirements: Filters and pipes need regular cleaning.
- Initial cost: The installation can be expensive, depending on system complexity.
- Limited use: Certain soaps and chemicals may not be suitable for greywater reuse.
- Regulatory restrictions: Local regulations may limit or specify greywater system installation and use.
- Potential health risks: Improperly designed or maintained systems can pose health concerns.
Can greywater be drained on the ground?
Yes, greywater can be drained on the ground, but it’s recommended to use subsurface irrigation to minimize contamination and maximize plant usage. Direct surface application is not advised.

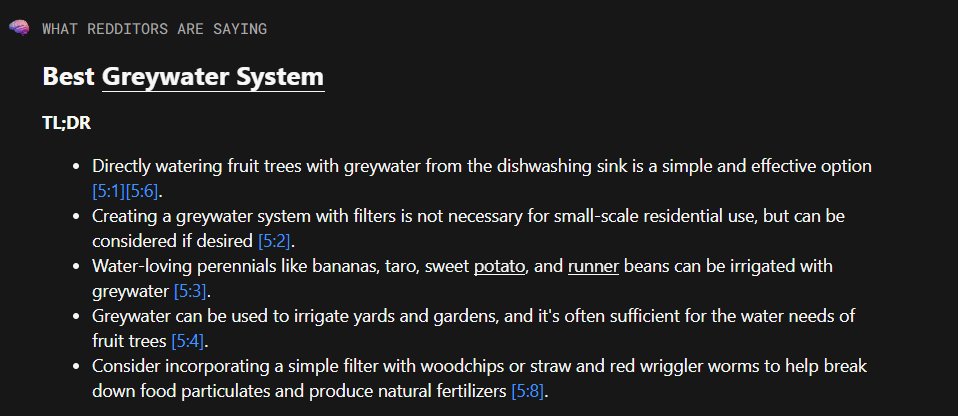

What is the best greywater system?
The best greywater system depends on individual needs and preferences. Popular options include branched drain systems for landscape irrigation and more complex systems with filtration and treatment for indoor reuse.
What is your best greywater system ever?
The best system depends on factors like:
- Water use patterns
- Local regulations
- Budget
- Environmental goals
Consult a professional to determine the most appropriate system for your specific needs.
In conclusion, as you begin this journey towards integrating greywater systems into your home, remember the importance of responsible water management and the positive effects it can have on both your household and the planet.
By embracing innovative solutions like greywater systems, you can play a crucial role in conserving water resources and promoting a more sustainable way of living.
Let your actions inspire others to follow suit, creating a ripple effect of positive change in water conservation.
