There is no feature more whimsical or “Hobbit-like” than a living green roof. It turns a boxy tiny house into a piece of the landscape. It provides incredible sound insulation against rain and keeps the house cool in summer.
But in the world of Tiny Houses on Wheels (THOWs), a green roof is arguably the most dangerous feature to add if you don’t understand the physics.
Why? Because dirt is heavy.
This guide breaks down the structural reinforcement and specialized waterproofing needed to safely haul a garden down the highway.
The Math: Calculating the “Dead Load”
Standard residential roofs are designed to hold a “Live Load” (snow/wind) of 20-40 lbs per square foot (psf) and a “Dead Load” (materials) of about 10-15 psf.
A green roof changes the Dead Load dramatically.
- Dry Soil: ~4 lbs per square foot (per inch of depth).
- Wet Soil: ~6.5 to 8 lbs per square foot (per inch of depth).
- Vegetation: ~1-2 lbs per square foot.
The Real World Example

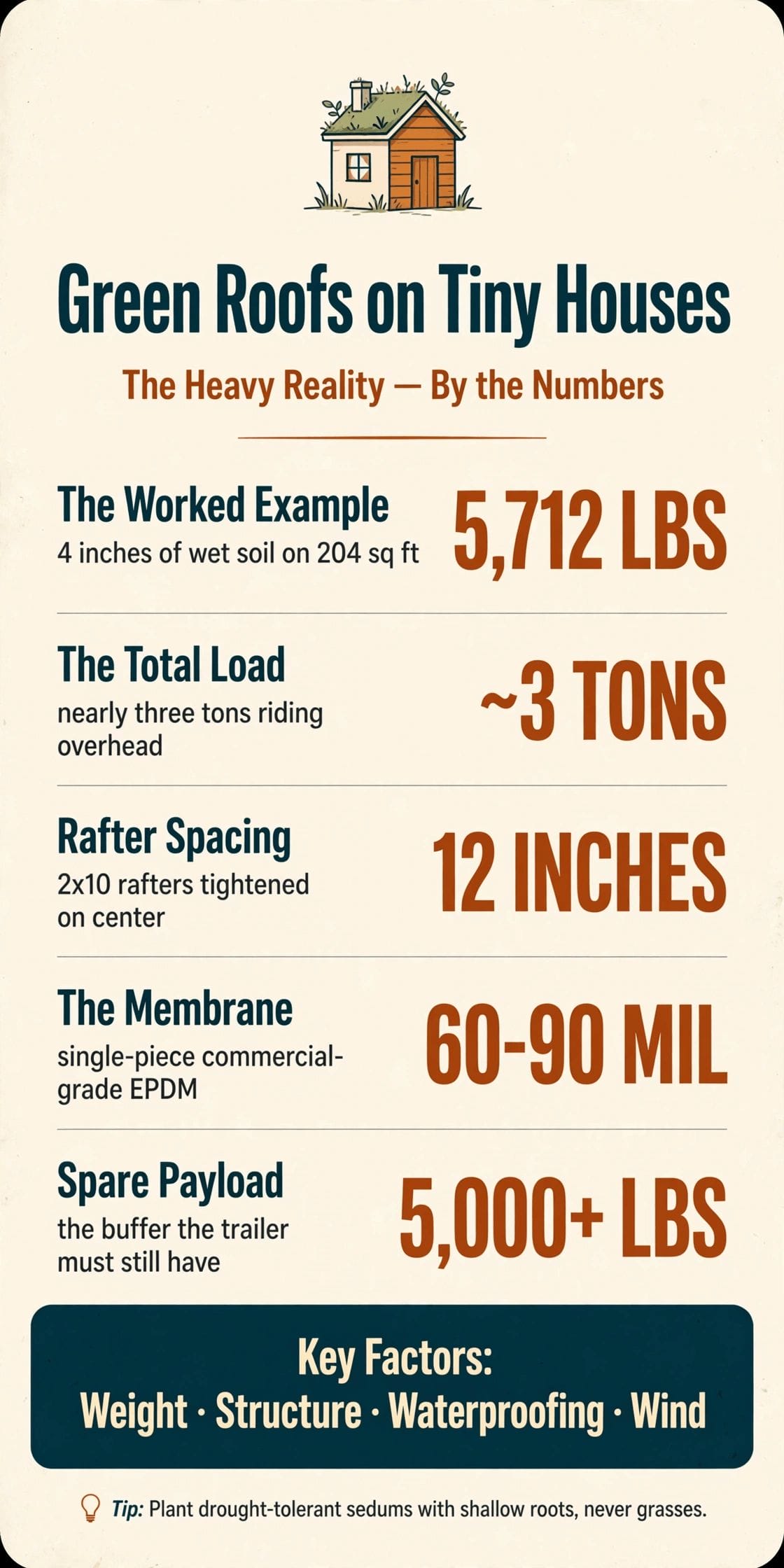

Let’s say you want a modest 4-inch deep growing medium on an 8.5′ x 24′ tiny house (204 sq. ft.).
- Weight per sq. ft: 4 inches x 7 lbs (wet) = 28 lbs/sq. ft.
- Total Roof Weight: 204 sq. ft. x 28 lbs = 5,712 lbs.
Result: You are putting nearly 3 tons of weight on your roof. That is the weight of a Ford F-150 parked on top of your tiny house.
Structural Reinforcement Strategies
You cannot build a green roof on standard 2×4 trusses or 2×6 rafters spaced 24 inches on center. The roof will sag and potentially collapse under dynamic road loads.

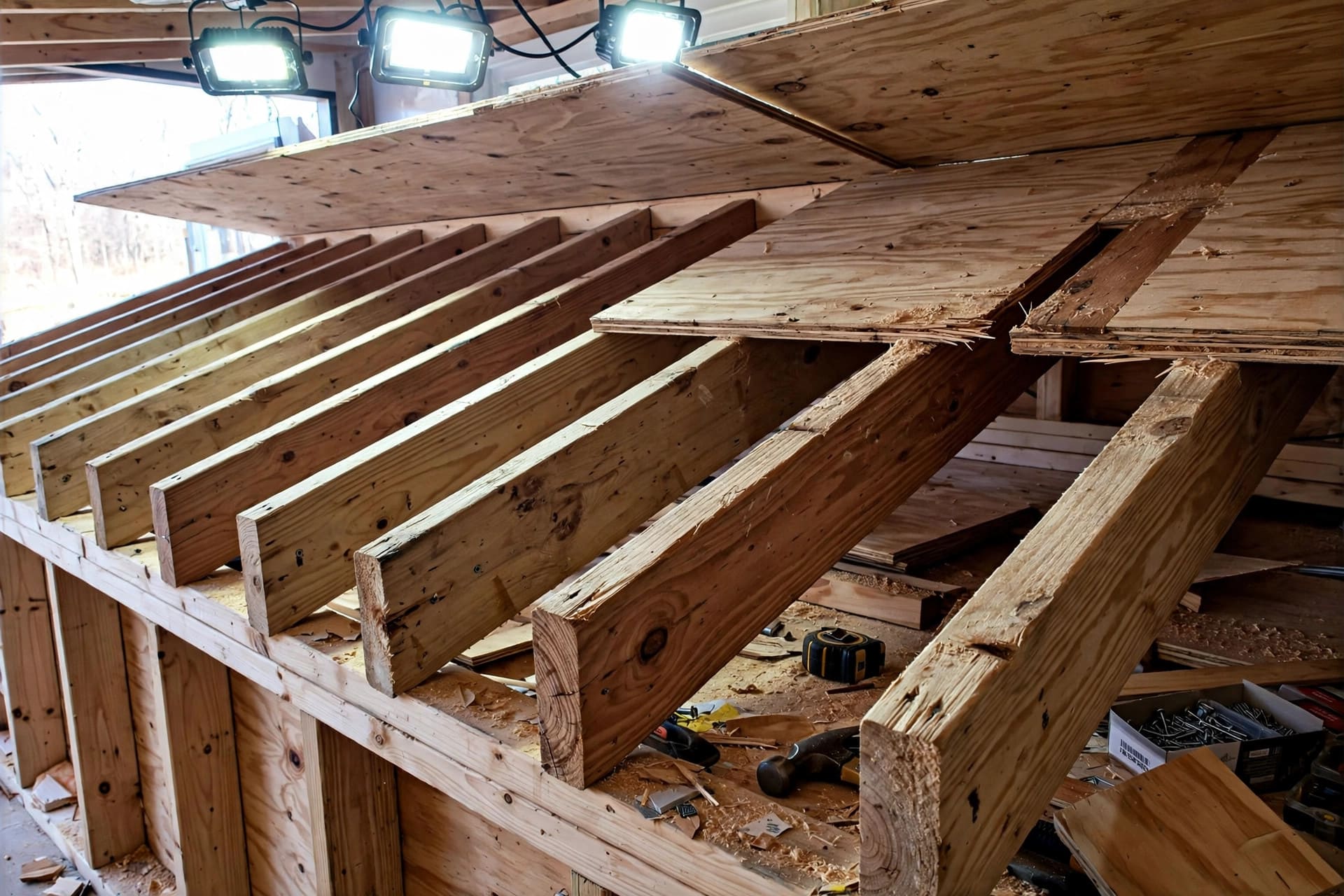

1. Upgrade the Rafters (H3)
- Size: Move up to 2×10 or 2×12 rafters.
- Spacing: Decrease the spacing from the standard 16″ or 24″ on center to 12″ on center. This doubles the number of rafters carrying the load.
- Steel Reinforcement: Some builders sandwich a steel flitch plate between two wood rafters to carry the load without increasing the ceiling thickness too much.
2. Upgrade the Sheathing (H3)
Standard 7/16″ OSB or 1/2″ plywood will bow between the rafters under the weight of wet soil.
- Requirement: Use 3/4″ CDX Plywood or even two layers of 1/2″ plywood glued and screwed together. The deck must be incredibly rigid to prevent the waterproofing membrane from stretching and tearing.
3. Upgrade the Trailer (Crucial) (H3)
This is where most dreams die. That 5,712 lbs of soil cuts directly into your payload capacity.
- The Problem: If you buy a standard 14,000 lb GVWR trailer and your empty shell weighs 10,000 lbs, you only have 4,000 lbs left for everything (cabinets, water, clothes, you). A green roof eats your entire payload buffer.

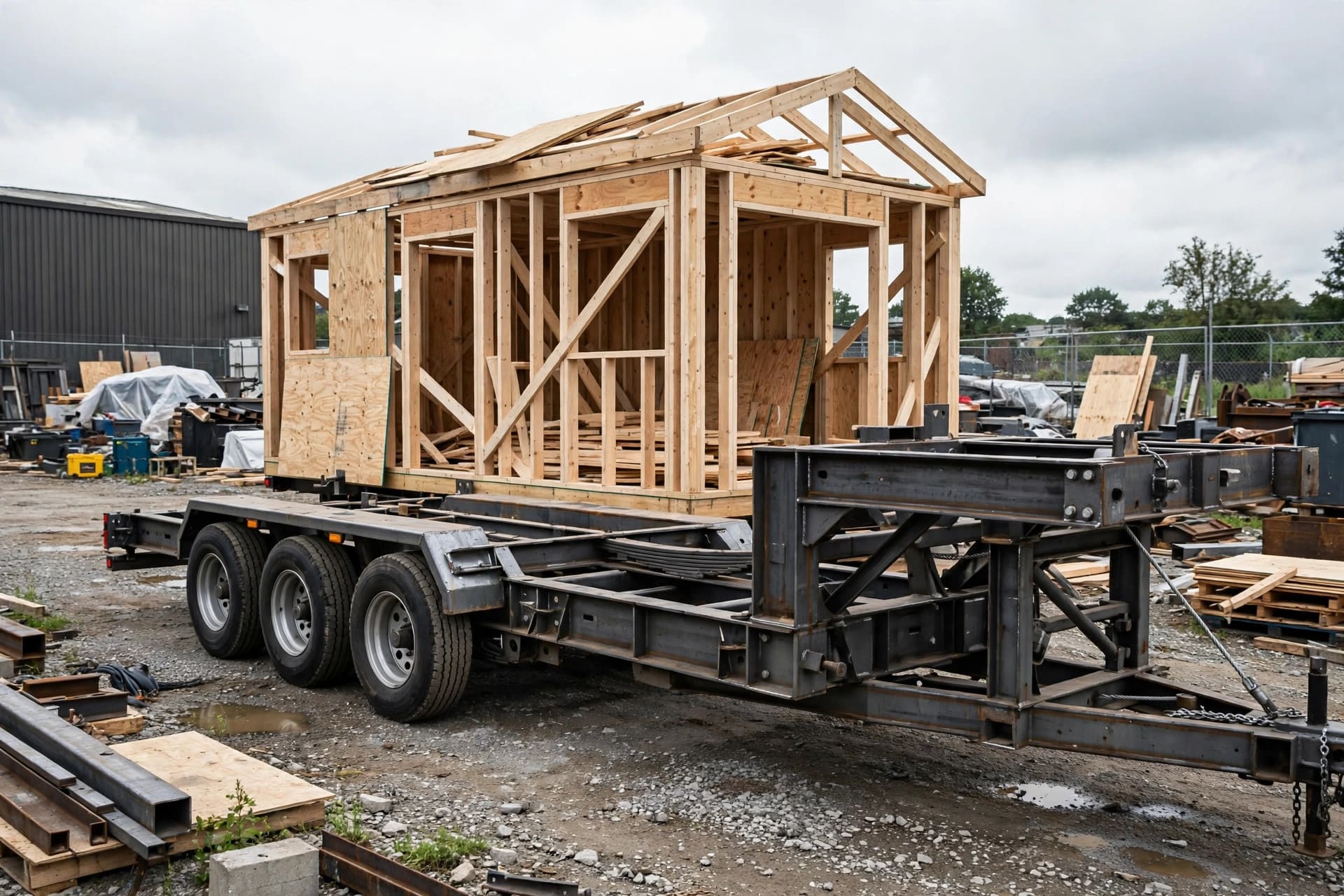

- The Fix: You likely need a Triple Axle Trailer (21,000 lb GVWR) or a heavy-duty gooseneck to legally carry a green roof.
The Waterproofing Assembly
A leak in a green roof is catastrophic because you have to shovel 3 tons of dirt to find it. You must use a “belt and suspenders” approach.

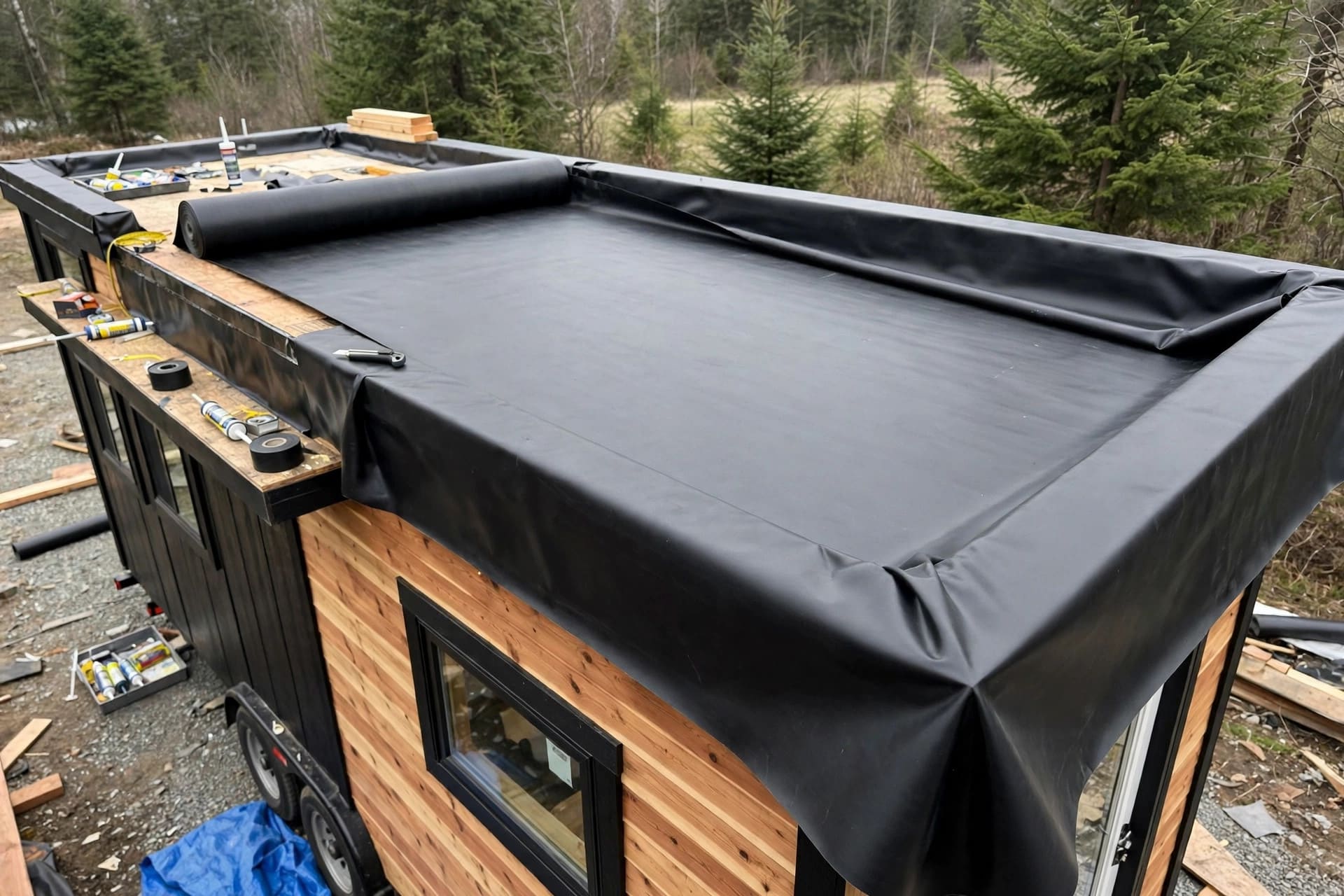

Layer 1: The Membrane
EPDM (Rubber) is the industry standard.
- One Piece: You must order a single sheet large enough to cover the entire roof and wrap up the sides (parapets) without any seams. Seams are failure points.
- Thickness: Use 60-mil or 90-mil commercial grade, not the thin 45-mil used for RVs.
Layer 2: Root Barrier
Roots are strong; they can bore through asphalt and thin plastic.
- Install a designated root barrier fabric on top of the EPDM to prevent sedums from eating your roof.

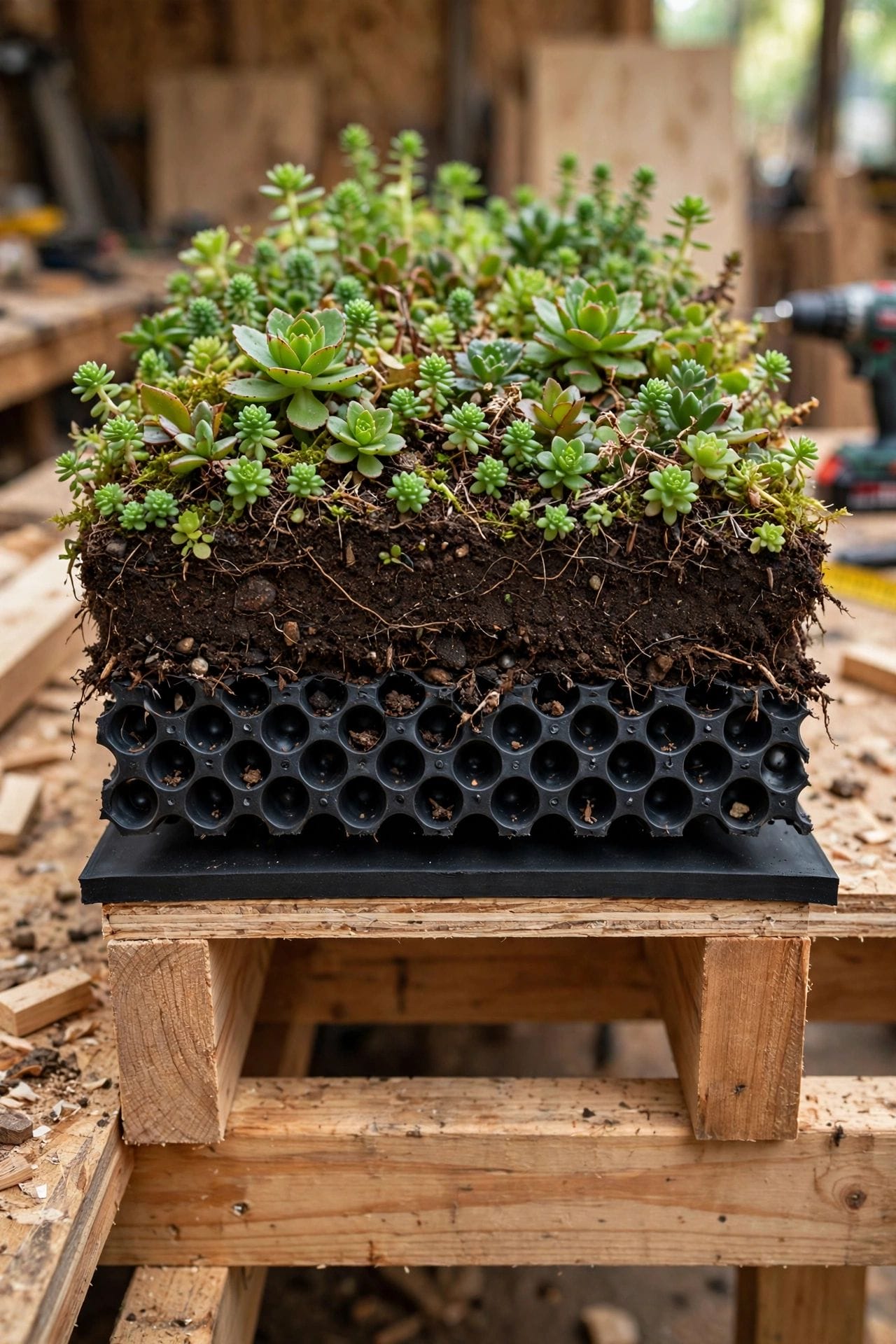

Layer 3: Drainage Mat
Water must move. If water sits stagnant, it rots the roots and adds unnecessary weight.
- Use a dimpled plastic drainage mat (looks like an egg crate) to create an air gap that allows excess water to flow to the gutters.
Highway Logistics: The Wind Problem
How do you keep the soil from blowing off at 60 MPH?
- Parapet Walls: You need a curb (parapet) around the entire perimeter, at least 2 inches higher than the soil level.

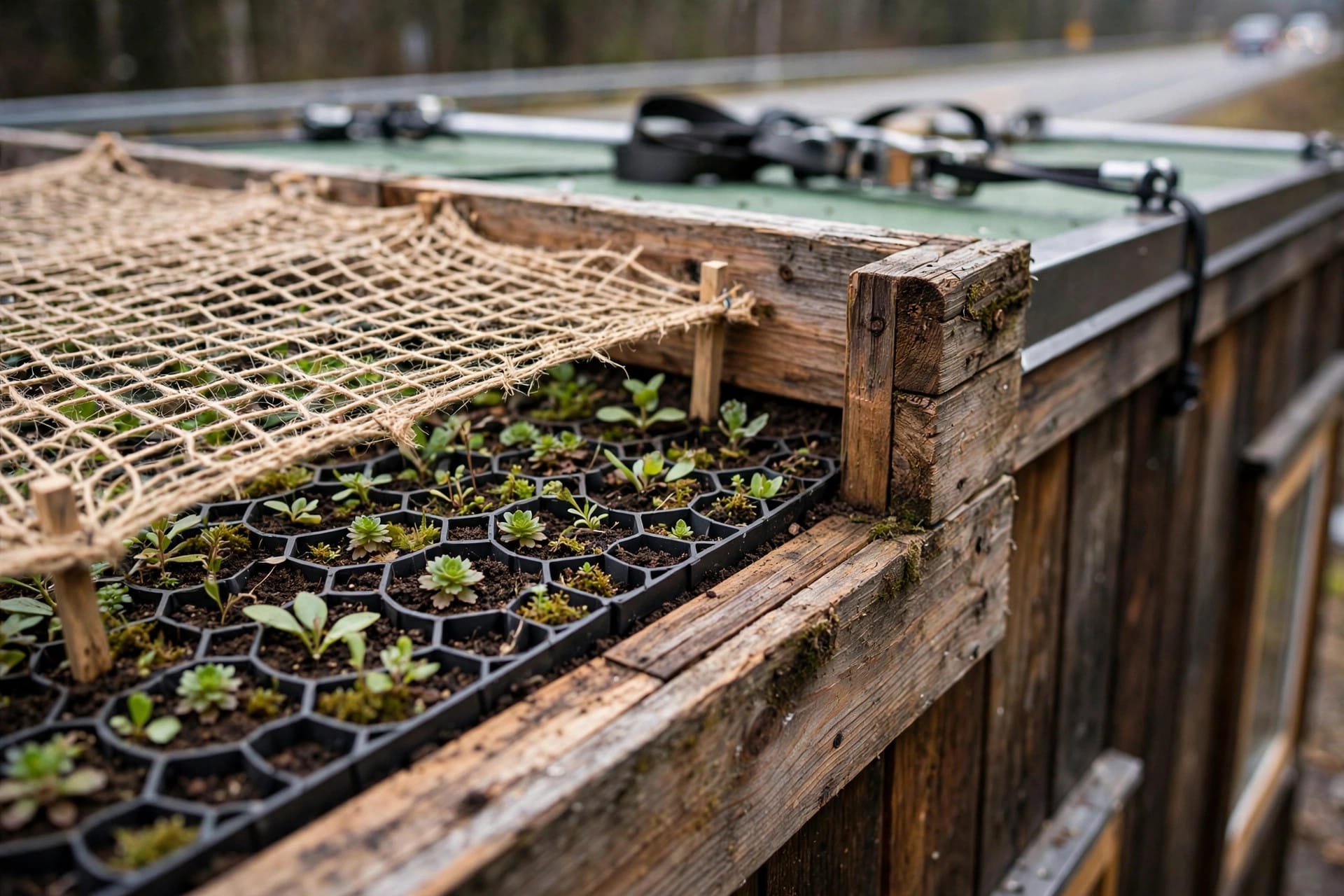

- Soil Baffles: Inside the soil bed, install honeycomb grids (cellular confinement systems). These plastic grids hold the soil in place and prevent it from shifting or sliding during braking and acceleration.
- Wind Erosion Netting: Until the plants are fully established (root-bound), cover the soil with biodegradable jute netting or a burlap scrim to prevent the wind from scouring the dirt away.
Conclusion
Can you put a green roof on a tiny house? Yes. Should you? Only if you engineer for it.
A green roof requires a massive investment in structural lumber, custom trailer axles, and commercial waterproofing. For most tiny house owners, the weight penalty isn’t worth it. However, if you are parking permanently and won’t be moving often, a green roof offers insulation and beauty that no shingle can match.
Green Roof Checklist
- [ ] Trailer Check: Do I have 5,000+ lbs of spare payload?
- [ ] Rafters: Are they 2x10s at 12″ OC?
- [ ] Membrane: Is it a single-piece 60-mil EPDM?
- [ ] Drainage: Do I have scuppers or gutters designed for mud/runoff?
- [ ] Plants: Am I using drought-tolerant Sedums (shallow roots) instead of grasses?
