Rain Screen Installation: The Secret to a Rot-Proof Tiny House

If there is one silent killer of tiny houses, it is not the wind or the highway vibration — it is trapped moisture. Siding is not waterproof, and the water that gets behind it has nowhere to go. A rain screen gives it somewhere to go: down, out, and dried away. This guide covers the strips, the spacing and the fastening that keep a tiny house rot-proof for decades.

1. Rain Screen at a Glance

Rain screen installation is the practice of holding your siding off the wall on furring strips, so a ventilated air gap sits between the back of the siding and the weather-resistive barrier (WRB, or house wrap). That one gap does two jobs at once: gravity drains bulk water down and out the bottom of the wall, and circulating air evaporates whatever moisture remains. It is not a product you buy — it is a system you build, and every number that governs it is small, cheap and easy to get wrong. The table below gathers the whole system in one place; the sections after it take each row apart.

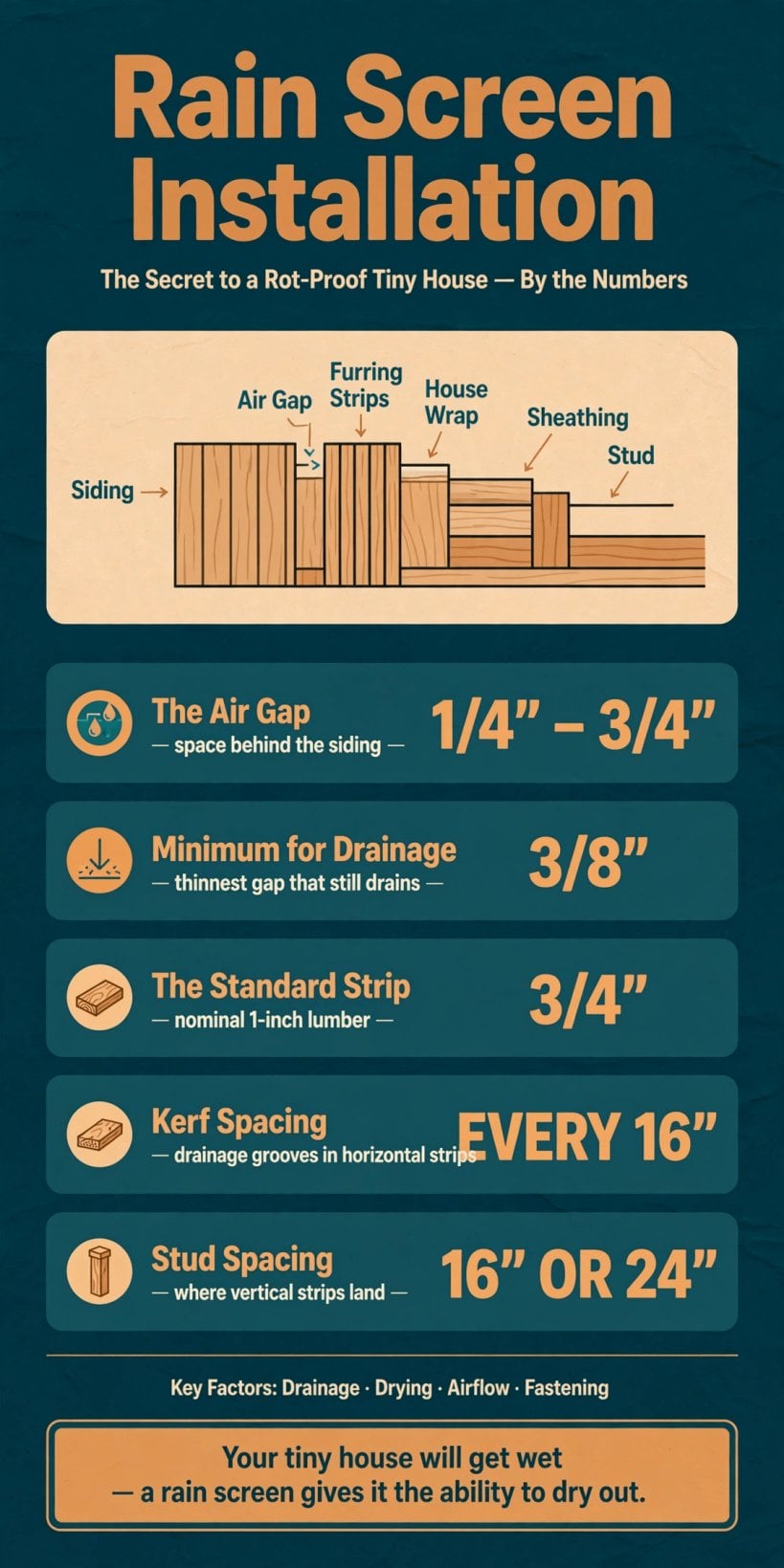

A 1/4″ to 3/4″ gap, a 3/8″ drainage floor, kerfs every 16 inches and studs at 16 or 24 — the whole rot-proofing system on one card.

2. Why Siding Alone Fails: The Three Ways Water Gets In

Many first-time builders assume that siding is waterproof. It is not. Siding is a “water shedder”: it deflects most rain, but some moisture will inevitably get behind it, and it arrives by three distinct routes. Condensation forms on the back face when warm, moist air meets a cold surface. Wind-driven rain forces water through joints, laps and fastener holes that would shed a gentle shower. Capillary action wicks water sideways and even upward through tight contact points between boards. None of these routes can be sealed away completely — a wall that travels, flexes and bakes in the sun will always admit some water.

The failure begins with what happens next. If you nail your siding directly to your house wrap and sheathing, that trapped water has nowhere to go. It soaks into the wood, breeds mold, and rots your tiny house from the outside in — silently, behind a wall that still looks fine from the street. The choice of siding material matters, and our Hardie vs. LP SmartSide siding showdown weighs the two big cladding options on their own merits — but no siding, however good, was ever designed to be the wall’s only line of defence. The defence is what sits behind it.

3. A System, Not a Product: How the Gap Works

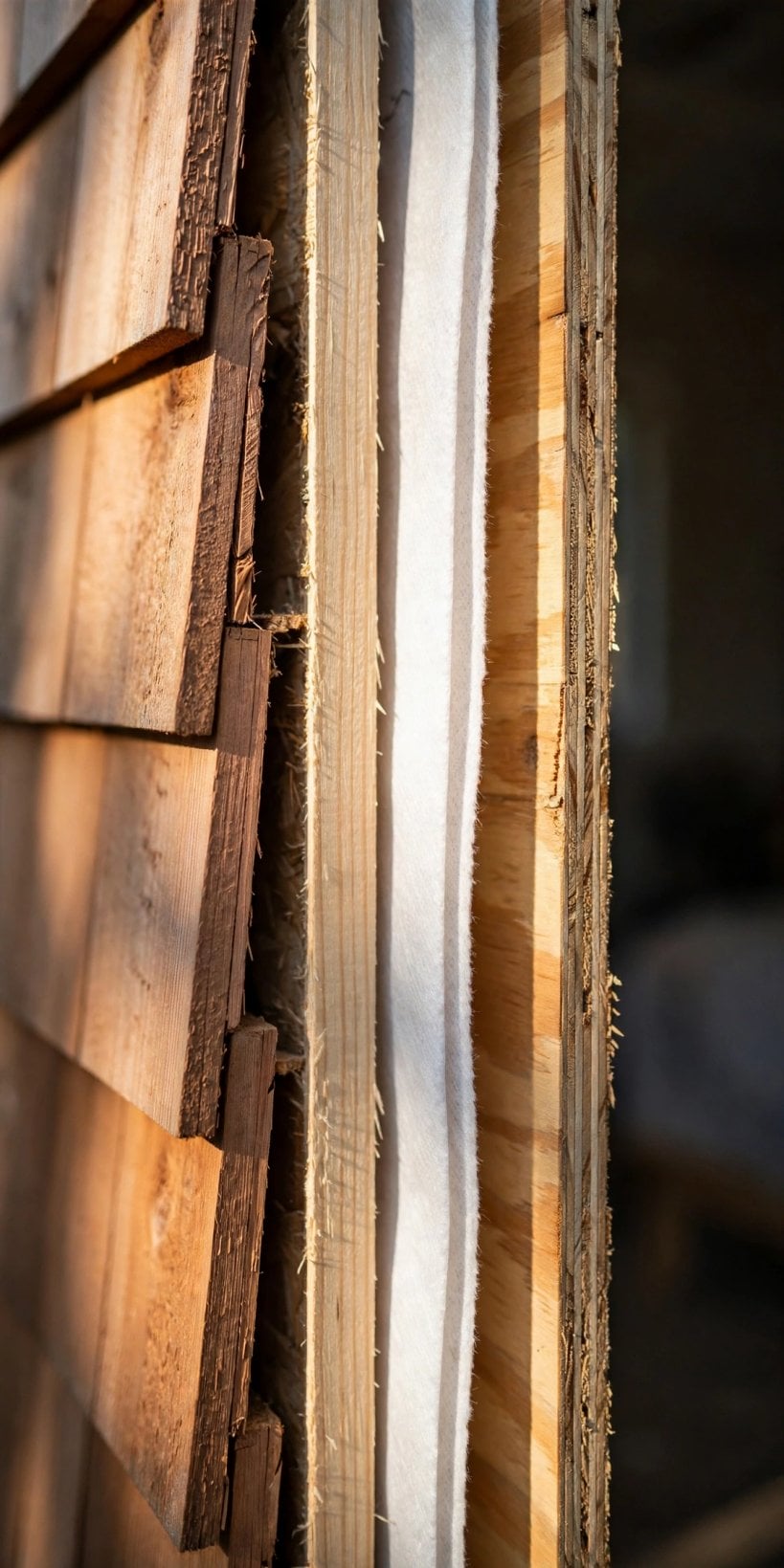

A rain screen is not a single product; it is a system. It creates a physical air gap — usually 1/4″ to 3/4″ — between the back of your siding and your weather-resistive barrier. The siding becomes a sacrificial outer skin that takes the weather; the gap becomes a drainage plane and a drying chamber; and the wrap behind it remains the actual water barrier, protected from sun, impact and the moisture load the siding lets through. Each layer has one job, and no layer is asked to do another layer’s work.

The gap performs two critical functions. The first is drainage: gravity pulls bulk water down the face of the wrap and out the bottom of the wall, instead of letting it sit against the sheathing. The second is drying: air enters at the bottom of the cavity, circulates upward through the gap, and evaporates any residual moisture before it can soak in. That is why the barrier behind the gap matters as much as the gap itself — the Tyvek vs. ZIP System air-barrier battle covers the wrap layer this system depends on. Drainage handles the water that arrives; drying handles the water that stays. A wall with both mechanisms working can get wet every week of its life and still last for decades. Notice what the system never asks of the siding: it never asks it to be a seal. The boards can shrink, swell and age as wood does, because the design assumes they will leak a little and plans the wall’s survival around that honesty.

4. Choosing Furring Strips: Lumber, Plywood and Plastic Battens

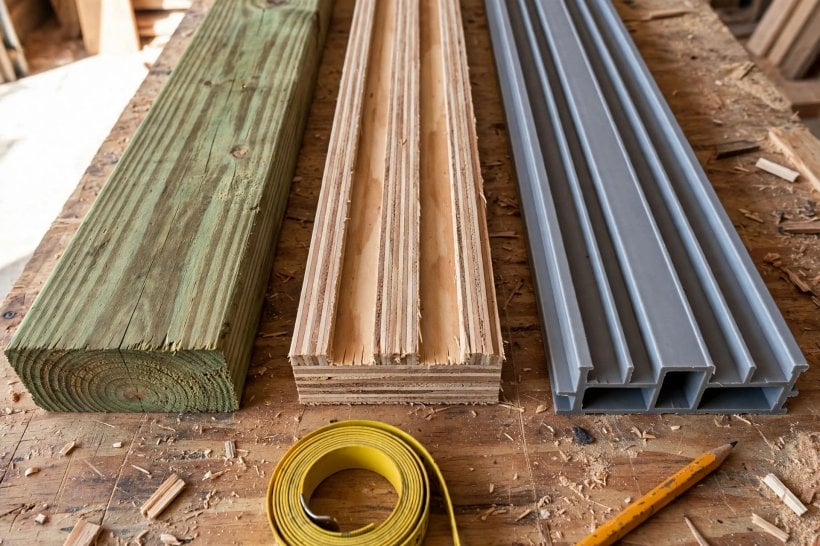

The core of the system is the furring strip — the batten that holds the siding off the wall — and for a tiny house, weight and durability are the key factors. The first option is pressure treated 1x3s: the standard choice, cheap and rot-resistant. The tiny house caution is that they are heavy, and they often come wet and warped from the store. If you use them, let them dry flat before installing, or they will twist your siding as they move. A strip that is not straight becomes a wall that is not straight.

The second option is ripping your own strips from plywood — with one hard rule. Do NOT rip standard CDX plywood into strips: the exposed edges will wick moisture and delaminate over time, putting the weakest possible material at the exact point where the wall’s water passes. The exception is marine-grade plywood, which survives the exposure — but it is expensive. The third option is the pro choice: engineered and plastic battens, products like Cor-A-Vent Sturdi-Batten made of heat-resistant plastic. For tiny houses they are close to ideal: lightweight, perfect in dimension so they will not warp, rot-proof, and they often do not split when screwed into — a huge plus for DIYers fastening hundreds of strips by hand.

5. Gap Thickness: The 3/8-Inch Floor and the 3/4-Inch Standard

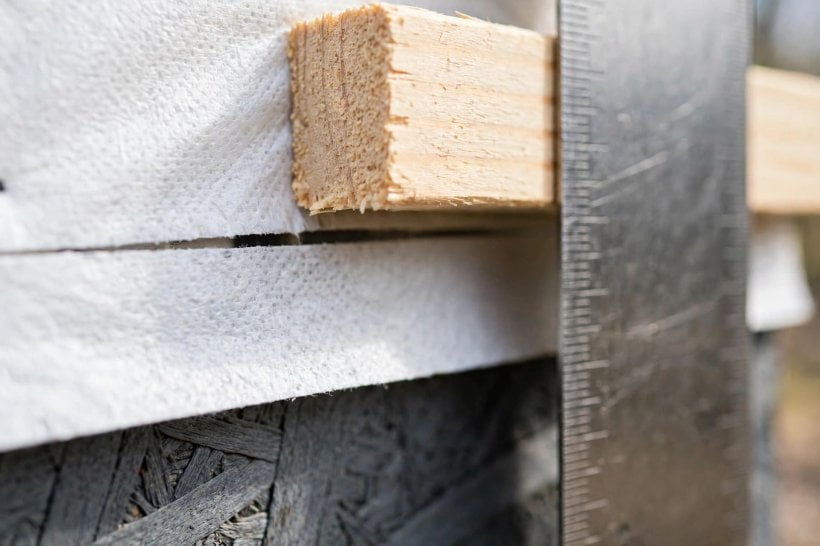

How thick should the furring strips be? The original guidance draws a clear floor and a clear standard. A minimum of 3/8″ is required for drainage: below that, surface tension lets water bridge the gap and hold against the wrap, and the cavity stops behaving like a drain. The standard, and the recommendation, is 3/4″ — nominal 1-inch lumber — because the deeper cavity provides better air circulation for drying and better nail-holding power for the siding fasteners that must pass through it.

Thickness is also where the rain screen meets the rest of the wall assembly. The cavity adds depth to every wall, changes the reveal at windows and doors, and sits alongside the insulation strategy you planned for the same studs — the insulation strategy analyzer runs that half of the wall on its own numbers. The lesson of the 3/8″ floor is that a rain screen is a threshold technology: a gap that is almost deep enough is not a shallow rain screen, it is no rain screen at all. Build to the standard, and the drainage and drying the system promises actually happen.

6. Vertical Siding: Horizontal Strips and the Dam Problem

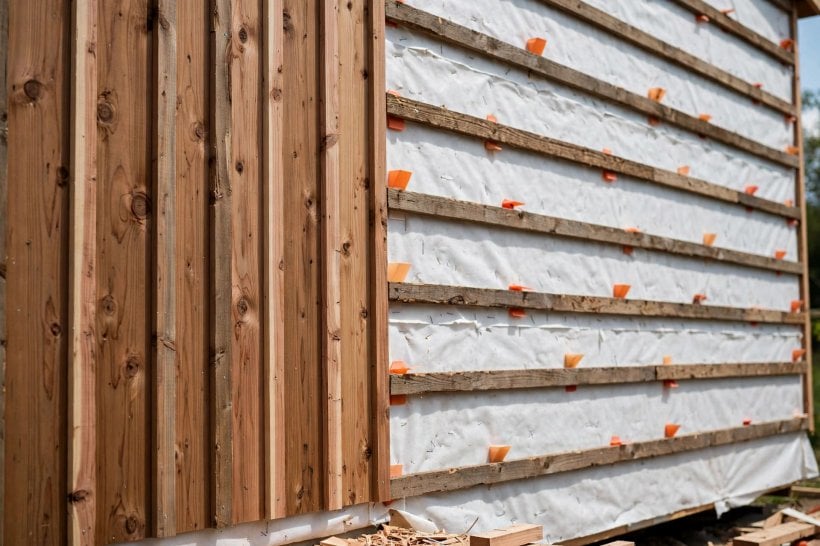

How you install your furring strips depends entirely on the direction of your siding. If your siding runs vertically — board and batten is the classic case — your furring strips generally need to run horizontally to provide a nailing surface. That creates the system’s one structural problem: horizontal strips trap water. Each strip acts like a little dam, holding moisture against the wall at every line across it. Run a vertical-siding wall with plain horizontal strips and you have built a ladder of ponds inside your own wall.

The solution is to create drainage paths through or behind every horizontal strip, and there are three established methods. The shim method: place plastic shims behind the horizontal furring strips at each stud, creating a gap behind the strip itself so water can slip past. The kerf method: if using wood strips, cut vertical kerfs — grooves — on the back of the strips every 16 inches to allow water to flow behind them. And double furring: install vertical strips first, then horizontal strips on top, so the vertical layer drains freely beneath the horizontal one. The warning on that last method is real: it adds 1.5″ of width to your tiny house, so watch your road width limits before you choose it.

7. Horizontal Siding: Vertical Strips Over the Studs

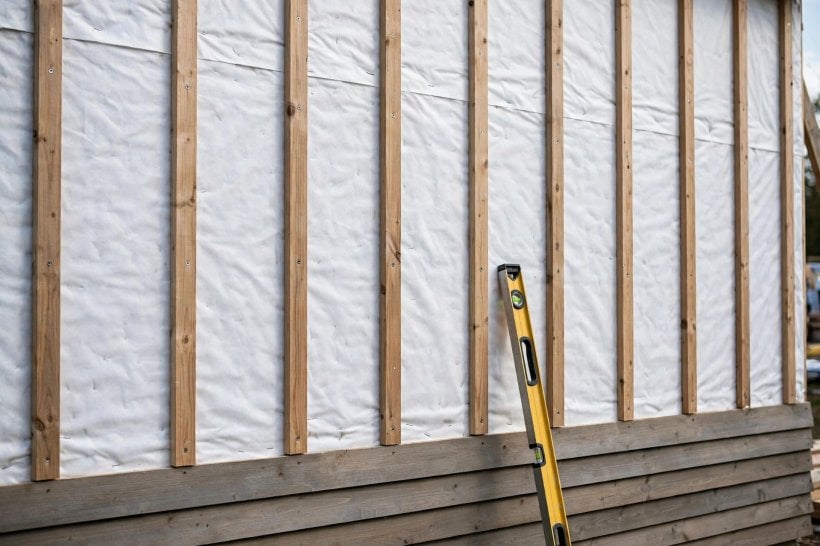

If your siding runs horizontally — lap siding or shiplap — your furring strips run vertically, and the whole problem inverts into the easiest installation of the two. Vertical strips form continuous vertical channels, and those channels naturally let water drain straight down and out the bottom of the wall: no dams, no kerfs, no shims, no second layer. Gravity and geometry do the work that the vertical-siding wall has to engineer its way around.

The one discipline that matters here is alignment. Keep the strips directly over your wall studs — usually 16″ or 24″ on center — so that your siding nails, driven through siding and strip, land in solid framing rather than in sheathing alone. A vertical channel that wanders off the stud line looks identical from outside and fails the fastening rule the next section covers. Mark the stud lines on the wrap before the first strip goes up, and the easiest version of this system stays easy all the way to the last board. Keep the channels honest at the ends, too: each vertical strip should run the full height of the wall so its channel is one unbroken drain from top plate to bottom edge, where the bug screen of the next section guards the exit. A channel interrupted halfway is a shelf, and a shelf inside a drainage plane is just another dam.

8. Bug Screens: Sealing the Gap Without Closing It

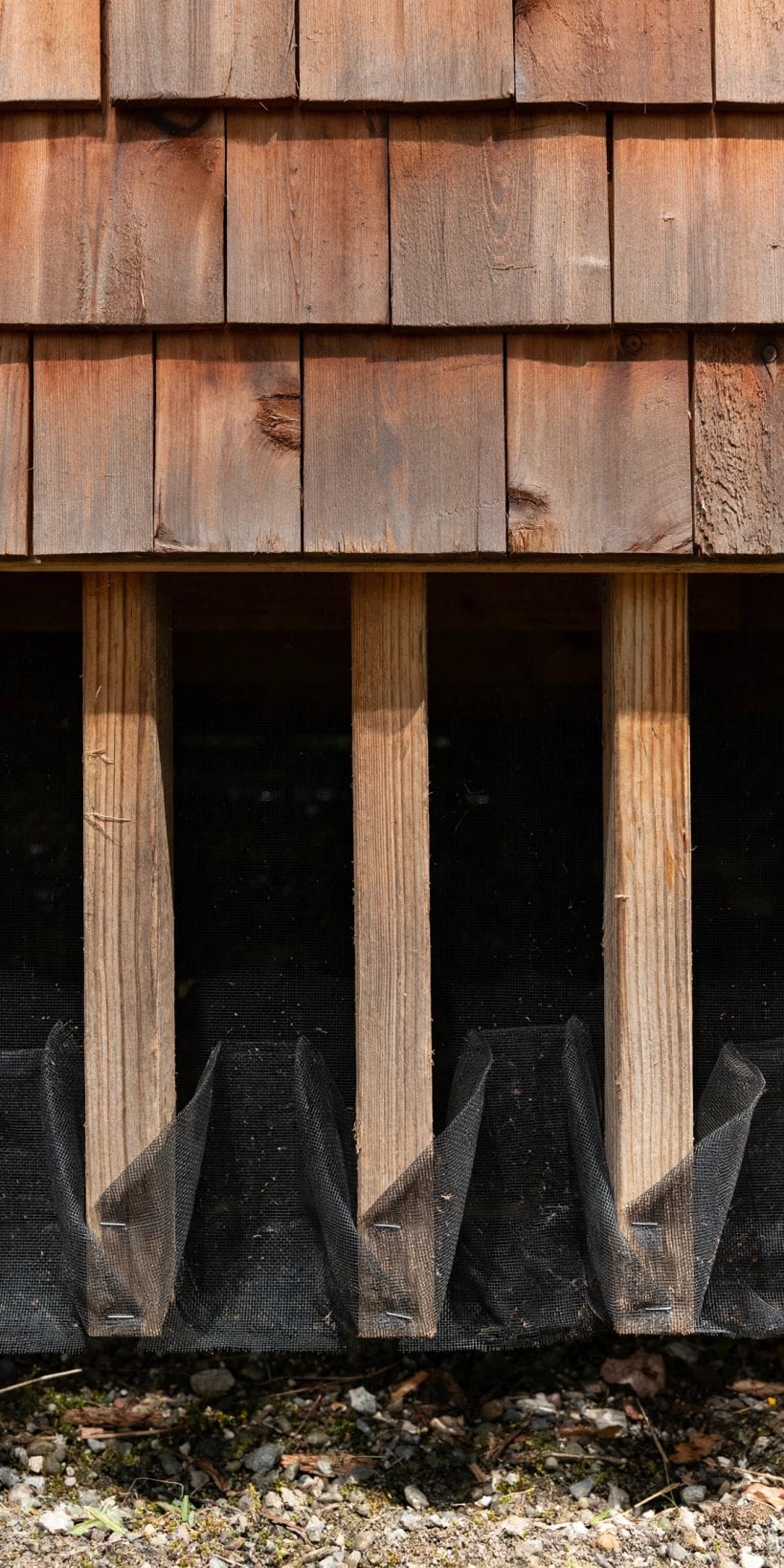

A rain screen creates an open gap at the bottom of your wall, and an open gap is an open invitation: without protection, wasps, spiders and mice will nest inside your walls, in a warm, dry cavity you built for air and accidentally offered to them. The critical detail is the bug screen, and its installation has a specific order. Install the screen first: before putting up any furring strips, wrap the bottom edge of your sheathing with a high-quality insect screen or a specialized ridge vent mesh.

Then fold it up. Let the screen hang down while you install your furring strips, and afterwards fold the screen up over the bottom of the furring strips and staple it to the face of the strips. Now the bottom of the cavity is closed to animals and open to everything the system needs: air can flow in, water can flow out, but bugs are locked out. It is the same philosophy as the moisture management in our tiny home summer prep guide — in a small wall, every opening has to be deliberate. Skip the screen and the first wasp nest will block the drainage path the whole system depends on, at the exact point where the water needs to leave.

9. Fastening for the Highway: Screws, Ring-Shanks and the 1-Inch Rule

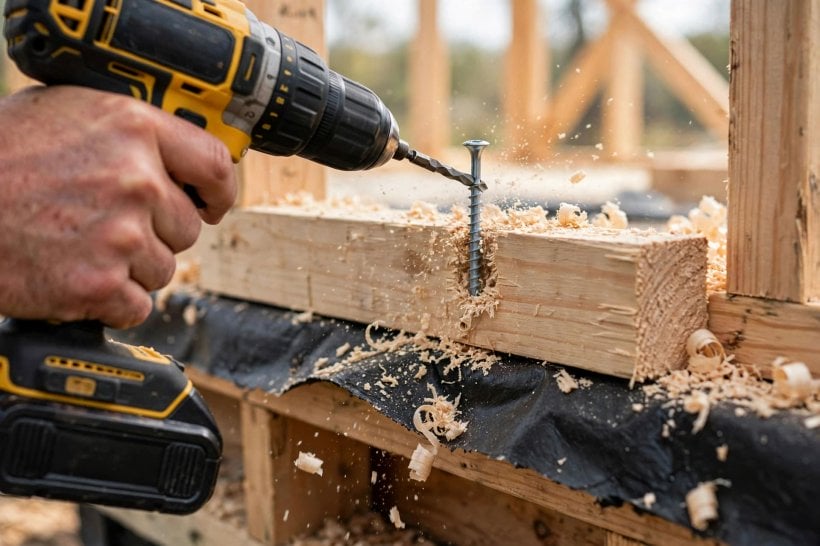

On a stationary house, you might just nail furring strips and move on. A tiny house hurtles down the highway, vibrating for hours at a time and taking wind loads a parked house never sees — the same road-safety thinking behind selecting windows for road safety applies to every strip on the wall. Use screws: exterior-grade structural screws, or ring-shank siding nails, to attach furring strips to the studs. Smooth fasteners in a vibrating wall work themselves loose; threads and rings are what hold a moving house together.

Then respect the penetration rule. Your siding fasteners need to be long enough to go through the siding, through the air gap the furring strip creates, and still embed at least 1 inch into the solid stud. The gap that makes the system work also eats an inch of every fastener’s reach, so fastener length has to be chosen for the assembly, not for the siding alone. And the rule with no exceptions: no “floating” strips. Never attach furring strips only to the sheathing — they must be anchored to the studs, or the wind load could rip your siding off. A rain screen is only as strong as its anchorage, and on the road, anchorage is everything.

10. Width, Weight and the House Wrap Question

Three planning questions close the system out. The first is width. Adding 3/4″ furring strips on both sides adds 1.5 inches to your total width — and if you chose double furring for vertical siding, that figure arrives on one wall build-up alone. If you are building to the maximum 8’6″ road limit, you must account for the furring in your floor plan design, not discover it at the tape measure when the walls are already up. The second is the envelope above and below the wall: eaves, overhangs and drainage at the roof edge decide how much water the wall is ever asked to handle, which is why eaves and overhangs for tiny homes and removable gutter systems belong in the same conversation as the wall cavity.

The third question is the one every builder asks: do I still need house wrap if I have a rain screen? Yes. The house wrap is your actual water barrier; the siding and its ventilated gap are the protective skin that keeps weather, sun and bulk water off that barrier. Remove the wrap and the drainage plane drains onto bare sheathing — the rot problem returns with better ventilation. Finally, the honest cost: installing the system adds a day or two to your build time and a bit of width to your trailer. Against a wall assembly expected to last decades, that is the cheapest line in the whole budget.

Final Considerations

Installing a rain screen is the single best insurance policy against rot a tiny house builder can buy, and it is bought with batten strips, bug mesh and a day or two of labour rather than money. Strip choice sets the weight and the lifespan, orientation decides whether drainage is free or engineered, the screen keeps the cavity yours, and the fasteners decide whether the system survives the highway. The recurring myth — filed with the other tiny house myths we have debunked — is that good siding makes all of this unnecessary. It does not. When your tiny house gets wet, and it will, the rain screen is what gives it the ability to dry out, keeping your home healthy and mold-free for decades.
