White walls alone do not make a house Scandinavian. Nordic design was forged through long, dark winters, and at heart it is daylight engineering: chase every lumen, keep sightlines open, and hide daily life behind flush fronts. These Scandinavian tiny house floor plans translate that discipline into buildable layouts, so a small home feels calm and spacious instead of merely small and white.
1. At a Glance: The Scandinavian Approach in Brief
Every plan in this collection follows the same logic. The window layout is decided first, because in a Nordic home the windows are the architecture. Partitions are kept to a minimum so daylight and sightlines travel the full length of the house. Materials are limited to a pale, honest palette, warmth is gathered around a single focal point, and storage is built into the walls themselves rather than added as furniture. The result is a floor plan that behaves like a much larger house.
| Principle | In the plan | Why it works small |
|---|---|---|
| Daylight first | Generous glazing, tall window heads, glass doors | Light reaches deep into the plan, erasing the dark middle |
| Open volume | One continuous room; the bathroom pod is the only fixed enclosure | Long sightlines make a compact footprint feel expansive |
| Pale materials | Ash, birch or white-oiled pine floors; warm white walls | Light surfaces bounce daylight instead of absorbing it |
| One warm centre | A small stove or hearth nook as the single focal point | Heat and social life gather in one efficient zone |
| Storage as architecture | Flush, handleless fronts; drawers and walls that hold things | Nothing competes visually, so the room stays quiet |

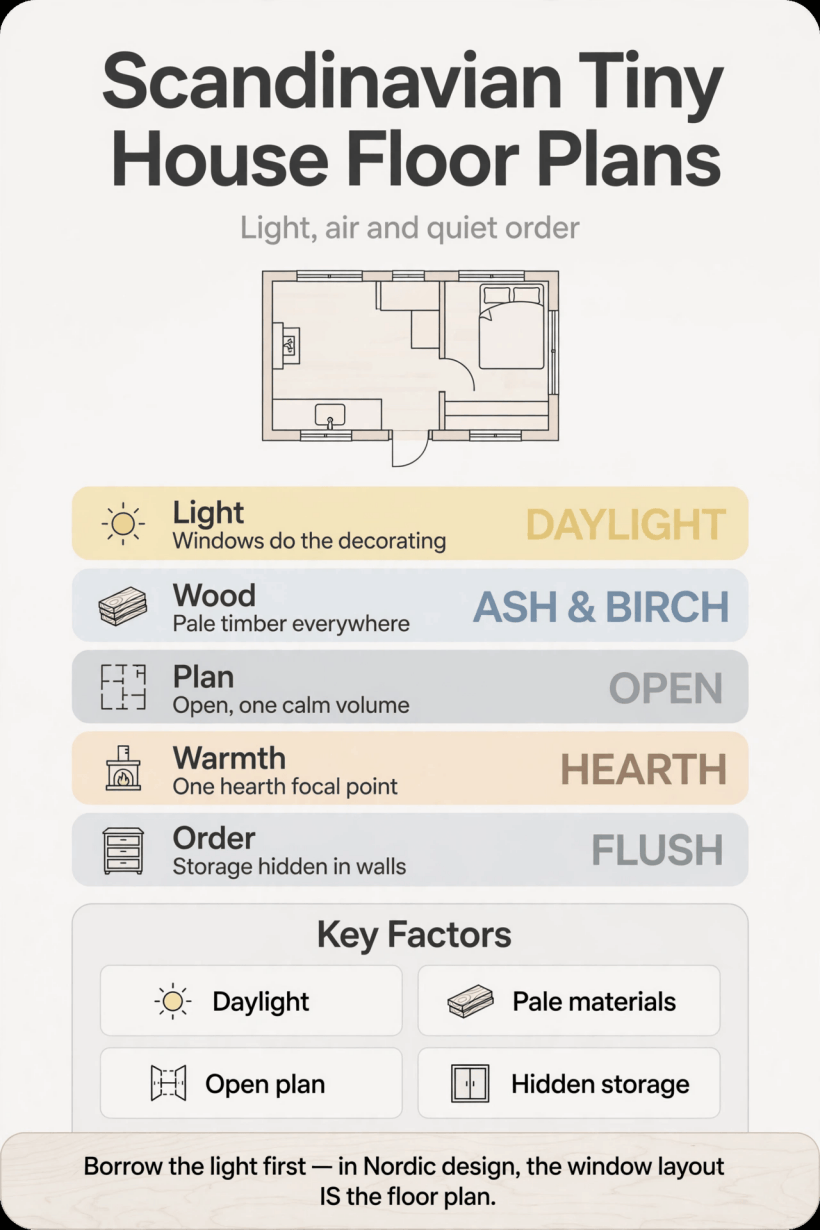

The five principles behind every layout below: daylight, pale wood, an open plan, one warm centre, and storage hidden in the walls.

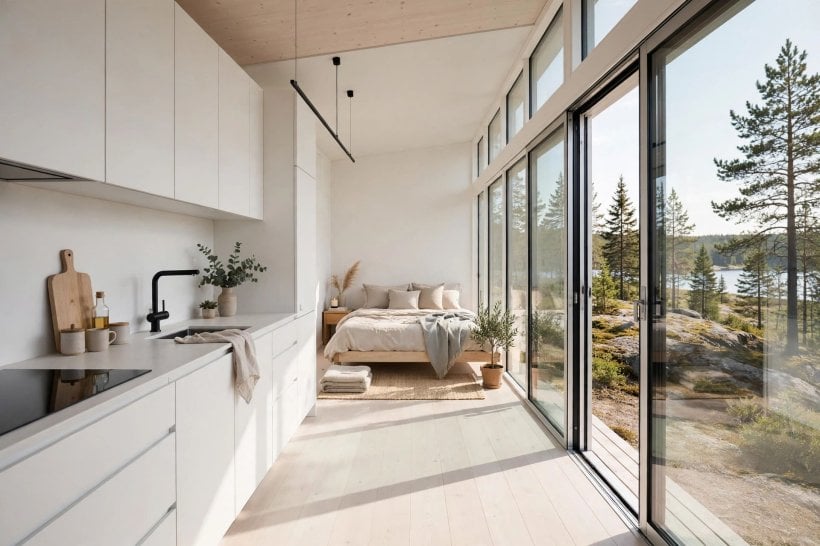

2. The Light-Room Layout: Windows as Architecture

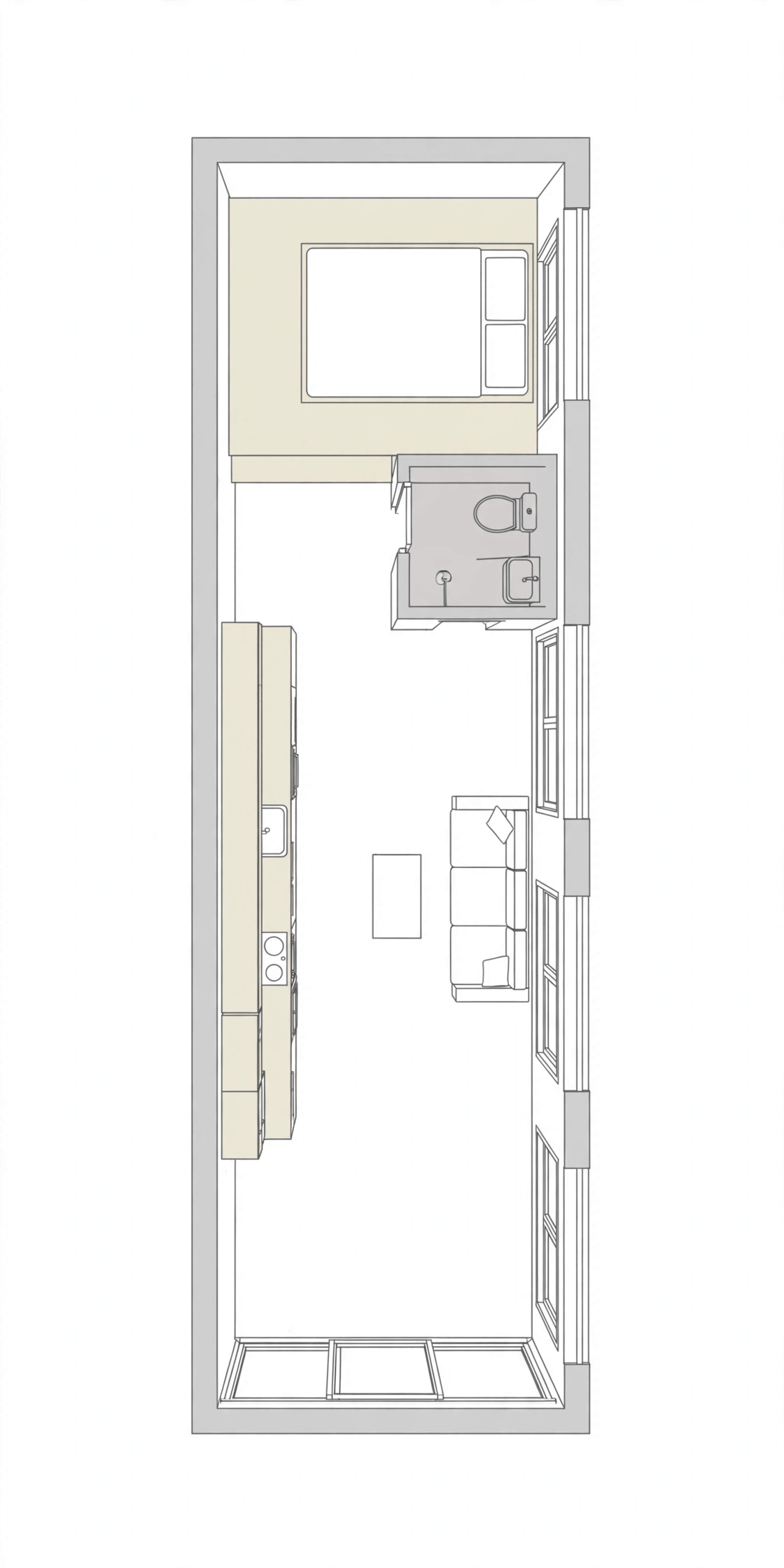

The Ljusrum, or light-room, is the purest expression of the approach. On an 8×24 tiny house on wheels footprint, one continuous living volume runs the full length of the house with no interior walls except the bathroom pod. The kitchen sits along one wall in handleless flat-front cabinets painted soft white, the sleeping zone is a low platform at the far end rather than a loft, and a wide sliding glass door at the living end floods the whole space with light. Pale ash flooring runs unbroken from end to end, reflecting daylight deep into the plan.
The governing rule is quantitative: in Nordic design, window area should reach roughly 15 to 20 percent of floor area. For a house of about 192 square feet, that means 30 to 38 square feet of glazing, approximately double what most tiny houses install. Window heads sit high, at seven feet or more, so light is thrown across the ceiling plane and deep into the room instead of pooling at the glass. Nothing tall stands near the window wall to interrupt it. The plan works because the glazing schedule was drawn before the furniture plan, not fitted around it afterwards. If you are comparing footprints, the layouts in our guide to 200 sq ft tiny house layouts show how much harder a conventional plan has to work to feel this open.

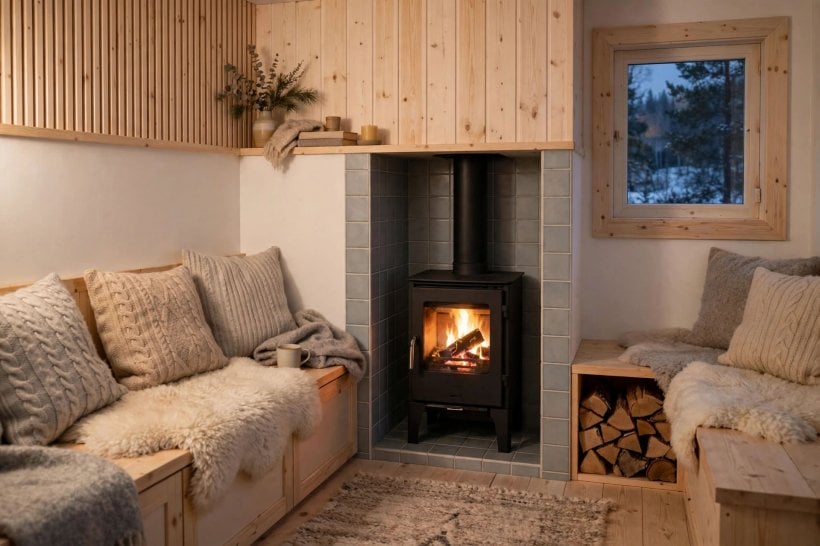

3. The Hearth Nook Layout: One Warm Centre
Hygge needs a hearth. The Hyggekrog plan, on an 8×20 footprint, centres the whole house on a compact wood stove sized for the volume, set into a tiled alcove at the living end, with built-in bench seating wrapping two sides of it. The kitchen occupies the middle band in a single-wall layout, and the bedroom sits behind a sliding shoji-style screen rather than a hinged door, so the boundary between zones is visual rather than physical. Everything within a short radius of the stove stays genuinely warm; everything beyond it is wool blankets and good socks.
The hearth is also a planning discipline. Manufacturer clearances must be maintained around the stove, reducible only with proper heat shields, and in a house of around 160 square feet that protected zone consumes real floor area, so it is drawn on the plan first and the seating is designed around it. That is precisely why the nook works: the benches turn a safety requirement into the social heart of the house. The stove becomes furniture, focus and heating system in a single move, and the rest of the plan is free to stay pale, open and quiet.
4. The All-White Gallery: A Calm Single Volume

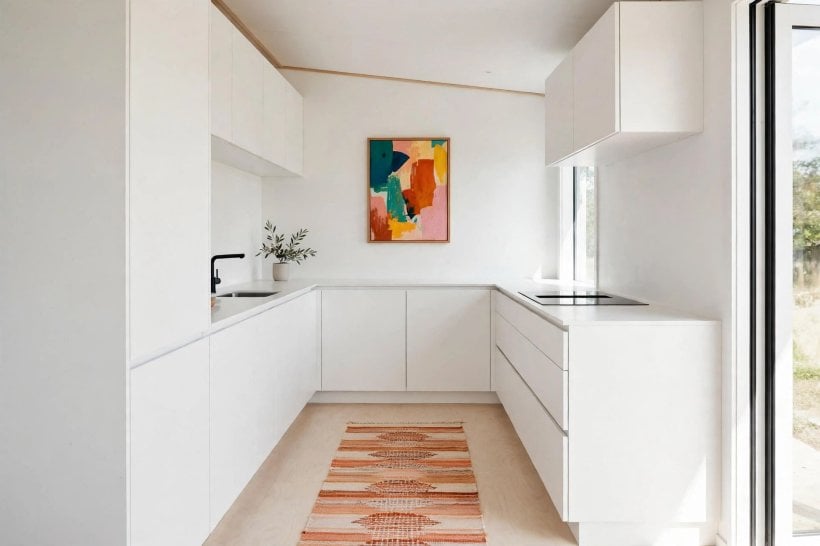

The All-White Gallery, a 10×20 foundation plan, pushes restraint furthest. White walls, a white ceiling, pale birch plywood floors, and exactly three materials in the entire house. The plan is a simple split: the public zone of kitchen and living fills the front two-thirds, while the private zone of bed and bath sits behind a full-height birch-ply partition wall with hidden storage built into both of its faces. Art and textiles provide the only colour. Every object must earn its place in the open or live behind a flush door.
That partition is the plan’s real architecture. Because it stores from both sides, it replaces a wardrobe, a linen cupboard and a run of kitchen units at once, which is what allows the two rooms it divides to stay almost empty. The honest maintenance truth travels with the concept: all-white interiors in small spaces show everything, so scrubbable matte paint rather than flat paint is the sensible specification, and the house asks for a brief daily reset. That reset is not a flaw in the design; in Scandinavian thinking it is the lifestyle the design is for. Compact footprints planned this way reward the same discipline you will find in 10×20 tiny house floor plans generally: one hardworking wall, and freedom everywhere else.

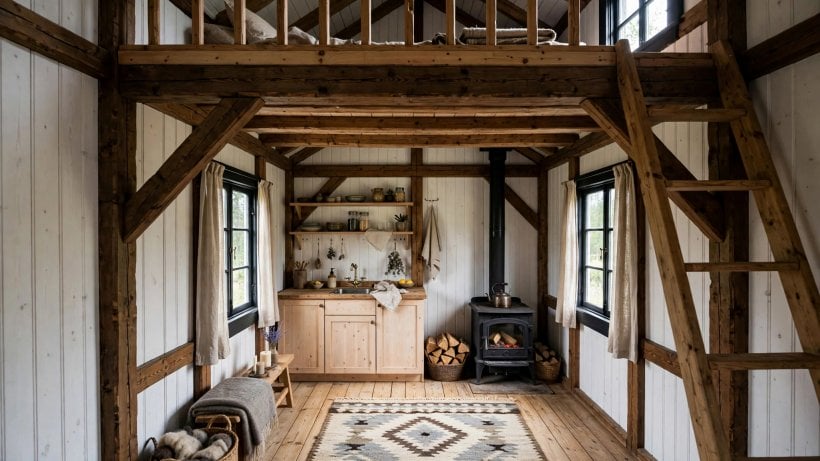

5. The Timber-Frame Stuga: Cabin Honesty at Small Scale
The stuga is the Swedish summer cabin, and its DNA suits tiny houses perfectly. In this 12×16 plan, one great room sits inside an exposed timber frame, with a compact kitchen along the gable wall and a small sleeping loft above, used only for sleep. Vertical pine paneling, a simple gable roof and a wood stove complete the picture. There is no trim and no casing to draw the eye; the frame itself is the ornament, and the joinery is the decoration.
What the stuga teaches floor planning is honesty about structure. Because the frame is visible, nothing in the plan pretends to be what it is not, and every partition has to justify interrupting the rhythm of the posts. One practical consequence is acoustic: exposed timber in a small volume dominates sound as well as sight, so textile layers, rugs, curtains and an upholstered bench, are not soft decoration but necessary acoustic treatment. Builders drawn to this route will find kindred thinking in our compact timber frame cabin floor plans, where the frame likewise leads and the rooms follow.

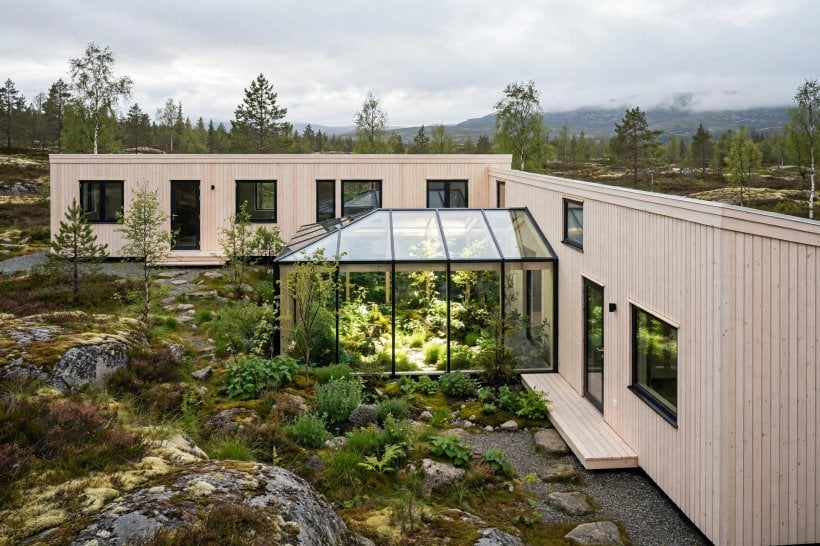

6. The Courtyard Plan: Turning the House Toward Itself
Deep floor plans have a dark middle, and the Courtyard Atrium plan solves it by turning the house inward. An L-shaped plan wraps a small glass-roofed atrium: bedrooms and bath form one leg of the L, the living-kitchen the other, and the atrium between them acts as a light well and a micro-greenhouse. In winter the atrium works as a solar collector, gathering low sun into the centre of the house; in summer, vented skylights dump the accumulated heat before it can build.
The courtyard changes what an interior room can be. Spaces that would normally need an outside wall for a window instead borrow light and outlook from the atrium, so the plan can be deeper and more compact on its plot without any room feeling buried. The glazing specification matters, though: atrium glass should be low-E and double-glazed at minimum, because a single-glazed roof light in a cold climate is effectively a radiator pointed at the sky. Planned carefully, the atrium is also the house’s social centre, a bright internal garden room that every other room looks into.
7. Kitchens and Bathrooms the Nordic Way
Across all ten concepts, the kitchen follows one of two patterns: a single-wall run of handleless flat-front cabinets, as in the light-room, or a disciplined galley aligned on the house’s main axis. The Monochrome Galley House extends that second idea to the whole dwelling: kitchen flows into dining ledge, dining ledge into living bench, everything on one line and in one pale palette, while the opposite wall is floor-to-ceiling storage behind push-latch doors, completely flush. A continuous light cove washing down the storage wall removes the cave effect that long, narrow plans often suffer.
Bathrooms follow the same philosophy of the contained pod. Rather than scattering plumbing through the plan, the wet functions are gathered into one compact volume, the only fully enclosed room in most of these layouts, positioned so the rest of the house stays one open field of light. Fixtures are wall-hung or built in wherever possible, surfaces are pale and scrubbable, and the door is often a slider so its swing never steals floor. A dedicated work corner can join this serviced zone without breaking the calm, an arrangement explored in our tiny house plans with a home office nook.
8. Storage Without Visual Noise
Storage is where Scandinavian planning most clearly separates itself from decoration. The Floating Platform concept makes the point best: sleeping happens on a low platform rather than in a loft, the ceiling stays at full height throughout, and the platform’s depth holds a bank of large drawers, roughly the capacity of a full double wardrobe, beneath the bed. The platform edge, finished in oak, becomes the room’s datum line, a calm horizontal stripe that visually widens the space. Nothing about it reads as furniture; it reads as floor.
The same principle repeats at every scale. The gallery plan’s partition stores from both faces. The galley house devotes an entire wall to flush, handleless storage. Even the family plan gives each child a defined personal corner with a shelf and a light rather than loose furniture. In every case the storage was drawn as part of the wall section, not shopped for afterwards. The planning rule is simple to state and demanding to follow: if an object cannot live behind a flush front, it has to earn its visibility daily, the way the stove and the dining table do.
9. THOW vs Foundation in Scandinavian Plans
Some of these concepts are native to wheels and some to foundations, and matching concept to base matters. Scandinavian tiny house floor plans on wheels, the light-room, the hearth nook, the galley house and the floating platform, exploit the THOW’s long, narrow tube: one axis, one volume, glazing concentrated where it can run uninterrupted. Foundation plans unlock the shapes wheels cannot carry. The Fjord-View Glass Gable, at 10×24, glazes an entire gable end from floor to ridge and subordinates the whole plan to the view, living at the glass, bed and bath at the dark end, provided the glass is triple-glazed and shaded by a deep roof overhang.
Foundations also allow the plan to grow sideways: the L of the courtyard, and the Compact Family Scandi at 10×28, which places the parents’ bedroom behind a sliding oak door at one end and a dedicated children’s bunk zone at the other, with a generous living-kitchen and a real dining table between. At the far end of the spectrum sits the Off-Grid Hytte, the Norwegian mountain cabin reduced to an 8×16 footprint with a sleeping loft, one wood-fired room and minimal services. Comparing these with the broader layouts in 300 sq ft tiny house layouts shows the trade clearly: foundations buy width and courtyards, wheels buy simplicity and the purest single-volume plans.
10. Mistakes That Break the Calm
The most common failure is treating Scandinavian design as a paint colour. A conventional plan with partitions everywhere, painted white, is still a conventional plan, and it will feel cramped in exactly the usual ways. The daylight numbers are the antidote: aim for an interior daylight factor in the region of three to five percent in living zones, keep window heads high, and ban anything tall from standing close to a window wall. Light-coloured surfaces with high reflectance multiply every window’s effect; dark floors do the opposite and absorb the light the plan worked to gather.

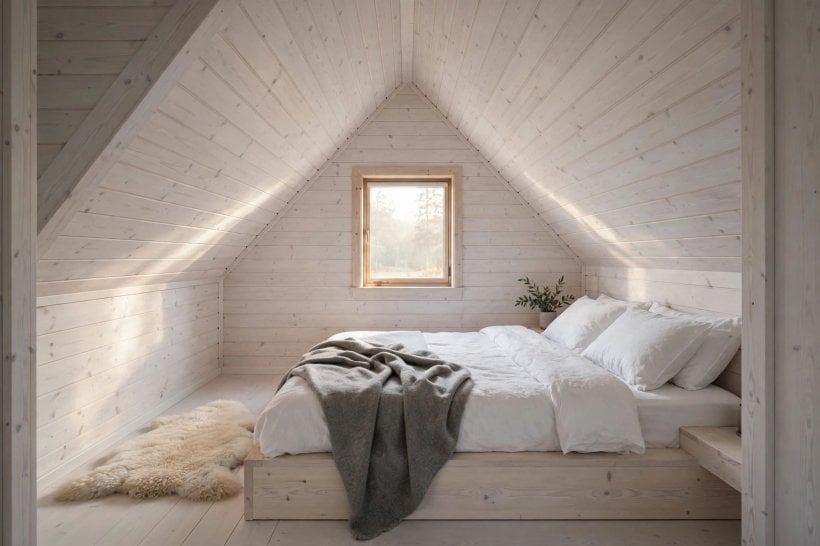

Other mistakes are quieter. Adding a loft everywhere, including over living space, cuts the ceiling and the light with it; in this collection the loft appears only where it sleeps, in the stuga and the hytte. Buying storage as furniture after the build reintroduces visual noise the plan eliminated. Treating curtains as acoustic walls in a family plan disappoints everyone at bedtime. And single-glazing an atrium or skimping on the glass gable’s specification turns the plan’s best feature into its biggest heat leak. The neighbouring discipline of Japanese tiny house floor plans makes a useful comparison here: two traditions, one shared conviction that restraint is a planning decision, not a style.
Final Considerations
Scandinavian tiny house design is minimalism with a purpose: every decision serves light, calm and function. Start with the daylight plan and let the windows set the architecture. Keep the palette to a few pale, honest materials. Gather warmth around one hearth, gather storage into the walls, and keep the volume as open as your life allows. Do those things, and the coziness that people chase with throws and candles arrives on its own, because it was built into the floor plan from the first line.
