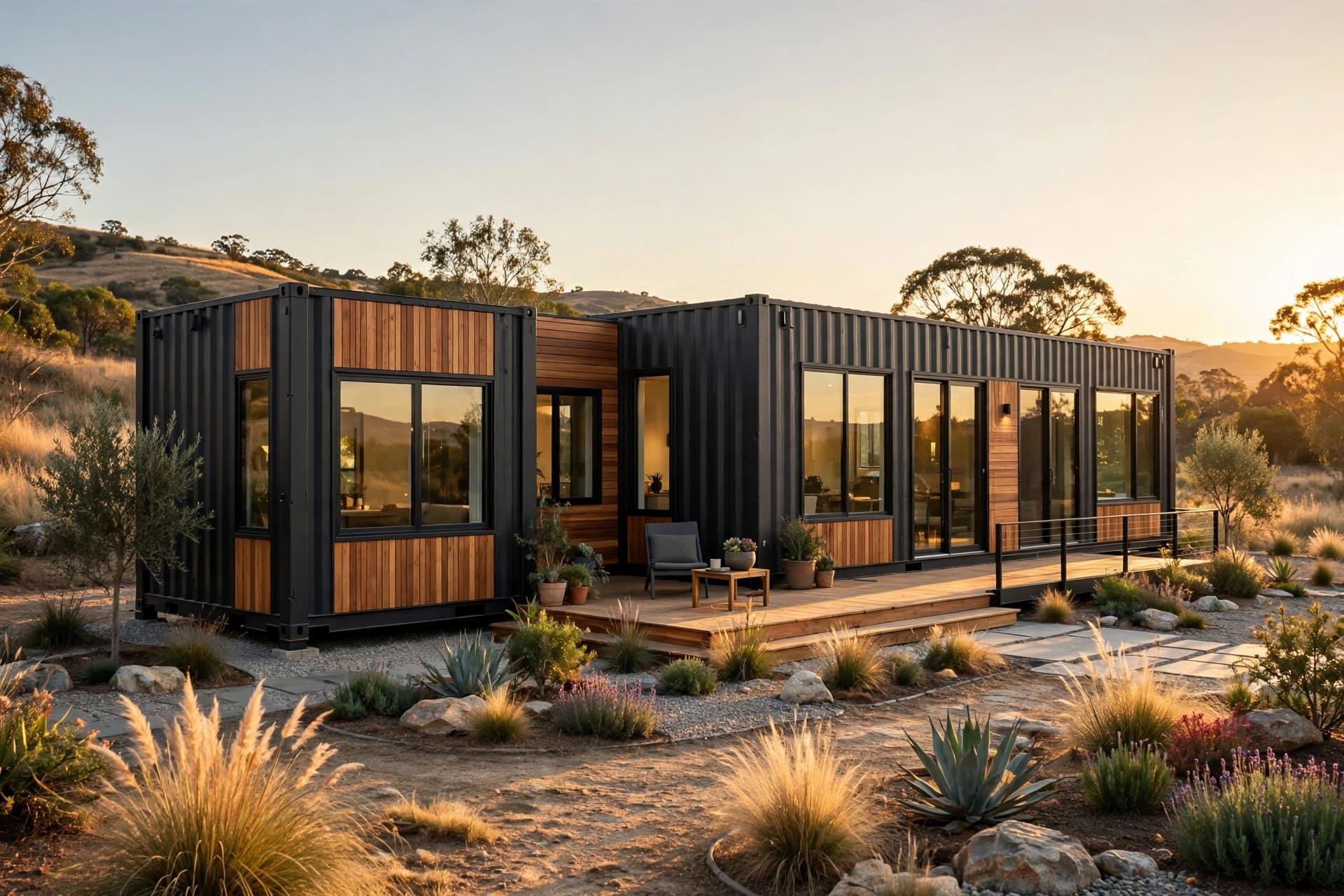

Seven and a half feet of interior width, corrugated walls, and a box that is strong as a bridge at its corners and weak as a tent everywhere you cut it. A shipping container punishes floor plans that fight it and rewards the ones that work with it. These ten layouts — studios, double-wides, an L, a stacked duplex, a courtyard — show how to work with the box.
1. At a Glance: Ten Layouts on One Page
Every plan in this guide starts from the same two modules: a 20ft container giving 160 sq ft and a 40ft container giving 320 sq ft, each 8 feet wide and 8.5 feet tall. What changes is how many boxes you combine, where you dare to cut them, and how much width the insulation takes. The ten shipping container house floor plans below run from a single-box studio you could park almost anywhere to a three-container courtyard house with the floor area of a small family home.
| Layout | Containers | Footprint | What defines it |
|---|---|---|---|

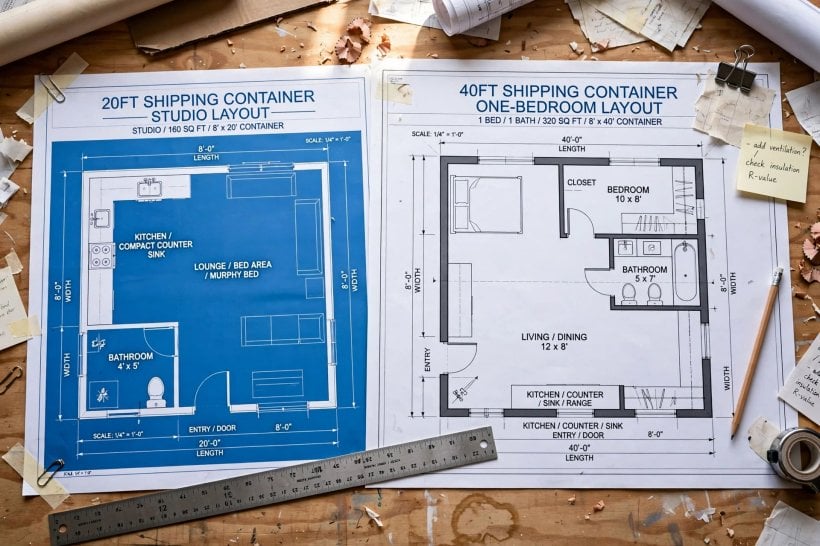

| 1. Classic 20ft Studio | 1 × 20ft | 8×20 (160 sq ft) | Kitchen-bath pod at one end, open living-sleeping space in the rest |
| 2. 20ft Split Bath | 1 × 20ft | 8×20 (160 sq ft) | Center bathroom as a buffer; every plumbing run under 10 feet |
| 3. 40ft Linear Apartment | 1 × 40ft | 8×40 (320 sq ft) | Entry, living, kitchen, bath, bedroom in one straight run |
| 4. 40ft Double-Zone | 1 × 40ft | 8×40 (320 sq ft) | Central 8×8 wet core; living one side, bedroom the other |
| 5. Side-by-Side Double Wide | 2 × 40ft | 16×40 (640 sq ft) | Adjoining walls removed, load carried on a central steel beam |
| 6. L-Shaped Pair | 20ft + 40ft | L-shape | Long leg lives, short leg sleeps, deck fills the inside corner |
| 7. Stacked Duplex | 2 × 40ft | Two stories | Living below, two bedrooms and a bath above |
| 8. Courtyard U | 3 × 40ft | U-shape (960 sq ft) | Three wings around a courtyard that becomes the outdoor room |
| 9. Cantilevered Cross | 2 × 40ft | Perpendicular, offset | Upper box cantilevers up to 10 feet over the entry deck |
| 10. Container + Timber Hybrid | 40ft + timber frame | Box + 16×20 great room | Container holds the service core; timber frame holds the living |

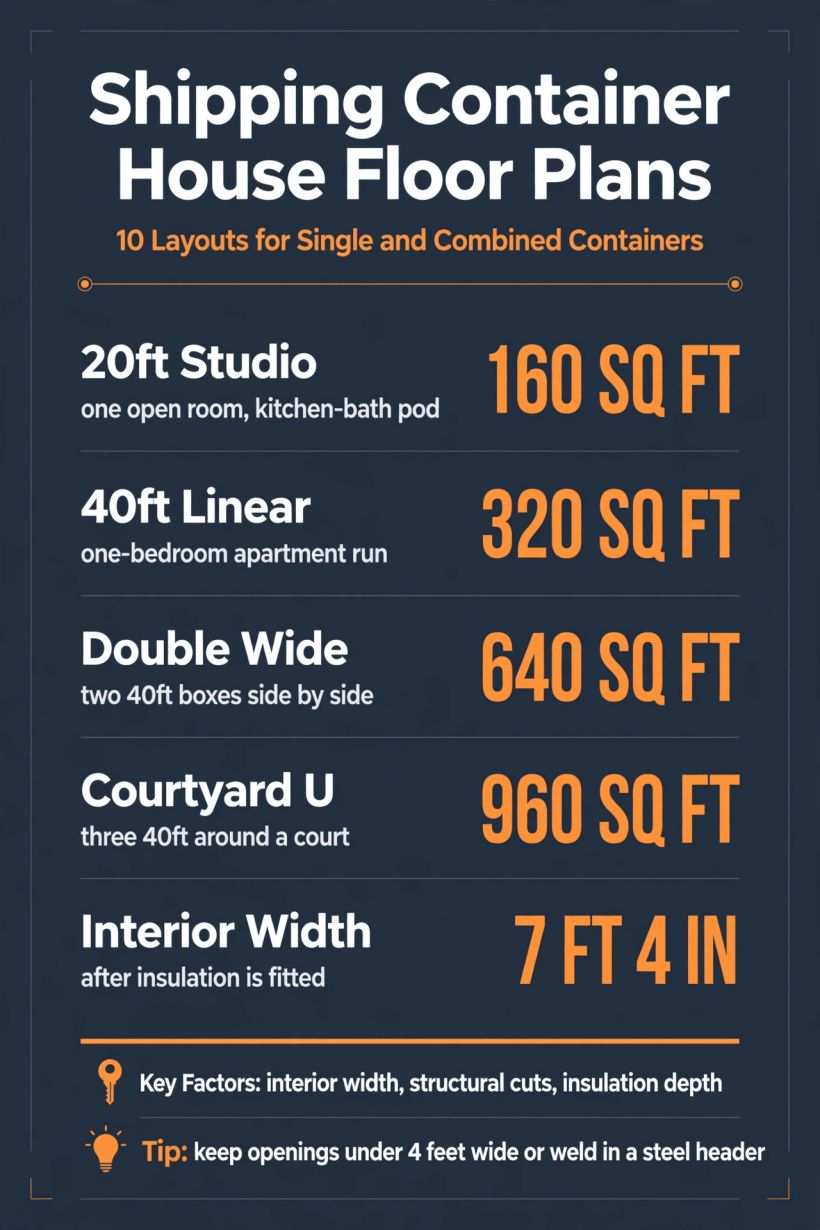

The range at a glance: 160 sq ft for a single 20ft studio, 320 for a 40ft, 640 for the double wide, 960 for the courtyard U — and 7 ft 4 in of interior width once insulation is fitted inside.
2. The Box Itself: Dimensions Every Plan Must Obey
A shipping container is the most honest building module in existence: 8 feet wide, 8.5 feet tall, 20 or 40 feet long, with corner castings engineered to stack nine high. Inside, a 20ft box measures roughly 19’4″ long by 7’8″ wide with 7’10” of height; a 40ft stretches that to about 39’4″ long at the same width and height. The 40ft high-cube adds a foot of height — 9.5 feet outside, about 8’10” inside — and is worth the premium for the breathing room it gives a low ceiling. The floor is 1-1/8 inch marine plywood over steel cross-members, and the whole box is also the structure: a 20ft weighs about 4,800 lbs empty and a 40ft about 8,200 lbs, which matters long before the furniture goes in — our guide to calculating the total weight of a tiny house walks through why those tare figures anchor every transport and foundation decision.
Two facts of the box shape every layout that follows. First, the strength lives in the corners and the corrugated skin: the corner castings carry stacking loads, and the corrugation is structural, not decorative — which is why Section 9’s cutting rules are not optional. Second, width is the scarce resource. The plan challenge is 7.5 feet of interior width once insulation is fitted, and every layout below is a strategy for living well inside that number — or for escaping it by joining boxes.
3. Single 20ft Plans: The Studio and the Split Bath

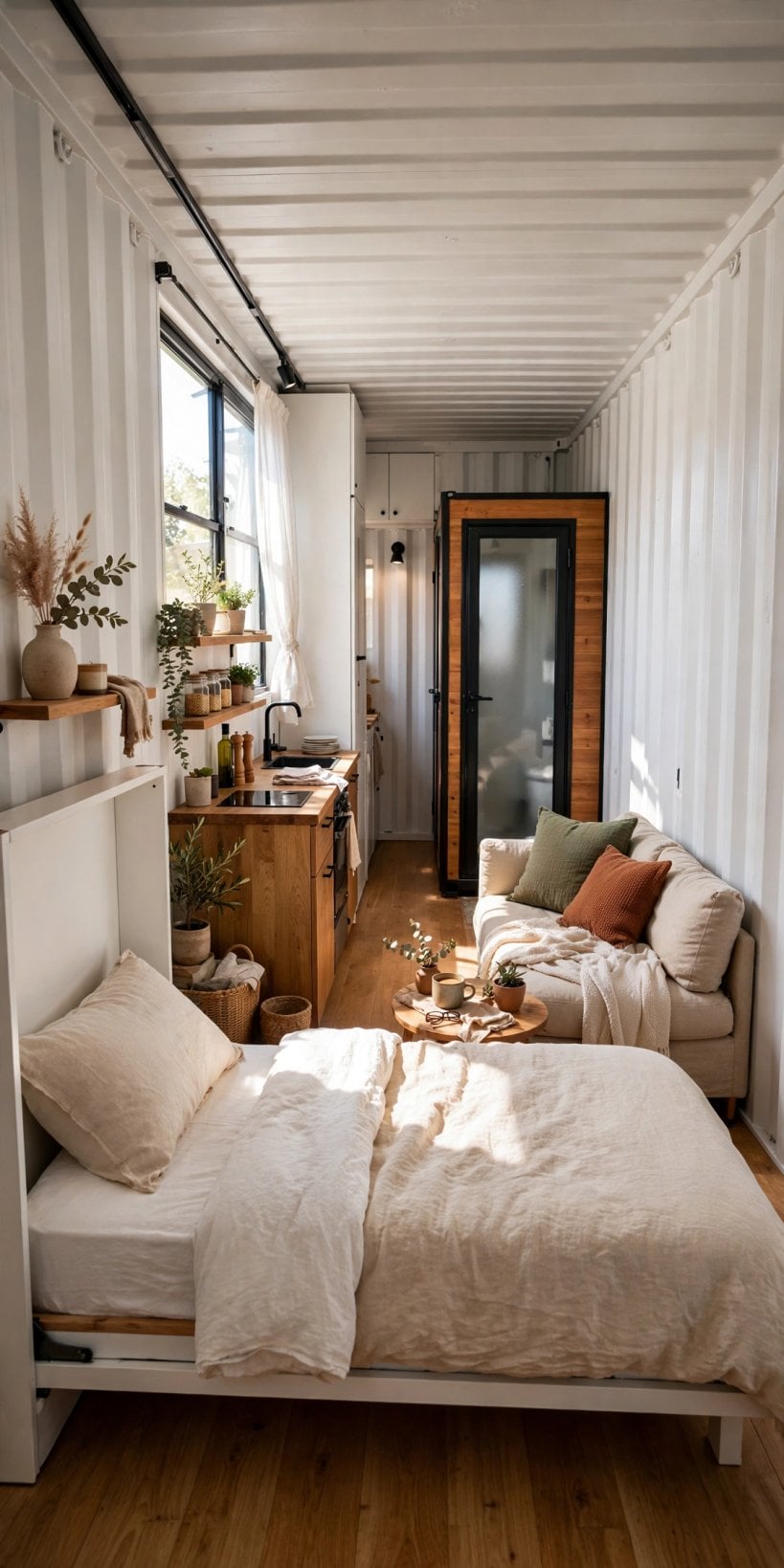

The Classic 20ft Studio is the simplest honest answer to one box: a kitchen-bath pod of 8×6 at one end, and living-sleeping space in the remaining 8×14. One open room does everything else. It is the cheapest legal tiny house shell you can buy, and it works because nothing in it pretends to be a corridor — in 160 sq ft, circulation space is theft. Keep the corrugation exposed on a wall or two, sealed and painted, and the room reads as industrial rather than cramped.
The 20ft Split Bath moves the bathroom to the middle — an 8×5 room that splits the box into two distinct zones, living-kitchen at one end and bedroom at the other, with the bath as the acoustic and visual buffer between them. The plumbing argument is as strong as the privacy one: a center bath shortens every plumbing run to under 10 feet, which means less pipe, fewer freeze worries and one wet wall instead of two. For couples who need separation without square footage, this is the best 20-foot plan of the ten — the studio suits a solo dweller; the split bath suits two people who need a door between them.
4. Single 40ft Plans: The Linear Apartment and the Center Core

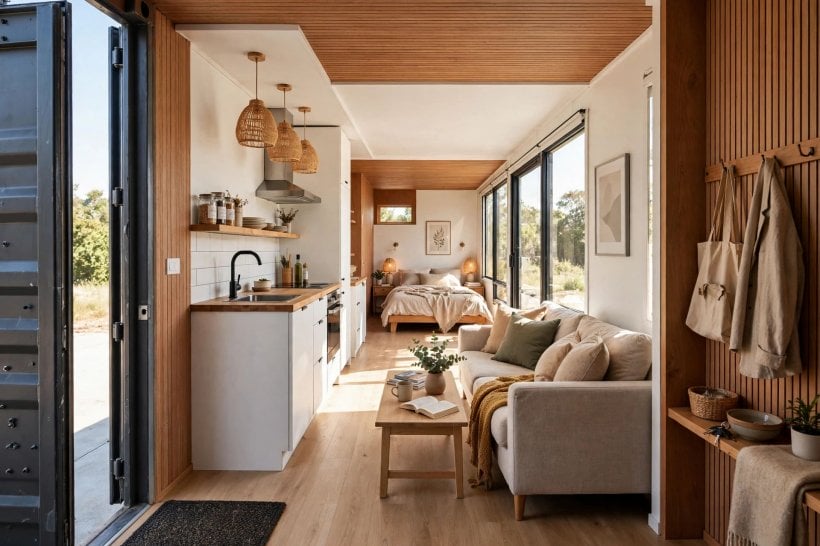

The 40ft Linear Apartment is the workhorse: entry, living, kitchen, bath and bedroom in a straight run down 40 feet. At 320 sq ft it is a genuine one-bedroom apartment, and the linear plan carries a quiet advantage — every room gets an exterior wall, and therefore a window. Light and cross-ventilation reach the far bedroom as easily as the entry living space — something clever furnishing cannot fake in a deep plan.
The 40ft Double-Zone takes the opposite approach to the same box: cluster bath, laundry and mechanicals in a central 8×8 core, with living-kitchen flowing on one side and the bedroom on the other. The core acts as the structural spine — no long-span headers are needed across it — and all the wet walls sit back-to-back for short plumbing, the same trick the 20ft split bath uses, scaled up. It is the most buildable 40-foot plan of the ten: minimal cutting, maximum function, and a core you can frame conventionally inside a largely intact shell.
5. The Double Wide: Two Boxes, One Real House
Join two 40-foot containers side by side and remove the adjoining walls, and the whole character of the build changes: 16×40 feet, 640 sq ft, a real two-bedroom house. The 16-foot width transforms the feel completely — rooms stop being slices of a tube and become rooms. This is the point where a project stops being a “container home” and starts being a house that happens to be made of containers, with space for a proper kitchen, a dining table that is not also a desk, and bedrooms that take a real bed with walking room around it.

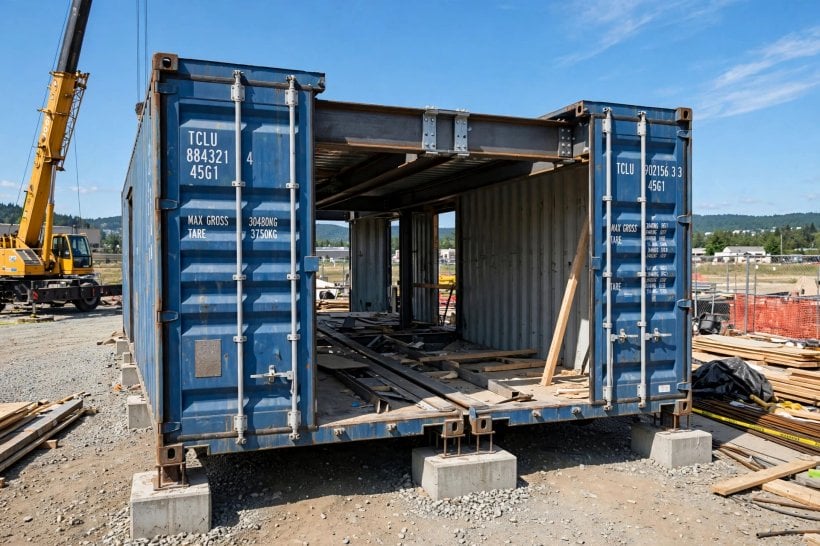

The structural price of that width is one serious piece of steel. The removed walls were carrying load; that load transfers to a central beam — typically a W8 or W10 steel beam on new footings — which carries half the roof load of both containers. Do not guess this size. A structural engineer stamps this detail for a few hundred dollars, and it is the most important money in the project: every combined plan in this guide leans on the same principle: cut structure is replaced structure, sized by calculation rather than optimism.
6. Turning Corners and Going Up: L-Shaped and Stacked Plans

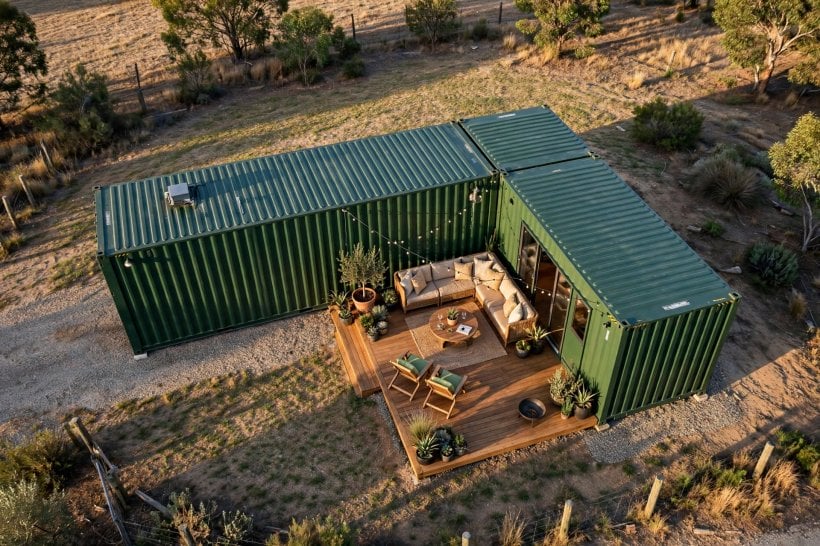

The L-Shaped Pair joins a 40-foot container to a 20-foot container at the corner: living-kitchen in the long leg, bedrooms in the short leg, and a deck filling the inside of the L. The corner junction needs careful flashing and a welded moment connection, but the geometry buys what parallel boxes cannot — natural zoning between living and sleeping wings, and an outdoor room sheltered on two sides by the house itself. On a site with a view in one direction and weather from another, the L lets the plan answer both.
The Stacked Duplex goes up instead of out: two 40-foot containers, living-kitchen-dining downstairs as one open plan, two bedrooms and a bath upstairs. The corner castings stack perfectly — weld twist-locks at all eight corners and the structure is inherently sound, the same engineering that stacks these boxes nine high on a ship. The fight in this plan is the stair. A straight stair needs 10 or more linear feet, and in an 8-foot-wide box that eats the plan; alternating-tread or spiral stairs fit in 4 to 5 feet and suit the industrial aesthetic far better.
7. Three Containers and Beyond: Courtyard, Cantilever and Hybrid

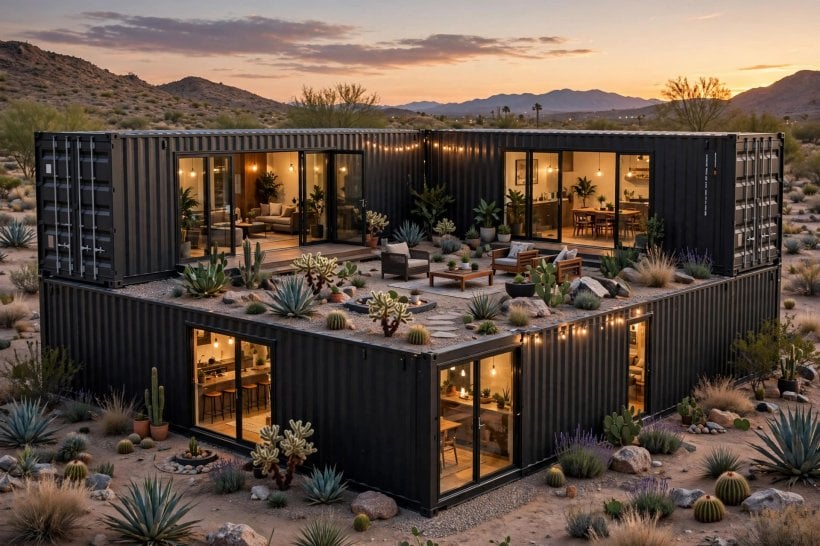

The Courtyard U arranges three 40-foot containers around a central courtyard: living in one wing, bedrooms in the second, kitchen-bath-utility in the third. The courtyard becomes the outdoor living room, and every container keeps two solid walls, so cutting stays minimal. At 960 sq ft of interior plus the courtyard, this is a full family home with container economics, and a wing can be added or finished later without redesigning the whole.
The Cantilevered Cross is the dramatic one: one 40-foot container on the ground, a second crossing it perpendicular on top with a 10-foot cantilever. The overhang shades the entry deck below and creates the modernist composition container architecture is famous for — a covered outdoor room, for free. Ten feet is the practical maximum cantilever without serious engineering; 6 to 8 feet is the sweet spot for cost versus drama, and the overturning moment is real, so this plan starts at an engineer’s desk, not a saw. Finally, the Container + Timber Hybrid may be the most livable plan here: the 40ft box holds the dense service core — kitchen, bath, laundry, mechanicals — while a 16×20 timber-frame great room attached alongside handles living and sleeping. The container does what it does best, and the timber frame does what it does best; hybrid construction beats purist construction on comfort every time.
8. Insulation and Condensation: The Width You Keep Is the Width You Live In

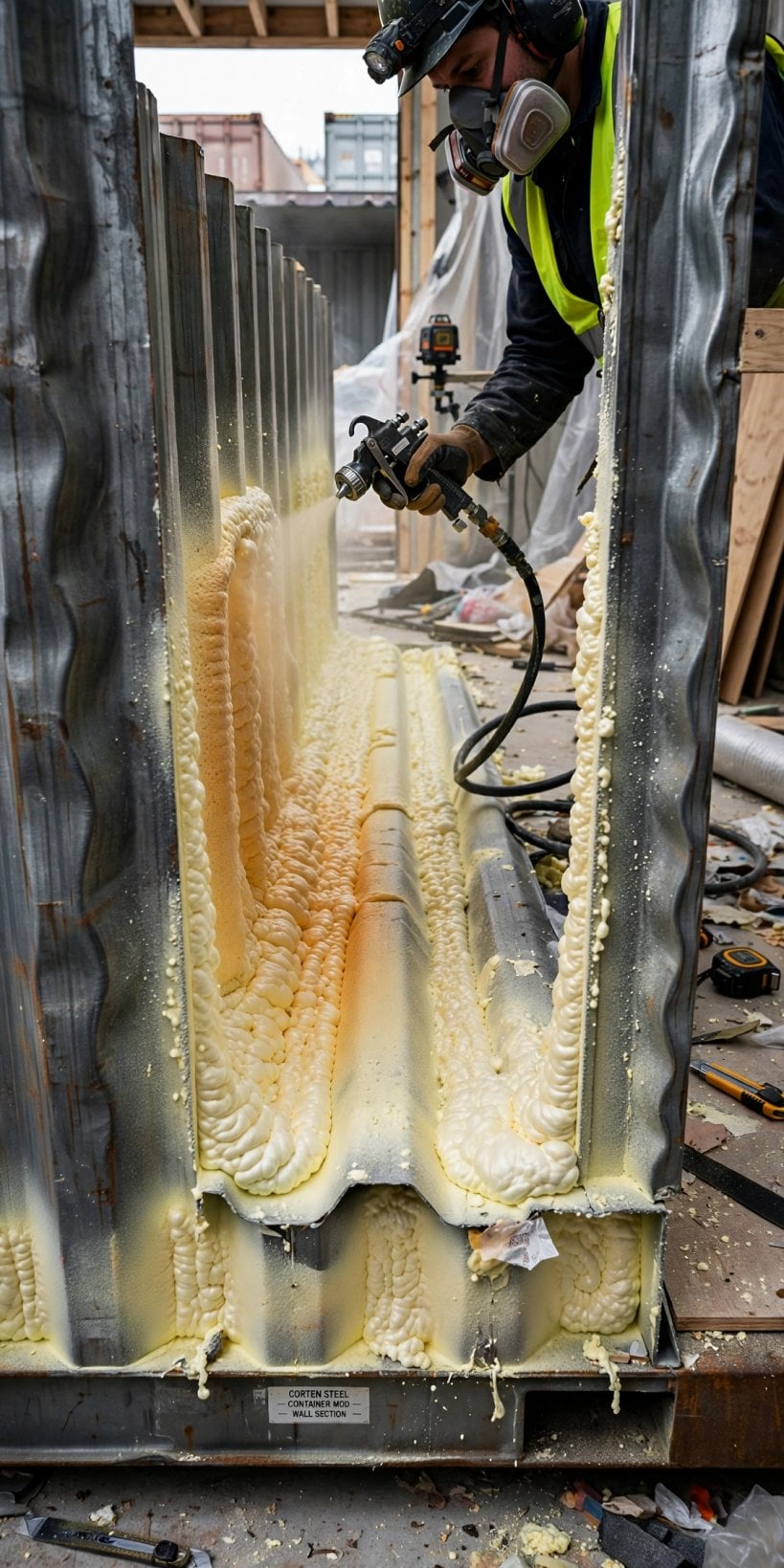

Insulation is where container plans are won and lost, because every inch of it is paid for in width. Two inches of closed-cell spray foam inside costs 4 inches of width total — 2 per side — leaving 7’4″ of interior. Frame the insulation outside the box instead, under new cladding, and you keep the full 7’8″ — a difference you feel in every doorway and beside every bed. Neither answer is free: interior foam is simpler but shrinks the rooms; an exterior build-out preserves width at the cost of a thicker wall assembly to flash and trim.
Steel also sweats. A single-skin metal wall is a thermal bridge end to end, and warm interior air meeting cold steel is exactly the recipe for the condensation problem explored in our container rain simulator for tiny houses — moisture forming on the inside of the shell, where it can quietly rot everything it touches. Continuous closed-cell foam against the steel is the usual defence because it seals the metal from the moist air; breaks in that layer are where trouble starts, the same bridging effect the steel frame thermal bridge simulator demonstrates for framed walls. If you insulate outside instead, the cladding choice becomes part of the system — the options in our guide to tiny house siding in cedar, metal and composite all sit happily over an exterior foam build-out. Decide the insulation strategy before the floor plan is final, not after: it sets the interior width every other decision must fit.
9. Cutting, Welding and Reinforcement: The Rules That Keep the Box Strong

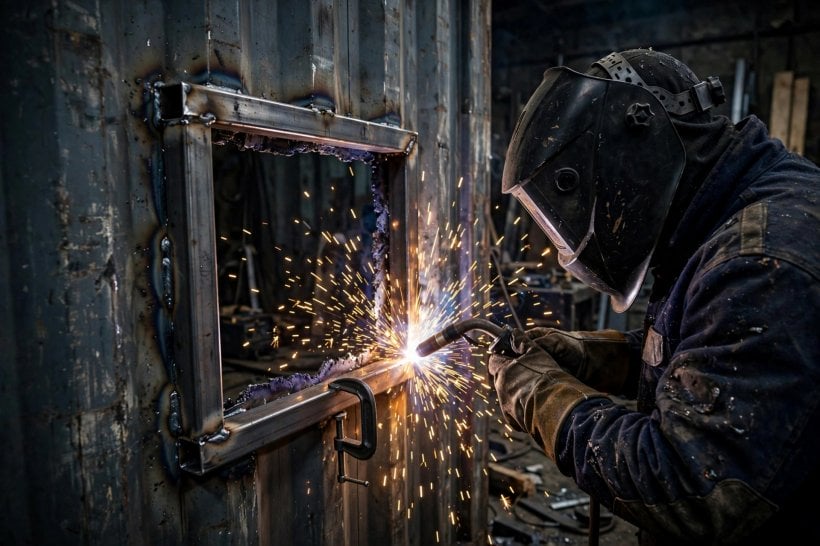

Container modification is metalwork, not carpentry. Cut openings with a plasma cutter or reciprocating saw — never a torch near the floor, because most container floors are pesticide-treated marine plywood and must themselves be treated or sealed before anyone lives over them. Every opening wider than 4 feet in a container side wall needs a welded header: the corrugation is structural, and cutting it without reinforcement voids the strength the box arrived with. Frame each opening in tube steel to restore the racking strength you removed, grind all welds smooth, and prime every cut edge the same day — container steel is Corten, which resists rust until you cut it, and then rusts fast.
Two reinforcements in these plans deserve an engineer rather than a rule of thumb. The double wide’s central beam carries half the roof load of both boxes, and the cantilevered cross works only if the overturning moment is calculated — both are stamped-drawing territory, as is any roof load question in snow country, where our tiny house snow load calculator shows what a roof is really being asked to hold. Hire a certified welder for structural connections: your house literally hangs on those welds. If a plan grows a pitched roof over the boxes, run the numbers first with the metal roofing installation material calculator. The discipline is simple: cut only what the plan demands, and reinforce everything you cut.
10. Choosing Your Layout: Common Mistakes and Who Each Plan Suits
The mistakes repeat across container builds. Fighting the width — planning furniture for a conventional room and discovering 7’4″ at fit-out. Cutting first and reinforcing later, or not at all. Treating the stair in a stacked plan as an afterthought, when it quietly consumes the floor plan. Guessing at beam sizes to save an engineer’s small fee. And choosing a plan for its photograph rather than its plan: the cantilevered cross is a poster, but the double-zone 40ft is what most people should actually build.
Match the plan to the life. Solo and simple: the 20ft studio. A couple needing a door that closes: the split bath. One box, full apartment: the linear 40ft, or the double-zone if you want the most buildable version of it. A family on a budget with land: the double wide or the courtyard U. A tight or sloped site: the stacked duplex. A statement build with an engineer’s number already in the budget: the cantilevered cross. And for a comfortable small house that uses a container only where containers are strongest, build the hybrid. Cross-check your shortlist against the drawn layouts in our tiny house blueprints and floor plan explorer before committing steel to saw.
Final Considerations
The container is a means, not an aesthetic. The best shipping container house floor plans are drawn for the life lived inside them: cut only what the plan demands, reinforce everything you cut, and insulate like the steel box is trying to cook you in summer and freeze you in winter — because it is. Start from the box’s real dimensions, let the width set the furniture and the corners carry the loads, and a container home becomes what these ten layouts promise: the toughest, most honest small house you can build.
