10 Compact Cabin Floor Plans: Traditional Timber Frame Tiny Designs

A timber frame outlives its builder. Long before the tiny house movement had a name, the compact cabin was its prototype: posts on a grid, beams spanning between them, one room sized to what a family could heat with a single stove. These compact cabin floor plans honor that tradition — mortise-and-tenon joinery, oak pegs, and frames designed to shelter generations.

Compact Cabin Floor Plans: At a Glance

A timber frame is a different kind of structure from a stick-built house. The frame — posts on a grid, beams spanning between them, every joint a mortise and tenon locked with an oak peg — carries all the load, which means the walls between the posts do no structural work at all. That single fact is what makes the tradition so kind to small footprints: the plan can be one open room, the infill can be anything from board-and-batten to straw bale, and the frame itself is engineered to stand for centuries. The ten plans below run from a 10×12 lean-to to a 20×28 legacy build, and they share the same essentials — white oak, Douglas fir or larch for the frame with pine for secondary members, bents spaced 8 to 10 feet apart, and sills protected from moisture from day one. If you are still comparing shapes and sizes, browsing other tiny house floor plans side by side shows how completely the timber grid frees the rooms inside it.

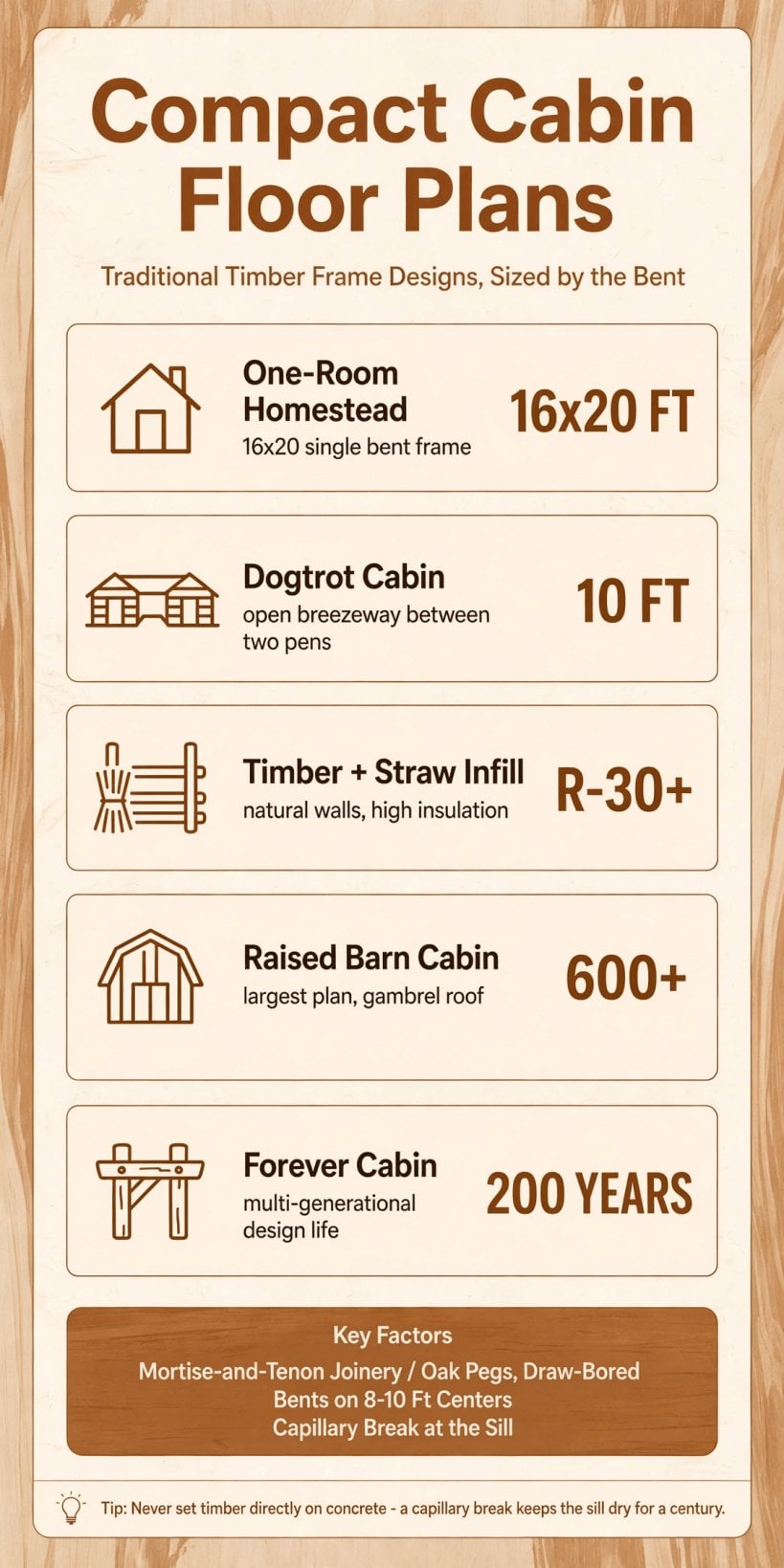

The numbers that size a timber frame: the homestead’s 16×20 bent grid, the dogtrot’s 10-foot breezeway, R-30+ straw walls, 600+ square feet under a gambrel, and a cabin designed for 200 years.

One discipline runs underneath all ten plans: keep the timber dry and the frame does the rest. Sills sit on stone with a capillary break — EPDM or metal flashing — because stone wicks moisture and a dry sill lasts a century; timber is never set directly on concrete. And because a single bent weighs 500+ pounds, every one of these frames ends the same way: with a raising, planned like an event, when the bents go up in a day and the cabin takes its shape by sunset.

1. The One-Room Homestead: A 16×20 Single Bent Frame

The original, and still the purest expression of the type. A 16×20 single room is framed with four bents — post-and-beam frames — set on 8-foot centers and joined by plates and girts. One room holds everything: the bed in the corner, the table in the center, the stove against the wall, and a sleeping loft spanning two bents above. There is no corridor, no wasted volume, no room that exists only to reach another room. The frame is the architecture — exposed posts and beams, no drywall — and the infill is board-and-batten or log siding, chosen for the site rather than for structure.

The joinery note from the original plan deserves repeating word for word in spirit: the joints are mortise-and-tenon with oak pegs, draw-bored for a mechanical lock, and a beginner should not cut their first mortise on the frame itself — practice on scrap, or hire the frame raising as a workshop event and learn on the day. Built today with traditional joinery, this is a cabin that will outlive its builder, which is precisely the standard the other nine plans are judged against. If you want to test how a one-room grid divides before committing, the interactive tiny house blueprints explorer is a good place to walk the bents at full size.

2. The Dogtrot Cabin: Two Pens and a Cooling Breezeway

The Southern classic splits the cabin in two and lets the climate do the cooling. Two 12×14 timber-frame pens stand separated by a 10-foot open breezeway, all under one roof: one pen is the living-kitchen, the other the bedroom-bath, and the breezeway between them is the outdoor living room — cool in summer, and the house’s social heart. The dogtrot’s genius is that the open center ventilates both pens passively; the plan has no mechanical cooling because the section itself is the cooling system.

The breezeway is also the plan’s built-in future. Enclose it later with screens or glass as needs change, and the outdoor room becomes a sunroom, a bunk space or a mudroom without touching either pen’s frame. That kind of covered, screened outdoor space works the same magic in the layouts collected in our tiny house plans with screened porches — a roofed threshold zone that carries half the living in warm months. In a hot climate, the dogtrot is not a quaint historical footnote; it is the most honest air conditioner on this list, and it runs on shade and wind.

3. The Lofted Hunter’s Cabin: A 12×16 With a 12/12 Roof

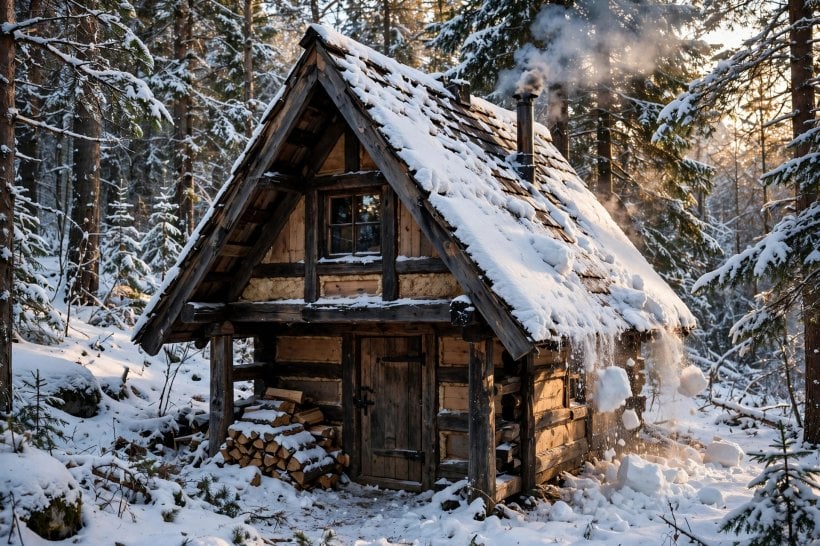

Snow country writes its own roof rules, and this plan obeys them beautifully. A 12×16 cabin under a 12/12 roof pitch uses the steep slope twice: it sheds snow effortlessly, and it creates a full-height sleeping loft with two bunks above a one-room ground floor that carries the stove, the table and bunks for overflow. The loft is the primary bedroom; the ground floor is the camp’s living room, kitchen and spare bed in one.

The framing is as lean as the plan. The timber frame uses principal rafters with a collar tie — no ridge beam is needed at this span — so the roof structure stays simple enough for a small crew to cut and raise. That is the deeper lesson of the hunter’s cabin: at compact spans, traditional framing simplifies rather than complicates, because the loads are honest and the members can be sized by eye and experience. The steep pitch is the snow plan and the space plan in one gesture, and the loft it creates is genuinely full-height rather than the crouch-space most small cabins settle for.

4. The Stone-Foundation Camp: Timber Raised on Stone

Set the timber frame on a full stone foundation — 24-inch rubble walls, 3 feet tall — and the cabin gains a whole level of permanence. The stone base houses the root cellar and the wood storage, lifts the timber sills above splashback and rot, and gives the cabin a groundedness that pier foundations never achieve. The floor plan puts the entry at the stone level, with the mudroom in the foundation, and the living quarters in the timber frame above: you arrive in the stone, and you live in the wood.

The critical detail is invisible once built, which is why it must be planned before the first stone is laid. The timber sill sits on the stone with a capillary break — EPDM or metal flashing — because stone wicks moisture upward, and the break is what keeps the sill dry for a century. It is the same threshold thinking that shapes a good entry sequence anywhere: the transition zone, detailed in these tiny house plans with mudrooms, decides how much of the outdoors gets tracked into the living space. The oldest cabins stand on stone. Built this way, this one will too.

5. The Adirondack Lean-To: Three Walls and a Fire

The minimalist extreme, and the tradition distilled to its essence. The lean-to is a 10×12 three-sided timber shelter with an open front and a stone fireplace on the open side, designed as a sleeping camp or a guest cabin. The floor plan is a platform for sleeping pads, a firewood box, and nothing else — no kitchen, no bath, no pretense of being a house. It is shelter and fire, arranged under a roof.

Its real value is pedagogical as much as practical. Every timber framer should build one before attempting a house: the frame is small enough to cut, join and raise with hand tools and a friend, the joinery lessons are the same ones a full cabin demands, and the stakes of a beginner’s mistake are a crooked camp rather than a crooked home. As a guest cabin on land that already has a main house, it is also genuinely useful — a dry, fire-warmed sleeping shelter with more character than any tent platform, built from the smallest complete frame in the tradition.

6. The Cruck Frame Cottage: Curved Timbers, Vaulted Space

The medieval English method produces the most beautiful frame on this list. Pairs of curved timbers — crucks — rise from the ground to the ridge, forming the entire frame in arched bents. A 14×20 cruck cottage needs just three cruck pairs, and because the structure is the arch itself, the interior is naturally vaulted: no collar ties interrupt the volume. The floor plan is one open room with a loft tucked into the curve, sleeping where the arch bends overhead.

The challenge is sourcing: finding curved timbers — grown crooks with the bend in the wood rather than cut into it — takes patience and a relationship with a local sawyer or woodland. The reward is a room that feels carved rather than built, with the structure sweeping overhead in one continuous gesture. Triangular and arched small houses chase this same vaulted feeling from the opposite direction in our roundup of a-frame tiny house floor plans, where the roof planes meet at the ridge; the cruck gets there with a curve instead of an angle, and the curve is older by centuries.

7. The Timber + Straw Infill: A Natural Building Hybrid

This plan marries the two great natural building traditions and lets each do what it does best. The timber frame carries the structure — engineered, code-friendly, pegged — while straw-bale or light-clay infill between the posts provides R-30+ insulation and a hand-plastered finish. The 16×24 plan itself is a conventional two-room cabin; the walls are the innovation: 18 inches thick, with sculptural window reveals and earthen plaster that no manufactured material imitates.

The hybrid works because the frame frees the wall. Since the infill carries no load, it can be chosen purely for thermal performance and feel — and thick, breathable, high-mass walls are exactly what a small cabin in a cold climate wants. The insulation thinking matches the envelope targets in our guide to tiny house plans for cold climates, where wall R-value and airtightness decide the heating bill; here the same performance arrives wrapped in plaster and straw instead of foam. Of all ten plans, this is the one whose interior people describe as quiet — thick walls muffle the world outside as thoroughly as they insulate it.

8. The Raised Barn Cabin: A Gambrel Roof With a Full Second Story

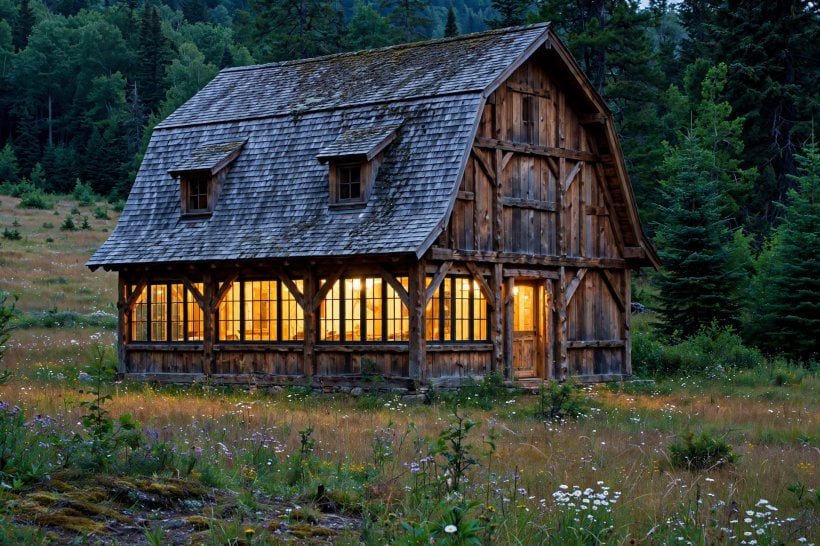

The largest plan here borrows its shape from the barn. A 16×24 timber frame under a gambrel roof uses the double slope to create a full second story — two bedrooms and a bath — within a roof that a beginner can frame, because the gambrel’s breaks are just angled cuts, not curves. The ground floor is the great room: kitchen, living and dining in one timber volume. At 600+ square feet, the barn-cabin is the most versatile plan on the list, and the one that most easily houses a family full-time.

One structural warning comes with the shape, and the original plan states it plainly: the break in the gambrel’s slope needs a purlin or a knee brace — do not frame a gambrel as two independent roofs stacked, because the joint is structural. Get that joint right and the double slope is generous rather than fragile: full standing height across most of the upper floor, real bedrooms instead of loft compromises, and a silhouette that reads as a barn from the road and a house from the door. For a family that wants timber tradition without giving up a second story, this is the plan.

9. The Portable Timber Camp: A Frame on Skids

Timber frames have been moved for centuries; this plan just makes it easy. A 12×16 frame — the one-room homestead in miniature — sits not on a permanent foundation but on wooden skids: 8×8 timbers resting on a gravel bed. When the site changes, the cabin is dragged to the new one by a tractor or a truck. The portable camp suits leased land, seasonal sites, and the owner who is not yet sure where they want to be.

The skids change the legal and financial shape of the cabin as much as its location. No permanent foundation means a lighter permitting footprint in many places and no concrete abandoned in a field you do not own; the cabin remains an asset you take with you rather than an improvement you leave behind. It pairs naturally with the phased thinking in our collection of modular tiny house floor plans — there, houses grow by docking new sections; here, the whole house simply relocates, and the frame’s pegged joinery, which can be knocked down and re-raised, makes the move a return to tradition rather than a compromise.

10. The Forever Cabin: A 20×28 Frame Designed for 200 Years

The finale designs for a timescale the rest of the housing industry does not attempt: a 20×28 timber frame designed for 200 years. The frame is white oak or Douglas fir — rot-resistant species — standing on a stone foundation under a metal roof, with infill walls designed for replacement, because the frame will outlive every other component three times over. The floor plan is a three-bedroom family cabin; the frame is a legacy.

The forever cabin’s real plan is not its rooms but its maintenance manual: re-oil the sills every decade, re-point the stone every generation, and replace the infill as it wears while the pegged frame carries on. That rhythm — small, scheduled care instead of eventual demolition — is what a 200-year design life actually means in practice. Nothing about it is exotic: durable species, dry sills, a roof that sheds water far from the walls, and joints that can be inspected and repaired by any competent carpenter in any century. Build it once, maintain it lightly, and hand it down.

Final Considerations

Traditional timber framing culminates in the raising, and it is worth ending there. The community gathers — a skilled lead, 10–15 helpers, food, a safety briefing — the bents go up in a day, and the frame stands by sunset. It is the most efficient construction method in this entire tradition, raising in hours what stick-framing takes weeks to do, and the most memorable: the cabin’s first memory is the day its neighbors built it. Plan the raising as the event it is, whether the power comes from a crane, a gin pole, or forty hands on a rope.

Underneath the romance, the discipline of these compact cabin floor plans is plain physics and plain honesty: mortise-and-tenon joinery draw-bored with oak pegs and no metal in the primary frame, bents on 8–10 foot centers with bigger timbers — engineered — when the spacing widens, infill left as a free choice because the frame carries the load, and sills kept dry above all. Build it plumb, peg it tight, keep the sills dry, and the cabin will shelter generations. The tradition endures because the physics is honest and the beauty is structural.
