10 Rustic Tiny Stone Cottage Floor Plans: Classic Charm Meets Modern Living

There is a particular silence inside two-foot-thick stone walls, a heaviness no stick-framed house can imitate. Stone holds the day’s warmth into the night and shrugs off weather that would rattle a trailer. The catch: 19th-century crofters never expected indoor plumbing, real insulation, or a kitchen you can stand up in. These ten plans keep the soul and engineer out the miseries.

1. Rustic Tiny Stone Cottage Floor Plans at a Glance

Rustic tiny stone cottage floor plans divide into one contest: mass against modern life. The mass is real — two-foot-thick masonry that stores heat, kills sound and ages into the landscape. The modern life is non-negotiable — insulation values, plumbing and rooms arranged for contemporary living rather than for crofters. Every plan below resolves that contest differently: a single cell, a two-up two-down, a converted barn, a round tower, a courtyard cluster, a glass-linked extension, an earth-sheltered burrow, a timber-and-stone hybrid, a single-story ranch and a micro bothy. The table gathers the whole range; the sections after it take each plan, and the masonry behind all of them, apart.

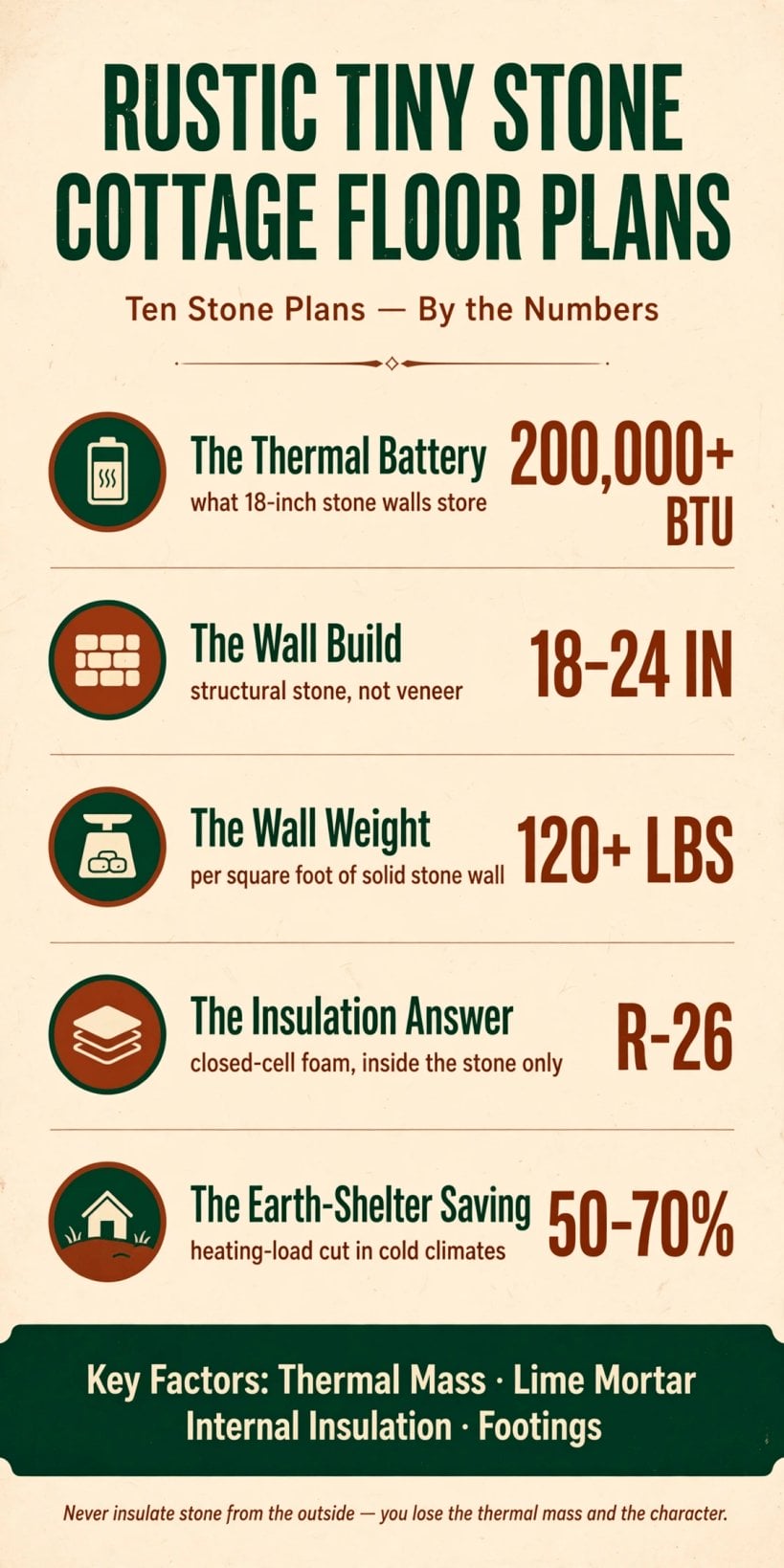

A 200,000 BTU thermal battery, walls at 120 pounds a square foot, and insulation that only ever goes inside — the stone cottage on one card.

2. Plan 1: The Single-Cell Crofter (16×20)

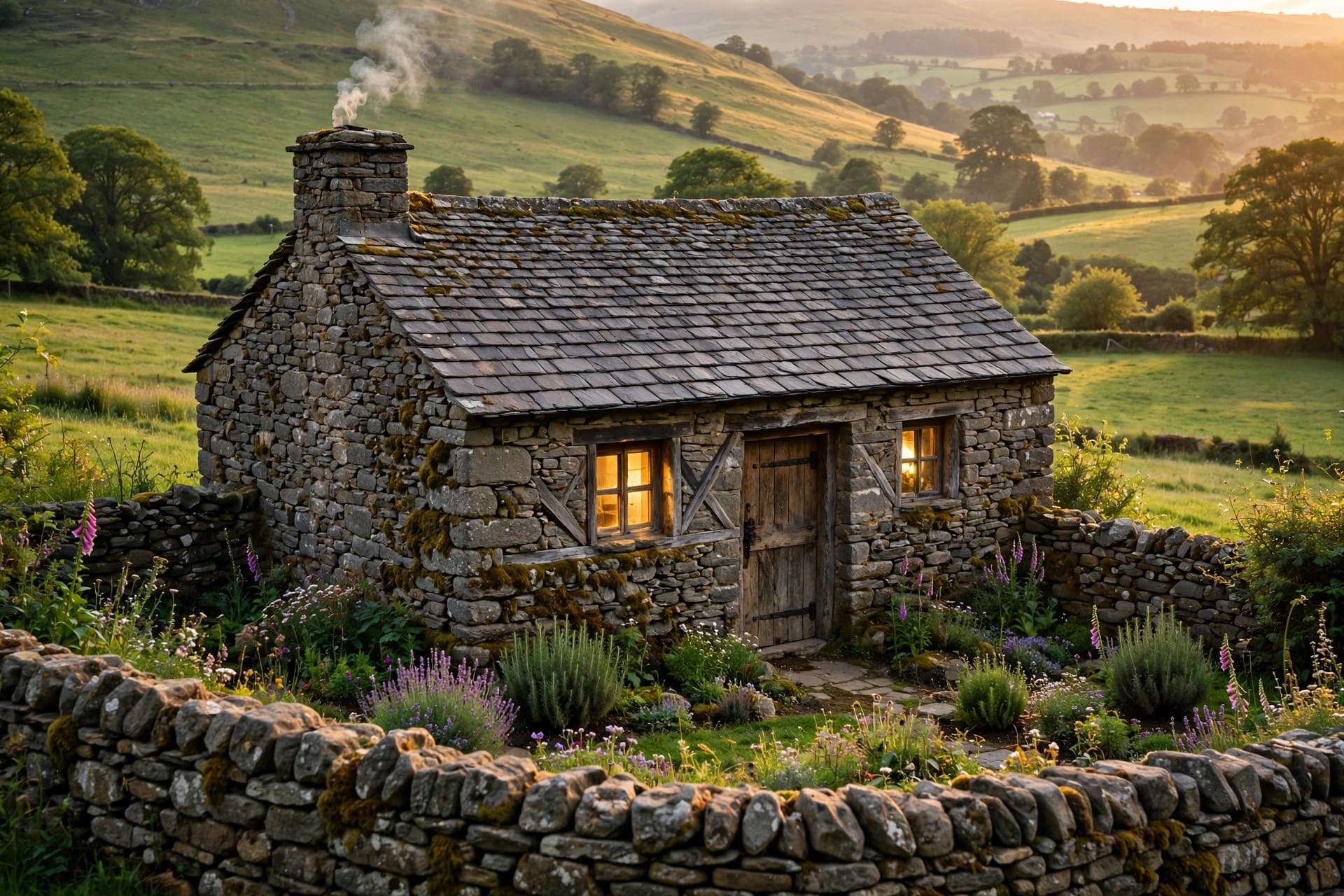

The oldest cottage plan in the world: one 16×20 room, a fireplace on the gable end, and everything else arranged around it. The modern version keeps the single volume but zones it ruthlessly — a sleeping platform at one end behind a half-wall, the kitchen along the other long wall, and a bath carved into a 6×8 corner with proper waterproofing. The fireplace becomes a high-efficiency wood stove set into the original-style inglenook, so the one room is heated from the same spot it always was.

The plan’s engine is thermal mass. Eighteen-inch stone walls store roughly 30 BTU per square foot for every degree Fahrenheit of temperature swing, and in a 320-square-foot cottage the walls themselves become a 200,000+ BTU thermal battery — which is why stone cottages stay cool through summer heat and give the day’s warmth back into the night. It is the same ground principle the earthship homes build on: let the structure itself do the climate work, and the systems shrink to match. In a single cell there is nowhere for heat to hide, so the battery and the stove between them carry the whole plan.

3. Plan 2: The Two-Up Two-Down (18×22)

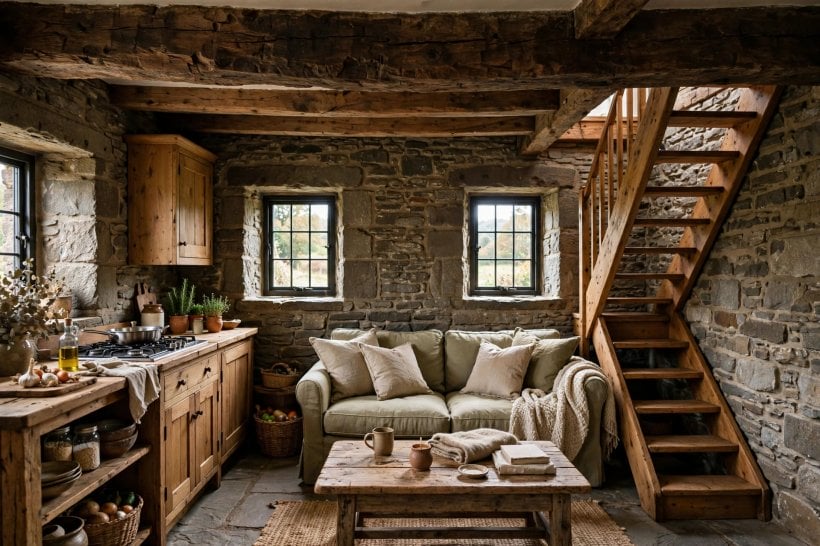

The classic British cottage section: two rooms up, two rooms down, a central stair. Downstairs holds kitchen-living in one open plan — knock the dividing wall out, keep the beam — while upstairs holds two small bedrooms under the eaves. It is the highest-density stone plan here, sleeping four in under 800 square feet of total floor area, and its stacked plumbing, bath above kitchen, keeps drain runs brutally short.

The stair is where the plan earns or loses its comfort. Cottage stairs were historically steep — 42 degrees and more — and the rebuild spec is a civilised 35 to 37 degrees with 10-inch treads. That gentler stair will eat 40 square feet of the plan, and the original’s verdict is blunt: it is worth every inch. A stair you can climb half-asleep, carrying a child, for forty years, is not a luxury; in the densest plan on the list it is the difference between a cottage that works daily and one that merely fits.

4. Plan 3: The Longhouse Byre Conversion (20×40)

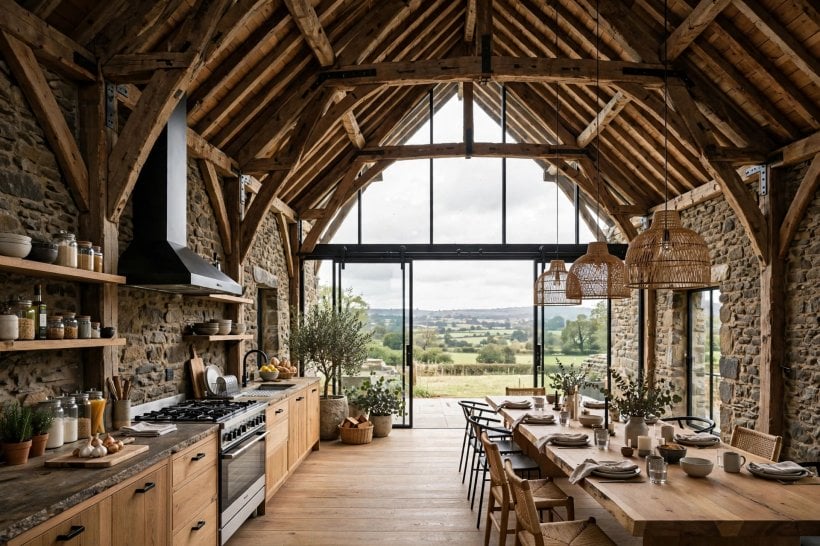

Convert a stone barn or byre and the plan writes itself: 20 feet wide, 40 feet long, the original volume left gloriously open. Living, kitchen and dining occupy the southern two-thirds under a vaulted ceiling with exposed trusses; two bedrooms and a bath tuck into the northern third under a new mezzanine. The barn doors become a 10-foot glass wall, and nothing says modern rustic like 800 square feet of uninterrupted stone and timber. The conversion logic is the same one behind converted barn homes everywhere: the shell already exists, so the budget goes on comfort instead of structure.

The byre is also where the insulation strategy gets stated in full, because a barn has the most stone to treat. Insulate from the inside with 4 inches of closed-cell spray foam directly on the stone — R-26 — then frame a service wall inside that. And never insulate stone walls from the outside: you lose the thermal mass benefit and the exterior character simultaneously, paying twice for the privilege. Inside insulation keeps the battery connected to the room and the cottage looking like a cottage.

5. Plan 4: The Round Tower Folly (16-Foot Diameter)

A circular stone tower, 16 feet inside diameter, two stories: living-kitchen below, bedroom-bath above, connected by a ship’s ladder or a compact stair. The geometry is the argument — round plans have 20 percent less wall area than square plans of equal floor area, which means less heat loss and less stone to lay. The curved walls make furniture placement an art, but a round room with a central wood stove is the coziest geometry in architecture, a close cousin of the circular plans explored in our dome cabins.

The one non-negotiable is overhead. A conical roof on a 16-foot tower needs a proper timber spider frame, not improvised rafters — engineer it, or hire someone who has built one before. Everything else about the tower forgives; the roof does not, because a cone concentrates its loads at the very centre where improvisation is weakest.

Live with the curve honestly and the tower rewards you. Furniture has to be chosen for a wall that never runs straight — pieces stand off the stone, follow its arc, or are built to fit it — and that constraint becomes the room’s character rather than its defect. With the stove at the centre, heat reaches every point of the circle at roughly the same distance, which is why the round room feels uniformly warm in a way a rectangular room with a stove in its corner never does. The tower is the least conventional plan in the list and, square foot for square foot, the one whose geometry does the most work: less wall to build, less wall losing heat, and a single volume that heats like a hearth.

6. Plan 5: The Courtyard Cluster (Three 12×14 Cells)

Instead of one cottage, build three small stone cells, each 12×14, around a courtyard: one to sleep in, one to cook in, one to bathe in. Covered walkways connect them, and the cluster gives a couple or a small family genuine separation — guests get their own cell — while each building can be heated independently. It is the lowest-commitment way to build in stone: each cell is a manageable masonry project, and they can go up one at a time across seasons.

The cost logic runs against instinct. Three small roofs cost more than one big roof, but three small foundations are simpler than one complex one — and the cluster usually breaks even. What it buys beyond the arithmetic is phasing, which matters when you are laying stone by hand: a finished cell this year, a roof over the second next year, and a working home at every stage instead of a building site until the very end.

7. Plan 6: The Glass-Link Extension (16×20 + 12×16)

Keep the original stone cottage intact — say 16×20 — and add a modern glass-and-timber box, 12×16, connected by a short glazed link. The stone cell holds the bedrooms and bath; the glass box holds the open living-kitchen, with views the original builders never imagined. The contrast between 24-inch stone walls and frameless glass is the entire aesthetic, and the link is the diplomacy that makes it work: the historic fabric is never compromised, because the new box touches it only through glass. The matching discipline — deciding which part of a plan does what — is what the tiny house floor plans calculator walks through question by question.

There is a planning dividend, too. In conservation areas, a clearly modern extension is often easier to permit than a pastiche stone addition — honest contrast beats fake history with most planning officers. The glass link is therefore not a compromise between old and new; it is the strategy that lets both survive the approvals process and each other.

8. Plan 7: The Earth-Sheltered Hobbit (16×24, Bermed)

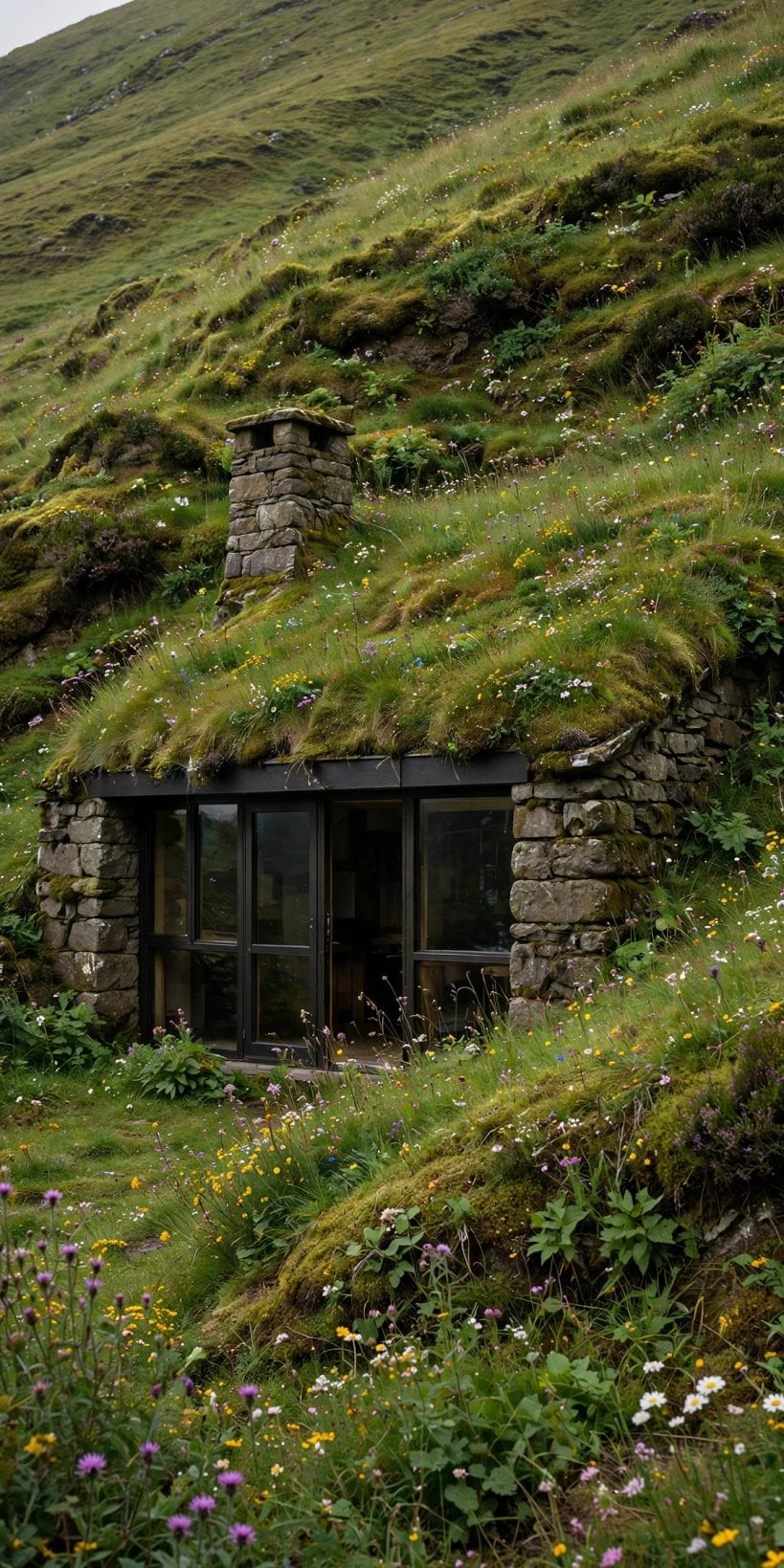

Berm earth against three stone walls and put a living roof on top, and the cottage disappears into the hillside with only the glazed south front showing. Inside, the plan is a simple enfilade — rooms opening directly into each other with no corridor: entry-mudroom, living-kitchen great room, bedroom, bath. Earth sheltering cuts heating loads by 50 to 70 percent in cold climates, and the buried stone walls never see a freeze-thaw cycle, which quietly removes masonry’s oldest enemy. It is the stone family’s answer to the burrow priced by the hobbit house calculator, and the construction companion is our hobbit house step-by-step guide.

One detail cannot be improvised: waterproofing. Earth-sheltered stone needs a full tanking membrane on the buried faces, plus perimeter drainage to daylight. A bermed wall lives against wet soil for the whole of its life, and a leak behind earth and stone is the most expensive leak in this entire list to reach. Everything else in the plan is forgiving; the membrane is not.

9. Plans 8 and 9: The Timber-and-Stone Hybrid (8-Foot Grid) and the Ranch Cottage (24×28)

The hybrid builds the frame first: heavy timber posts and beams on an 8-foot grid, then stone infilled between the posts. You get the speed and precision of timber framing with the mass and character of masonry, and because the frame carries the roof, the stonework is non-structural infill — which dramatically simplifies the masonry. The plan follows the grid: each 8-foot bay is a room or a zone, and removing a bay’s infill creates an opening. One detailing rule governs the marriage: timber and stone move differently with moisture and temperature, so detail a flexible lime-mortar joint at every post-to-stone interface — rigid cement mortar will crack within two seasons.

The grid also future-proofs the plan. Because the infill carries nothing, a wall between two bays can come out without touching the structure — two zones become one room, or a bay opens to a terrace — and the cottage can change its plan across decades the way a framed building can and a load-bearing stone box cannot. The stone keeps its face and its mass; the frame keeps the options open.

The ranch cottage is the hybrid’s opposite in spirit: stone without stairs.

A single-story 24×28 plan with 18-inch stone walls, a low-pitched slate or standing-seam roof, and a completely open plan except for the bath and a small bedroom wing. The mass of the walls does the architectural work while the interior stays deliberately simple — polished concrete or stone floors, plastered interior wall faces, oak joinery. It is aging-in-place and stone thermal mass in one package, and it makes the same no-climbing promise as the ground-floor plans among the small dome homes: everything you need, on the one level you will always be able to use.

10. Plan 10: The Micro Bothy (10×12) — and What Stone Demands

The Scottish bothy, distilled: a 10×12 stone cell, one door, one window, a fireplace and a sleeping platform. The modern bothy adds a tiny kitchen counter, a composting toilet in a lean-to annex, and solar for light. At 120 square feet it is the smallest plan on this list and the purest expression of the stone cottage idea — shelter, warmth, and nothing else. It is a retreat, a studio or a guest house rather than a full-time home for most people; but as a first stone-masonry project, it is the perfect scale to learn on.

Whichever plan you choose, the masonry realities are the same. Structural stone runs 18 to 24 inches thick; a 4-inch veneer over framing gives the look without the mass. Mortar is lime — NHL 3.5 or hot-mixed — for historic work, because it flexes and breathes where cement cracks and traps moisture. Insulation is internal only, closed-cell spray foam or wood fiber; external insulation kills the thermal mass and the character together. Stone walls weigh 120+ pounds per square foot of wall, so footings are real: 24 inches wide minimum, taken below the frost line, with the excavation budgeted honestly. And every window and door opening needs a proper lintel — stone, timber or steel — though arches distribute the load beautifully if you can build them.

The last layer is the systems the historic cottages never had. Plumbing runs in interior service walls, never chased into structural stone. Electrics go in surface-mounted conduit — in black steel it looks intentional — rather than being chased into the walls. Heating honours the plan: a modern wood stove or masonry heater in the original fireplace position. Get those three right and the cottage lives like a new house while feeling four hundred years old.

Final Considerations

Stone is slow, heavy and unforgiving, and that is exactly its virtue. Every plan here is simple enough to build by hand and honest enough to last centuries — the variation is in how the mass is arranged: one cell or two stories, a barn’s volume or a tower’s curve, three small cells or one bermed burrow. The figures do not change across them: walls of 18 to 24 inches, a thermal battery in the hundreds of thousands of BTU, lime in the joints, insulation inside and only inside, and footings dug below the frost. Pick the plan that matches your site, your skills and your patience, then lay the first stone level. The wall will teach you the rest.
