The first casualty of most tiny house kitchens is the joy of cooking itself: counter space shrinks to a cutting board, the oven becomes a toaster, and dinner turns into a compromise you eat standing up. But small kitchens fail from bad geometry, not small size. These ten layouts are engineered, dimension by dimension, for people who actually cook.
1. Tiny House Kitchen Floor Plans at a Glance
Most tiny kitchens are designed by people who eat out. A two-burner cooktop, a bar fridge and twelve inches of counter is fine if dinner comes in a bag, but it fails the moment someone wants to sear, simmer and bake in the same evening. A gourmet-capable tiny kitchen needs four things: a real cooking surface with at least 18 inches of landing space on one side, 36 to 48 inches of continuous prep counter, full-size refrigeration (or an honest plan for it), and ventilation that actually clears the air. The ten plans in this guide deliver all four in footprints from 24 to 60 square feet.
| Plan | Footprint | Defining Spec |
|---|---|---|
| 1. The Classic Galley | 8-ft run, two parallel counters | Aisle 36–42 in; every zone within a single pivot |
| 2. The L-Shape Corner Kitchen | 8×8 corner | 6-ft and 5-ft legs; nearly 9 linear ft of counter |
| 3. The U-Shape Power Kitchen | 8×6 alcove | 12+ linear ft of workspace; range on the closed end |
| 4. The Single-Wall Chef’s Line | 10-ft straight run | Fridge, sink and range in one line; 24-in landings |
| 5. The Peninsula Entertainer | L-shape + 4-ft peninsula | Breakfast bar for two; 12-in knee clearance |
| 6. The Split Galley | Two walls, 4-ft aisle | Wet zone vs hot zone; two cooks, no crossing paths |
| 7. The Appliance-Garage Wall | One 8-ft full-height wall | 24-in-deep appliance garage on its own 20-amp circuit |
| 8. The Outdoor-Connected Kitchen | 6–8-ft sliding glass wall | Deck grill and prep station double the kitchen |
| 9. The Baker’s Kitchen | Oven-centric, 24-in or 30-in oven | 24 in of landing counter on each side of the oven |
| 10. The Minimalist Gourmet | 24 sq ft, 6-ft single wall | Induction cooktop, combo oven, drawer appliances |

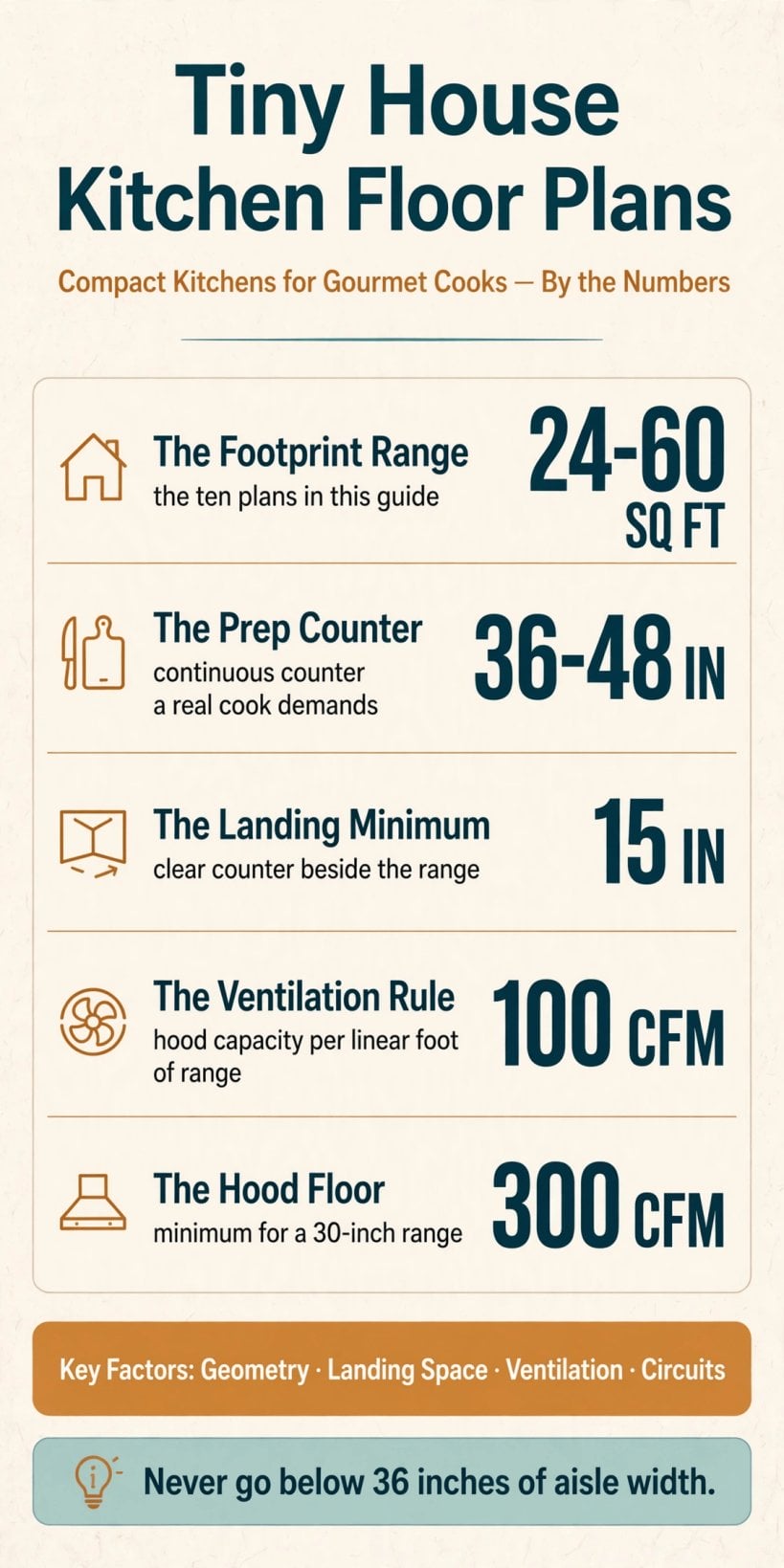

Ten layouts, 24 to 60 square feet, one rule set: real landing space, continuous counter and ventilation sized to the range.
Whichever plan you choose, the appliance dimensions underneath it barely change. A standard range is 30 inches wide, and 24-inch apartment ranges exist and cook identically. A sink base needs 24 inches minimum for a single bowl and 30 inches for dignity. Counter height is 36 inches as standard, or 38 inches for tall cooks who do serious prep. Upper cabinets stay 12 inches deep, mounted 18 inches above the counter; deeper uppers block the work zone below them. Dishwashers follow the same shrink-to-fit logic: 18-inch drawer units fit tiny kitchens, with the 24-inch standard reserved for plans that can spare the width. And if a floor plan allows it, a 28-inch counter-depth fridge steps past the apartment size without swallowing the aisle. Hold those numbers constant, and the ten geometries below are variations on a disciplined theme.

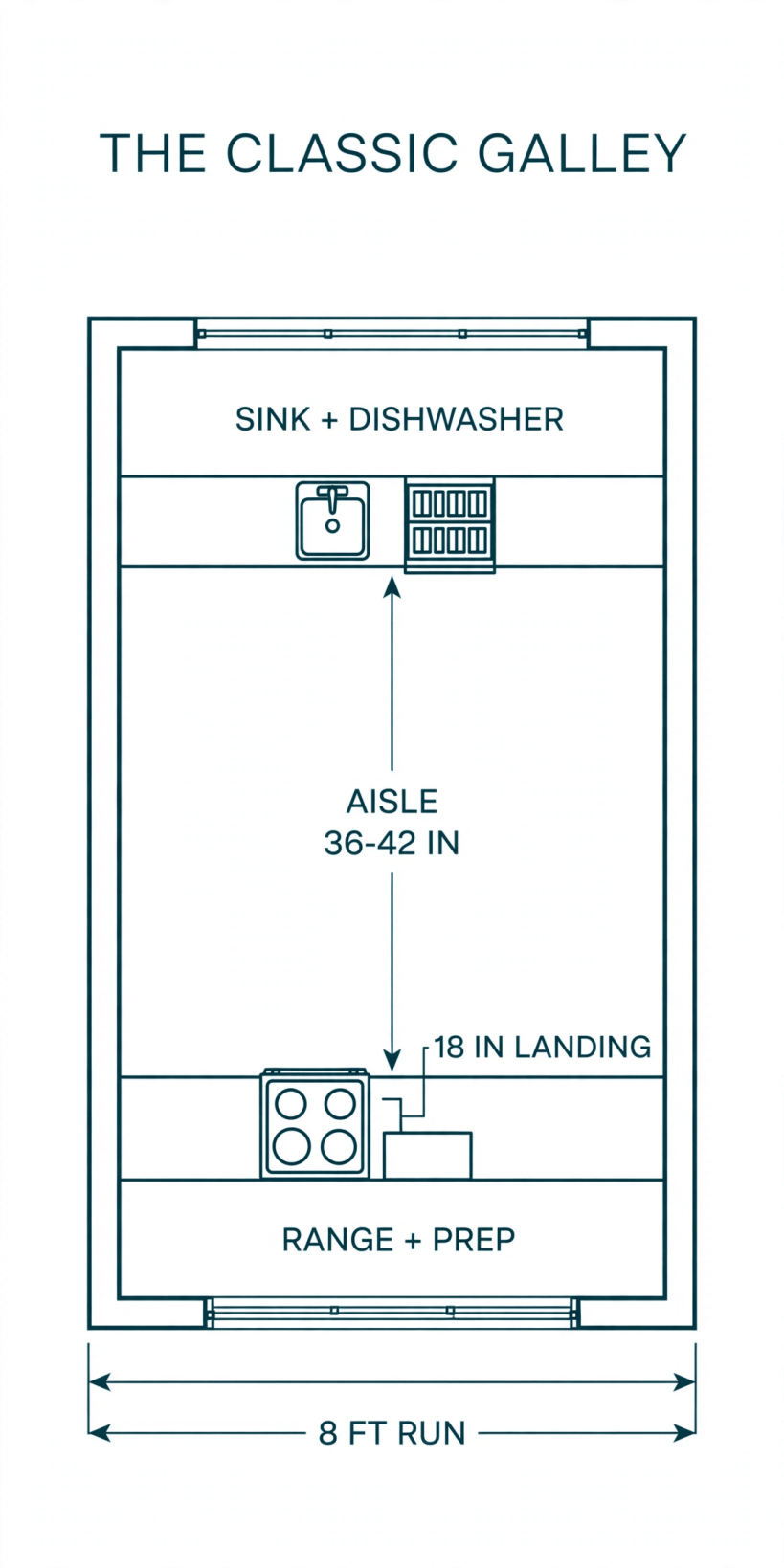

2. The Classic Galley: Two Counters, One Pivot
Two parallel counters, 36 to 42 inches apart, in a straight 8-foot run: sink and dishwasher zone on one side, range and prep on the other. The galley is the most efficient kitchen geometry ever devised, because everything sits within a single pivot and the narrow aisle keeps all work zones inside the ergonomic reach envelope. In a tiny house on wheels, run the galley along one long wall with the living space opening off one end — the same layout-first thinking the tiny house floor plans calculator applies to the whole house applies here to its hardest-working room.
The pivot is the galley’s whole workflow. Stand at the range and the sink is a half-turn behind you; stand at the sink and the prep counter is under your hands. Nothing in the room is more than a step away, yet nothing crowds anything else, because the two runs divide the labour cleanly: wet work and washing on one side, heat and prep on the other. That is why the galley keeps reappearing wherever professionals cook in confined spaces — the geometry removes walking, and walking is what makes a small kitchen feel small.
The galley’s one rule is absolute: never go below 36 inches of aisle width. At 32 inches, two people cannot pass each other, and one person cannot open the oven and the fridge at the same time. The aisle is not leftover space between cabinets; it is the dimension the whole layout is built around, and it is protected in every plan that follows.

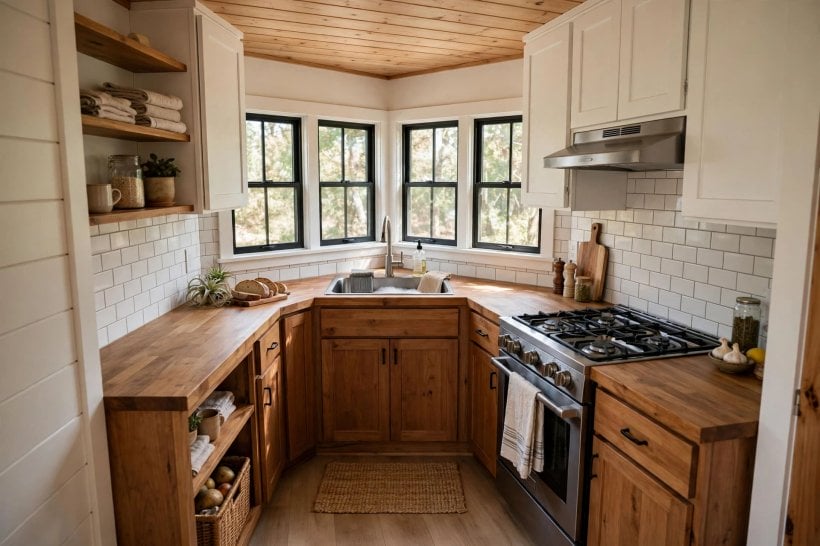

3. The L-Shape Corner Kitchen: Continuous Counter
Wrap the counters around a corner and you gain the single most valuable thing in a small kitchen: continuous counter. An L with 6-foot and 5-foot legs yields nearly 9 linear feet of counter after subtracting the sink and range cutouts. Put the sink in the corner leg and the range on the long leg, and the corner itself becomes prime prep space, exactly where the work triangle wants it — an arrangement explored from the storage side in our guide to tiny house kitchen ideas.
The corner has one trap: a blind corner wastes 24 inches of cabinet. Specify a LeMans or magic-corner pullout so the depth stays reachable, or leave the corner open as an appliance garage for the stand mixer and food processor. Either way, the corner is decided on paper, not discovered after the cabinets are screwed in.

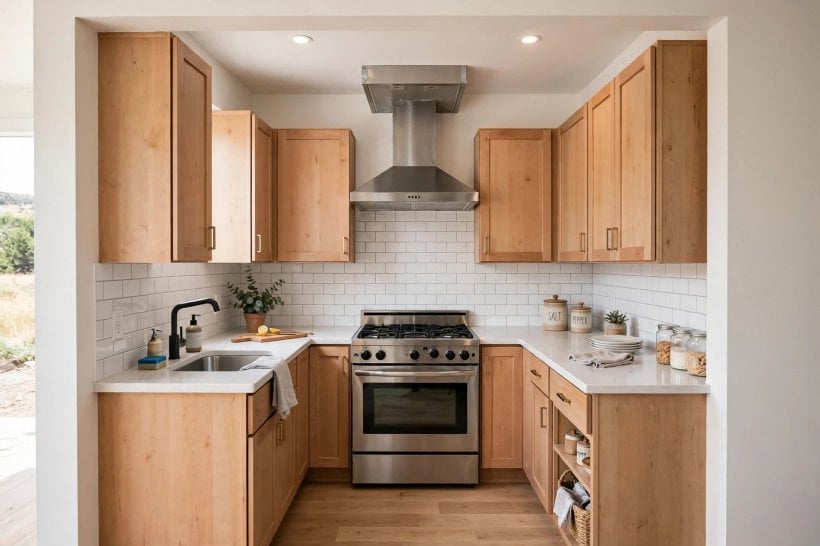

4. The U-Shape Power Kitchen: Three Walls of Workspace
Three walls of counter in a 6-foot-deep alcove gives a genuine U with 12+ linear feet of workspace, the closest a tiny house gets to a full-size kitchen. This layout suits 10-foot-wide park models and foundation builds, where the extra two feet of width exist. The closed end of the U is the ideal range wall: flanked by counter on both sides, and vented straight through the wall behind it. It is the power option in any serious tiny house kitchen design, and the one that asks the most of the shell around it.
The U’s weakness is air. A U-shape traps cooking effluent, so ventilation here is a system, not an accessory: size the range hood at 100 CFM per linear foot of range width — 300 CFM minimum for a 30-inch range — and duct it to the exterior with rigid duct, never flex. Cooking releases roughly a pint of water per meal into the air, and in 200 square feet with no real hood that moisture condenses on every cold surface and feeds mold. The hood also needs a makeup-air path, a cracked window or a dedicated inlet, so it does not depressurize the house and backdraft the water heater. Recirculating hoods are decorations, not ventilation.

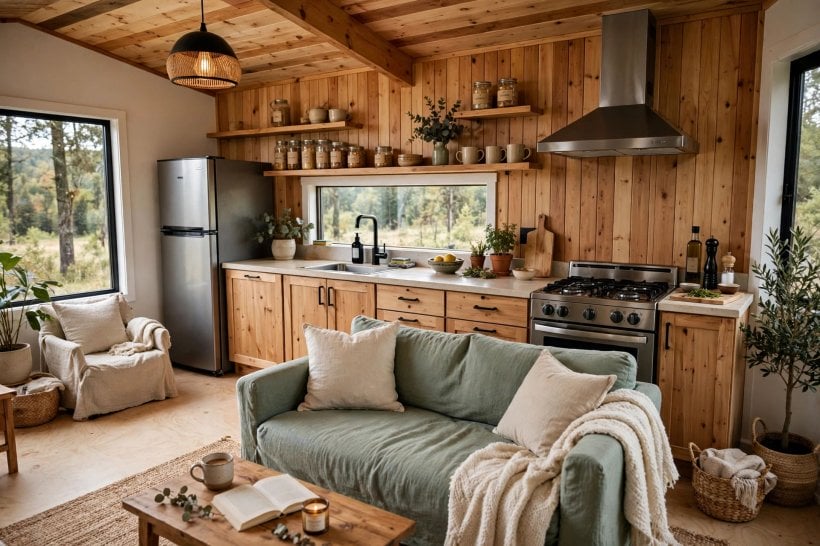

5. The Single-Wall Chef’s Line: A Restaurant Pass at Home
One straight 10-foot counter along a single wall: fridge at one end, sink in the middle, range at the other end, with 24 inches of landing space beside each. It reads as minimal but cooks as a proper line kitchen, the same geometry as a restaurant pass. The opposite side of the room stays completely open, which makes this the best kitchen for open-plan tiny houses where the kitchen shares space with living — the purest form of kitchen design for tiny house small spaces.
The line lives or dies on refrigeration. A 10-foot run fits a 24-inch-wide apartment-size fridge of 10 to 12 cubic feet. If you need full-size, steal 6 more inches from the living zone and give them to the fridge without apology: the fridge is used twenty times a day, and it deserves the space more than the sofa does.

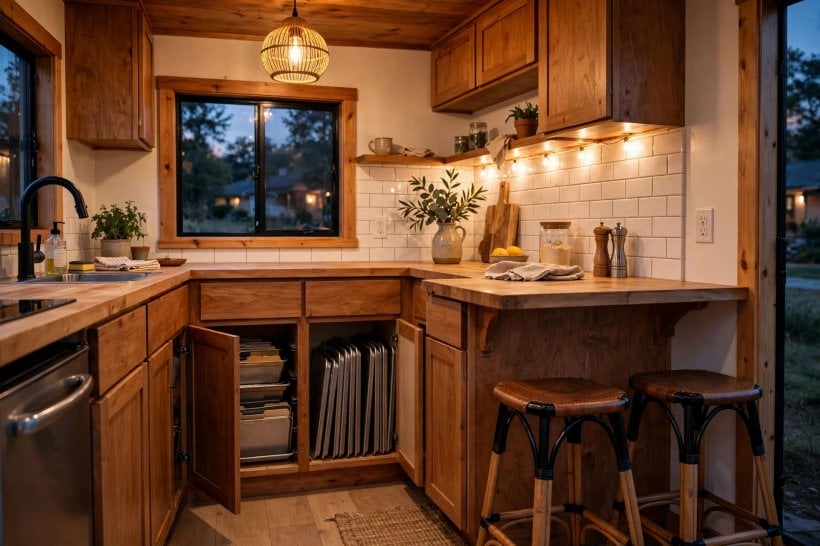

6. The Peninsula Entertainer: An L Plus a Landing Zone
Add a 4-foot peninsula to an L-shape and you get three things at once: a breakfast bar for two, a serving landing zone, and a visual boundary between kitchen and living. The peninsula overhang needs 12 inches of knee clearance for comfortable seating, and the base cabinets beneath it are the perfect depth for sheet pans and cutting boards stored vertically, on edge, where they can be pulled like files.
The peninsula also works when nobody is sitting at it. As a serving landing zone it catches dishes on their way out of the kitchen and groceries on their way in, and as a visual boundary it tells the living space where it ends without a wall to close the room down. In an open-plan tiny house that boundary is doing architectural work: the cook gets a defined workplace, the guests get a front-row seat, and neither has to negotiate for the same square feet.
Seating math is where peninsula promises go to die: allow 24 inches of bar width per person. A 4-foot peninsula seats two comfortably. Do not promise it seats four, and do not let a pretty render talk you into stools that have nowhere for their knees to go.

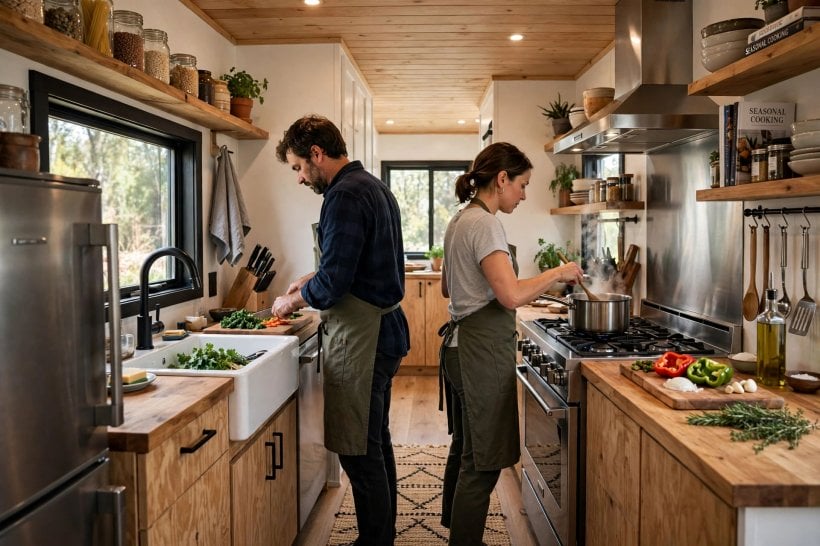

7. The Split Galley: Wet Zone, Hot Zone
Put the wet zone — sink, dishwasher, fridge — on one wall and the hot zone — range, oven, prep — on the opposite wall, with a 4-foot aisle between them. This split is ideal for couples who cook together: one person preps while the other manages the range, and nobody crosses anyone’s path. The wet wall also concentrates the plumbing in one place, the same one-wet-wall logic that drives efficient tiny house bathroom layouts. The split demands discipline about landing space: 15 inches minimum beside the range on the hot side.
Safety sets the orientation. Never place the range where its door opens into the main traffic path. A 180-degree oven door swinging into a 36-inch aisle is a burn hazard; orient the range so the door opens against a counter, not a walkway, and the two-cook choreography stays an asset instead of an injury rota.

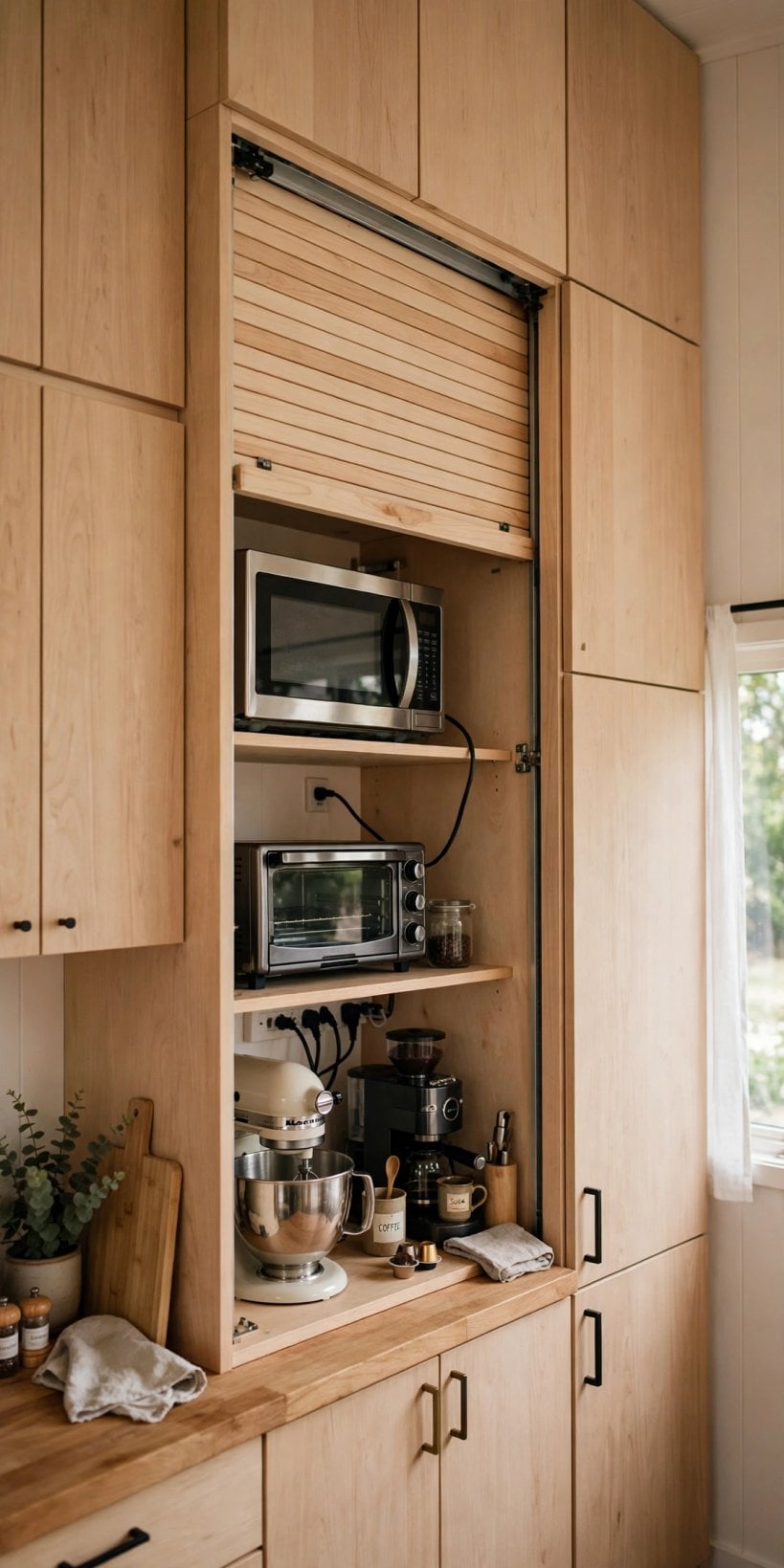

8. The Appliance-Garage Wall: Storage That Plugs In
Dedicate one 8-foot wall to full-height cabinetry: a 24-inch-deep appliance garage with roll-up or pocket doors housing the microwave, toaster oven, stand mixer and coffee station, all plugged into a dedicated outlet strip inside. The remaining L or galley handles daily cooking. This layout is for the cook with equipment, and it pairs naturally with the space-first thinking behind compact kitchen appliances for tiny houses: every appliance stays accessible without surrendering an inch of daily prep counter.
The garage’s hidden cost is electrical. It needs its own 20-amp circuit. A microwave drawing 12 amps plus a toaster oven drawing 12 amps on one shared circuit is a guaranteed trip — usually mid-meal, with guests watching. Plan the circuit when you plan the wall, and the garage becomes the hardest-working eight feet in the house.
9. The Outdoor-Connected Kitchen: The Sliding Glass Wall
Position the kitchen against a 6-to-8-foot sliding glass door that opens to a deck with an outdoor grill and prep station. In warm months the kitchen effectively doubles: grilling, smoking and large-pot work — canning, stock — move outside, and the indoor range handles the rest. It is the highest-capacity cooking layout on this list for houses in warm climates, and it depends entirely on the door, which is why the travel-securing discipline in our guide to sliding glass doors matters to cooks as much as to drivers.
The division of labour follows the heat. Anything smoky, steamy or oversized — the grill, the smoker, the stockpot too big for the indoor range — belongs outside on the deck station, while the indoor kitchen keeps the work that needs precision, refrigeration and a sink within reach. On a canning day or a stock day, the indoor range never becomes the bottleneck, because the large-pot work has somewhere else to happen. Capacity, in this layout, is seasonal square footage: the deck is a second kitchen room that only exists when the weather lets you open the wall.
The door spec is unforgiving. The slider needs a flush threshold track, 1/2-inch beveled maximum, so the indoor-outdoor transition is trip-free when you are carrying a stockpot with both hands. And a screen door is non-negotiable — unless you enjoy cooking with flies.

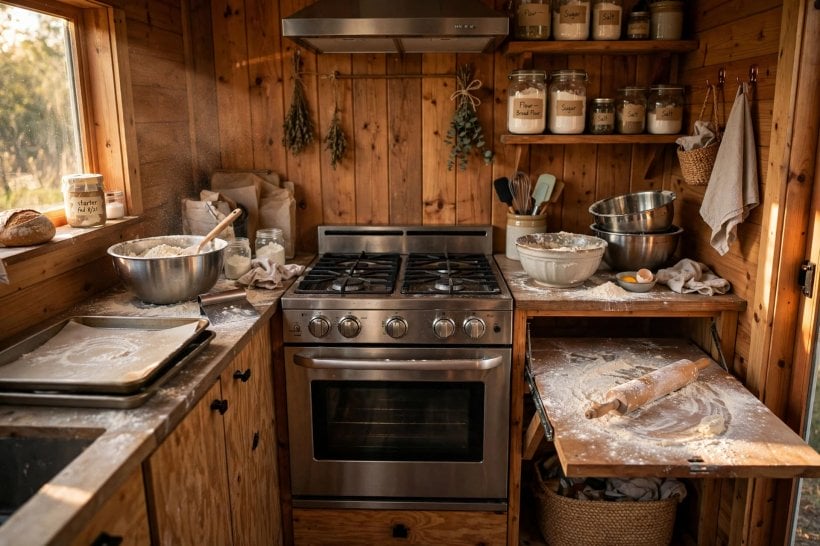

10. The Baker’s Kitchen: Built Around a Real Oven
Build around a real 24-inch or 30-inch oven instead of a two-burner compromise. The oven wall gets 24 inches of landing counter on each side — non-negotiable for handling sheet pans safely — the sink goes on the adjacent wall, and the fridge anchors the end of the run. Add a fold-down 24×18-inch pastry slab at standing height: it doubles the dough-working area and folds away when it is not in use.
Every dimension in this layout answers to the sheet pan. The landings are sized to receive one straight from the oven without a shuffle or a stack; the sink sits on the adjacent wall so washing up never crosses the hot zone; and the fridge anchors the end of the run, keeping cold ingredients at the start of the workflow rather than the middle of it. The pastry slab extends the same logic to dough: a dedicated, standing-height work surface that appears when baking starts and disappears when it ends, instead of a permanent island the room cannot afford.
Heat management is the baker’s tax. A full-size oven in 200 square feet will heat the whole house, and in summer that is miserable without ventilation. The baker’s kitchen demands the 300-CFM hood from the U-shape plan, minimum — sized to the range, ducted outside, and treated as part of the oven purchase rather than an optional extra.
11. The Minimalist Gourmet: 24 Square Feet, Done Right
Proof that small does not mean compromised: a 6-foot single wall with an induction cooktop — two burners, 1800W — a convection microwave-oven combo, an 18-inch dishwasher drawer, and an undercounter fridge drawer pair. Total footprint: 24 square feet. The trick is vertical. A full-height pantry pullout, 6 inches wide and 7 feet tall, holds more dry goods than most full-size pantries — a storage-first instinct shared with zero waste kitchens — and magnetic knife and spice walls keep tools off the counter entirely.
Notice what the minimalist plan refuses to surrender. It keeps a real dishwasher — a drawer, but a dishwasher — real cold storage in the fridge drawer pair, and a genuine oven function in the convection combo. What it gives up is only the full-size format of each appliance, never the capability. That is the discipline the whole guide is built on: shrink the footprint of the equipment, not the cooking it can do.
The cooktop choice is the plan’s engine. Induction is the correct cooktop for tiny houses: it puts 90 percent of its energy into the pan, versus 40 percent for gas, which means less waste heat dumped into a small space and no combustion byproducts to ventilate. In the smallest kitchen on this list, the appliance that heats only the food — never the room — is not a compromise at all. It is the point.
Final Considerations
Design the kitchen around the cook, not the floor plan. List the five meals you cook most often, then verify the layout handles all five without a workaround. If searing a steak means moving the cutting board to the bathroom, the kitchen failed — whatever its square footage, and whichever of these tiny house kitchen floor plans it came from. Finish by pressure-testing your chosen geometry against the wider family of layouts, from the gooseneck tiny house floor plans to the two-bedroom plans, because a kitchen that works on paper still has to work inside a whole house. All ten plans here pass the only test that matters: you can cook a real dinner, for real people, without leaving the room.
