How to Install a Mini-Split Air Conditioner in a Tiny House: Complete DIY Guide

Whisper-quiet, ductless, heating and cooling from one slim wall unit — the mini-split is the tiny house climate hero. But the classic DIY mistake is buying too much of a good thing: an oversized unit short-cycles, cooling so fast it never dehumidifies, and leaves the house cold and clammy while the compressor bangs on and off like a screen door.

How to Install a Mini-Split in a Tiny House: At a Glance

Learning how to install a mini-split in a tiny house is mostly a sizing exercise followed by a careful afternoon of mounting, routing and wiring. The sequence never changes: size the unit to the floor area and insulation, mount the indoor head high and the outdoor condenser with room to breathe, run the line set through one sealed penetration, wire a dedicated circuit, and let a certified tech handle the refrigerant — or choose a pre-charged DIY kit and skip that step legally. The worked numbers running through this guide are the original’s own: a 9,000 BTU unit is the sweet spot for most tiny houses at 250–400 sq ft, a tech’s vacuum-and-commission visit runs $150–300, and a full professional install lands at $2,500–4,500. The ten sections follow the install order: the case for ductless, sizing, both placements, the line set, the electrics, the refrigerant decision, commissioning, and the maintenance that keeps it all invisible.

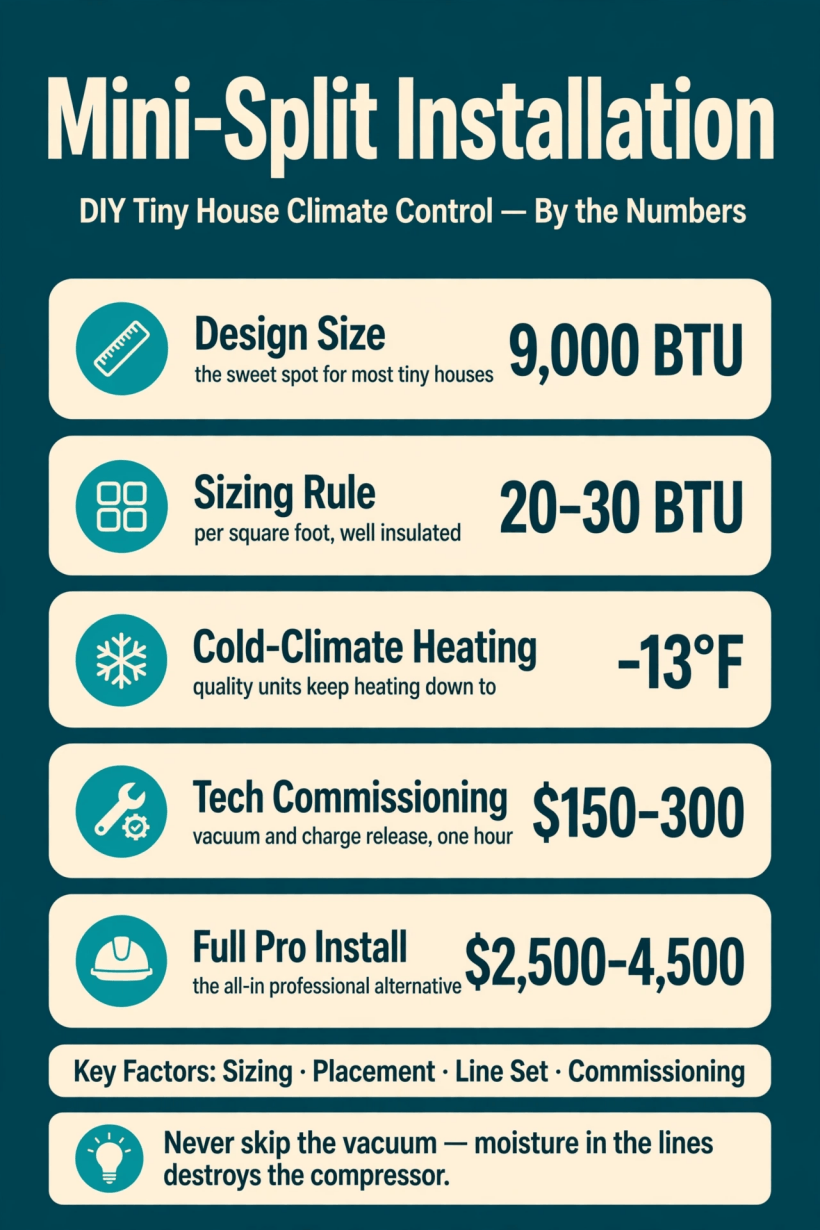

Mini-split installation by the numbers: a 9,000 BTU unit covers most tiny houses, the sizing rule runs 20–30 BTU per square foot, and a certified tech’s one-hour commissioning visit costs $150–300.

1. The Tiny House HVAC of Choice

The ductless mini-split is the default heating and cooling system for tiny houses, and the reasons stack up quickly. It is efficient — 20+ SEER ratings are routine — it needs no ductwork (which a tiny house has no room to hide anyway), it runs whisper-quiet, and a single system both heats and cools, so one appliance covers the whole year. A 9,000–12,000 BTU unit conditions most tiny houses, which means the equipment itself is small, light and priced within reach of a DIY budget.

This guide is the complete DIY installation sequence: what you can genuinely do yourself — sizing, mounting, routing the line set, wiring — and exactly where the professionals come in, because one part of the job (the refrigerant work) is legally fenced off, as section 7 explains. The mini-split sits within the wider heating picture alongside the options compared in our guide to how to heat a tiny house, but for most builds it is the first system to price and the last one most owners would give up. One careful afternoon of work buys years of silent comfort — provided the sizing is right, which is where the install really begins.

2. Sizing: Right-Size or Regret It

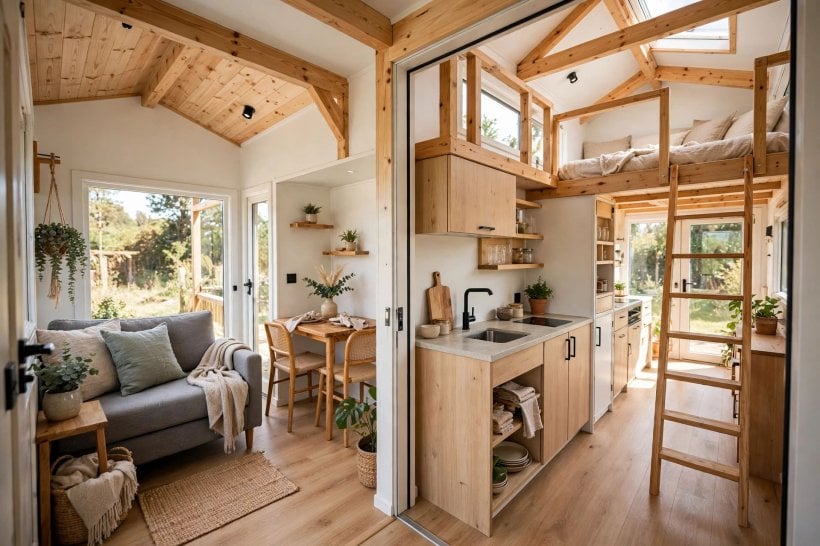

The rule of thumb is simple: 20–30 BTU per square foot for a well-insulated tiny house. Run it and the bands emerge. A 300 sq ft house needs 6,000–9,000 BTU; a 400 sq ft house needs 9,000–12,000 BTU. The pick for most tiny houses is 9,000 BTU — the sweet spot, handling 250–400 sq ft — with 12,000 BTU reserved for hot climates, poor insulation or big glass. If your walls are thin, the insulation comparison in our guide to how to insulate a tiny house is worth reading before you buy, because insulation quality is what moves you within the 20–30 BTU band.

Oversizing is the classic mistake, and it fails in a specific way: an oversized unit short-cycles, cooling the air so fast that it shuts off before it can dehumidify, leaving the house cold and clammy — and short-cycling kills both efficiency and the compressor itself. Undersizing fails the opposite way: the unit runs flat-out and never catches up on the hottest or coldest days. Cold climates add one more specification that matters more than any other: verify the low-ambient heating rating. Quality units heat down to -13°F or lower; cheap ones quit at 30°F. In a cold-winter build, that single line on the spec sheet is the difference between a heating system and a summer fan — the same winter discipline covered in our guide to tiny house living in cold climates.

3. Placement: The Indoor Head

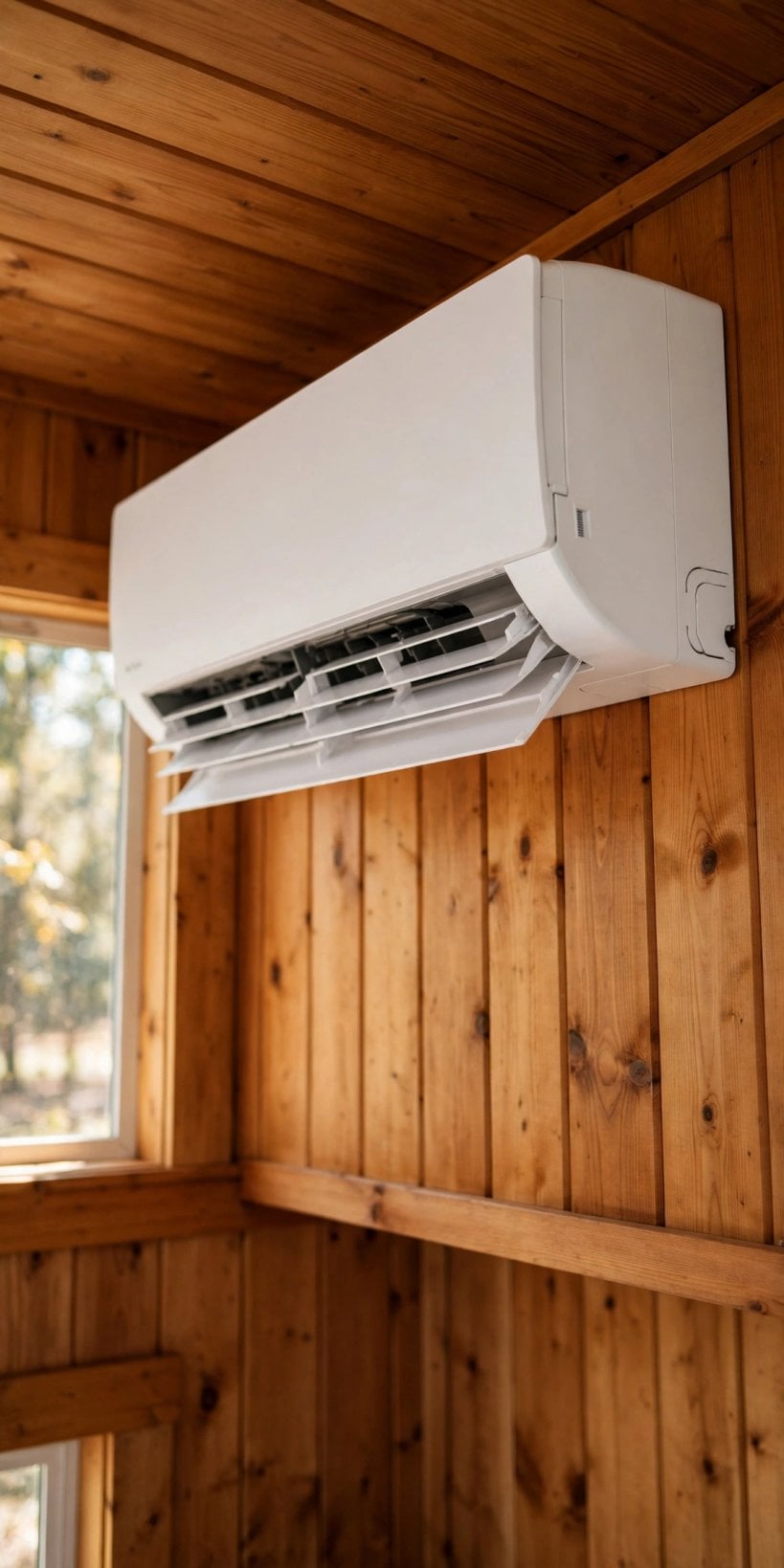

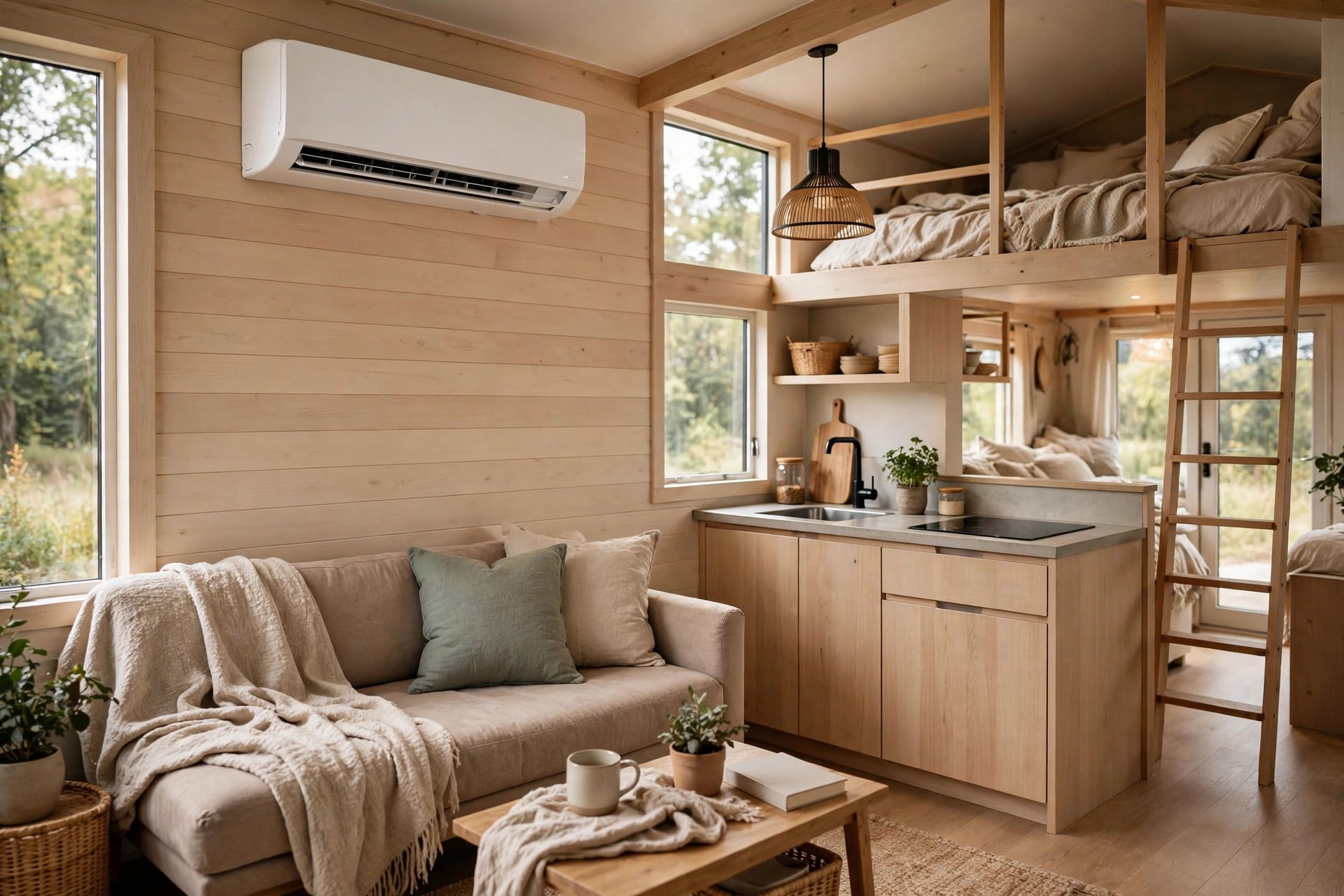

The indoor head mounts high on an interior wall, and the height is physics, not preference: heat rises and cool air falls, so a high mounting serves both modes — cooling air drifts down through the room, and in heating mode the unit is not fighting its own warm layer at the ceiling quite as hard. Centre the head on the longest wall for even distribution, so the conditioned air has the full length of the house to mix through rather than blasting one corner and leaving the far end stale.

Two placement warnings matter more than the rest. Keep the head’s direct blast away from the loft sleeping area — nobody wants 55°F air on their face at 2 AM — and never mount it above the bed at all. The reason is water, not air: condensate lines clog, drips happen, and a unit mounted over the pillows turns a minor clog into a wet mattress. Choose the wall with the sleeper’s comfort and the drain’s reliability both in mind, and the head disappears into the background of daily life exactly as it should.

4. Placement: The Outdoor Condenser

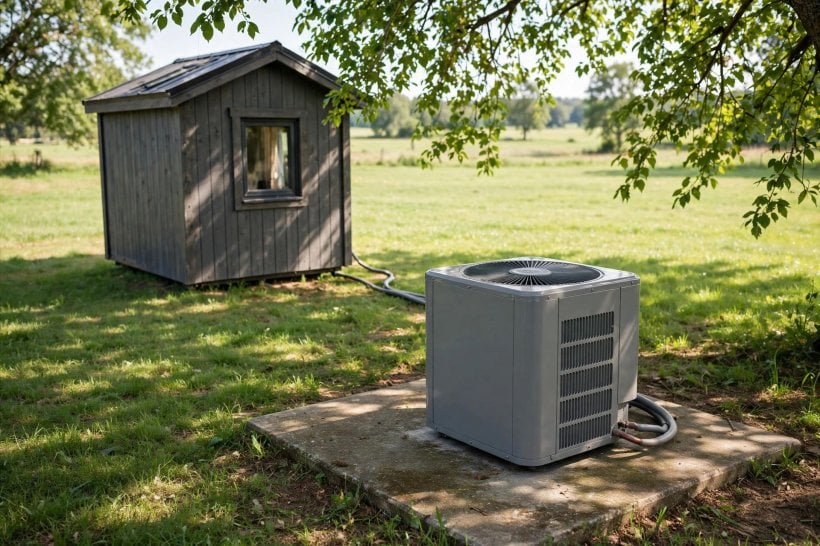

The outdoor condenser has two honest mounting options: on the ground on a pad, or wall-mounted on brackets. The bracket option earns its keep in snow country — off the ground means no snow burial — and it sheds vibration away from the structure. Either way, the condenser must sit within the line-set length limit, typically 50–80 ft maximum, and shorter is always better: every extra foot of line is more charge, more loss and more to insulate.

Give the unit air. The condenser needs 2+ feet of clearance all around, because airflow is its lifeblood — a unit boxed in by fencing, stored gear or planting is a unit strangling itself. Shade it if you possibly can: a shaded condenser works 5–10% more efficiently, which is free performance bought with nothing more than siting. Between the length limit, the clearance and the shade, placement is a small puzzle solved once on paper — before the pad is poured or the brackets are drilled.

5. The Line Set: Connecting the Halves

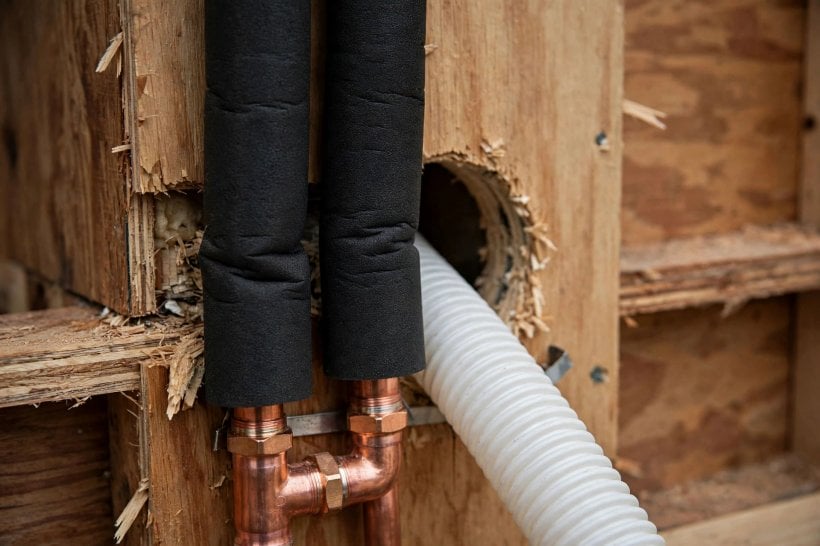

The line set — an insulated copper pair, a condensate drain and a communication wire — is the physical link between the two units, and it passes through the wall in one penetration. Drill that hole at 2.5–3 inches, sloped slightly downward toward the outside, so any water that finds the penetration drains out rather than in. Route the lines gently: no kinks, ever, because a kinked line set is a ruined line set, and respect the minimum bend radius of 4–6 inches on every turn.

Insulate both lines properly. The factory insulation is often thin, so add armaflex sleeves — especially over the suction line — before the set disappears into the wall. The condensate drain must slope continuously down and out, with no traps and no uphill sections; a drain that ponds anywhere will eventually overflow somewhere. Remember too that in heating mode the OUTDOOR unit makes condensate, so plan its drainage with the same care. Finally, seal the penetration completely — foam, silicone and a wall cap — because an unsealed hole is a water, air and insect entry cut into an otherwise tight envelope.

6. Electrical: The Dedicated Circuit

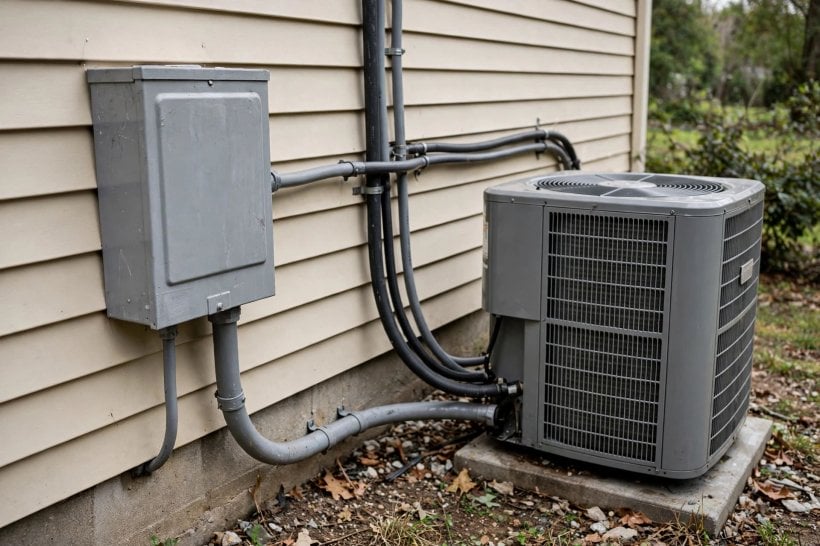

A mini-split gets its own circuit, full stop. The standard specification is a dedicated 15–20A 230V circuit wired in 12 AWG — most mini-splits are 230V, though some 9,000 BTU units are 115V, so verify your unit’s plate before buying wire. A service disconnect at the outdoor unit is required by code: it is the roughly $30 box that lets a technician kill power safely before opening the unit, and it is not optional. The wider service sizing behind this circuit — inlets, panels and load math — is laid out in our guide to tiny house electrical wiring for 30-amp and 50-amp hookups.

Add surge protection. Mini-split control boards are lightning-sensitive, and $200 boards fry in storms; a whole-house or dedicated surge protector is cheap insurance against the most common electronic death these units suffer. Off-grid houses have one more check: the startup surge — the locked-rotor amps at compressor start — can trip small inverters. Verify your inverter handles the surge before the install, not after; most 3,000W+ pure sine inverters do, and soft-start kits exist for marginal cases. The arrays and inverters behind that check are sized in our roundup of solar panel kits for tiny homes.

7. The Refrigerant Question: DIY vs Pro

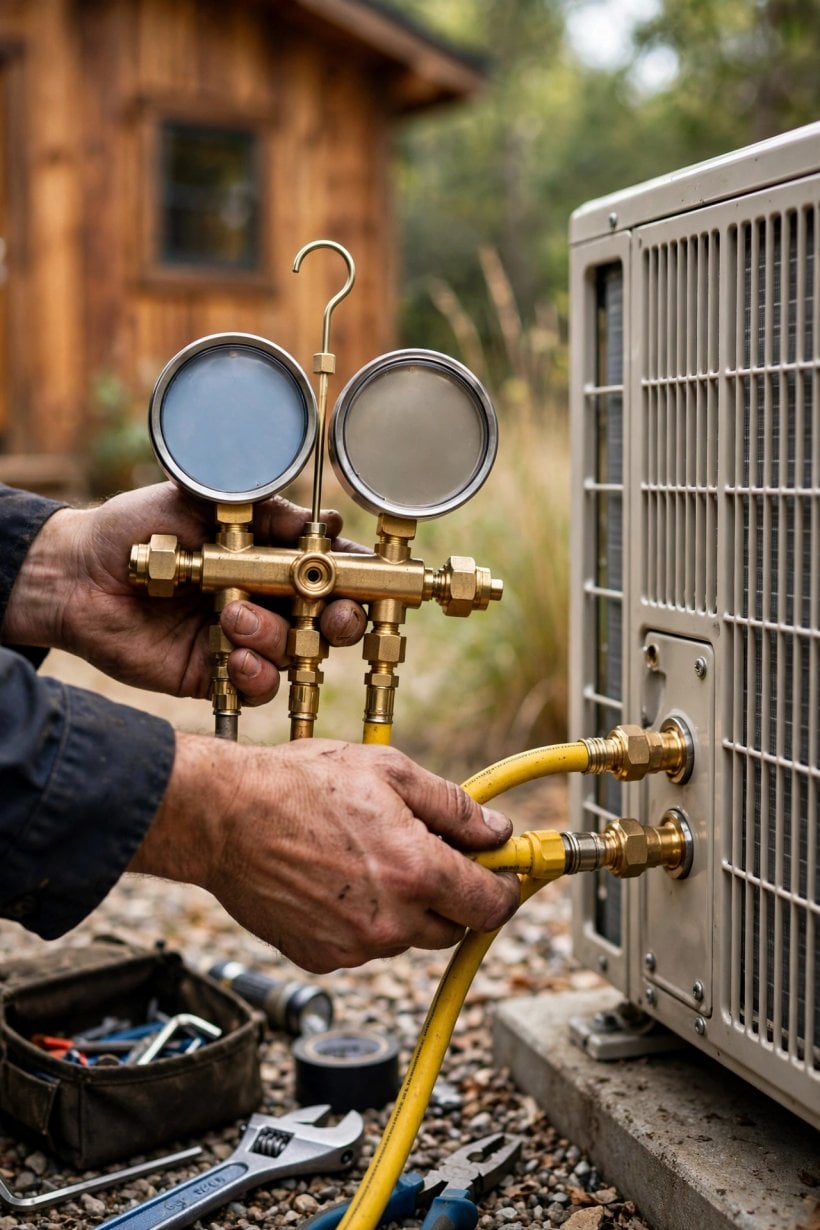

Here is the honest division of labour. Mounting both units, running the line set, wiring the circuit and drilling the penetration are solid DIY — careful work, but well within a competent owner’s reach. The refrigerant work — vacuuming the lines and releasing the charge — legally requires EPA Section 608 certification in the US, and that line is real. Three options respect it. First, the standard approach: DIY everything, then hire a tech for the one-hour vacuum-and-commission, at $150–300. Second, pre-charged quick-connect line sets — the Mr. Cool DIY series is the known example — which are genuinely DIY-legal with no vacuum needed, at $1,200–2,000 for the kit; slightly less efficient, but truly do-it-all-yourself. Third, a full professional install at $2,500–4,500 all-in.

Two “nevers” close the section. Never skip the vacuum on a conventional install: moisture in the lines destroys the compressor, and the vacuum boil-off is what removes it. And never release refrigerant to atmosphere — it is illegal and environmentally destructive, full stop. Knowing how to install a mini-split in a tiny house means knowing where your part ends; the refrigerant boundary is the one place this guide tells you to stop and make a phone call.

8. Commissioning: First Start-Up

Commissioning is the sequence the tech (or your pre-charged kit’s procedure) runs at first start, and it is worth watching with your own checklist in hand. First, the pressure test: nitrogen to 300+ psi, and a system that holds for 24 hours has no leaks. Second, the vacuum: pulled to 500 microns or lower, the deep vacuum that boils off the moisture section 7 warned about. Third, release the charge — open the service valves and let the factory charge fill the system.

Then verify, in both modes. Test cooling AND heating, checking the temperature split — 15–20°F across the indoor coil in cooling. Check condensate drainage by pouring water into the indoor pan; it must flow freely outside. Verify the electrics: amp draw within spec, no tripped breakers. And document the install like a professional: write the install date, the refrigerant type and the charge amount on the unit itself, because the next technician — possibly years from now, possibly you — needs exactly those three facts.

9. Maintenance: The Monthly and Annual Ritual

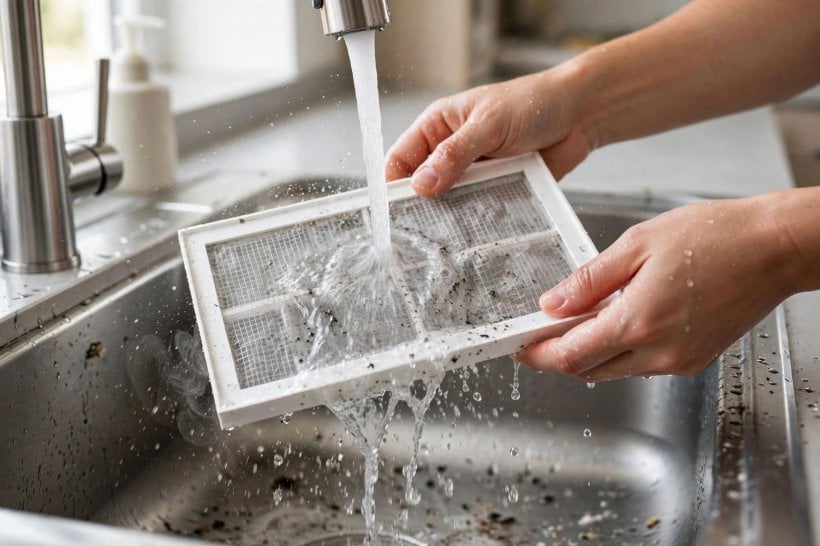

The mini-split is the lowest-maintenance HVAC you can own, but “lowest” is not “none”. Monthly, clean the indoor filters: rinse them, five minutes, done. This one habit matters out of proportion to its size, because dirty filters are the #1 efficiency killer on these systems — a clogged filter quietly taxes every hour the unit runs. Annually, hose the outdoor coil gently — bent fins strangle airflow, and a fin comb straightens the accidents — and clear the condensate drain with algae tablets or a vinegar flush, because clogs cause indoor waterfalls over the bed you wisely did not mount the head above.

Finish the annual pass with two inspections. Check the line set insulation: UV degrades it, and cracked sections get replaced before the copper underneath suffers. And verify the mounting — vibration loosens brackets over time, and while the house may move, the unit must not. Thirty minutes a year, plus five minutes a month, is the entire routine; it is the cheapest performance insurance in the whole build.

10. Long-Term Care: The Pro Check and True Cost

Every 3–5 years, bring the professional back for a check: refrigerant pressures verified, electrical connections inspected, and a deep coil clean. That visit catches the slow drifts — a marginal charge, a loosening terminal — before they become failures on the hottest night of the year. Between visits, your monthly and annual ritual from the previous section is the whole of ownership; total cost of ownership is minimal, and that is a design feature, not an accident.

The mini-split also pairs with the systems around it rather than replacing them. It conditions the air; it does not exchange it — the fresh-air half of a tight house’s climate is a ventilation system, covered in our guide to tiny house ventilation with HRV and ERV systems. And it draws from the same utility budget as everything else in the house, mapped in our guide to tiny house utilities for power, water and off-grid sewage. Sized right, installed carefully and maintained lightly, the unit simply disappears into the background of comfortable tiny living for years at a time.

Final Considerations

Size it right — 9,000 BTU for most tiny houses — mount the head high and the condenser shaded with room to breathe, run the line set without kinks through one sealed penetration, wire the dedicated circuit with its disconnect and surge protection, and let a certified tech handle the refrigerant (or buy the pre-charged DIY kit and stay legal that way). Then commission it properly, document the charge, and clean the filters monthly. The mini-split is the rare appliance that heats, cools, dehumidifies and sips power while doing it — install it well, and it disappears into the background of a comfortable house.
