Drainage obeys one law above all others: water takes the shortest downhill route it can find, and it punishes any layout that forgets this. In a tiny house, where the floor sits only inches above the trailer frame, there is no spare height to hide a lazy slope or a badly placed vent. Get the layout right on paper and the system stays silent for decades. Get it wrong and you live with slow drains, gurgling traps and sewer gas.
Tiny House Plumbing Layout: At a Glance
A good tiny house plumbing layout is designed from first principles rather than copied from a conventional house and shrunk. Because every fixture sits close together and the whole system lives just above the trailer, an efficient DWV (drain-waste-vent) design is compact, properly vented and ready for freezing weather. This guide works through the complete method in build order: the downhill principle itself, the one-wall fixture strategy that shortens every run, the slope minimums that keep water and solids moving together, the pipe sizes and gentle fittings that prevent clogs, the venting options that suit tight spaces, the manifold approach to supply lines, the toilet decision that sizes the largest drain in the house, the separate greywater path, and the freeze protection that lets you winterize in minutes. Plan the layout before a single pipe is cut, and the plumbing becomes the one system you never have to think about again.
| Topic | What It Covers | Key Fact or Figure |
|---|---|---|
| 1. Design Principles | Why layout decides everything downstream | Floor sits inches above the trailer |
| 2. The Wet Wall | Clustering every fixture on one wall | All fixtures within 6–10 feet |
| 3. Drain Slopes | The fall that keeps drains self-cleaning | 1/4 inch per foot for 3-inch and under |
| 4. Pipe Sizing and Fittings | Diameters, sweeps and cleanouts | 3-inch toilet drain; long-sweep fittings only |
| 5. Venting | Stack vents and the wet-venting method | One 2-inch stack serves the whole wet wall |
| 6. AAVs and Roof Penetration | Mechanical vents and flashing the one hole | AAVs cost $25–40 |
| 7. Supply Lines | PEX home runs from a central manifold | 1/2-inch fixture lines; 3/4-inch main |
| 8. The Toilet Decision | Flush, composting or incinerating | Composting units run $900–1,200 |
| 9. Greywater | The second, separate drainage system | Kept apart from blackwater for reuse |
| 10. Freeze Protection | Heat trace, insulation and drain-down | Whole system winterizes in 15 minutes |

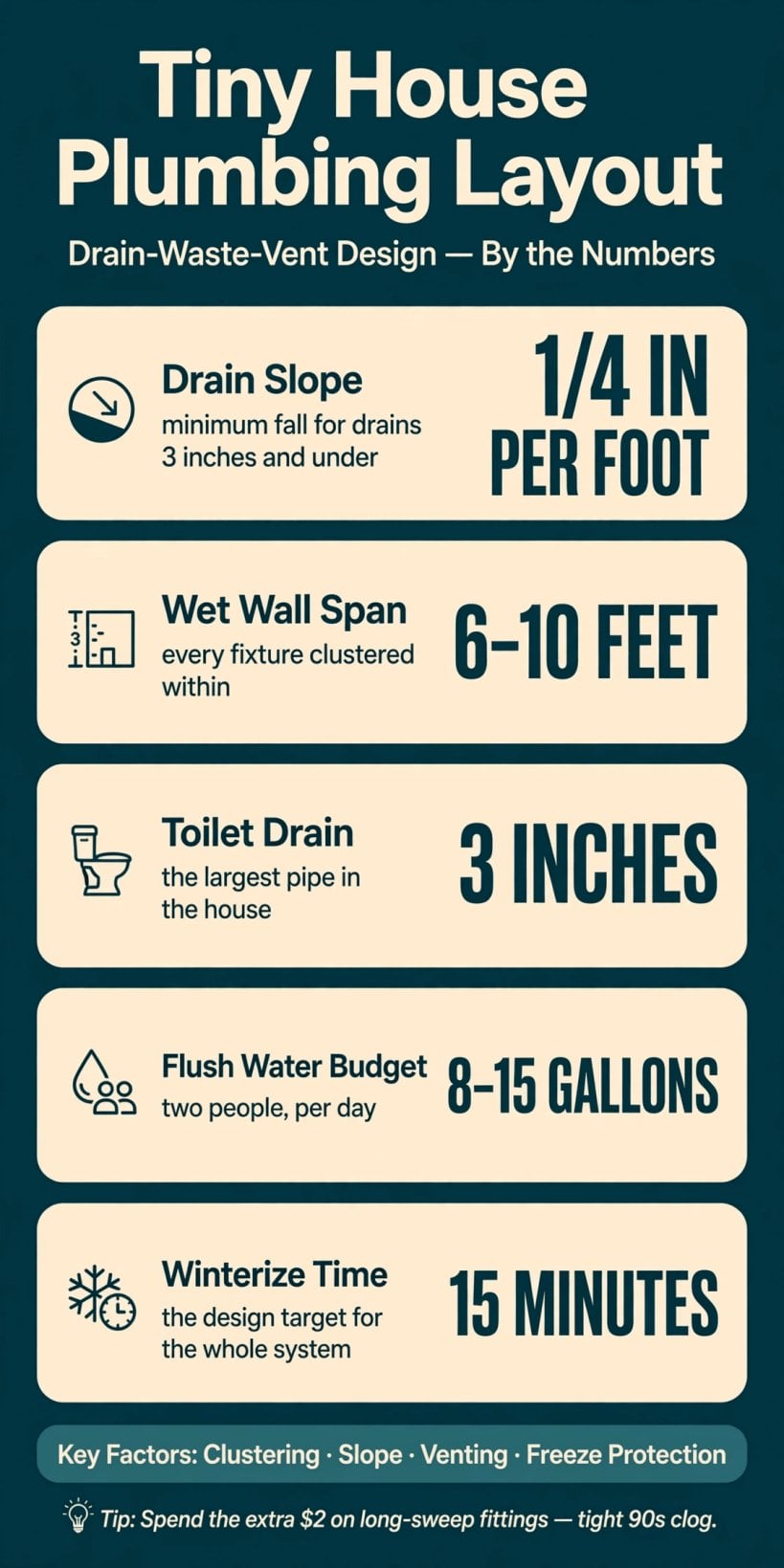

The layout in numbers: drains fall 1/4 inch per foot, every fixture clusters within a 6–10 foot wet-wall span, the toilet sets the 3-inch main drain, flushing budgets 8–15 gallons a day for two people, and the finished system can be winterized in 15 minutes.
1. Water Runs Downhill: Design From First Principles
Every plumbing decision in a small house reduces to a single question: does this give water a clean, legal path out? Drainage has no pump and no second chances. It relies entirely on gravity, which means the layout itself — where fixtures sit, how pipes fall, where air enters the system — determines performance long before pipe material or fixture quality matters. A beautifully built drain at the wrong slope still ponds, still clogs and still smells.
The tiny house adds a constraint site-built homes never face: vertical room is nearly nonexistent. With the floor only inches above the trailer, every inch of fall has to be budgeted across the run, and a drain that starts too high or dips under a crossmember runs out of slope before it reaches the exit. This is why the layout deserves to be drawn, measured and settled before framing closes the floor. It also helps to see drainage as one half of the whole utility picture, designed alongside the power and water systems covered in our guide to tiny house utilities. Gravity is free and utterly reliable, but only for the builder who plans around it.
2. The Wet Wall: Cluster Everything

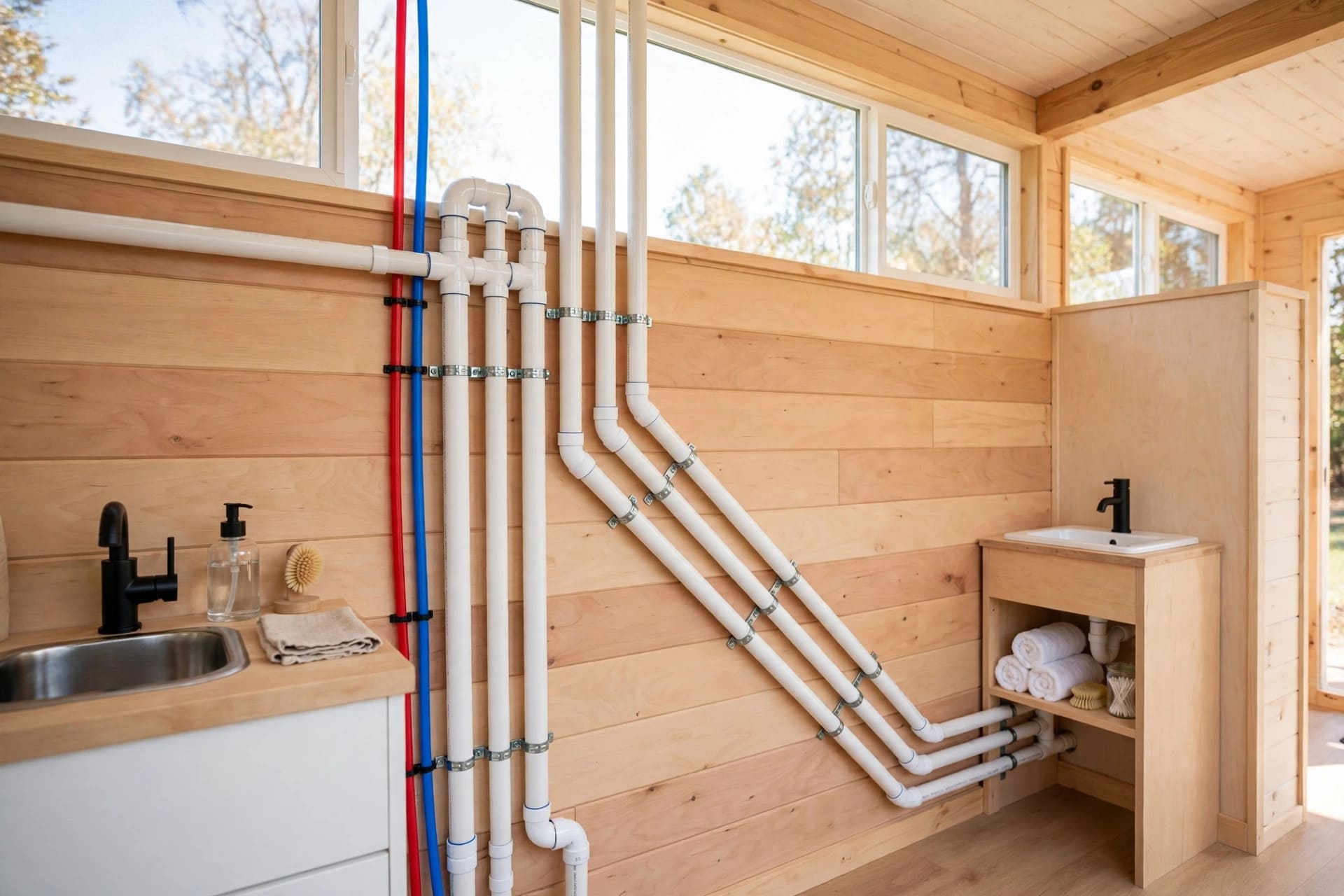

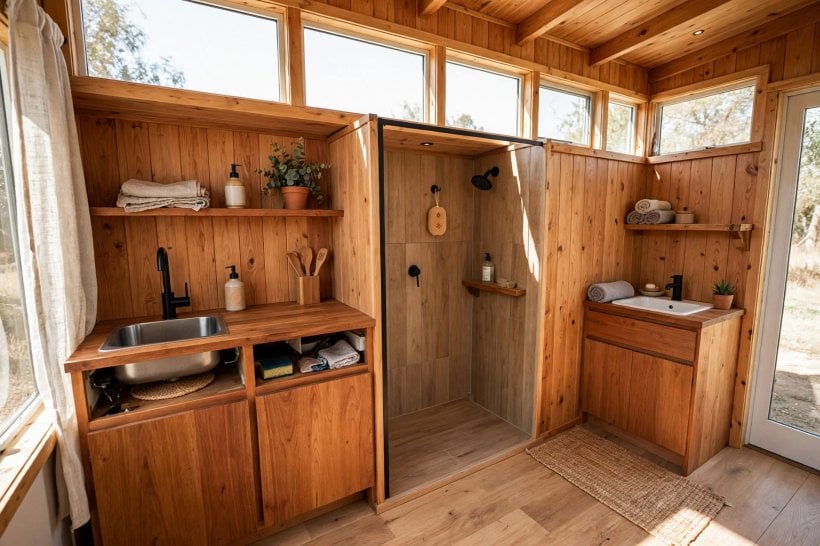

The foundational move is grouping: place every water-using fixture on a single wall, or back-to-back across two walls that share one plumbing chase. Kitchen sink, bathroom sink, shower, toilet and washing machine all land within roughly 6–10 feet of each other. It can feel like a design compromise until you count what it buys, because nearly every later step in this guide gets easier when the fixtures huddle together.
Short runs need less total fall, use fewer fittings and drain faster. One vent stack can serve the entire group, and the wet-venting method described later depends on exactly this proximity. Wall and floor penetrations shrink to a minimum, and every freeze-vulnerable pipe ends up inside one insulated chase instead of scattered through cold corners of the floor. The small footprint of a tiny house makes clustering almost natural anyway — the layout mistake is scattering fixtures to opposite ends for visual symmetry and paying for it in pipe, slope and risk. The room this wall serves most directly is the bathroom, where the drainage has to cooperate with the waterproofing approach detailed in our guide to waterproofing a tiny house wet bath.
3. Drain Slopes: The Quarter-Inch Rule
Slope is where drainage succeeds or fails, and the standard is precise: drains of 3 inches and smaller fall at 1/4 inch per foot of run. This figure is not a minimum to exceed for safety. It is a tuned value, and drifting in either direction causes its own failure. Too flat, and the water moves sluggishly enough that solids settle out and accumulate on the pipe floor. Too steep, and the liquid outruns the solids, leaving them stranded behind to build the same clog from the other direction. A quarter inch per foot keeps water and solids travelling together, which is what a self-cleaning drain actually means.
In a tiny house the short runs created by the wet wall make this slope easy to hold: a six-foot run needs only an inch and a half of total fall, which fits comfortably in the shallow space between floor and trailer. The main drain should still travel to a single exit point — through the floor or out the end wall — because one exit means one penetration to seal and one freeze-protection detail to get right, instead of several. Check the slope with a level before anything is glued, and check it again after the pipe is strapped, because a hanger placed carelessly can lift a run into a belly that ponds forever. Gravity does the work for free, but only along the path you actually built.
4. Pipe Sizing, Fittings and Cleanouts
With slopes settled, sizing follows the fixtures. The toilet and the main building drain take 3-inch pipe, the largest in the house. Showers, the kitchen sink and the washing machine run on 2-inch pipe, while bathroom sinks are served by 1.5-inch lines. Matching diameter to fixture keeps flow velocities in the range the slope was designed for: an oversized drain runs shallow and slow, an undersized one surcharges, and both misbehave in ways that only show up after the walls close.

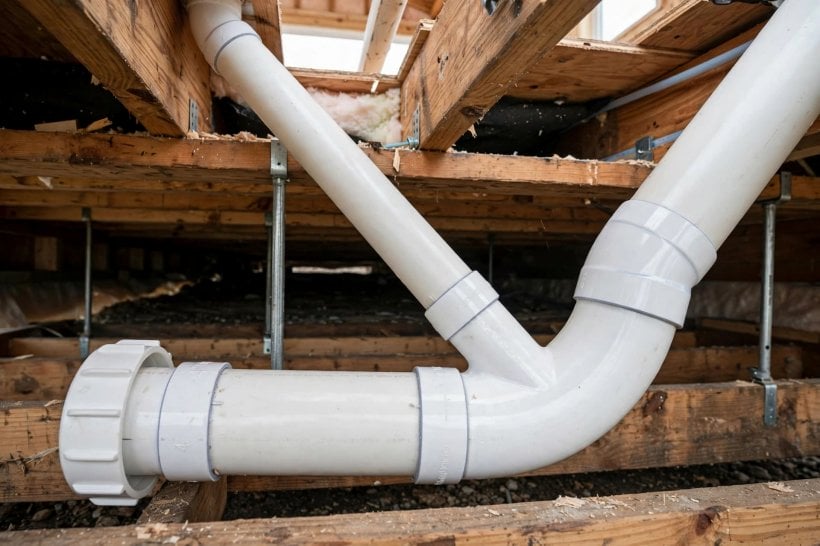

Fittings deserve the same discipline. Use long-sweep elbows and wyes wherever the drain changes direction, because their gradual curves let solids round the corner instead of catching on it. Tight 90-degree fittings are the classic false economy: they save about $2 apiece at the store and repay it as a clog that needs an auger at 2 AM. Finally, install cleanouts at every major change of direction and at the point where the building drain exits. A cleanout is cheap plastic today and priceless access the first time anything blocks — the difference between a ten-minute fix from outside and opening a finished wall.
5. Venting: The System That Makes Drains Work
New builders treat venting as an accessory; experienced ones know drains cannot work without it. Every trap holds a plug of water that seals sewer gas out of the living space, and that plug only survives if air can enter the system behind draining water. Without a vent, a flushing toilet or draining tub pulls suction on the line, siphons the trap dry, and leaves an open path for gas to enter the house. The vent is what makes the trap’s seal renewable instead of temporary.
The classic arrangement suits a tiny house well: a single 2-inch vent stack — 1.5-inch is also used — rises through the roof and serves the whole wet wall. It is simple and accepted by codes everywhere. The tiny house refinement is wet venting, in which the bathroom group shares one vent because the lavatory drain doubles as the vent path for the toilet and shower. Within the distance limits most codes allow, this removes pipe from an already crowded chase and is one of the strongest arguments for clustering fixtures in the first place. However the air path is arranged, plan it on paper with the drains, because a vent added as an afterthought usually arrives as a compromise.
6. AAVs and the Single Roof Penetration

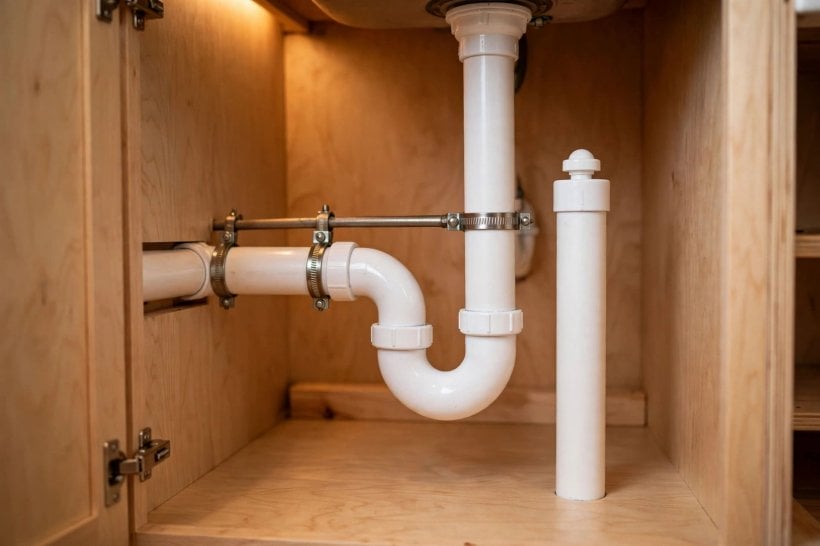

Where a conventional vent path is impractical, an air admittance valve offers a mechanical alternative. The AAV — the Studor valve is the familiar example, at roughly $25–40 — is a one-way device that opens to admit air when the drain pulls suction, then seals shut to keep gases in. It needs no roof penetration at all, which makes it legal in most jurisdictions for island sinks and remodels and genuinely useful in a tiny house, where a vent route may have to cross a loft or a sloped ceiling.

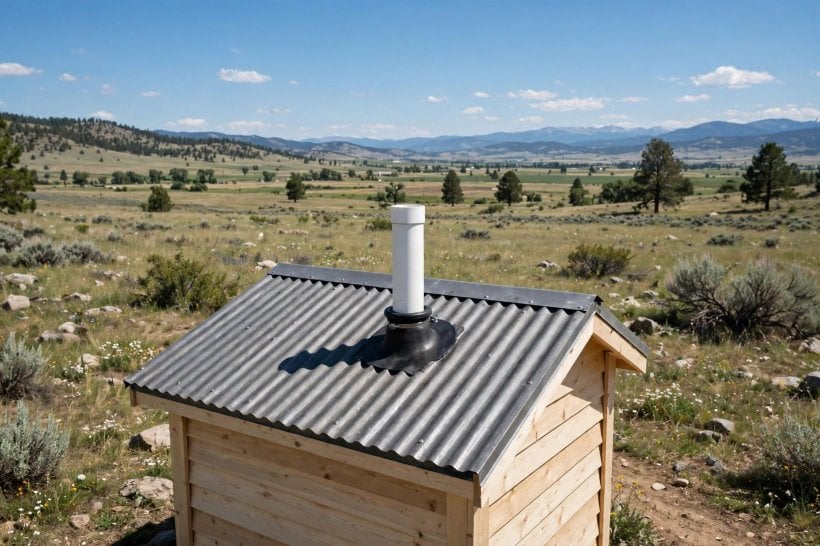

Use it with restraint, though. An AAV is a moving part, and moving parts eventually fail; when one sticks, it usually fails as a mystery smell rather than a flood, but it still fails. Treat AAVs as the solution for the one fixture that cannot reach the stack, not as the primary venting strategy for the whole house. The main stack still has to pierce the roof, and that single penetration deserves care: the vent boot flashing around it is one roof hole done properly, sealed and shingled in, or it becomes the leak that stains a ceiling. One hole, done right, beats several done casually.
7. Supply Lines: The PEX Manifold Layout

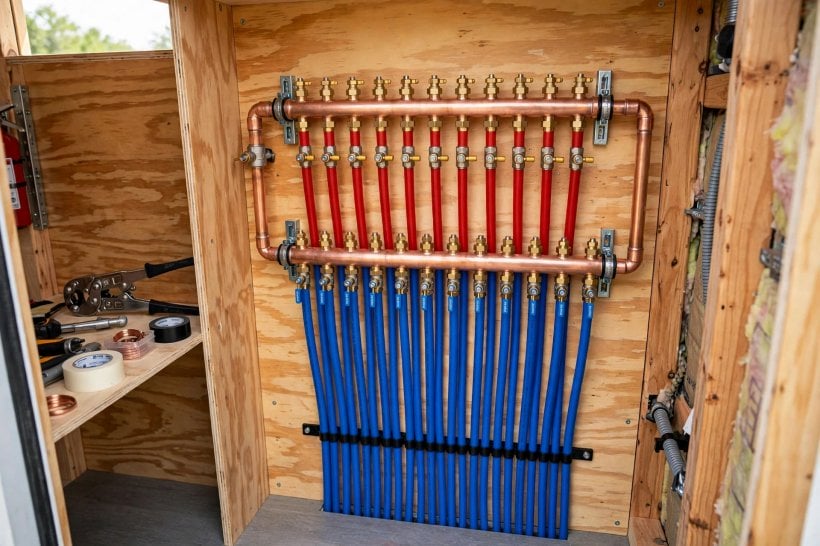

Drainage gets the attention, but the supply side has its own layout logic, and the tiny house standard is PEX-A tubing fed from a central manifold. Instead of a trunk line with branches teeing off inside walls, every fixture receives its own uninterrupted home-run line from the manifold. That single decision removes hidden fittings from the walls, gives each fixture an individual shutoff at the manifold for fast isolation, and keeps pressure behaviour predictable across the house. Most fixture lines are 1/2 inch, with a 3/4-inch main feeding the manifold itself.
Shutoffs work best in two layers: one at the manifold for whole-zone control, and one at each fixture for quick repairs without draining the system. Place the manifold near the water entry — the pressure tank or city connection — and route the lines through the same insulated chase as the drains, so supply and waste share one warm zone. The governing rule for routing is absolute: no supply lines in exterior walls, ever. An interior chase can be opened, warmed and repaired; a frozen line inside an exterior wall teaches the lesson once, at full price. For the material choice behind those lines, our comparison of PEX vs copper for tiny house plumbing explains why flexible PEX suits a house that moves.
8. The Toilet Decision: Flush, Compost or Incinerate
No single choice reshapes the drain layout like the toilet, because it alone decides whether the house needs its largest pipe at all. The conventional flush toilet is familiar and comfortable, but it demands the 3-inch blackwater drain, a blackwater tank or septic connection, and a real water budget: at 1.6 gallons per flush, two people typically use 8–15 gallons a day, making it the biggest single water consumer in an off-grid house.
The composting toilet removes water from the equation entirely — no flush, no blackwater plumbing, just urine diversion and a composting chamber, in a unit costing roughly $900–1,200. Deleting the blackwater branch simplifies the whole layout, which is why composting has become the default for off-grid builds; the models and maintenance are compared in our guide to composting toilets for tiny houses. The incinerating toilet goes one step further, burning waste to ash with no water and no waste plumbing at all, at roughly $1,500–2,500 plus propane or electricity per cycle — the luxury option. Decide the toilet first, on paper, because every drain downstream of that decision changes size, route and cost.
9. Greywater: The Second Drainage System
Showers and sinks produce greywater — used, but relatively clean, and reusable for irrigation in many jurisdictions. Whether that reuse is possible is decided at the layout stage, not afterward: greywater must run on its own branch, kept separate from blackwater from the start, because combining the two is a one-way door. Once shower water joins the toilet stream, it is all blackwater, and no filter fitted later changes that.

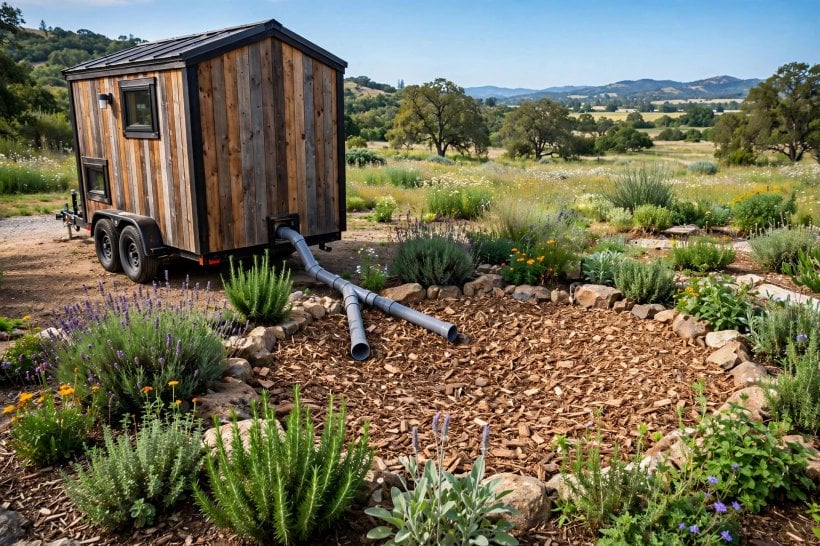

Where reuse is planned, the simplest disposal is a mulch basin, where a branched drain distributes water into wood-chip basins around plantings. Where the garden sits uphill or far away, a greywater tank with a pump does the lifting instead, and where reuse is not planned at all, greywater can join the combined septic route. Legality varies: reuse is permitted in many states with simple permits and prohibited in some, so check before designing around it. For a house on wheels there is one more wrinkle — greywater usually lands in a holding tank, so plumb a dedicated greywater tank drain, separate from the blackwater tank. How that tank fits the wider water plan is covered in our guide to off-grid tiny house water systems.
10. Freeze Protection: The Winter Plumbing

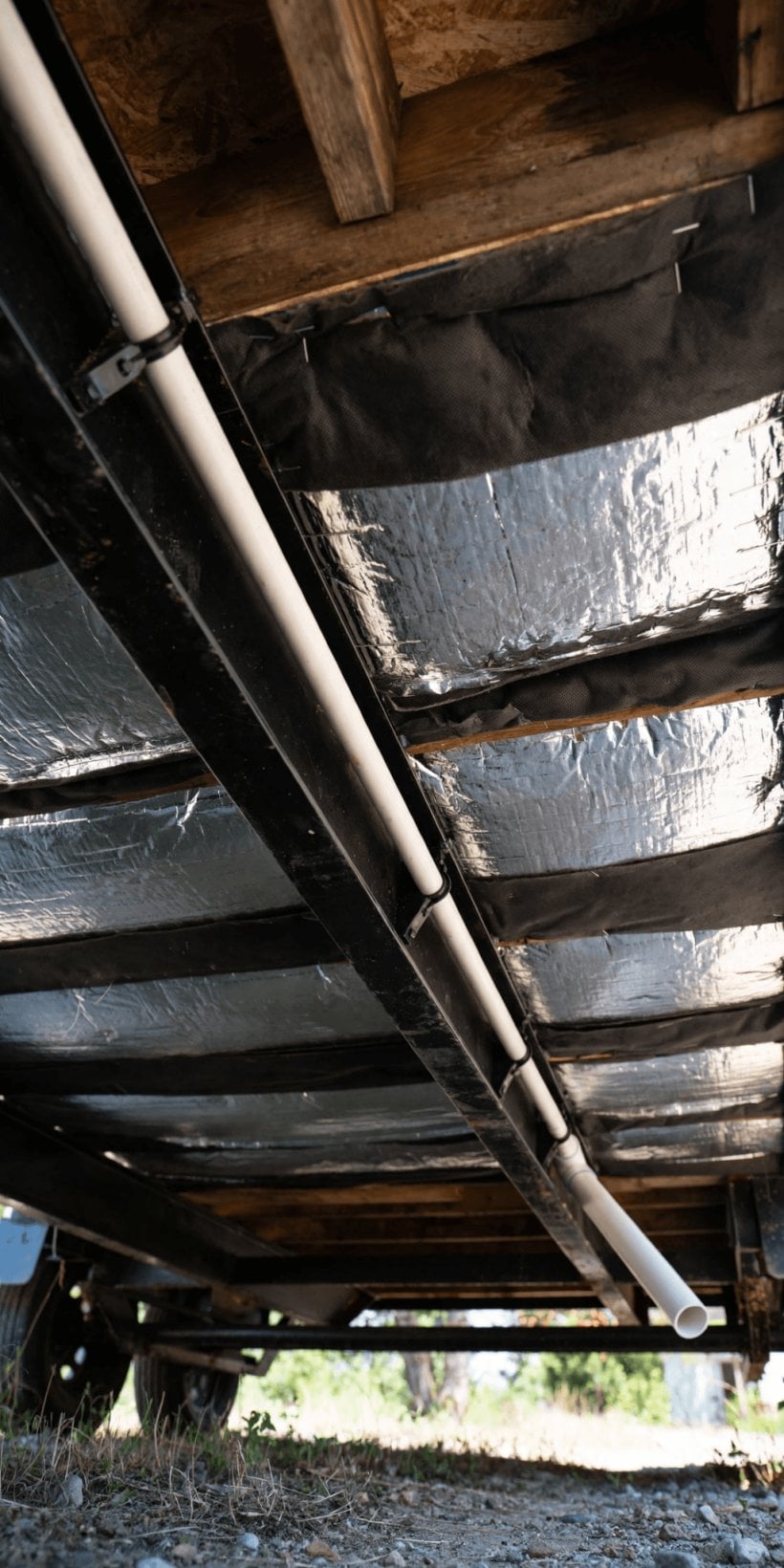

A layout that drains beautifully in July can destroy itself in January, so freeze protection is a design layer, not an accessory. Start with heat: self-regulating heat tape on every drain and supply line in the freeze zone, at about $2–4 per foot, switching itself on as temperatures fall. Heat tape alone is only half the policy, though — wrap the lines in foam insulation sleeves and insulate or skirt the underbelly, because uninsulated heat tape spends its warmth on the night air instead of the pipe.
Then design for departure. Fit low-point drains on the supply lines so the system can empty by gravity, and arrange the whole layout so winterizing is a 15-minute routine — the realistic standard for an off-grid house that might be left empty in midwinter. Keep the freshwater tank inside the heated envelope where possible; the alternative, heated pads and insulation, exists because a frozen 40-gallon tank is a 320-pound block of ice that thaws on nobody’s schedule. The broader discipline of keeping a small house safe through winter is covered in our guide to tiny house living in cold climates, and the insulation choices themselves are compared in our guide to insulating a tiny house. Build the escape route for water in summer, and winter becomes an inconvenience instead of a catastrophe.
Final Considerations
The whole method compresses into a short checklist: cluster the fixtures on one wet wall, hold drains to a 1/4-inch-per-foot slope with long-sweep fittings and cleanouts, vent the group properly — wet-vented where the code allows, with the stack flashed carefully through the roof — and home-run the supply lines in PEX from a manifold with shutoffs at both ends. Choose the toilet before sizing anything, because it decides whether the biggest drain exists. Keep greywater separate while separating it is still free, and make the finished system drain down and winterize in 15 minutes. None of this is visible once the floor closes, and that is precisely the point: the highest compliment a DWV system can earn is that nobody in the house ever has to think about it.
