10 Modular Tiny House Floor Plans: Prefabricated Sections That Grow with You

The house you can afford today is rarely the house you need in five years. Families grow, budgets recover, needs change — but a conventional tiny house is a finished object that punishes alteration. These modular tiny house floor plans take the other path: start with one complete module now, dock the next when life demands it, and never demolish anything to grow. Every phase below is a finished, livable house in its own right.

Modular Tiny House Floor Plans: At a Glance

The smartest tiny house is the one you can afford to start and the one designed to grow. A modular plan treats the house as a kit of prefabricated sections — each a complete structural module — that connect in planned sequences. Start with one module this year; add the second when the family, or the budget, grows; the connections were engineered from day one. The ten plans below grow in every direction a house can grow: sideways into wings and bars, upward into second stories and attics, downward into a waiting basement, and outward into detached cabins. They all share one principle, and it is the rule that separates a phased build from a half-built one: no phase ever looks unfinished, and no addition ever requires demolition. If growth is the whole point of your build, compare these phased designs with the expandable tiny house floor plans that use slide-outs and folding sections to gain room on the road.

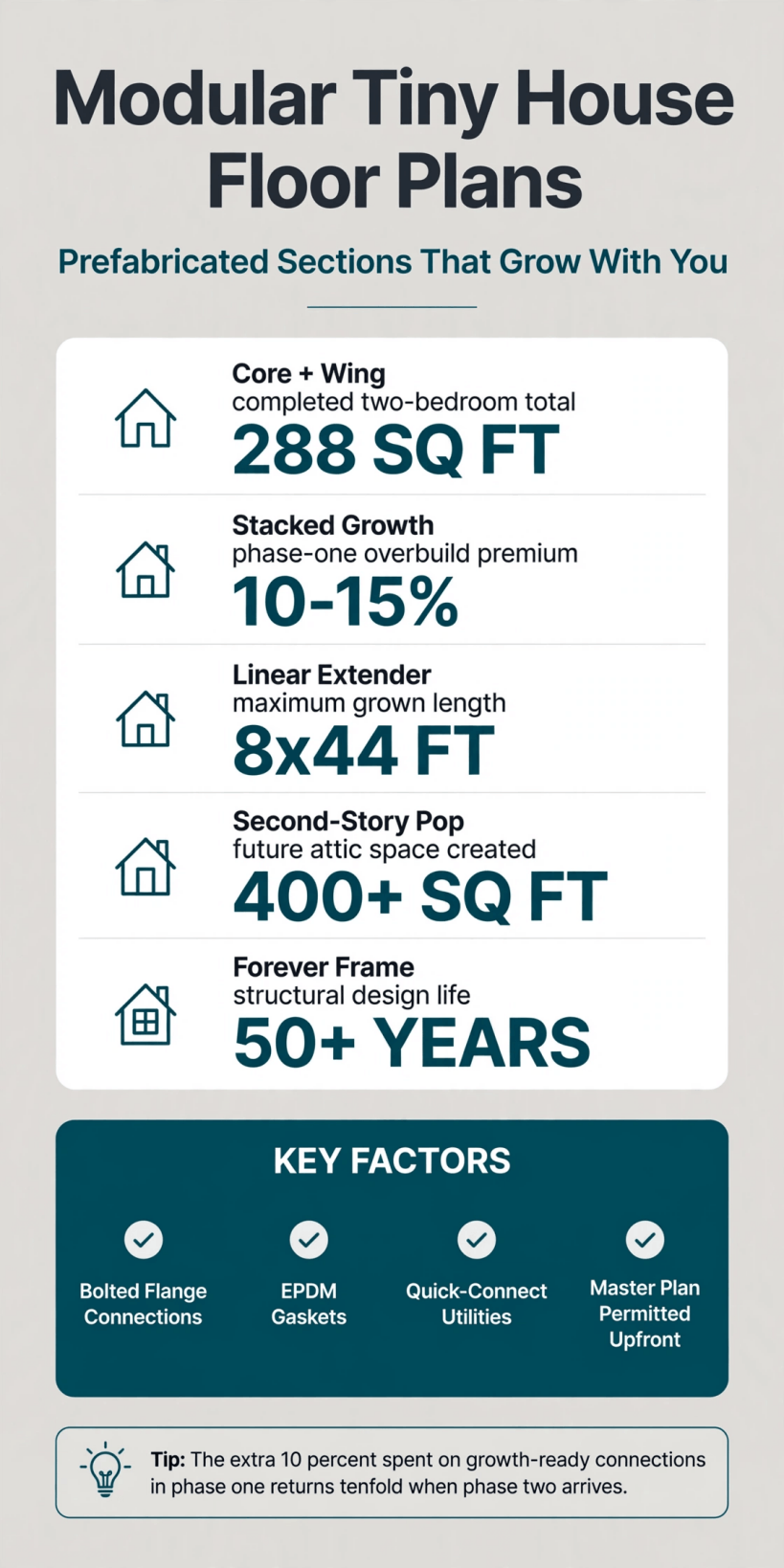

The numbers behind phased growth: a 288 sq ft completed Core + Wing, a 10–15% overbuild premium that skips underpinning, growth to 8×44, 400+ sq ft of attic held in reserve, and a frame engineered for 50+ years.

Underneath all ten plans sits the same connection discipline. Modules join with bolted steel flanges and compressible EPDM gaskets — airtight and watertight when torqued. Utilities meet at quick-connects: PEX push-fit for water, MC cable whips for electrical, flexible duct for HVAC. Roof junctions get overlapping membrane flashing, never caulk alone, and every module is leveled independently on screw jacks or shims, because no site is ever as flat as it looks. Hold those details and any of the growth paths below stays weathertight for decades.

1. The Core + Wing: Start With a Complete 8×20, Dock a Bedroom Wing Later

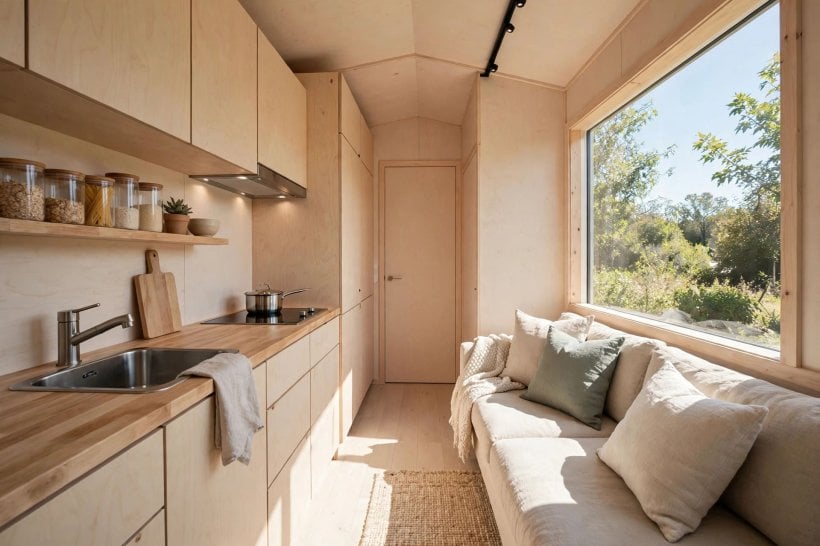

Phase one is a complete 8×20 core module: kitchen, bath, and living-sleeping in one open space, fully functional as a tiny house from the day it lands. Nothing about it is a compromise or a placeholder — it is the whole house, at the size you can afford now. Phase two adds an 8×16 bedroom wing, connected through a short hallway module. The wall the wing docks against was pre-framed as a removable panel rather than a structural wall, so opening the connection never touches the core’s structure. At completion the house is 8×36 with two bedrooms and 288 square feet — a family-sized plan that was paid for in two family-sized steps.

The connection spec is what makes the promise real. The docking wall uses a bolted flange connection with a compressible gasket, and the joint is deliberately low-tech: two people and a wrench can connect the modules in a day, and if the wing arrives on its own trailer, no crane is needed at all. That matters more than it sounds. A growth plan that depends on hiring heavy equipment is a growth plan that gets postponed; a growth plan that needs a free weekend and a wrench actually happens. Of all the tiny house floor plans that promise a second bedroom later, this is the one where “later” is a date you can circle.

2. The Stacked Growth: Overbuild the Foundation Now, Crane the Second Story On Later

Some lots cannot grow sideways, so this plan grows up. Phase one is a single-story 10×24 with living, kitchen, bath and bedroom all on grade, sitting on a foundation engineered from the start for a second story. Phase two is a prefabricated upper module — bedrooms and a bath — craned onto the reinforced first floor in a single lift. The house doubles its rooms without gaining a single foot of footprint, which makes it the natural modular answer for tight urban and infill lots.

The economics hinge on one decision made before the first pour: the foundation and first-floor walls are overbuilt from day one, at a cost premium of 10–15%. That premium is the cheapest structural insurance in this entire list, because the alternative — underpinning a foundation that was never meant to carry a second floor — costs vastly more and disrupts the house you are living in. Overbuilding early is invisible, quiet and finished before you move in; underpinning late is none of those things. When the crane day finally comes, the lift itself is almost an anticlimax, and that is exactly what good phasing feels like.

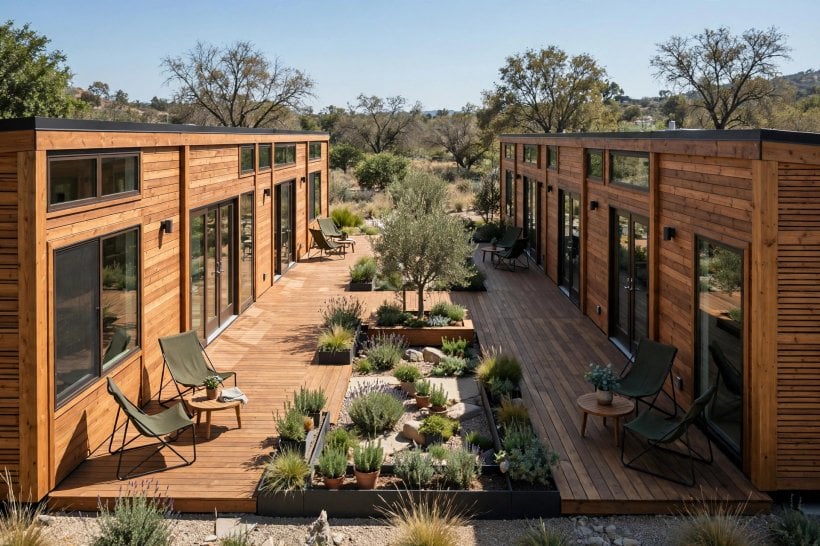

3. The Courtyard Infill: A U-Plan Assembled in Three Calm Phases

This is the patient plan, and its payoff is a courtyard. Phase one is a single 8×24 bar module — a complete, livable house on its own. Phase two places a second 8×20 bar parallel to the first, 12 feet apart, connected by a deck. Phase three lands a connector module bridging the two bars at one end, closing the composition into a U around the courtyard the spacing created. Each phase is a finished house; the composition simply gets richer, and the final phase converts the gap between the bars from leftover yard into the most loved room of the house — an outdoor one.

The design discipline here is spacing and foresight. The 12-foot gap has to be chosen in phase one, before the second bar exists, which means the courtyard is designed at the moment the site plan is drawn — not discovered later. Get it right and the U shelters the deck from wind, turns two narrow bars into a private outdoor room, and gives every window an inward view. Clustered arrangements like this are also why phased modules suit community living so well; the villages in the tiny home communities locator show the same instinct at neighbourhood scale, with small buildings composed around shared outdoor space.

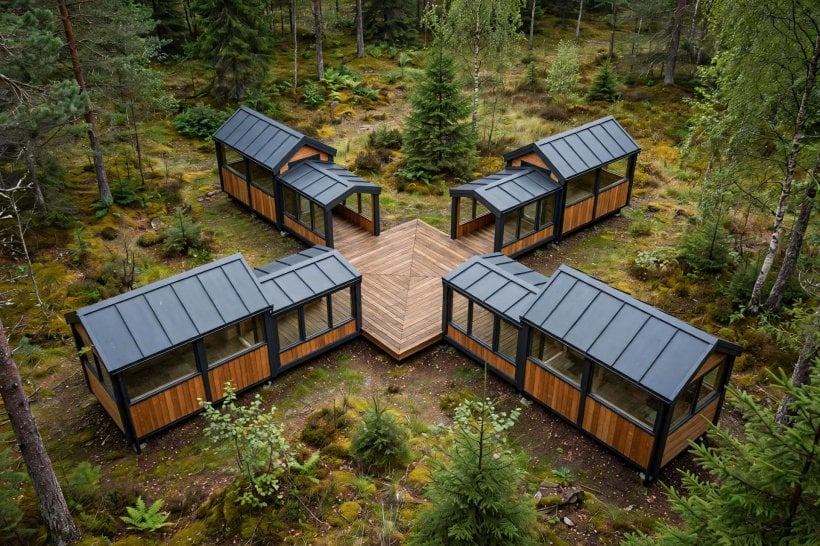

4. The Pod Cluster: Four Identical 8×12 Pods Around a Shared Deck

Instead of one house that grows, build a cluster that accumulates. Four identical 8×12 pods — a sleep pod, a live pod, a cook pod and a bath pod — stand around a central deck, connected by short enclosed walkways. You start with two pods, live plus bath, which is a complete minimal dwelling. The sleep pod arrives in year two, the cook pod in year three, and the cluster can even be rearranged if the site changes. Because the pods are identical, fabrication is identical too, and identical is cheaper: one design, one jig, one set of details repeated four times.

The infrastructure that makes the cluster work is buried out of sight. All plumbing and electrical runs in a buried utility spine beneath the deck, and each pod connects to it with quick-connect fittings — the spine is the infrastructure, the pods are the rooms. That separation is the deepest idea in this plan: services are permanent and centralised, while rooms are light, movable and replaceable. A pod that no longer fits your life can be swapped or sold without touching the utilities, and a new pod plugs into the spine the day it arrives. Growth becomes a delivery, not a building project.

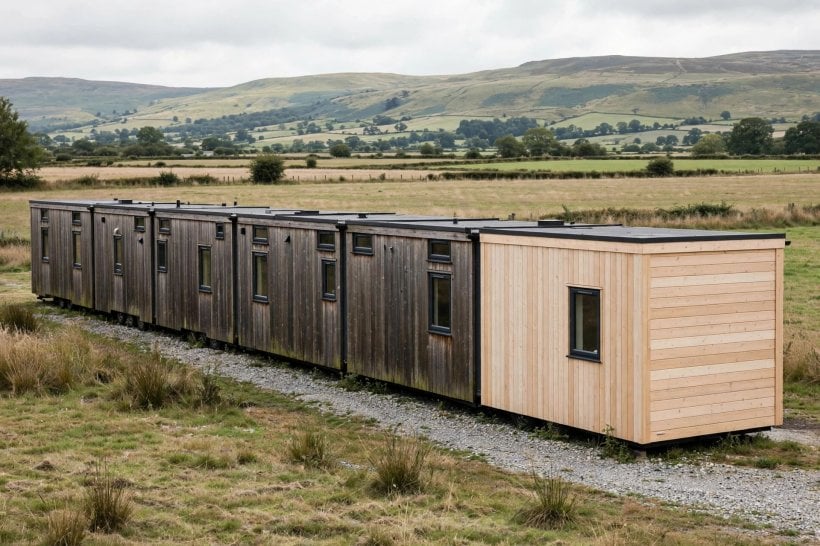

5. The Linear Extender: An 8-Foot Spine That Grows in 8-Foot Increments

The simplest growth geometry of all: a straight line. The house is designed as an 8-foot-wide spine that extends in 8-foot increments — start at 8×20, then add 8×8 bedroom modules at either end as needed, up to 8×44. Each increment is a prefabricated cassette of floor, walls and roof that bolts directly to the spine’s end wall. There is no siding to strip, no framing to open, no roofline to surgery: the end wall was designed as a removable panel from day one, so extending the house is a weekend project, not a renovation.

Linear growth has a quiet advantage the other plans cannot match — granularity. A wing is a big cheque; an 8-foot cassette is a small one, and you can buy exactly as much house as the moment requires, at either end, in any order. One cassette becomes a nursery, the next a home office, the next a bedroom for a returning teenager. The discipline it demands is honesty about the end walls: the removable panel only works if it was framed to be removed, with the flange and gasket detailed before the first module was ever built. Bolt-on growth is a day-one decision wearing a later date.

6. The Second-Story Pop: Attic Trusses Holding 400+ Square Feet in Reserve

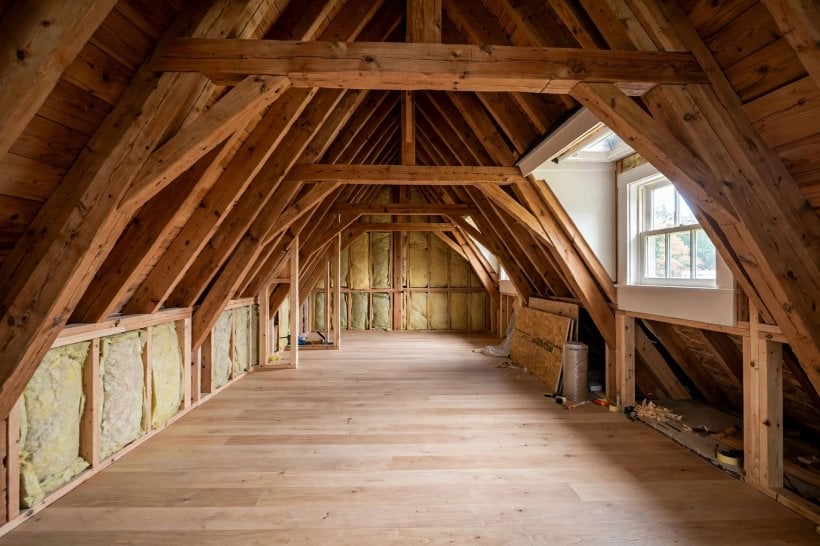

Phase one is a single-story 10×28 — with one invisible upgrade. Instead of conventional rafters, the roof is built with attic trusses, which create a full-height attic space that stands unfinished but fully framed above the living floor. Phase two simply finishes what is already there: insulate between the truss chords, lay flooring, add dormers if you want them, and the attic becomes two bedrooms and a bath. The “addition” requires zero structural work — just finish carpentry in a space the trusses were already holding open for you.

Run the numbers and this is the cheapest second story ever built. Attic trusses cost 20–30% more than standard trusses, but they create 400+ square feet of future space — space that needs no foundation, no walls and no roof when its day comes, because all three were bought with the original house. Compare that with the craned module of the Stacked Growth: both plans end with an upper floor, but the pop-top version never needs a lift, a crane or a weather window. If you suspect — even vaguely — that your one-story house will one day want bedrooms upstairs, the truss upgrade is the smallest premium on this list with the largest space attached to it.

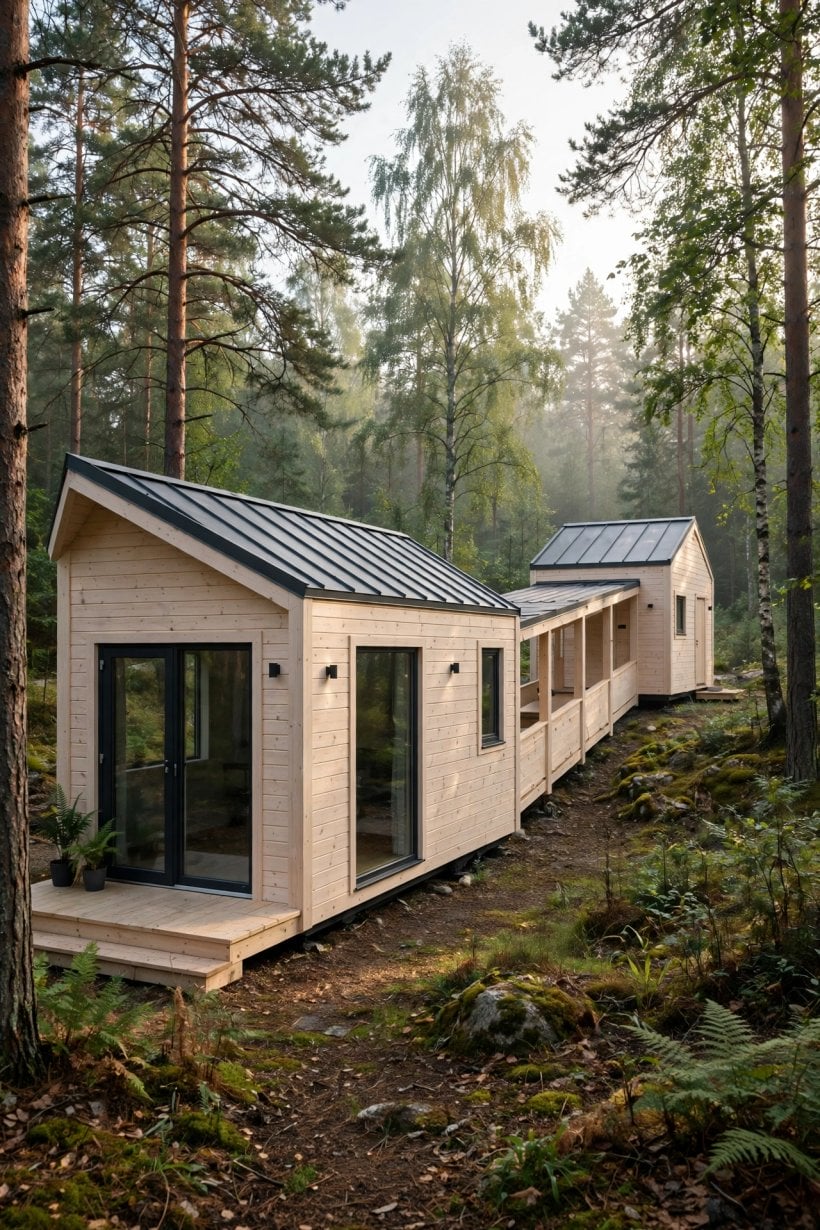

7. The Detached Growth: A Main House Now, a Cabin 20 Feet Away Later

The boldest phasing move is not connecting the growth at all. Phase one is a complete 8×24 main house. Phase two, planned from day one but built years later, is a detached 8×16 cabin standing 20 feet away and connected by a covered walkway — serving as a guest house, an office, or a teen suite. The original house is never opened, never scaffolded, never disturbed; growth happens entirely in the yard. For households whose need is separation as much as space — a working parent, a growing teenager, visiting family — a second front door beats a bigger first one.

What phase one must do is reserve the future properly. The site plan fixes the cabin’s footprint, its foundation points and its utility stub-outs before the main house is even finished, so the cabin’s arrival years later is a placement, not a project. The stub-outs are the unglamorous heroes: water, power and waste roughed to the reserved footprint mean the cabin connects in days. Two-building living also changes how a household uses space day to day — the same split-sleeping logic that drives the layouts in our tiny house layouts for couples, where giving each person a door of their own protects the relationship as carefully as the square footage.

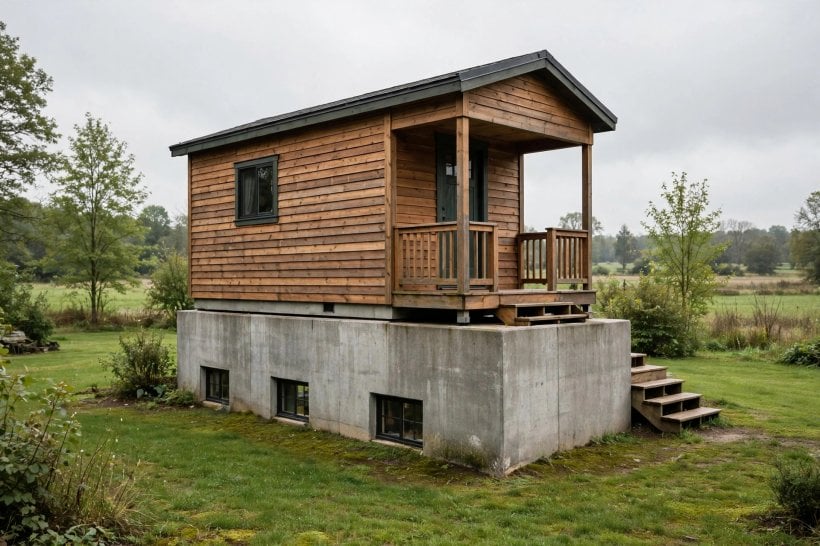

8. The Basement-Ready: A Full-Height Foundation Waiting to Double the House

Growth can go down as well as out or up. Phase one is a 12×24 house on a full-height foundation — proper 8-foot basement walls — with the lower level left unfinished but insulated, plumbed with rough-in, and wired. Phase two finishes that waiting volume into a family room, a guest bedroom and a bath, doubling the living space without changing the footprint by an inch. From the street, the house never changes at all; inside, it quietly becomes two houses stacked on one lot.

The arithmetic is the argument. The foundation costs more upfront — full-height walls, insulation and rough-ins are real money — but the finished space later costs half of above-grade construction, because the expensive parts (structure, envelope, service runs) were already bought. It is the mirror image of the Stacked Growth: there, you overbuild the top of the foundation to receive a floor above; here, you build the floor below and finish it when life asks. Either way the lesson is identical — concrete is cheapest on the day the forms are already standing. When you are comparing footprints for a foundation build, the tiny house blueprints explorer is a useful way to test how a 12×24 shell divides before you commit to the pour.

9. The Garage-First: Build the Weathertight Shell, Finish Rooms as Money Allows

Every other plan phases the structure; this one phases the finish. Phase one is a weathertight shell — foundation, framing, roof, windows, doors and rough utilities — with minimal interior finish: one finished bath, and the rest open. The owners live in the shell and finish one room at a time in a planned sequence, bedroom first, then kitchen, then living. The floor plan is fully designed from day one; only the finish schedule is phased. It is the most budget-flexible plan here, because the spending can pause at any point without leaving the house unlivable or the structure exposed.

The permit note is the detail to plan around: most jurisdictions require a certificate of occupancy for the finished portions, so the phase-one finish has to meet the minimum — one bath, one kitchen rough-in, and an egress bedroom. Design the shell so that minimum is genuinely comfortable, and the years of finishing become a hobby rather than a hardship. There is also a psychological dividend nobody budgets for: a household that finishes its own rooms learns its house completely, and every later repair is familiar territory. The shell-first route rewards patience with the lowest possible entry price into a fully designed home.

10. The Forever Frame: A 50-Year Grid, and Everything Else Replaceable

The philosophical finale inverts the whole idea of a floor plan. Build one permanent thing — a post-and-beam structural frame on an 8-foot grid, engineered for 50+ years — and treat everything else as replaceable infill. Walls, kitchen, bath and partitions are all modular cassettes that bolt to the frame. The house grows by adding bays, shrinks by removing them, and remodels by swapping cassettes, all without touching the structure that holds it up. The frame is forever; the floor plan is a subscription.

This is where modular thinking meets its logical end, and it borrows its honesty from an older tradition — the shipping container house floor plans that treat a standard steel box as a permanent unit and arrange life inside it. The Forever Frame simply designs the permanent unit on purpose. A cassette kitchen can be unbolted and replaced wholesale when it wears out; a bay can migrate from nursery to office to guest room across the decades. Nothing is demolished because nothing was ever permanent except the grid — and the grid was engineered to outlast every plan you will ever bolt into it.

Final Considerations

The hardest part of planning growth is admitting you do not know the future: maybe kids, maybe a home business, maybe aging parents. The answer is optionality, not prediction. Design connections that accept any module type — a bedroom cassette and an office cassette share the same flange — keep the utility spine oversized, with bigger conduit than today’s load requires, and site the house with expansion room on at least two sides. And get the paperwork phased with the building: phased builds need phased permits, so have the master plan approved upfront rather than re-permitting every stage. The plan that grows best is the plan that assumes change.

That is what modular tiny house floor plans really are: financial planning in architectural form. Start where you are, grow as life requires, never demolish. The extra 10 percent spent on growth-ready connections in phase one returns tenfold when phase two arrives — and when you are ready to sketch your own sequence, you can design your tiny house online with the phases drawn in from the start. Build the first module like it is the whole house, because for now, it is.
