Folding Deck Designs: The “Drawbridge” Method for Tiny Homes

A tiny house can feel twice as big with a good deck — but hauling a separate trailer for your porch is a logistical nightmare. The folding deck answers it: permanently attached to the house, hinged upward like a medieval drawbridge for travel, lowered into a patio when you park. Folding deck designs live or die on three things — width, hinges and the lock that holds them against the wall at highway speed.

1. Folding Decks at a Glance

Folding deck designs split the difference between a fixed porch and a portable one. The deck is a real structure — decking boards on joists, carried on a ledger at the house wall — but the whole platform rotates on heavy hinges. Down, it is your outdoor room. Up, it rides flat against the siding, and the house travels at its legal width with its porch as cargo on its own wall. That single hinge line creates every engineering question this guide works through: the folded thickness has to fit inside the road limit, the hinges carry the deck’s full shear weight, a winch replaces muscle on big platforms, and nothing — not the cable, not a latch — is trusted alone to hold the deck up in traffic. The table below gathers the whole system; the sections after it take each row apart.

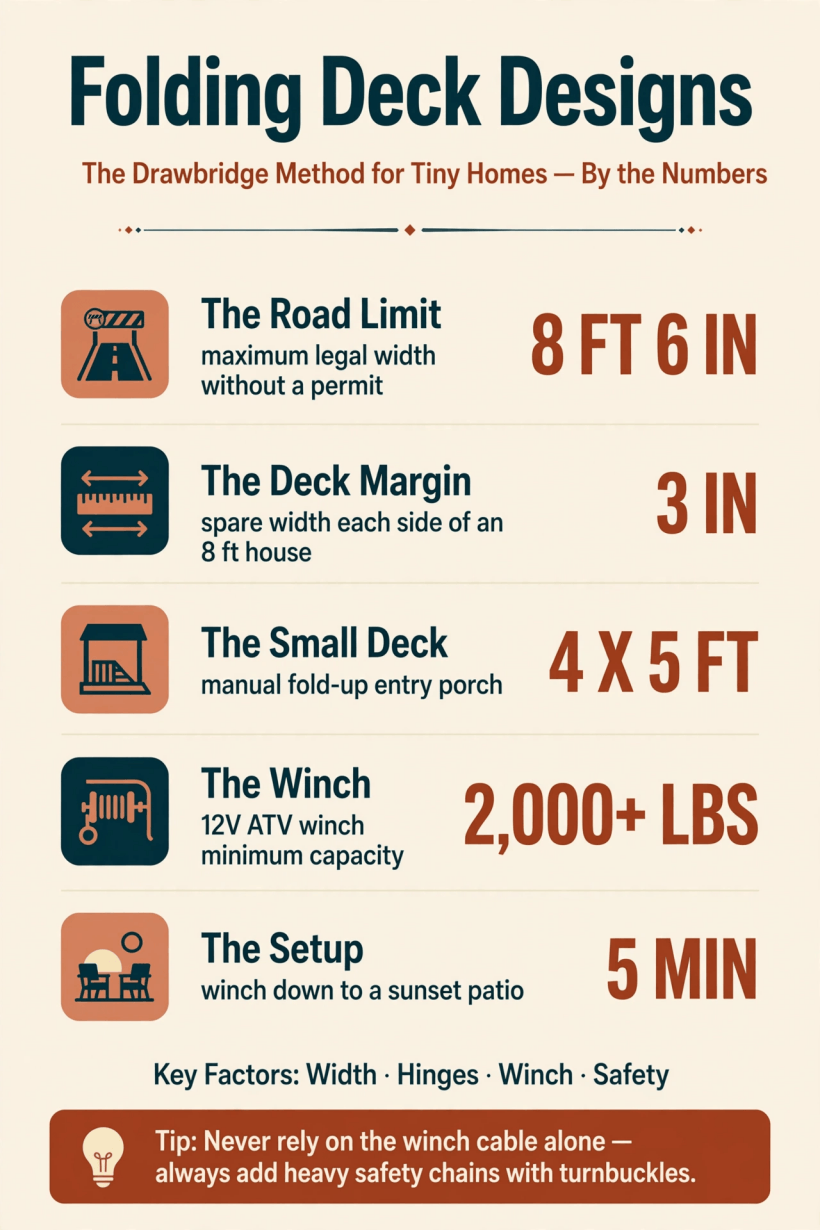

An 8’6″ road limit, a 3-inch margin and a 2,000 lb winch — the numbers that shape every drawbridge deck.

2. The Width Restriction: 8’6″ and the 3-Inch Margin

Before you buy a single hinge, do the math — because a folding deck spends its travel life inside a legal envelope it cannot exceed. The legal road limit is 8’6″, 102 inches. If your tiny house is 8′ wide, you have exactly 3 inches of space on each side, and the folded deck — decking plus joists — must fit within that remaining space, or you are a “Wide Load,” with the permits and restrictions that follow. There is no trimming this number at the roadside: the folded thickness is decided at the workbench, months before the first trip.

Builders solve it in two ways. Most recess the deck ledger into the framing, so the hinge line sits inside the wall’s outer face and the folded platform lands closer to the house. Others build the house slightly narrower — 7’10” is the figure the original design works to — and give the saved inches to the folded deck. Either way, the width budget is shared with everything else that rides on the wall: the same 8’6″ ceiling governs the eaves and overhangs for tiny homes, which fold or detach for exactly the same reason. Measure the house, measure the deck stack, and add them before anything is bolted on.

3. The Ledger Board: Through-Bolting to Studs and Steel

The most critical connection on the whole build is where the deck meets the house. The warning is blunt: do not just screw a ledger board to your siding. A deck hanging on a hinge line concentrates its entire weight as shear at that line, and screws into siding and sheathing will tear out — the shear weight will rip the ledger off the wall, taking the deck and a strip of your cladding with it. The ledger is not trim; it is the foundation of a moving structure.

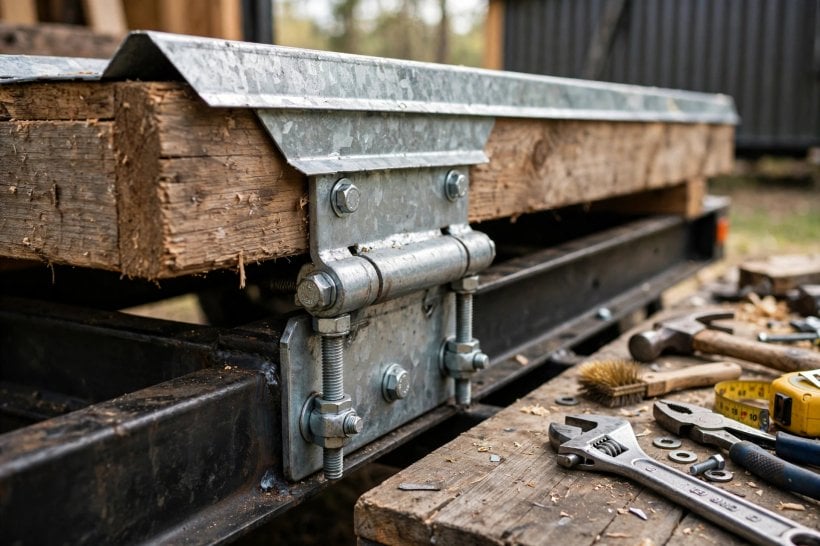

The correct method is through-bolting. You must bolt the deck hinges through the wall to the structural studs or, ideally, to the steel trailer frame itself — the same frame that carries the house down the highway carries the deck against it. Through-bolts clamp the hinge to structure that cannot pull out, and they spread the load along the frame rather than concentrating it in a board face. Every other component in this guide — hinges, winch, chains — assumes this connection is absolute. If the ledger can move, nothing downstream of it can be trusted.

4. Mechanism 1: The Manual Fold-Up for Small Decks

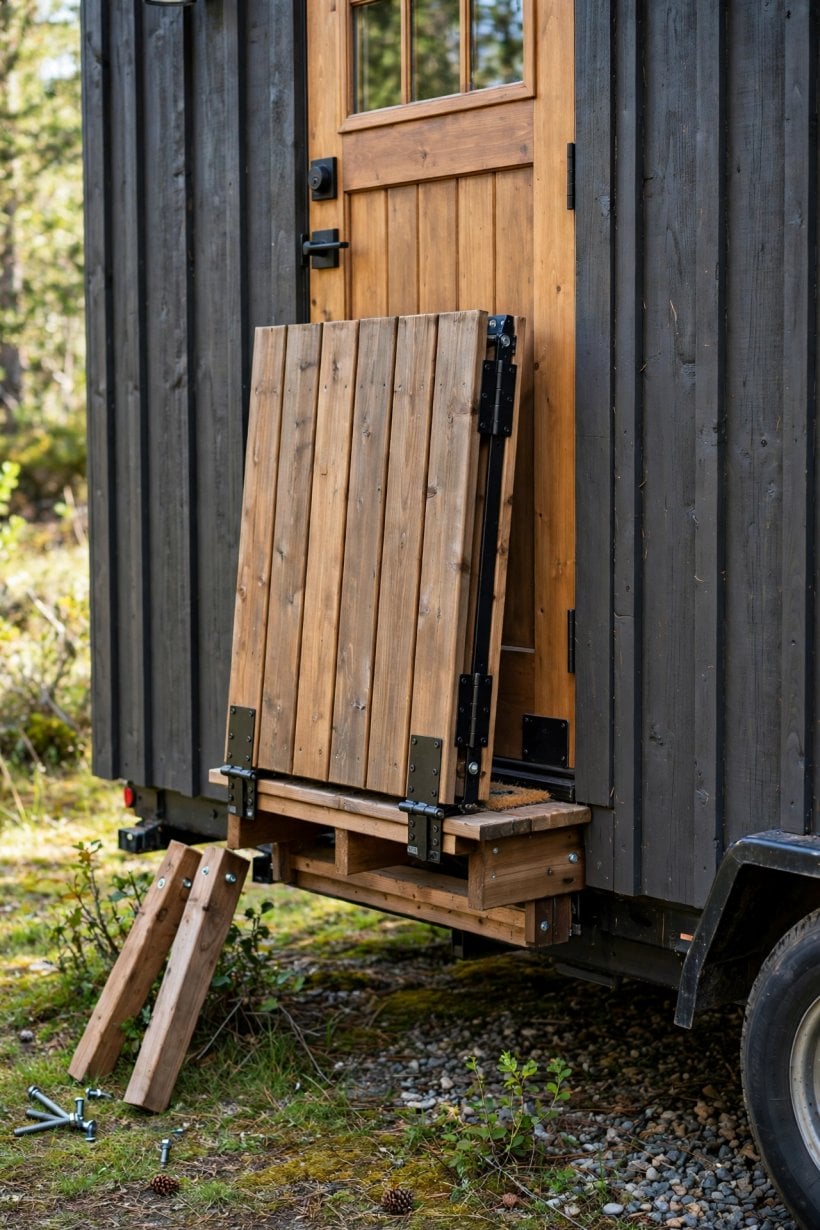

For small landings — 4′ x 5′ entry porches are the worked example — a manual system works best, and its hardware list is short. The hinges are heavy-duty strap hinges: do not use standard door hinges. The spec is 1/2″ steel strap hinges, welded or bolted through the trailer frame or rim joist, because a strap hinge spreads its load along the deck’s edge beam instead of concentrating it at a door-sized leaf. What your hand lifts, the hinge still has to hold — parked, loaded with people, and folded, at speed.

The legs on a manual deck are detachable: the legs that support the outer edge should unbolt or unscrew, and they store inside the house for travel, so nothing dangles below the folded platform. The travel lock is a latch, not the hinge: use heavy-duty barrel bolts or “over-center” latches — the kind found on a jeep hood or a cooler — to lock the deck tight against the siding during transit. An over-center latch pulls the deck in as it closes, compressing it against the wall so it cannot chatter on its hinges for a thousand miles.

5. Mechanism 2: The Drawbridge Winch System for Large Decks

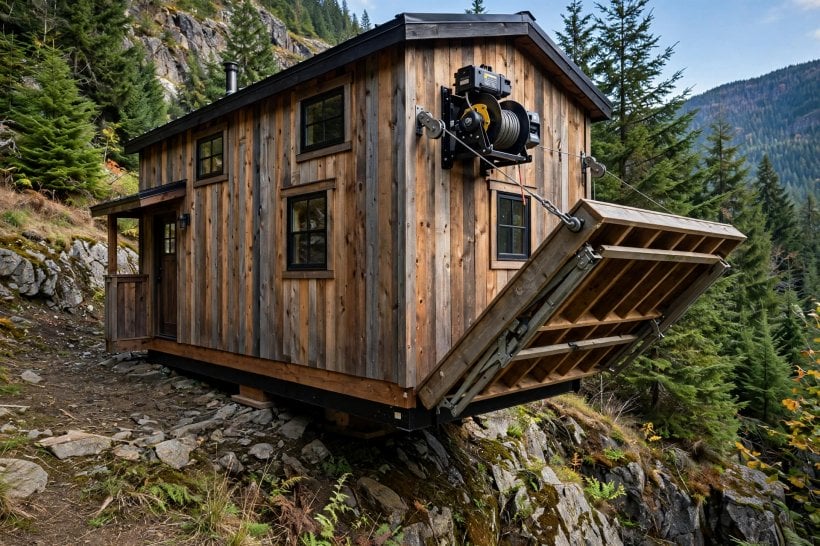

Scale the platform up to 8′ x 8′ and the structure is too heavy to lift by hand. You need mechanical assistance, and the drawbridge system provides it with a winch. Install a 12V ATV winch — 2,000+ lb capacity — mounted high on the wall framing or inside the loft, with the cable passing through a small port in the wall. Height is leverage: the winch sits at the top of the wall because that is where the cable geometry of the next section works from.

Power comes from the house itself: wire the winch to your house’s 12V DC system and solar battery bank, so the deck runs on the same electrical system as the lights and the water pump, with no separate battery to maintain. One safety specification is non-negotiable: always use a winch with an automatic brake, so the deck doesn’t free-fall if you let go of the button. A deck of this size, dropped from halfway, arrives with enough force to wreck the hinges, the ledger and itself. The brake is what makes a one-person, one-button operation a controlled movement instead of a gamble.

6. Cables, Pulleys and Folding Legs

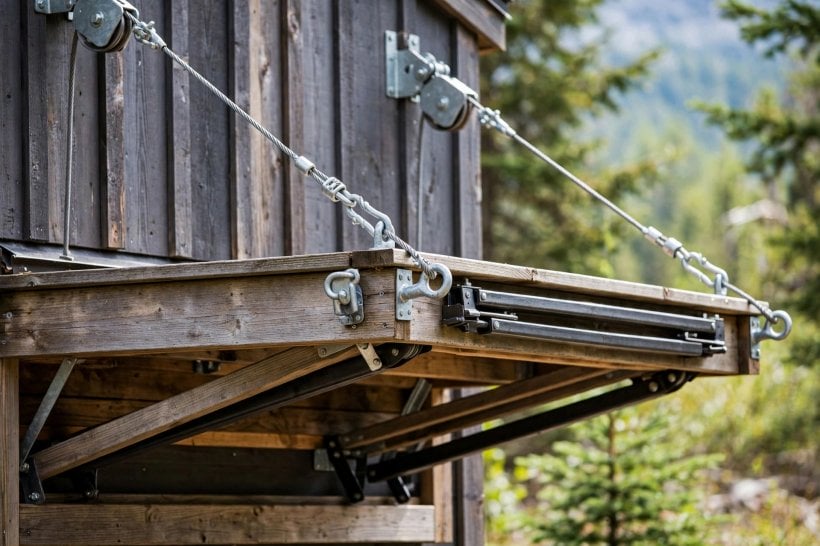

The winch is only the engine; the cabling is the transmission. Run steel cables from the outer corners of the deck up to pulley points high on the wall, so the lift pulls from the two corners that need it most and the platform rises evenly instead of racking toward one side. The design note that governs the geometry: the higher the pulley point, the easier it is to lift. If the angle is too shallow, the winch works too hard — a cable pulling almost horizontally spends its force dragging the deck into the wall instead of rotating it upward, and the motor strains against its own geometry.

The legs change design at this scale, too. For a drawbridge style, folding legs are superior to detachable ones: a big deck’s legs are themselves heavy pieces to unbolt, carry and store, and a loose leg forgotten at a campsite strands the deck. Instead, hinge the legs so they fold flat against the underside of the deck before you winch the deck up. The sequence becomes mechanical — fold the legs flat, then raise the platform — and the folded package is one clean slab: deck, legs and all, with nothing separate to load.

7. Flashing and Padding: Protecting the Wall It Folds Against

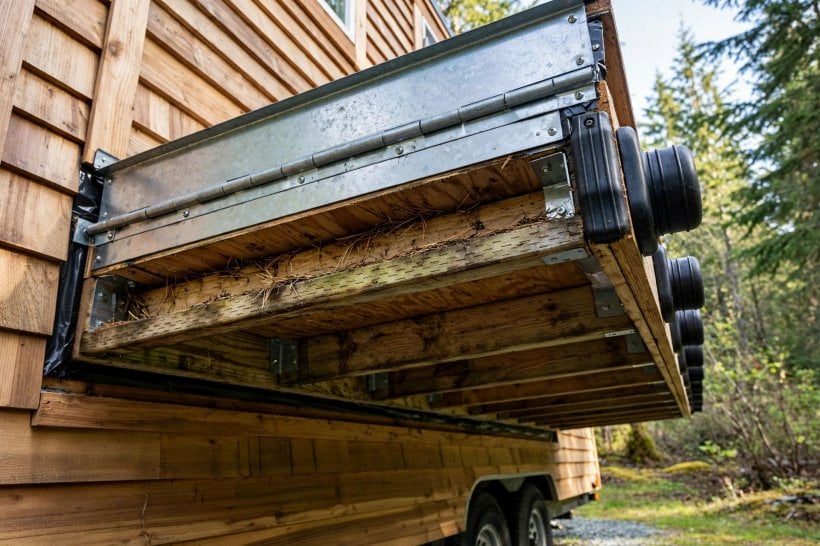

A folded deck turns the wall behind it into a cavity, and cavities collect water. Water can get trapped between the folded deck and the house wall, sitting against the siding for an entire journey or an entire winter of storage. The fix is flashing: install a “Z-flashing” over the hinge area to divert rain away from the joint, so water arriving at the top of the folded deck is thrown clear of the interface instead of being channelled into it. It is the same defensive instinct that drives a full rain screen installation — assume water gets in, and give it a way out that is not through your wall.

The second interface problem is contact. A deck folded hard against the house will touch the siding, and on the road, contact plus vibration is abrasion: place rubber bumpers — dock bumpers are the suggested part — between the deck surface and your siding. Otherwise, road vibration will cause the deck to sand off your paint or dent your siding, a thousand tiny impacts doing the work of a belt sander. The bumpers also set the folded deck’s resting gap, so the platform rides on rubber instead of grinding on its own latches.

8. Road Safety: Chains, Bumpers and Lights

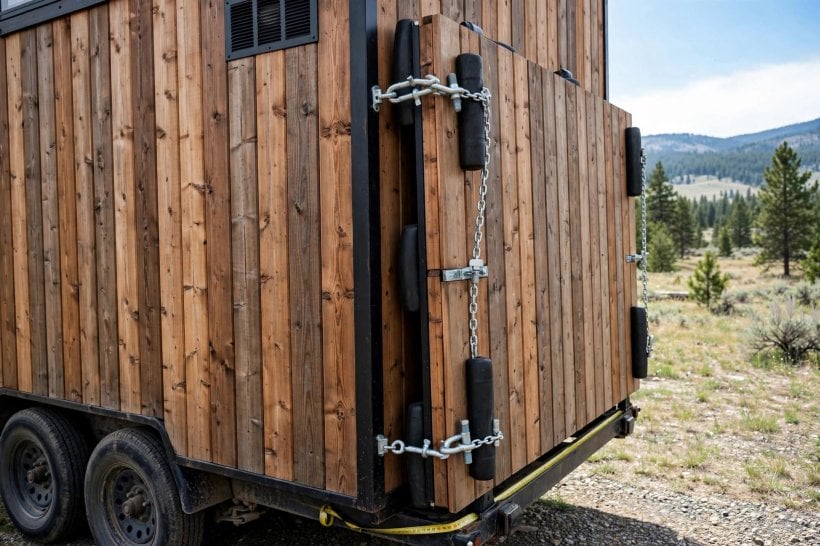

When the deck is folded up against the wall for the highway, three checks decide whether it arrives as it left. The first is the lock. Never rely solely on the winch cable or a latch to hold the deck up: if the cable snaps, the deck drops into traffic. Always use heavy safety chains with turnbuckles to mechanically lock the deck in the upright position — a chain cannot slip a brake, fray unnoticed inside a drum, or release when a button is bumped, and the turnbuckle lets you tension it drum-tight. The winch raises the deck; the chains keep it. They are separate systems on purpose, so no single failure drops the platform.

The second check is the padding of the previous section, verified in place before departure — bumpers present, deck pulled tight against them, no metal-to-siding contact anywhere along the fold. The third is legal visibility: if the folded deck covers your tail lights or license plate, you must mount auxiliary lights on the bottom of the deck — which is now its outer face — so the house behind you sees brake and signal lights that the deck would otherwise hide. And remember the deck’s weight never disappears; folded, it adds to trailer tongue and axle weight, which is exactly the load the tiny house tongue weight calculator exists to check — and the siding showdown is a reminder that the wall carrying all this is worth protecting in its own right.

9. Folding vs. Detachable: The Honest Comparison

The folding deck’s rival is not a fixed porch — it is the detachable deck, a set of modules that level and bolt together on site and travel inside. The original’s comparison is even-handed. Setup time is the folding deck’s headline win: 5 minutes, winch down, against 60+ minutes to level and bolt the modules. Storage inverts the advantage: the folding deck stores on the wall and consumes zero interior space, while the modules travel inside the house or the truck bed, spending cargo room the folding design never touches.

Width and complexity cut the other way. The folding deck consumes road width and must be planned into the build from the first sketch; the detachable deck has zero width impact, because it travels inside. Complexity is high on the folding side — winches, cables, hinges — and low on the detachable side: just boxes and bolts. Weight placement differs, too: the folding deck adds to trailer tongue and axle weight permanently, while detachable modules can be transported in the truck, off the trailer’s budget entirely. The choice is a temperament as much as a specification: builders who move often and hate setup choose the hinge; builders at the width limit with a truck choose the modules. The other great comes-off-for-travel system on the house makes the same trade in miniature — removable gutter systems also split into a permanent half and a travelling half, for the same highway.

10. Living With It: Five Minutes to a Sunset Patio

The payoff for all this engineering is a ritual measured in minutes. A folding deck is the ultimate tiny house “transformer” feature: park, push a button, and have a sunset patio in 5 minutes. The routine runs backwards from the travel routine — chains off, winch down under its brake, legs swung or bolted into place, and the outdoor room exists. No levelling modules, no hunting for the leg bag, no second trip to the truck. The deck is simply where the house keeps its porch: on its wall.

Living with it well means respecting the two forces the original names in closing: gravity and wind loads are real. The habits are the checklist items turned into routine — chains tensioned every departure, bumpers checked before they can go missing, the hinge line and its flashing looked at whenever the deck is down, the winch brake trusted but never treated as the lock. In summer the lowered deck becomes the house’s second room, and it pairs with the cooling discipline in our guide to tiny home summer prep: shade and airflow outside, a small cool box inside. A deck you can deploy in five minutes is a deck that actually gets used — daily, not just at the perfect campsite.

Final Considerations

A folding deck succeeds when its three disciplines hold together: the width planned before the first hinge is bought, the ledger through-bolted to structure that cannot let go, and the travel lock doubled — cable to lift, chains to keep. Over-build your hinges, use safety chains, and watch your total width: the original’s closing advice is the whole build in one sentence. Get those right and the drawbridge stops being a novelty and becomes what it was designed to be — the room your tiny house carries with it, ready five minutes after the handbrake. The belief that a house on wheels must choose between travelling light and living large belongs with the other tiny house myths: the hinge, honestly engineered, refuses the choice.
