Eight and a half feet — that is all the highway allows, and it shapes every tiny house floor plan drawn. Expandable designs refuse to accept it as the answer: they travel at legal width, then slide, fold, tip or crank outward at the site to reclaim the room the road denied them. This guide walks through ten expansion plans, the mechanisms behind them, and the seals, leveling and weight rules that decide whether an expandable house delights or leaks.
1. At a Glance: The 10 Expansion Plans in Brief
Every plan in this guide starts from the same travel envelope — a house no wider than the highway allows — and buys back space with moving sections once it is parked. Some mechanisms add real floor area, some add headroom, and one adds nothing but the feeling of space. These expandable tiny house floor plans cover all three strategies, and the table below is the whole list on one screen: the mechanism, the plan it serves, and what actually expands.
| Plan | Mechanism | What it adds |
|---|---|---|
| 1. Single Slide-Out Living Room | One 3 × 12 ft slide-out | Living zone widens from 8 to 11 ft; 72 extra square feet |
| 2. Opposing Double Slide | Two slides, 2.5 ft deep each | A 13 ft-wide great room |
| 3. Tip-Out Bedroom | Upper wall hinged at the top | 2 extra feet across a 10 ft bedroom wall |
| 4. Folding Deck Walls | Two 8 ft bi-fold glass walls | The living room merges with the deck |
| 5. Pop-Up Roof Loft | Roof section cranks up 3 ft | A 4 ft loft becomes a 7 ft standing bedroom |
| 6. Swing-Out Kitchen Pod | 4 × 8 ft pod on heavy hinges | The kitchen deploys 4 ft out; a 4 × 8 dining alcove appears inside |
| 7. Telescoping Section | Nested boxes sliding on rails | Total length grows to 28 ft — 12 extra feet |
| 8. Fold-Down Deck Bedroom | 8 × 10 ft hinged platform + fabric enclosure | A seasonal bedroom for under $2,000 in materials |
| 9. Slide-Out Bathroom | 4 × 8 ft self-contained wet-room pod | The whole bathroom extends from the bedroom wall |
| 10. Full-Width Double Expander | Two opposing slides + pop-up roof | Roughly 380 sq ft of living space from a 192 sq ft footprint |

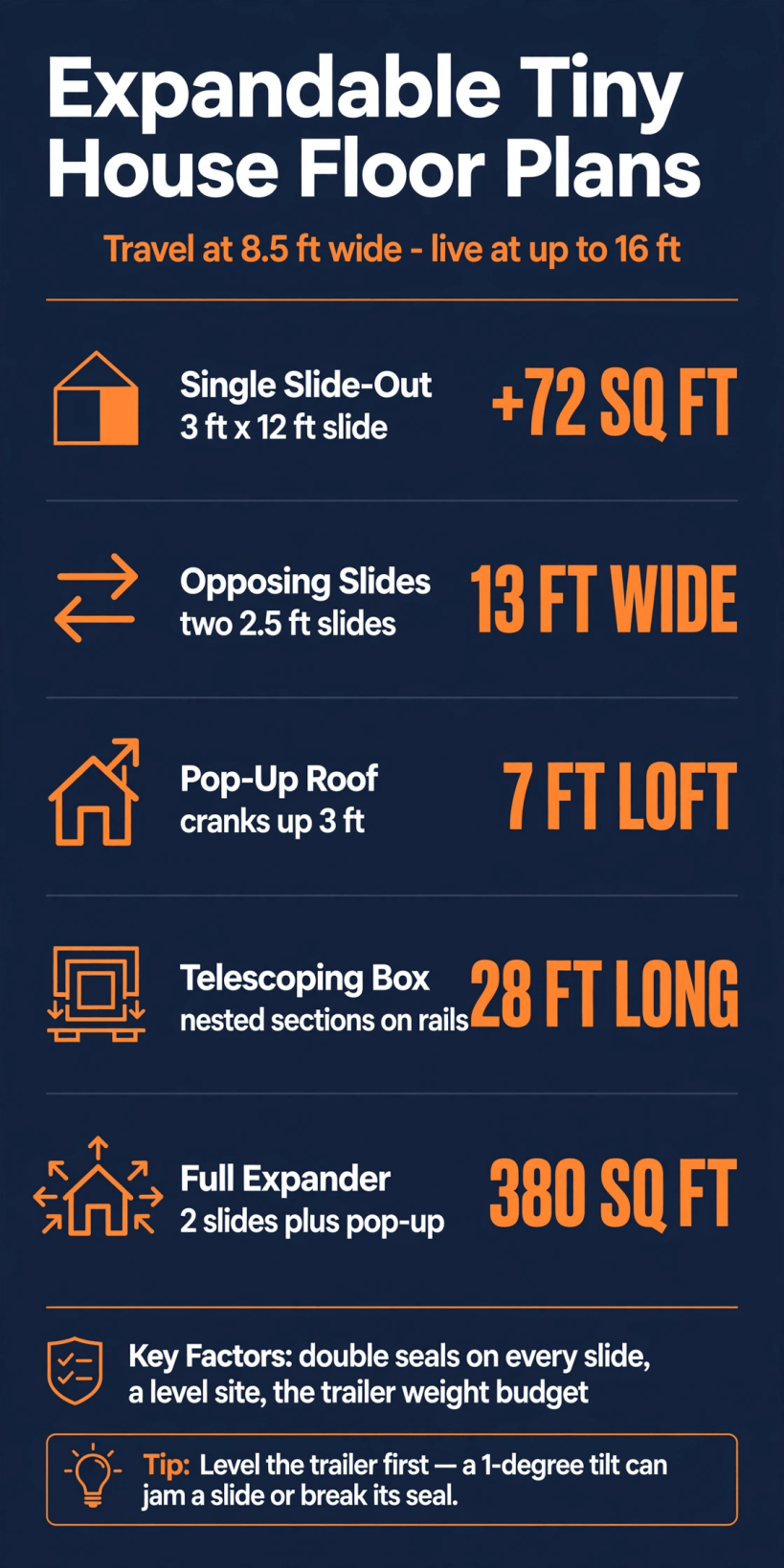

The headline gains at a glance: one slide adds 72 square feet, the telescoping box stretches a house to 28 feet, and the full expander reaches roughly 380 square feet of living space.
2. The 8.5-Foot Problem: Travelling Narrow, Living Wide
The cruelest constraint in tiny house design is the 8.5-foot highway width limit. It is not a suggestion or a building-code preference — it is the legal width of the road, and every fixed dimension in a tiny house on wheels flows from it. Expandable houses cheat it legally: they travel at 8.5 feet wide, then slide, fold or swing sections outward at the site to reach 12, 14, even 16 feet of interior width. A single 3-foot slide-out on an 8 × 24 house adds 72 square feet — a 37 percent gain — without the house ever being illegal on the road.
That one trade defines the entire category. Everything else in this guide — the seal specifications, the leveling rules, the weight budgets — exists because the house has two lives: a narrow, rigid, road-legal box in transit, and a wider, opened-up home at rest. Designers who respect both lives get the space; designers who design only for the parked state get mechanisms that jam, seals that tear and floors that rack. If the width ceiling itself is your starting question, our guide to the biggest tiny house you can build maps the legal size limits before expansion enters the picture at all.

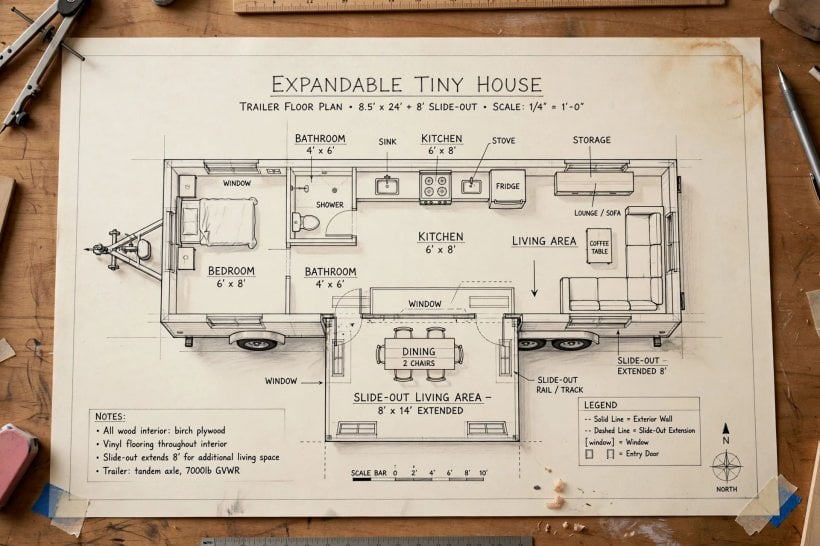

3. Plan 1: The Single Slide-Out Living Room

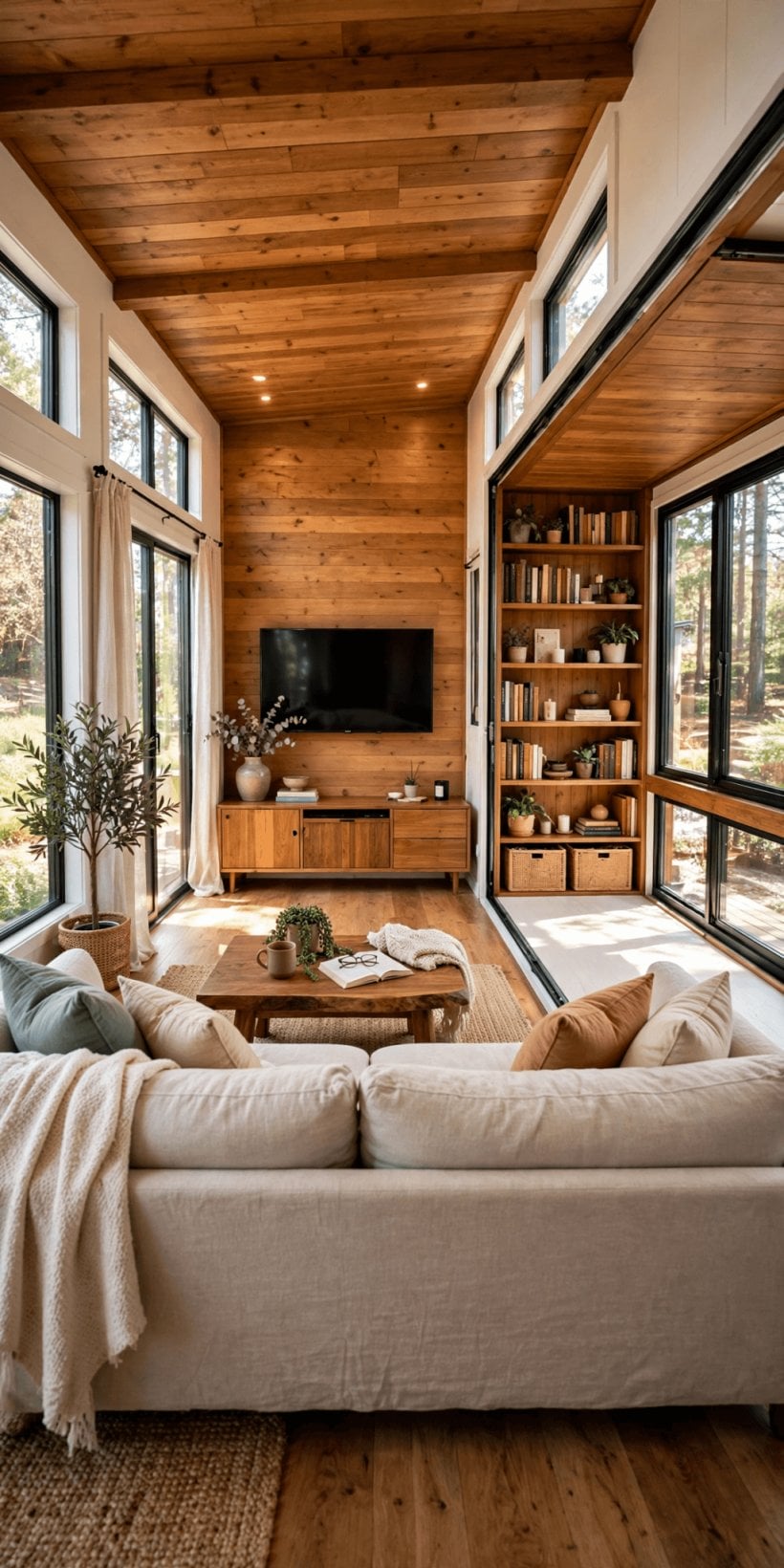

The simplest expandable plan is also the most popular: one 3-foot-deep, 12-foot-long slide-out on the living-room wall of an 8 × 24 house. Extended, the living zone goes from 8 to 11 feet wide — enough for a real sofa facing a real media wall, with walk-around space instead of the shuffle-sideways gap a fixed-width living room forces on you. The slide carries the sofa and a bookshelf; the main house keeps the kitchen, bath and bedroom fixed, so no plumbing and no wet walls ever move.
One slide means one mechanism, one seal system and one thing to maintain — and that seal system is where this plan is won or lost. The specification is a double wiper seal, inner and outer, plus a bulb seal that compresses at full extension. A single-seal slide leaks; the original plan notes call it the most common failure in DIY expandables. If you build one slide and build its seals properly, you have the most reliable version of expansion there is.

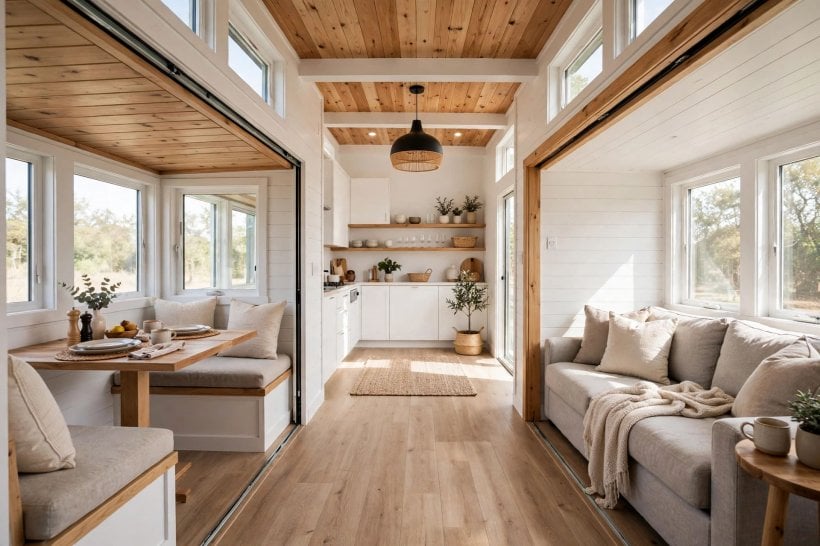

4. Plan 2: The Opposing Double Slide
Put slides on both long walls, each 2.5 feet deep, and the living room expands to 13 feet wide — a genuine great room in a house that tows at 8.5 feet. One slide carries the dining nook, the other the lounge seating, so the two functions that fight hardest for floor space in a fixed plan each get their own territory. The effect is less like a wider tiny house and more like a small apartment that happens to have wheels.
The discipline is in the sequence. Opposing slides must extend in sequence — never simultaneously on a manual system — to avoid racking the frame, and the trailer needs outrigger stabilizers at all four slide corners before either slide moves. Builders who like the two-box thinking here often pair it with the approach in our modular tiny house floor plans, where prefabricated sections are designed to grow with the house rather than be widened by it. The opposing slide is the expandable family’s great-room plan; treat its setup order as ritual, not suggestion.
5. Plans 3, 4 and 8: Tip-Outs, Bi-Fold Walls and Fold-Down Sections

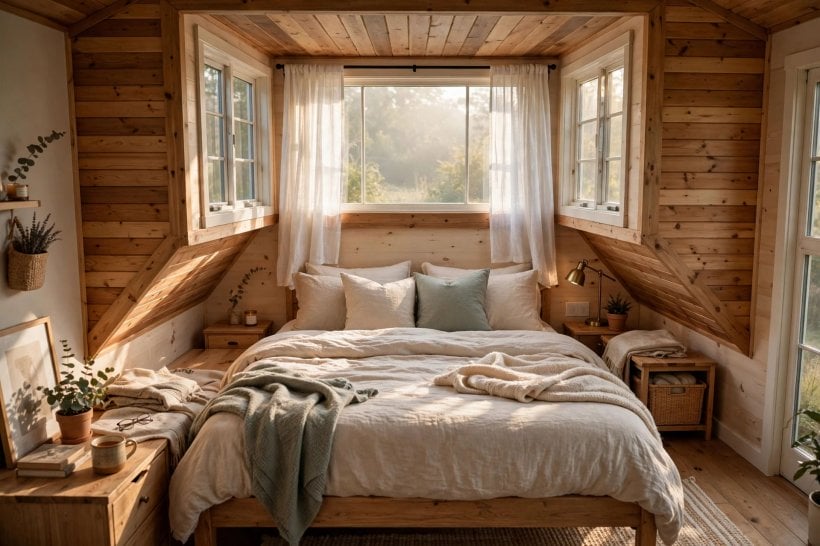

Not every expansion slides. The tip-out bedroom hinges its wall outward at the top, tipping out to create a dormer-like expansion over the bed. It adds 2 feet of width across a 10-foot bedroom wall — just enough for walk-around space on both sides of a queen bed — and because there is no floor section to support, a tip-out is lighter than a slide and seals with a single compression gasket. For a bedroom, where the only real problem is squeezing past the bed, it is the most efficient mechanism on this list.
The folding deck walls make the opposite trade. Two 8-foot bi-fold glass wall systems replace the long walls of the living zone; folded open, the walls stack to the corners and the living room merges with the deck, effectively gaining the entire outdoor space as living area. A 160-square-foot room open on two sides feels like 400 — but removing 16 feet of wall removes the shear capacity with it, so the corner posts become engineered structural columns and the header above the opening carries the full roof load. The fold-down deck bedroom is the lightest of the three: an 8 × 10 deck platform hinged at the floor line, with a tent-like insulated fabric enclosure over it — a seasonal sleeping porch for warm climates, and at under $2,000 in materials the cheapest expansion here. Ground-level, no-climb sleeping in any of these plans pairs naturally with the layouts in our single-story tiny house plans.
6. Plan 5: The Pop-Up Roof Loft

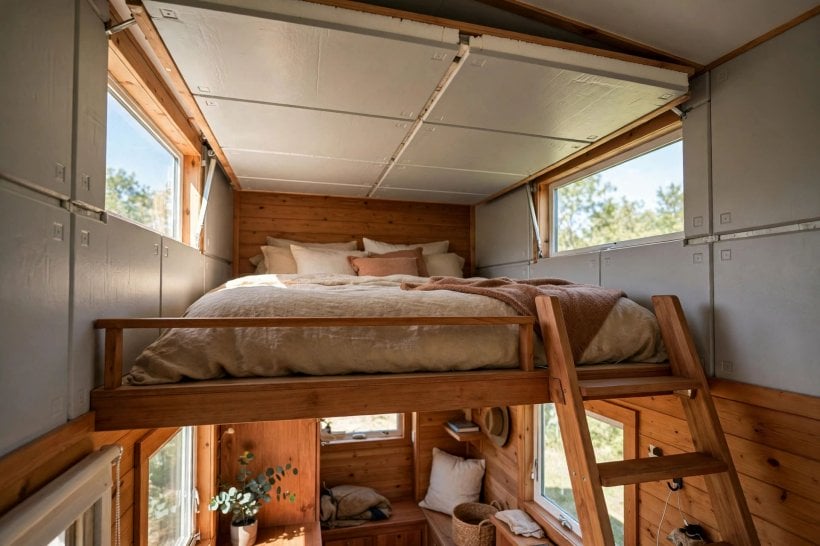

Every other plan on this list expands outward; the pop-up expands upward. A roof section cranks up 3 feet at the site, turning a 4-foot-tall storage loft into a 7-foot-tall standing bedroom. It is the lightest expansion mechanism of all — no floor and no walls to move, just the roof — and it solves the loft headroom problem completely rather than softening it. The mechanism is typically a scissor lift or a cable winch system rated for the roof weight plus snow load.
The weak point is exactly where you would guess: the pop-up’s fabric or panel sides. The specification that makes this plan work is marine-grade canvas or insulated panels with proper seals, because a leaky pop-up is worse than no pop-up at all — it takes the one dry, simple space a loft should be and gives it moving joints at the highest, wettest part of the house. Built with the right sides, though, it turns the compromise every loft owner accepts into a real bedroom. The footprint it sits on still has to work as a plan in its own right, which is what the layouts in our tiny house blueprints collection are for.
7. Plans 6, 7 and 9: Swing-Out Pods, Telescoping Boxes and the Bathroom Pod

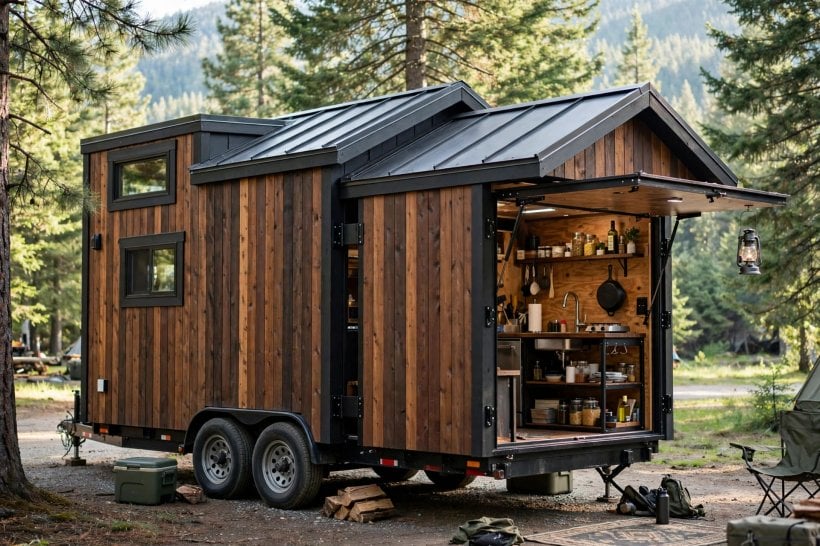

The boldest plans move entire rooms. The swing-out kitchen pod builds the whole kitchen as a self-contained 4 × 8 unit that swings out from the side of the house on heavy hinges, like opening a giant door. Deployed, the kitchen stands 4 feet outside the main envelope under its own small roof, and the interior gains a 4 × 8 alcove that becomes dining space. All plumbing and electrical run through a flexible umbilical designed for the swing arc — braided stainless water lines and a coiled electrical whip with 3 feet of slack beyond the swing radius, because rigid connections will fail on the tenth swing.
The telescoping section works in length instead of width: an inner box (8 × 16) slides out of an outer box (8 × 12) on rails, extending the total length to 28 feet — the largest expansion on this list, 12 extra feet. The 4-foot overlap zone contains the bathroom, which never moves; the sliding section carries the bedroom. The price of that gain is precision: rail alignment has to be exact and the site perfectly level. The slide-out bathroom takes the pod idea to the wet room — a 4 × 8 self-contained pod with shower, toilet and sink on a single molded fiberglass pan floor, no tile to crack and no grout to maintain. It simplifies the main plan enormously and isolates all moisture risk in the pod, provided its flexible braided drain connection is rated for the slide travel and the slide returns to exactly the same position every time. Dedicated-zone thinking like this is the same instinct behind our tiny house floor plans with home office spaces — give one function its own territory and the rest of the plan breathes.
8. Plan 10: The Full-Width Double Expander
The maximum plan combines the family: two opposing slides — living room and bedroom — plus a pop-up roof over the loft. An 8 × 24 house becomes a 13 × 24 main level with a standing-height loft: roughly 380 square feet of living space from a 192-square-foot travel footprint, nearly double. It is the closest a tiny house on wheels gets to a real house, and nothing about it is casual.
The honest numbers come first in this plan, not last. Three mechanisms add 1,200 to 1,800 pounds before furniture. The build needs a triple-axle trailer and a one-ton tow vehicle minimum, three seal systems to inspect and maintain, and an honest conversation about whether you actually want to move it more than twice a year — because a house this complex is really a park-and-stay home that can move, not a traveller that parks. If what you actually want is distinct zones without moving parts, the layouts in our L-shaped tiny house floor plans reach a similar feeling with fixed walls. The double expander is for the owner who has weighed all of that and still wants the house that grows.
9. Seals, Leveling and the Weight Budget

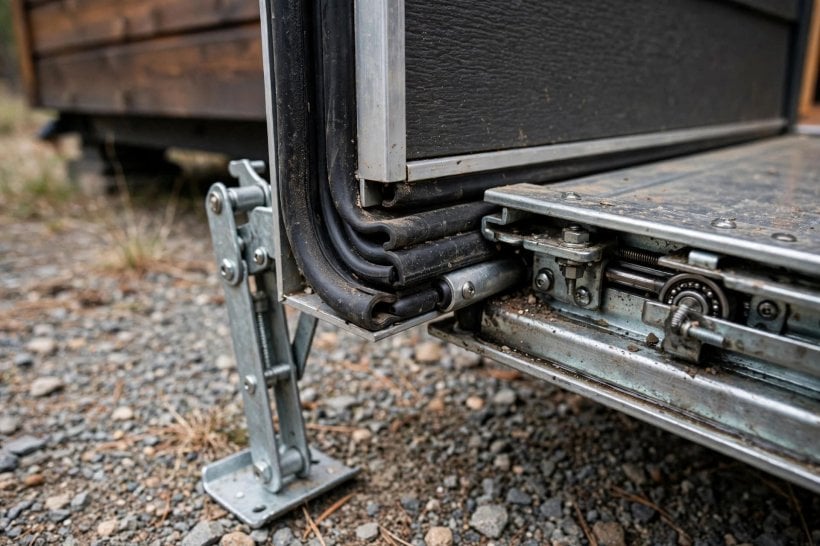

Every expansion joint is a potential leak, and water intrusion kills tiny houses faster than anything else. The sealing rules are consistent across all ten plans: double seals on every horizontal slide (wiper plus bulb), compression gaskets on every hinged joint, sloped sills that shed water outward at every opening, and a maintenance schedule — inspect and treat the seals annually. An expandable house with neglected seals is a rotting house with extra steps.
Leveling is the second discipline, and it is absolute: never extend a slide on an unlevel trailer. A 1-degree tilt across 24 feet becomes a 5-inch height difference at the slide — enough to jam the mechanism or break the seal. Level first, stabilizers down, then extend, in sequence. Finally, weight: a slide-out runs 400 to 800 pounds per slide, tip-outs are medium, the pop-up is lightest, and the full expander’s three mechanisms total 1,200 to 1,800 pounds. That budget has to be planned against the trailer’s real capacity, not hoped around — our guide to calculating the weight of a tiny house walks through the full tally before the mechanisms are added.
10. Mistakes to Avoid — and Who Expandables Suit
The failures repeat so reliably they read as a checklist. Saving money with a single-seal slide. Extending on an unlevel trailer because the site looked flat. Running rigid plumbing or wiring to a moving section. Skipping the annual seal inspection because last year looked fine. And the quietest mistake: adding expansion for square footage’s sake, stacking mechanisms whose weight and seals the build cannot support, instead of solving the one problem — a real bedroom, a real living room — that the fixed plan could not.
Chosen well, expandable tiny house floor plans suit owners who park for long stretches and move occasionally, who need one room to be genuinely comfortable rather than every room slightly larger, and who will actually do the small annual work the seals ask for. They suit warm-climate seasonal living beautifully at the fold-down end, and full-time living at the slide-out end. They do not suit frequent movers or anyone who hears “maintenance schedule” as a deal-breaker. If you are still shaping the fixed plan underneath, our walkthrough on designing your own tiny house plan is the right place to fix the layout before you decide what should move.
Final Considerations
Expandable plans trade mechanical complexity for living space, and the trade is worth it exactly once: when the expansion solves a specific problem — a real bedroom, a real living room — rather than just adding square feet. Pick the mechanism that matches the need, from a single sealed slide to the full double expander. Engineer the seals like your house depends on it, because it does. Level the trailer before anything moves. And then enjoy the only tiny house that gets bigger when you park it.
