The dog does not care about your square footage, and the cat has opinions about your walls. The best tiny house layouts for pet owners treat the home as a multi-species habitat: vertical territory for the cat, a real den for the dog, and a litter box that stays invisible and odor-free. These ten layouts build the animals’ infrastructure into the architecture itself — into the walls, the stairs and the dead spaces in between.
Tiny House Layouts for Pet Owners: At a Glance
A tiny house with pets works when every species gets designed space rather than leftover space. The humans need 200 square feet; the dog needs a crate and a door; the cat needs vertical territory and a litter box that does not stink up the kitchen. Pet-friendly floor plans do not add rooms — they add animal infrastructure into the walls, stairs and dead spaces, the same discipline that makes any tiny house floor plan feel bigger than it measures. The ten layouts below share one checklist: a stud-mounted cat shelf, a ventilated litter cabinet with exterior exhaust and a slide-out tray, a built-in crate nook with washable flooring and ventilation grilles, a raised wash tub in the mudroom, a dedicated pet door with a landing mat, and a pull-out feeding drawer — all sitting on waterproof floors, luxury vinyl or sealed concrete, with no carpet anywhere, ever.
| Layout | Signature Feature | Best For |
|---|---|---|
| 1. The Cat Highway | 12-inch shelf at 7 ft, stud-mounted | Cats that need vertical territory |
| 2. The Litter Box Vault | Vented under-stair cabinet, 4-inch fan | An odor-free small home |
| 3. The Dog Crate Nook | 3×4 ft built-in alcove | Dogs that sleep best in a den |
| 4. The Mudroom Dog Wash | 4×6 entry zone, 24×36 in tub | Muddy-paw households |
| 5. The Pet Door Wall | Pet door with a 2×3 landing zone | Independent cats and dogs |
| 6. The Feeding Station | 24-inch pull-out drawer | Kitchens without floor bowls |
| 7. The Window Perch Run | 10-ft window seat at 24 in high | Sun-loving cats |
| 8. The Outdoor Kennel Deck | 6×10 ft covered run | High-energy dogs |
| 9. Multi-Pet Zoning | Cats up, dogs down | Mixed-species households |
| 10. The Travel-Ready Plan | Secured crate and go-bag cabinet | THOW owners on the road |

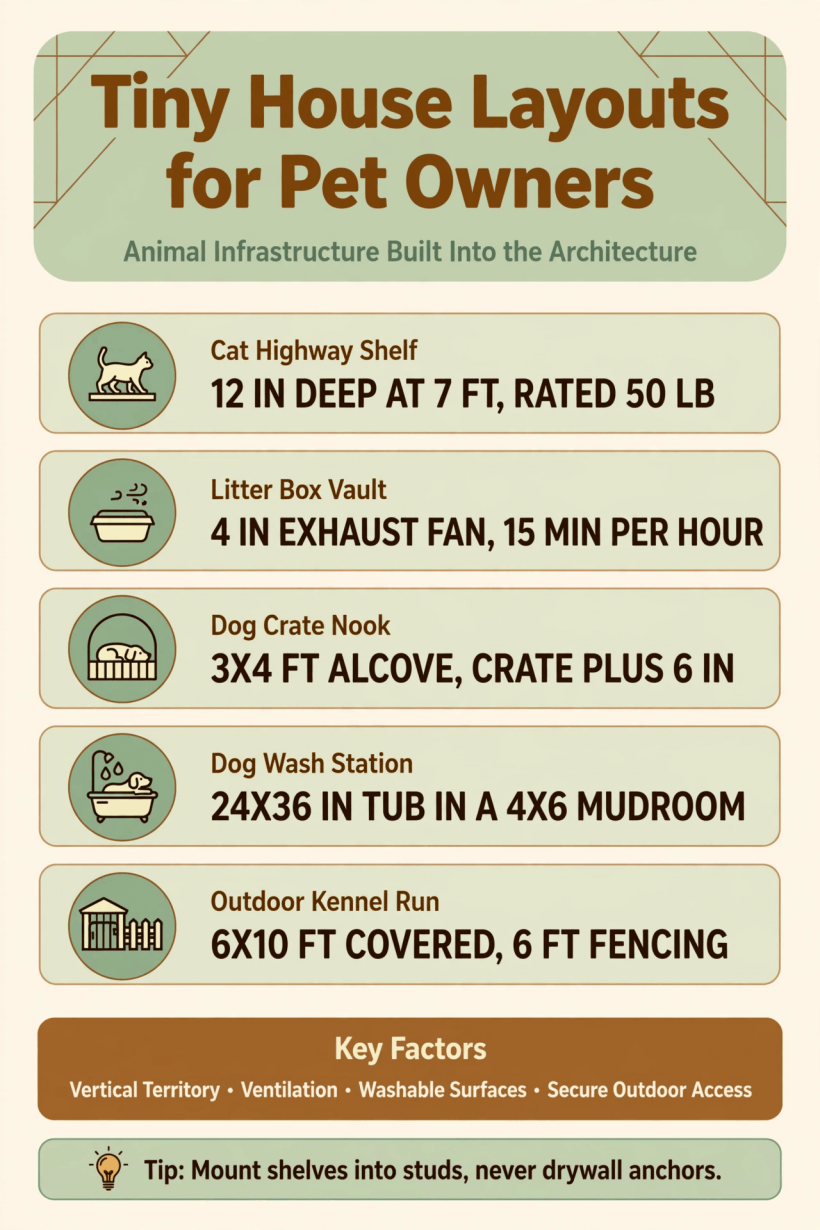

The five numbers that run a pet-friendly tiny house: shelf depth and height, exhaust fan size, crate footprint, wash tub size, and kennel run dimensions.

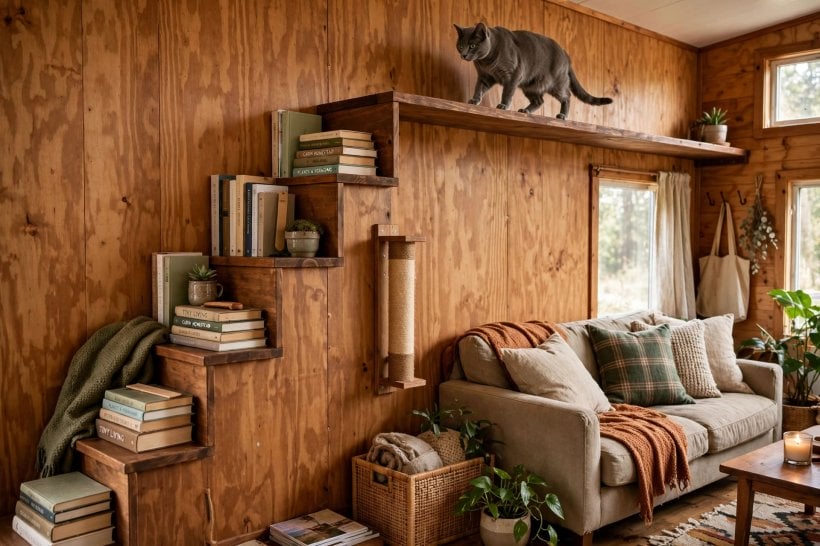

1. The Cat Highway: A Perimeter Shelf System at 7 Feet
Cats need vertical territory, not floor area, and the cat highway gives it to them in the one band of the house humans never use. Install a continuous 12-inch-deep shelf at 7 feet around the living zone’s perimeter, with access up a stepped bookshelf at one end and an exit down a wall-mounted scratching post at the other. The cat travels the room at ceiling height, surveying everything; the humans keep their floor, their sofa and their sanity. In lumber the whole system costs around $200, and it returns something like a hundred linear feet of feline territory — more usable cat space than most full-size houses ever offer their cats.
The mounting is the whole engineering story, and it is not optional reading. A 12-pound cat landing from a jump generates 50+ pounds of dynamic load, which is why the shelf is rated for 50 pounds and why it must lag into every stud — 16 inches on center — and never hang from drywall anchors. Anchors hold pictures; studs hold cats. Build the shelf as a true perimeter circuit with no dead ends, so the cat never has to reverse past another cat, and keep the stepped bookshelf climb at a gradient a senior cat can still manage. Territory that cannot be reached stops being territory.

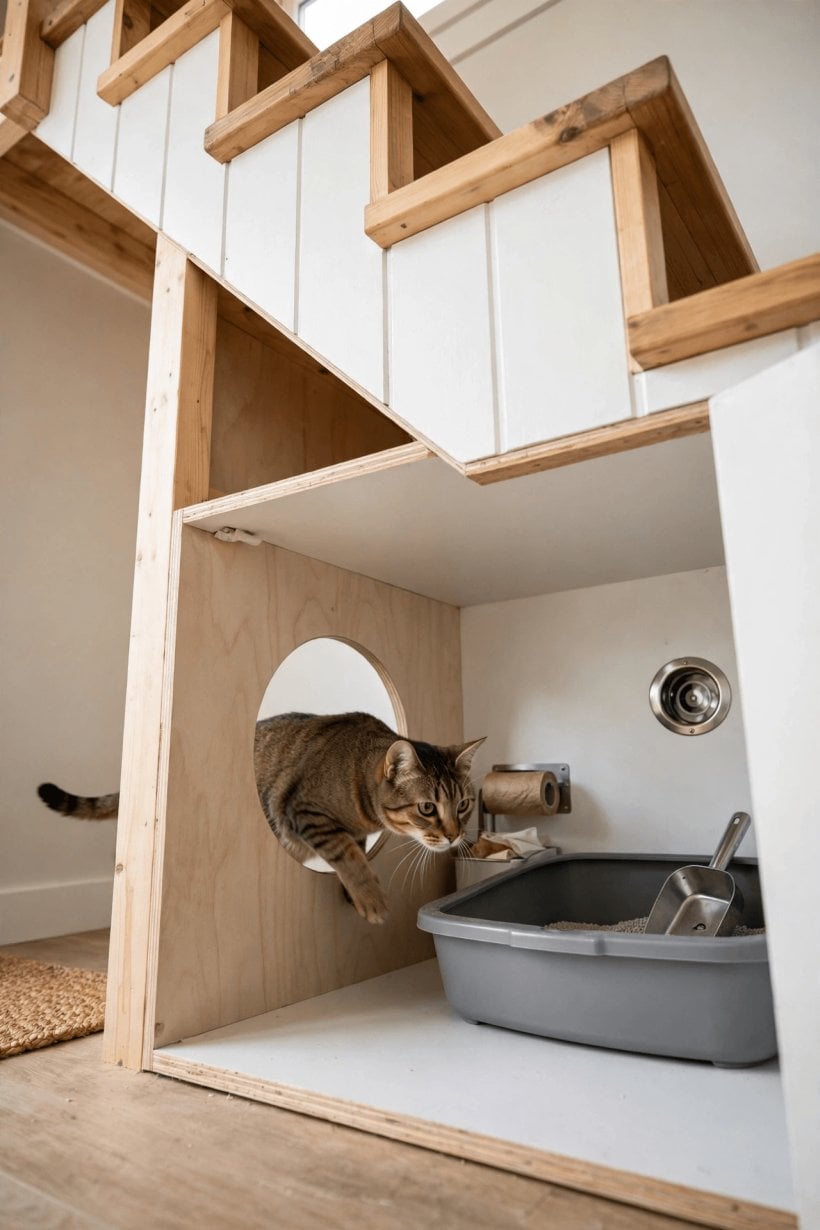

2. The Litter Box Vault: A Ventilated Under-Stair Cabinet
The litter box problem is two problems: odor and visibility. The vault solves both by giving the box its own ventilated room. Build a cabinet under the stairs — or devote a 2×3 closet — with a cat-sized entry hole, a slide-out tray for cleaning, and a 4-inch exhaust fan on a timer venting straight to the exterior. The fan runs 15 minutes per hour, which is enough to keep negative pressure on the cabinet and pull odor outside before it ever reaches the living space. The humans get a house with no visible box and no smell; the cat gets a private, quiet bathroom it does not have to share with anyone’s feet.
Two dimensions govern the build. The cabinet needs 30 inches of height, so the cat can use the box in a natural posture and you can reach in to service it, and its interior must be washable — FRP panels or tile — because litter dust and the occasional miss are certainties, not possibilities. Put the entry hole where the cat approaches it naturally along its usual route through the house, and let the slide-out tray do the daily work: litter changes become a thirty-second drawer pull instead of a furniture-moving expedition, which is precisely why vault-kept boxes get cleaned more often and smell less.

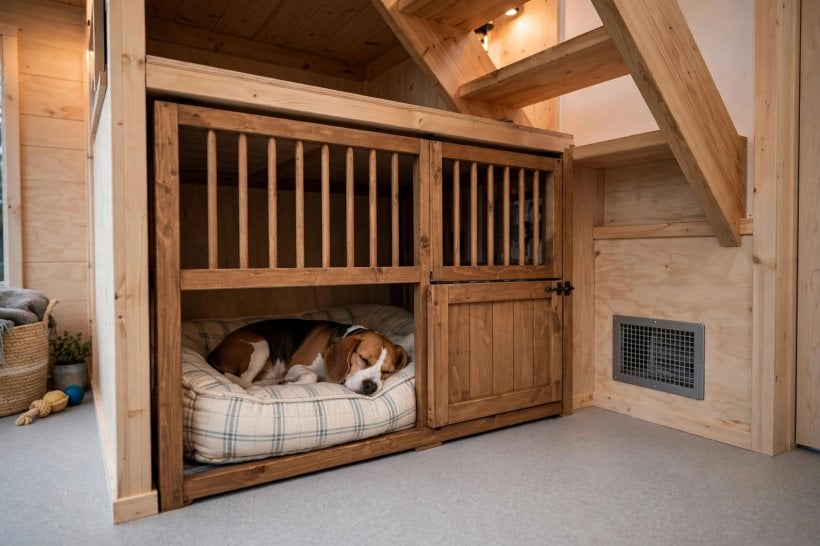

3. The Dog Crate Nook: A Built-In Kennel That Reads as Furniture
A wire crate dragged into a tiny house living room is an eyesore with a door. Built into the architecture, the same crate becomes the dog’s den and a piece of the house. The nook is a 3×4 alcove under the loft stairs or at the end of a hallway, finished with a custom front — bars or a Dutch door — washable flooring, and a dedicated ventilation grille. Size the alcove for the crate plus 6 inches, and confirm the dog can stand, turn and lie down comfortably inside it, because a den the dog cannot settle in is just a cupboard with a dog in it. Dogs prefer enclosed sleeping spaces; the nook simply takes that preference seriously.
The ventilation detail is the one builders skip and dogs pay for. An enclosed crate with a sleeping dog inside warms up fast, so the nook needs airflow: a passive grille high and a passive grille low, working on the stack effect, so warm air exits at the top and cooler air draws in at the bottom with no fan and no noise. It is the same den logic that makes couples plan their sleeping zones first in tiny house layouts for couples — the sleeper’s comfort is designed, not hoped for — except here the sleeper has four legs and a tail.

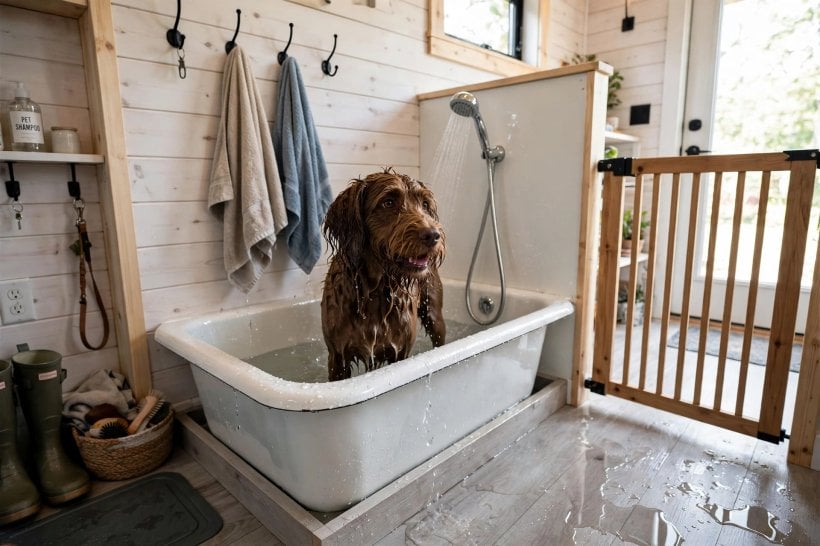

4. The Mudroom Dog Wash: A Pet Entry Station
Dogs should enter through the mudroom, not the front door, and this layout designs the entry around that fact: a 4×6 entry zone with a raised wash tub (24×36 inches, handheld shower), towel hooks, and a gated drying area. The muddy dog comes in, gets washed at working height — no kneeling over a bathroom tub — dries behind the gate, and only then is released into the house. Mud never reaches the living room because mud is stopped, washed and dried at the border, which is the entire philosophy of a good entry zone applied to the family member most likely to bring the outdoors in with them.
The plumbing and the gate both earn a second look. The tub drains to graywater, so wash water is handled by the same system the house already uses rather than a special pet line. And the gate is a half-door the dog can see over: a closed solid door isolates the dog and raises anxiety, while a half-door keeps it contained, able to watch the household, and calm. If you are planning the entry anyway, the full menu of airlocks, benches and gear zones in these tiny house plans with mudrooms pairs naturally with the wash station — the dog wash is a mudroom that admitted who its muddiest user would be.
5. The Pet Door Wall: A Dedicated Animal Entry

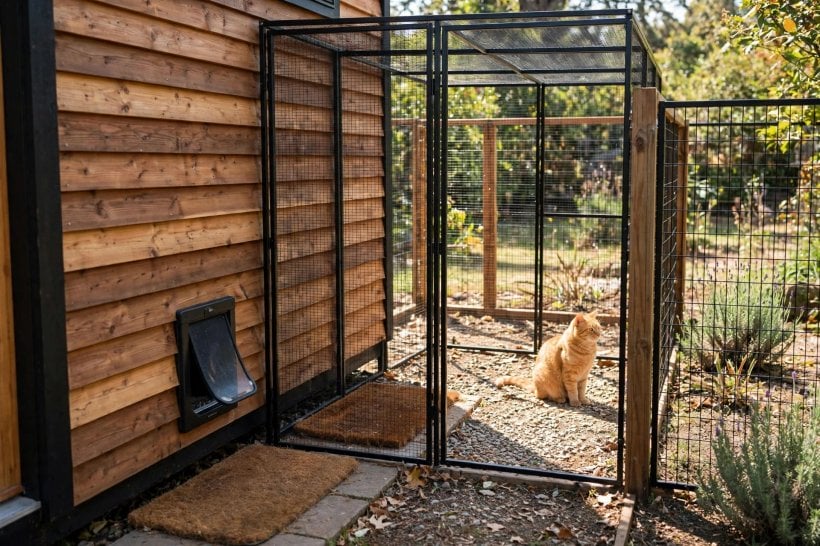

Humans get the front door; animals get a wall. Cut the pet door into an inconspicuous section — a mudroom or laundry wall — and lead it to a fenced run or an enclosed catio, so the animals come and go on their own schedule without a human doorman. The detail that makes it work as a system rather than a hole is the little “porch” on the inside: a 2×3 landing zone with a mat, where animals transition, shake off and wipe paws before they reach finished floors. For cats the door leads to the catio — safe outdoor access, fresh air and sun with zero wildlife risk. For dogs it leads to the fenced yard.
Siting the door is a planning decision, not a carpentry afterthought. The wall you choose decides which outdoor space the animals reach, how much dirt crosses the landing, and whether the door becomes a draft path in winter — put it on the sheltered side of the house, on the route the animals already patrol. In communities that welcome pets explicitly, this kind of independent animal access is close to standard infrastructure; browsing the villages listed in the tiny home communities locator shows how many sites are planned around fenced runs and catio-friendly rules from the start.

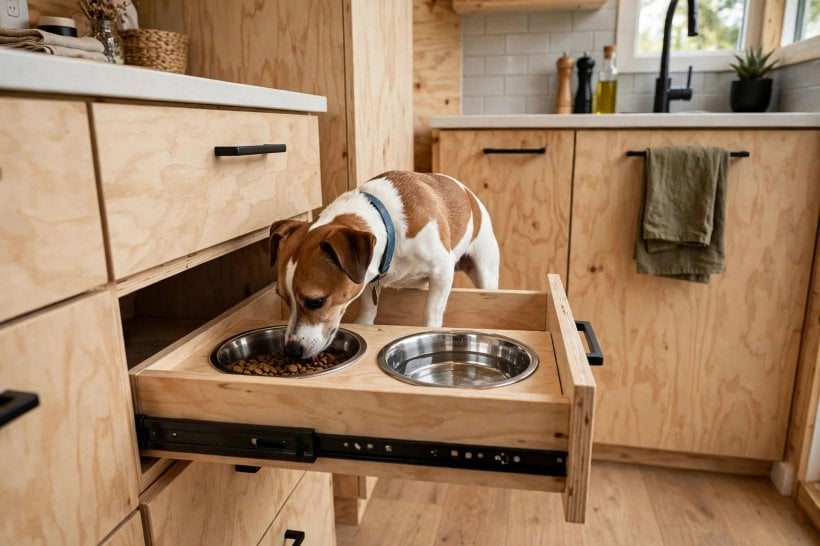

6. The Feeding Station: Pull-Out Drawers in the Kitchen Base Cabinets
Pet food and water do not belong on the kitchen floor, where they trip humans, spill underfoot and migrate steadily across the room. The feeding station moves them into the cabinetry: a pull-out feeding drawer in the kitchen base cabinets, 24 inches wide and riding on full-extension slides, with the food and water bowls set into the drawer itself. At mealtimes the drawer pulls out; after meals it pushes back flush, and the kitchen floor is a kitchen floor again. The drawer interior is stainless or waterproof laminate, because feeding is a wet job and the surface that takes the splashes has to shrug them off in one wipe.
The station rewards being treated as kitchen design rather than pet gear. Site it out of the main foot-traffic lane — the end of a cabinet run is ideal — so the dog can eat in peace and nobody steps over it mid-meal. Full-extension slides matter more than they sound: the drawer must open far enough that both bowls are fully clear of the cabinet face for filling and washing, or the design quietly fails at its only job. Households with two animals can dedicate a drawer per species, which ends the ancient war over whose bowl is whose.

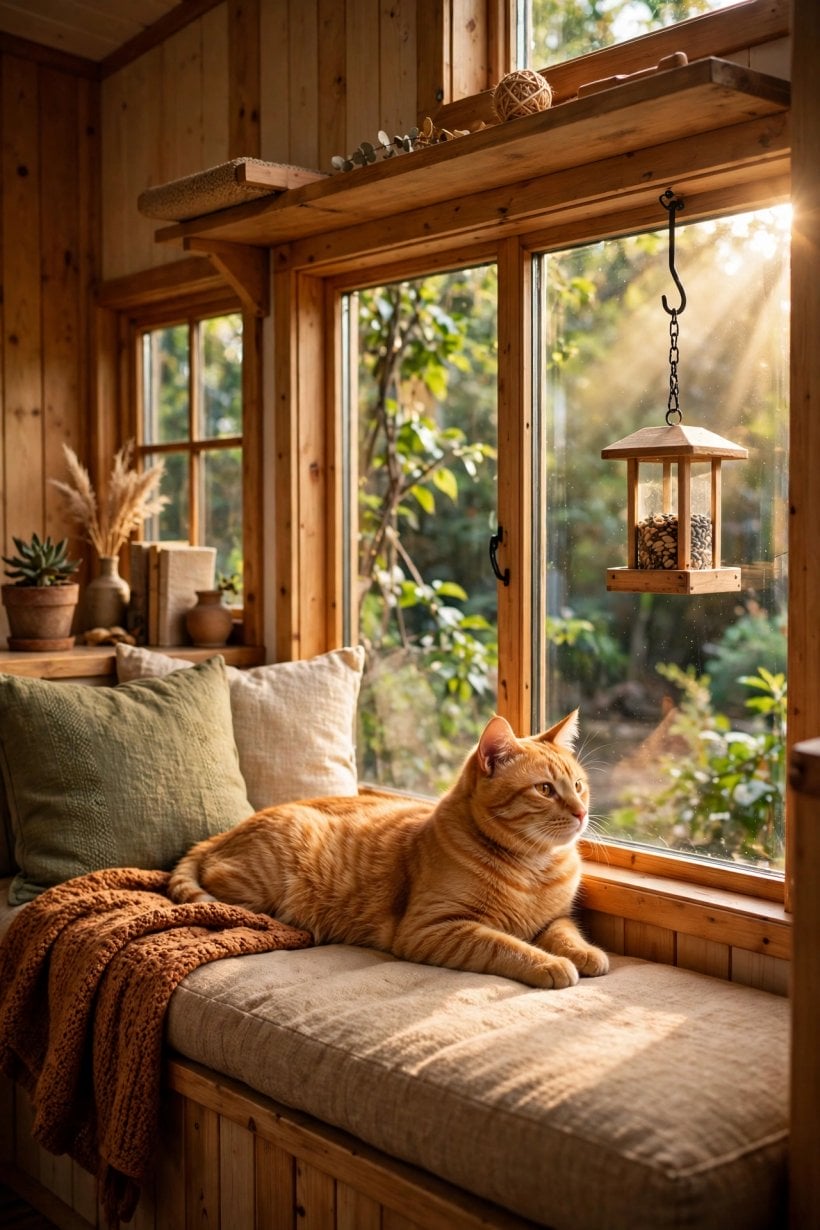

7. The Window Perch Run: A Cat Window Wall
Dedicate one window wall entirely to the cat and you will have built the most popular square feet in any pet-owner tiny house. The wall carries a 10-foot window seat at 24 inches high — cushioned, with a washable cover — the cat highway shelf running above it, and a bird feeder visible outside, hung 10+ feet from the window for the birds’ safety. The cat gets sun, entertainment and territory in one address: hours of warm, elevated, front-row bird theatre. The humans get a window seat, which turns out to be no sacrifice at all — it is the seat every guest chooses too.
The perch run works because it stacks three things cats want into one vertical column: the highway above for travel, the seat below for lounging, and the glass for the view. Choose the sunniest window you have — a perch in gloom is furniture, a perch in sun is a destination — and spec the cushion cover as genuinely washable and replaceable, because it will collect a cat’s worth of hair on a schedule. Connect the seat height to the highway’s stepped access so the route from floor to shelf to seat is one continuous climb an older cat can still do.

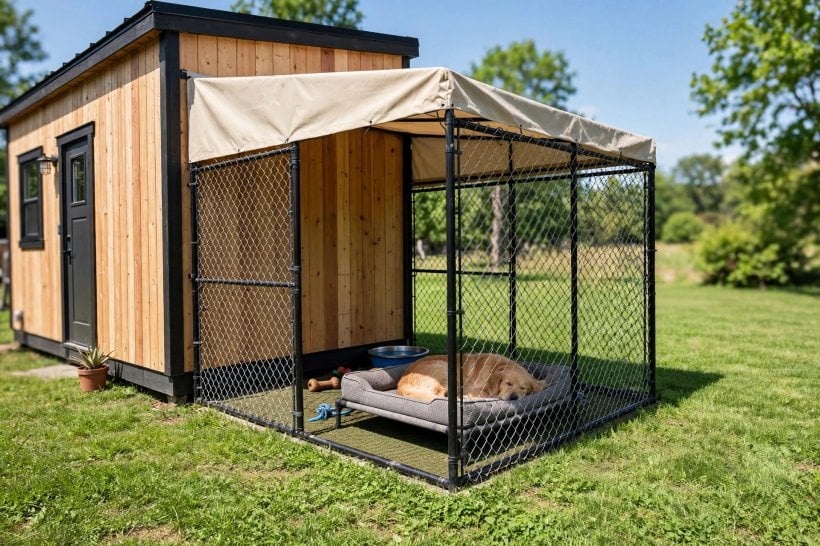

8. The Outdoor Kennel Deck: A Covered 6×10 Run
Some dogs cannot burn their energy indoors, and no floor plan can fix that — but a run can. Attach a 6×10 covered kennel run to the side of the house: fenced, roofed, with a heated pad zone for winter and a shade zone for summer. The dog gets safe outdoor space without a full yard; the house stays clean; and because the run connects through the pet door of plan 5, the dog self-manages its outdoor time instead of petitioning a human every hour. For high-energy breeds in tiny houses, the original verdict stands: this is not optional.
Security is the run’s real specification. Fencing runs 6-foot minimum for jumpers, and it is buried 12 inches — or fitted with an apron — for diggers, because the run is only as secure as its weakest panel. The two climate zones deserve equal care: the shade zone keeps a dog safe through summer afternoons, and the heated pad zone is what makes the run a year-round asset rather than a three-season one. Owners in serious cold country will recognise the principle from tiny house plans for cold climates: design for the worst week of the year, and every other week takes care of itself.
9. Multi-Pet Zoning: Cats Up, Dogs Down
In multi-pet households, the peace treaty is vertical. Cats own the upper level — highway shelves, loft perches, wall-mounted beds — and dogs own the ground floor: the crate nook, the feeding station, the door access. The species share the house but occupy different strata, so encounters happen on terms both sides can manage, and interspecies tension drops because retreat is always available. A cat that can leave a room vertically never has to fight its way out of it horizontally, and a dog whose world is the floor loses interest in a cat who is simply not in it.
The staircase is where the treaty gets its escape clause: a cat-sized bypass, a wall portal beside the stairs, lets cats retreat upstairs even when the dog is rowdy at the stair foot. Design the portal on the cat’s existing routes, not where it looks symmetrical, and size it honestly — cat-sized means the dog’s head does not fit, which is the entire point. Zoning like this is really a household-lifespan decision: animals and people age, temperaments change, new pets arrive. It is the same long-view thinking behind tiny house plans for seniors — design the strata and the escape routes now, and the house keeps working for every resident it will ever have.
10. The Travel-Ready Plan: Pets on the Road
For tiny house on wheels owners who travel with pets, the layout has to survive motion. The design rule is that everything pet-related either locks down or doubles as its own travel gear. The dog crate nook doubles as the travel crate, secured with tie-downs for transit, so the dog rides in the den it already trusts rather than a strange box. The cat highway shelves get removable cushions, stored during transit so nothing flies. And all loose pet gear — leashes, food, meds — lives in one dedicated “go-bag” cabinet by the door, packed by design rather than gathered in a panic.
The payoff is measured in minutes: ten minutes from parked to rolling, with every animal secured. Travel readiness is really just the static layouts of this list with a transit state designed in, which is why it belongs in the floor plan conversation from the start. A crate nook framed into the structure can be tie-down rated; a wire crate bought later cannot. Think of transit as the eleventh layout problem each of the other ten has to answer, and answer it while the walls are still open.
Final Considerations
Underneath all ten layouts sits one purchase decision that outranks the rest: flooring. The floor is the foundation of pet-friendly design, and the original advice is blunt — luxury vinyl plank (waterproof, scratch-resistant, warm underfoot) or sealed, polished concrete (indestructible, cool in summer). Both survive accidents, mud and claws. Never install carpet, an odor sponge; solid hardwood, which urine stains permanently; or laminate, which swells with moisture, in a pet tiny house. Every other choice in this article can be adjusted over time; the floor is the one you live with.
Pets do not need more space; they need designed space. A cat highway, a ventilated litter vault and a built-in crate nook cost less than $1,000 combined, yet they are what transform a tiny house from pet-tolerant to pet-designed. The rest of the ten — the wash station, the pet door, the feeding drawer, the perch, the run — can follow as budget and energy allow. Start with the three that change daily life, and the tiny house layouts for pet owners stop being a compromise the animals endure and become a habitat all three species would choose. The animals were here first in evolutionary terms; the floor plan should acknowledge it.
