Fourteen thousand pounds is not a trailer; it is a small commercial load wearing a house costume. Every pothole, every emergency stop, every mile of expansion joints funnels straight through the axles. Undersize them and you will learn about metal fatigue in the most expensive classroom available: the shoulder of the interstate.
Trailer Axles for a 14,000-lb Tiny House: At a Glance
Learning how to choose trailer axles for a tiny house at this weight means treating the running gear as load physics, brake engineering and suspension design in a single decision. The equation comes first: the combined axle rating has to cover the loaded house with margin to spare, because an axle’s capacity is stamped at the factory and never adjusts afterward. From that math everything else follows — whether two heavy axles or a triple-axle spread carries the load, which axle type suits a house that is also a vehicle, why electric brakes belong on every axle rather than just one, and how the springs, equalizers, wheels, tires and bearings share the work. The ten sections below run the decision in build order, from the rating math through buying new or used, so the gear under the floor is specced like the load depends on it — because it does.
| Topic | What It Covers | Key Fact or Figure |
|---|---|---|
| 1. The Axles Carry Everything | Why running gear is the safety decision under the house | Every load path ends at the axles |
| 2. The Rating Math | How many axles, and what rating each needs | Two 7,000-lb axles = 14,000 combined |
| 3. Axle Types | Straight, drop, and torsion compared | Drop axles lower the deck 4 inches |
| 4. Brakes | Electric drums on every axle | 12″ × 2″ drums for 7,000-lb axles |
| 5. Breakaway Kit and Controller | The emergency system and the brain behind the brakes | Breakaway kit $50–100, tested annually |
| 6. Suspension Details | Springs, equalizers, shocks and wet bolts | 3,500-lb springs per wheel on 7,000-lb axles |
| 7. Wheels | Size, lug count and load rating | 16-inch, 8-lug for 7,000-lb axles |
| 8. Tires | ST tires, load range, pressure and age | Replace at 5 years regardless of tread |
| 9. Bearings and Hubs | The spinning parts and their service rhythm | Repack annually or every 12,000 miles |
| 10. Buying | New assemblies vs used running gear | New assemblies $800–1,500 per axle |

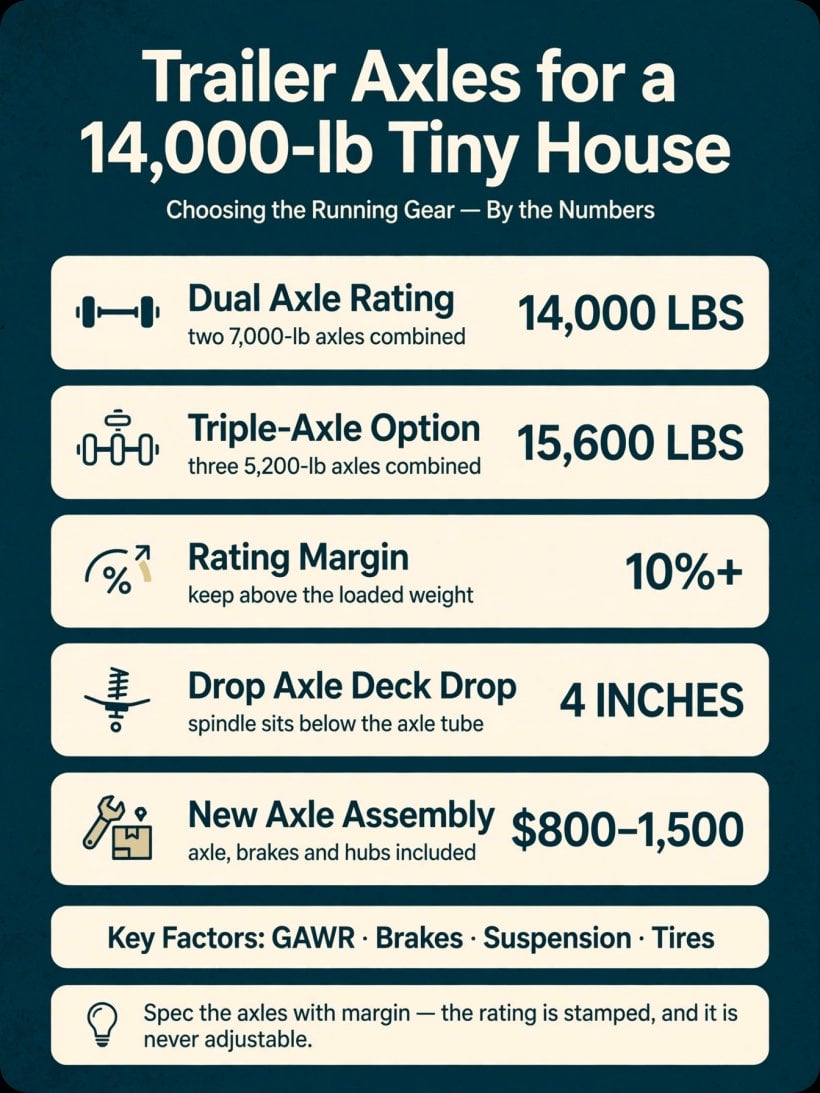

The running gear by the numbers: 14,000 lbs of combined dual-axle rating, the 15,600-lb triple-axle alternative, the 10%+ margin rule, the 4-inch drop-axle deck drop — and what a new axle assembly costs.
1. The Axles Carry Everything

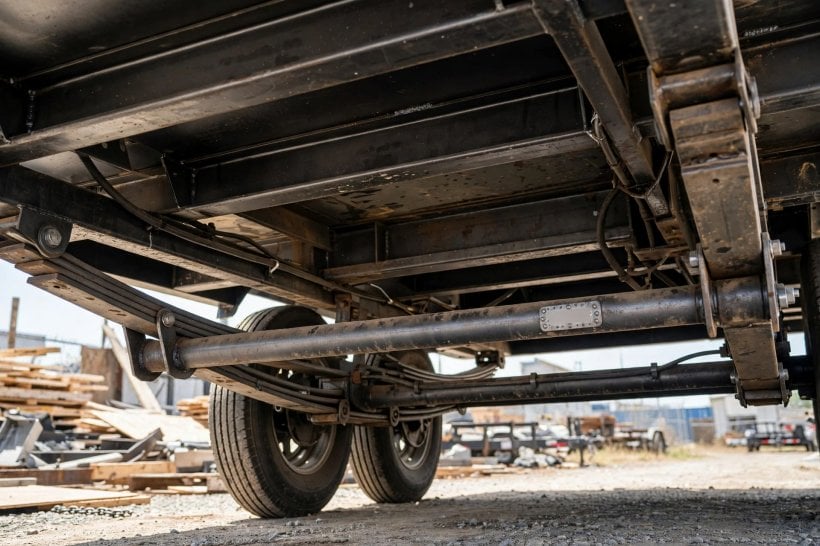

A 14,000-lb tiny house rides on its axles — every pothole, every emergency stop, every mile of highway flows through them. The walls, the roof and the furniture all have exactly one path to the road, and it runs through two or three steel tubes, their bearings, and the tires at their ends. That concentration is what makes axle selection different from every other purchase in the build: a weak countertop is an annoyance, but a weak axle is a failure that announces itself at highway speed, under load, with the whole house behind it.
The decision also starts earlier than most builders expect. The axles are part of the trailer itself, so the axle conversation belongs with the trailer conversation — the frame, deck and running gear are chosen as one package, which is why the groundwork in our guide to what trailer to use for a tiny house comes before any of the numbers below. Spec the axles as an afterthought and the trailer’s other virtues cannot rescue them; spec them first, with margin, and the rest of the build inherits the safety.
2. The Rating Math: How Many Axles, What Rating
The fundamental equation is short enough to write on the shop wall: combined GAWR ≥ GVWR — the sum of the axles’ gross axle weight ratings must at least equal the gross vehicle weight rating of the loaded trailer, with the tongue weight carried by the truck reducing the axle load slightly. For a 14,000-lb GVWR house, two configurations answer the equation. Two 7,000-lb axles give 14,000 lbs combined — the standard setup. Or three 5,200-lb axles give 15,600 lbs combined: a triple-axle spread shares the load across more tires, which eases the loading on each one, but adds tires, brakes and bearings to maintain and makes tight turns harder, since the tires scrub sideways against each other.
The rule that disciplines the math: never spec axles whose combined rating merely equals the loaded weight — keep 10% or more in reserve. Two 7,000-lb axles under a 12,500-lb loaded house run at a 12% margin, and that is the shape of a good spec. Getting to an honest loaded weight in the first place is its own exercise — the house has to be weighed on paper before it is weighed on a scale, following the method in our walkthrough of how to calculate the weight of a tiny house. And one property of ratings closes the section: axle rating is not adjustable. The capacity is stamped on the axle; overloading it voids warranties and invites bearing failure, which is why the margin is bought at purchase time or not at all.
3. Axle Types: Straight, Drop, and Torsion

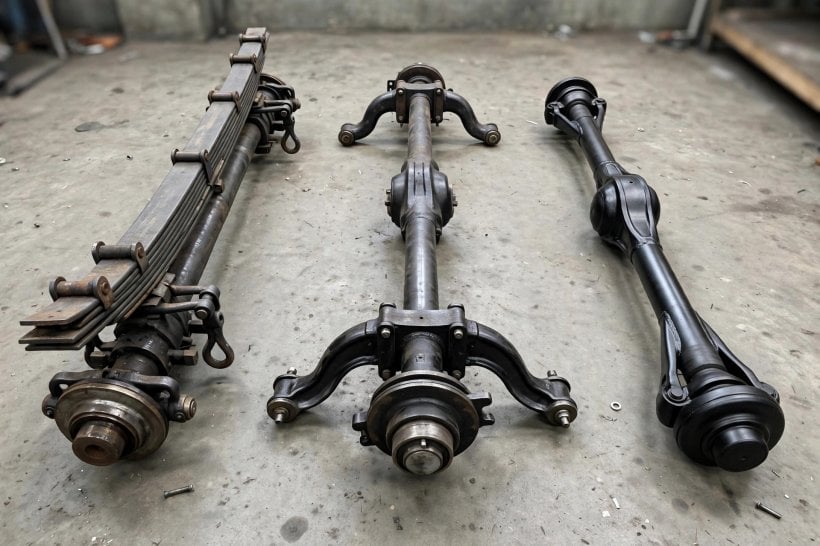

Three axle designs cover the field, and they differ in how the wheel meets the tube. Straight (spring) axles are the traditional standard: leaf-spring suspension, cheap, simple, with parts available everywhere and easy service in any town. Their costs are a higher deck height and a rougher ride. Drop axles move the spindle below the axle tube, which lowers the deck by 4 inches — precious headroom under the 13’6″ legal height limit — at the price of slightly reduced ground clearance.
Torsion axles take the third path: rubber-cord suspension sealed inside the axle tube, giving independent suspension at each wheel. The result is the smoothest ride of the three — the house contents suffer less for it — plus a lower deck height and no leaf springs to maintain. The trade-offs are real: torsion axles run 30–50% more expensive, they are harder to service in the field, and if the rubber inside fails, the whole axle is replaced rather than repaired. The tiny house pick follows from the priorities: torsion axles for the smoothest ride and lowest deck, worth it for a house — or drop spring axles for the budget-conscious builder who would rather keep the service simple.
4. Brakes: Electric on Every Axle

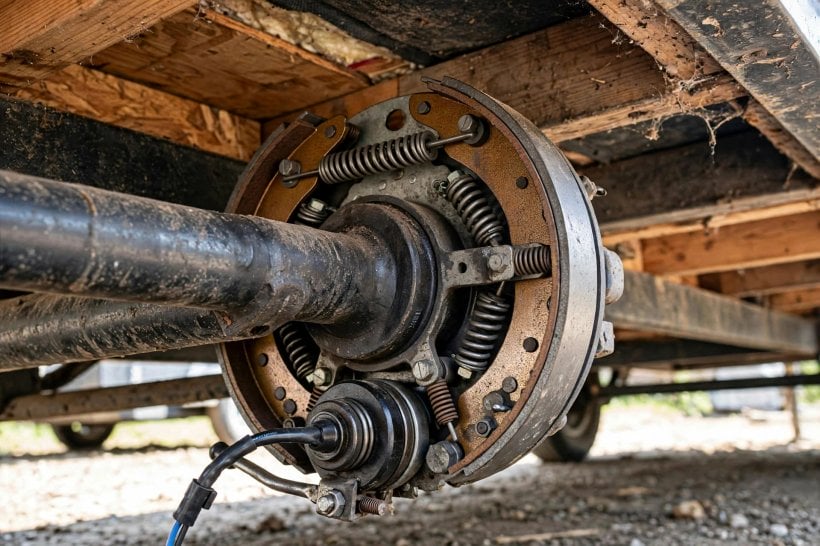

The braking rule at this weight is non-negotiable: electric drum brakes on every axle — 12″ × 2″ drums for 7,000-lb axles, which is the standard pairing. The reason is load physics, not caution for its own sake: braking force has to match the load the axles carry, axle by axle. A braked front axle with an unbraked rear is a jackknife waiting to happen, because the unbraked axle’s share of the house keeps pushing while the braked axle’s share slows.
Drum brakes at this size are also a maintained system, not a fit-and-forget one. Adjust drum brakes annually — or buy self-adjusting brakes, which earn their premium by holding adjustment on their own — and inspect the magnets and wiring every season, since the electrical side of an electric brake is what age and road grit attack first. Every axle braked, every brake adjusted, every season inspected: that is the whole discipline, and at 14,000 lbs it is the difference between a trailer that stops with the truck and one that argues about it.
5. The Breakaway Kit and the Brake Controller

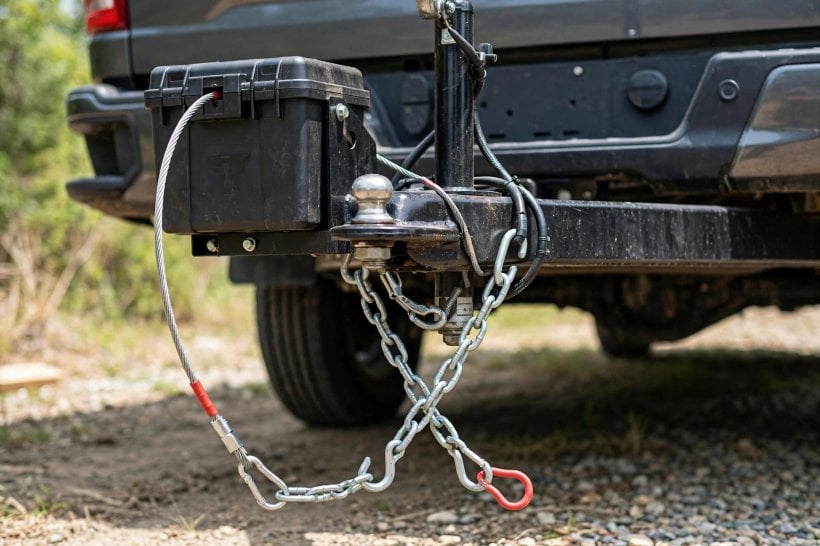

Two devices complete the braking system, and one of them is legally required. The breakaway kit is a small battery and switch that applies full trailer brakes if the trailer ever separates from the truck — it costs $50–100, and it should be tested annually, because a safety device that has quietly died in its box is no safety device at all. It is the last line of defence on the worst day of the rig’s life, and it only works if its battery is alive when the pin is pulled.
The brake controller is the system’s brain, sitting in the truck and telling the trailer brakes how hard to work. Choose a proportional controller: it senses the truck’s deceleration and brakes the trailer as hard as the truck is braking, so the two vehicles slow as one. Time-delayed controllers — which simply apply a preset force after a delay — are obsolete and dangerous at this weight, because a fixed guess is wrong in both directions: too weak in a panic stop, too grabby in a gentle one. The stopping discipline these devices serve, and the truck side of the pairing, are covered in our guide to towing a tiny house: trucks, hitch weights and road regulations.
6. Suspension Details: Springs, Equalizers, and Shocks

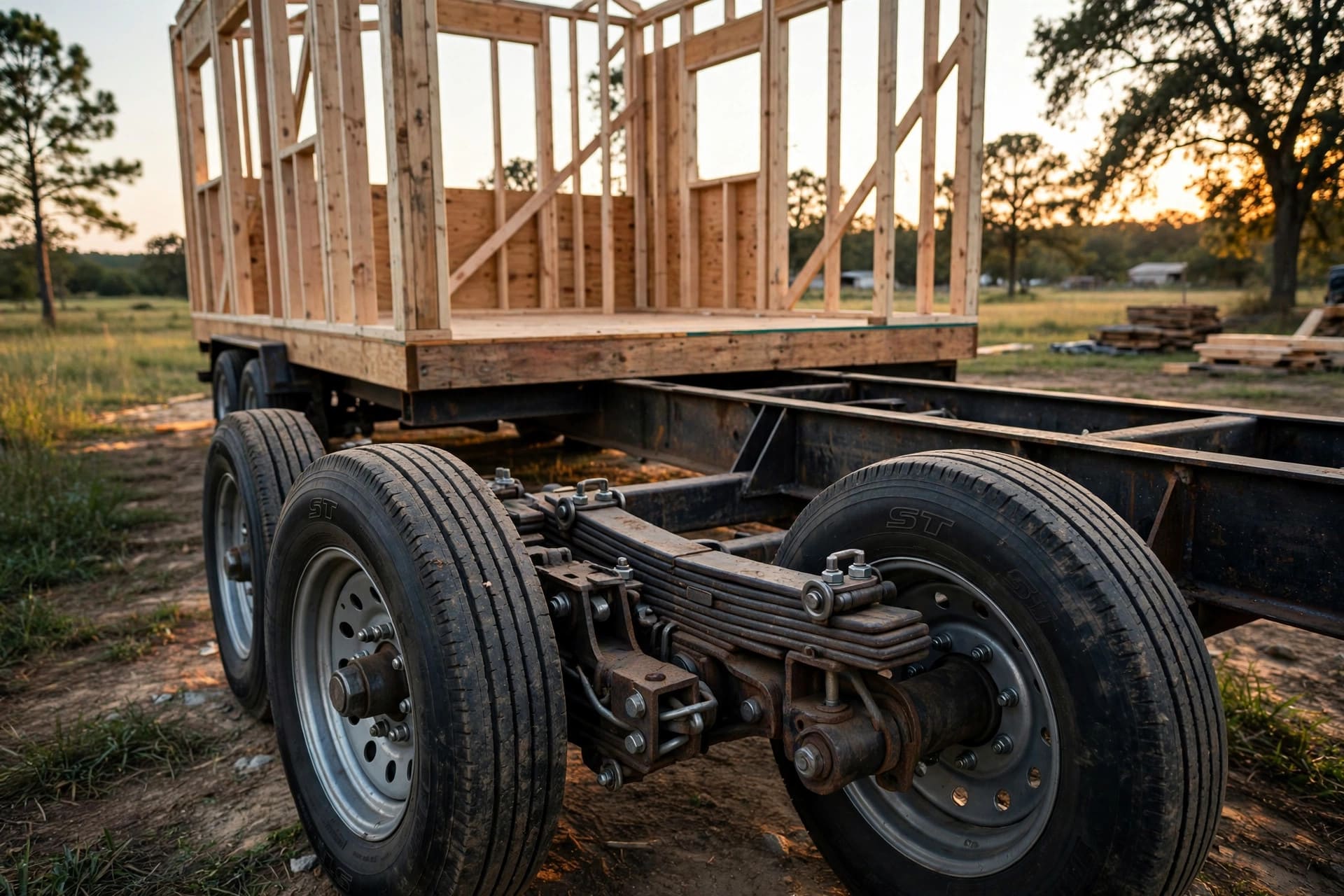

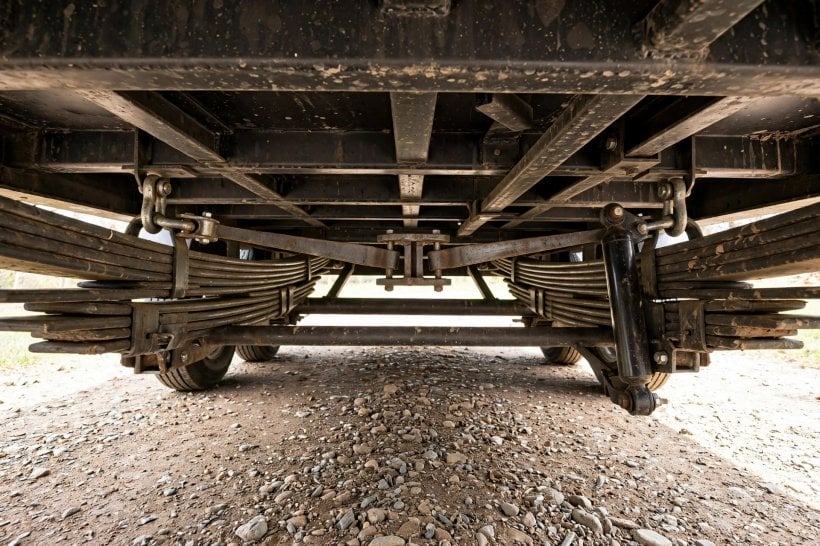

Above the axles, the suspension decides how the road’s violence is shared. Leaf springs are sized to the axle rating: 7,000-lb axles need 3,500-lb springs per wheel — matched sets, replaced in pairs, because a new spring beside a tired one shares the load unevenly from the first mile. On tandem axles, the equalizer bar between the spring hangers balances the load over bumps; it is a $50 part that prevents one axle from taking the full hit on a pothole, and it only does that job if it moves freely, so verify the movement rather than assuming it.
Two upgrades finish the system. Shocks are not standard on trailers but are transformative: a $200 shock kit damps the bounce that shakes cabinets open and cracks drywall — the best ride-quality upgrade available under a house. And the hangers and shackles deserve inspection for wear, because their bolts are the suspension’s quiet wear point: a wet-bolt kit of greasable bolts, at $80, replaces the wear-prone dry bolts and extends suspension life threefold. All of it hangs from the trailer frame itself — the structure the springs bolt to is specified alongside the axles in our guide to how to frame a tiny house on its trailer.
7. Wheels: Size, Lug Count, and Load Rating

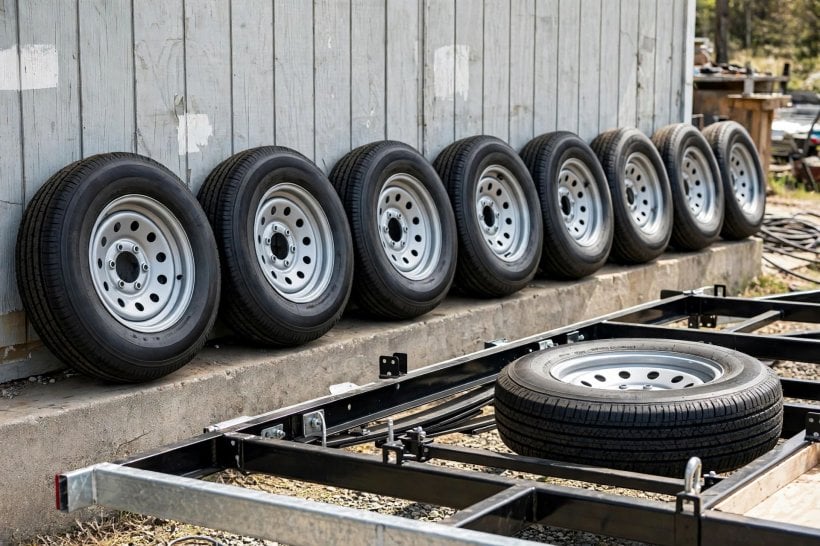

The wheel is where the axle’s rating becomes a contact patch, and its spec follows the axle’s. For 7,000-lb axles: 16-inch wheels, steel or aluminum, with an 8-lug hub — 6-lug wheels belong to lighter axles, so the lug count is a quick visual check that the wheel matches the rating it is being asked to carry. A wheel rated below the axle load it carries quietly becomes the weakest link in a chain that was otherwise specced with margin.
The shopping discipline is matching, all the way down: wheel rating to axle rating, lug count to hub, and the set kept identical across every position including the spare. A full-size spare, with a jack and lug wrench rated for the load, is part of the wheel spec rather than an accessory — a flat at 14,000 lbs without one is a tow-truck bill and a ruined day. The trailer-level decisions around the wheels — deck, frame and running gear as one purchase — are compared in our tiny house trailer buying guide.
8. Tires: ST Only, Load Range, and the Five-Year Rule
Tires are the one component where the wrong category is a common and dangerous mistake. Fit ST (Special Trailer) tires only — never passenger or LT tires — because ST tires are built with stiffer sidewalls for trailer sway control, and a trailer’s side loads are exactly what ordinary tires are not designed to shrug off. Load range follows the axle: G or H for 7,000-lb axles, with each tire carrying 3,500 lbs or more — verify that the tire’s maximum load, multiplied across the set, covers the GAWR with margin, the same reserve discipline as the axles themselves.
Two maintenance rules outrank tread depth entirely. Age: replace trailer tires at 5 years regardless of tread, because UV and ozone degrade them whether they roll or not — the date code is on the sidewall, and it is the number-one ignored safety item on any rig. Pressure: inflate to the sidewall maximum when loaded, since underinflation is the number-one cause of blowouts. A tire can look perfect, hold a house for years of short trips, and still be aged out or underinflated on the one long highway day that matters — the sidewall, not the tread, tells the truth.
9. Bearings and Hubs: The Spinning Parts
The bearings are the smallest parts in this guide and the ones spinning fastest. They are tapered roller bearings, packed with high-temperature grease, on a fixed rhythm: repack annually, or every 12,000 miles, whichever the calendar reaches first. Grease-zerk systems such as EZ-Lube or Bearing Buddy hubs allow fresh grease without disassembly — convenient, but not a substitute for inspection, because a zerk cannot show you a pitted race. Double-lip seals keep the grease in and the water out, and at $5 each they are replaced with every repack as a matter of routine.
Inspection has a ritual and a tell. Inspect the hubs and drums for cracks and heat discoloration — blueing means overheating, and it points at bearings, brakes, or both needing attention. Then the pre-trip check: a hand on the hub after 50 miles, where warm is fine and too-hot-to-touch is not — an infrared thermometer, at $20, makes the check scientific instead of impressionistic. It is the cheapest diagnostic in the whole running-gear budget, and the one that catches a failing bearing while it is still a workshop job rather than a roadside one. What a breakdown or a planned move costs when the gear is not ready is priced out in our tiny house moving guide and transport cost breakdown.
10. Buying: New vs Used Running Gear

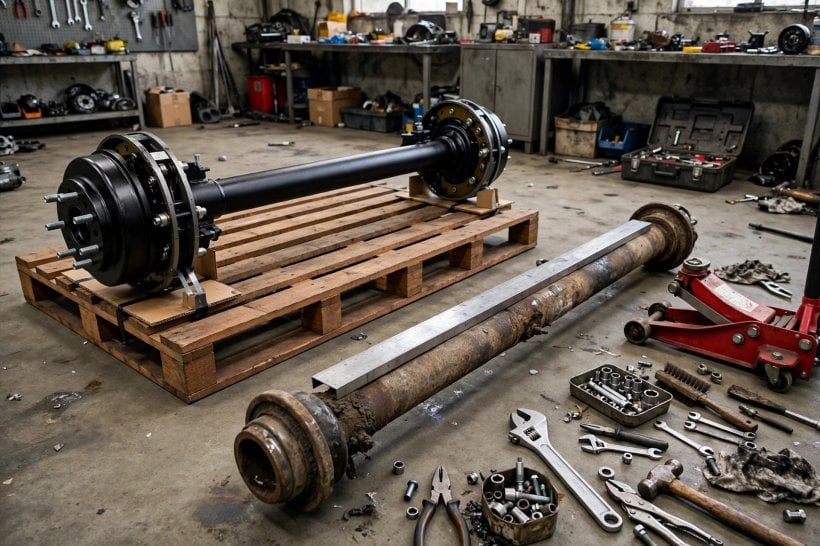

New axle assemblies — axle, brakes and hubs together, at $800–1,500 per 7,000-lb axle — bring a known history, a warranty and matched components, and under a new house they are the right choice: the most safety-critical wear items on the rig are the wrong place to inherit a stranger’s maintenance habits. Used running gear can be honest value, but it is inspected ruthlessly or not at all. Check straightness by sighting down the tube. Check bearing play by jacking it up and rocking the wheel — any clunk is worn bearings announcing themselves. Test brake function with a controller, and read the springs for cracks or flattening.
The never-buy list is absolute, and it closes the guide’s argument. Never buy bent axles — they cannot be straightened reliably. Never buy axles with unknown ratings: no stamp, no sale, because an unstamped axle is an axle whose capacity is a guess. And never buy mismatched pairs — both axles identical, since different ratings or ages cause uneven braking and uneven loading, quietly defeating the matched-system discipline every earlier section built. The running gear works as a system or fails as one.
Final Considerations
Two 7,000-lb torsion axles with electric brakes on both, ST tires in load range G or H under five years old, greased bearings, a working breakaway kit and a proportional controller — that is the running gear for a 14,000-lb tiny house. The axles are the most safety-critical wear items on the rig; spec them with margin and maintain them like lives depend on it, because they do. Knowing how to choose trailer axles for a tiny house is, in the end, knowing which numbers are stamped, which are negotiable, and which rituals — the annual repack, the five-year tires, the 50-mile hub check — keep the stamped numbers honest. The joint above the axles matters just as much once the house is bolted down, and it is specified bolt by bolt in our guide to how to secure a tiny house to a trailer frame.
