Designing a Rock Garden Waterfall: Pumps, Liners, and Natural Stone Placement

A garden waterfall done badly is a pile of rocks with a hose running down it. Done well, it is the moment the whole garden comes alive: the sound that covers traffic, the movement that makes stone feel like a living place. The difference is never the budget. It is understanding how real water behaves — and building so the water can behave that way in your garden.

Rock Garden Waterfall: At a Glance

A convincing rock garden waterfall is hydraulics first and decoration second. This guide starts where the original design process starts — studying how real waterfalls actually move — then works through the build in order: the sound the falls give the garden, the naturalistic design rules, the lined reservoir that stores the water, the pump sized by flow and head height, the pump type, power and backup that keep it alive, the stone placement that shapes each sheet of water, the hidden plumbing, the planting that softens every edge, and the clear-water maintenance regimen with its seasonal and winter care. Every number in it — the 2–4 ft drop, the 1,500–3,000 GPH pump range, the 45-mil liner, the reservoir at twice the stream’s water — comes from the build itself, so the finished falls look like geology and sound like a mountain stream.

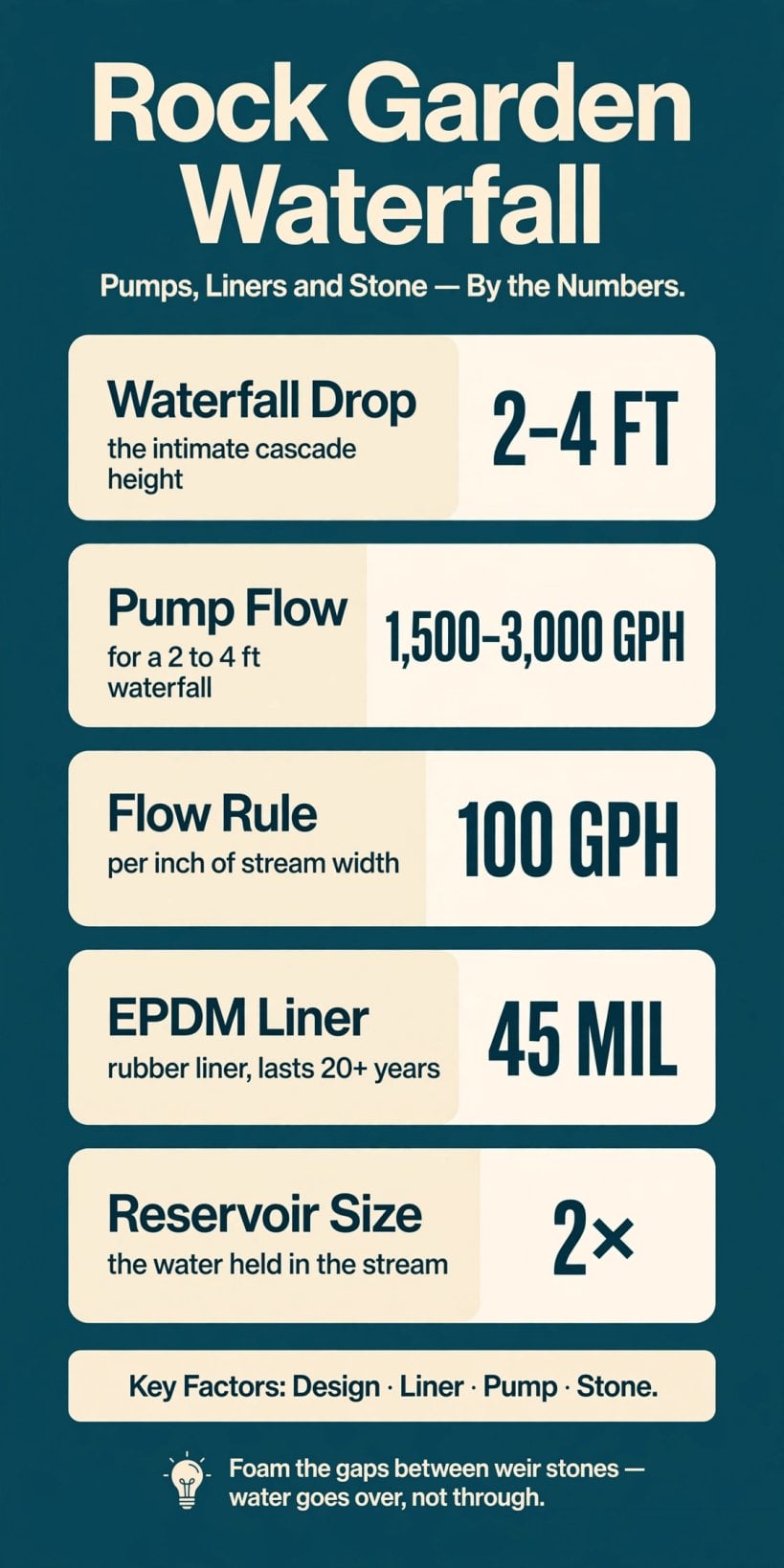

The falls by the numbers: a 2–4 ft drop, a pump flowing 1,500–3,000 GPH at 100 GPH per inch of stream width, a 45-mil EPDM liner, and a reservoir holding twice the water in the stream.

1. The Sound of Falling Water

A waterfall is the rock garden’s voice. Stone on its own is static — handsome, permanent, silent — but add moving water and the same rocks gain movement, sound and the shimmer that makes a place feel alive. The sound does practical work, too: a well-built set of falls lays a soft wash of white noise over the garden that covers traffic and neighbours, which is why the viewing seat matters as much as the falls themselves. The contrast the whole build aims at is simple to state and hard to fake. The convincing waterfall looks like geology and sounds like a mountain stream; the failed one looks like plumbing with rocks piled on it. Everything in the sections that follow — design, liner, pump, stone, planting, upkeep — serves that single illusion: water behaving the way water behaves in nature, in a garden small enough to cross in a few steps. The still end of the same stone-and-water spectrum is the dry composition in our guide to creating a Japanese zen rock garden, where gravel stands in for water entirely; the waterfall is its opposite number, all motion and sound.

2. Design: The Naturalistic Illusion

The design work starts away from the garden, studying actual waterfalls. Real water follows the path of least resistance: it weaves, drops in steps, pools, and drops again — it never fires a straight chute down a rock pile. Design your stream the same way, as a sequence of small events rather than one slide. Scale is the second discipline: 2–4 ft of drop is plenty. Taller falls need more water to look right and read as theme-park on a tiny lot; the intimate cascade beats the dramatic one almost every time.

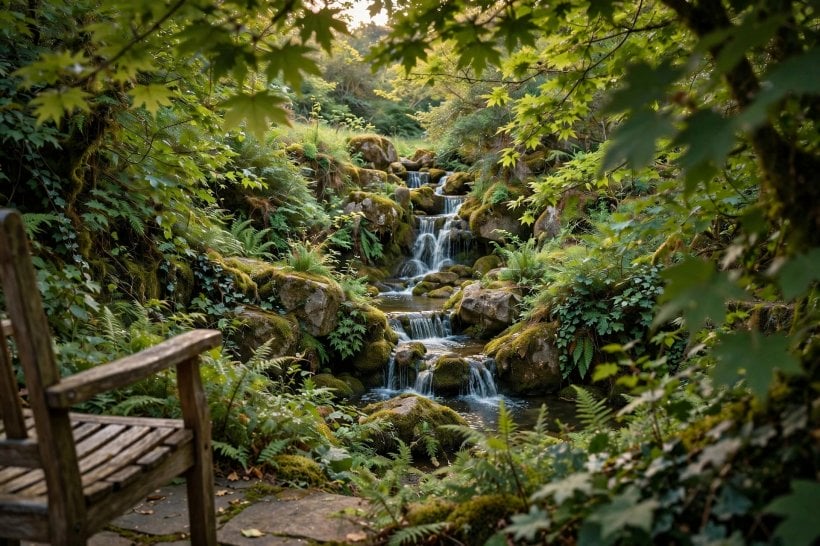

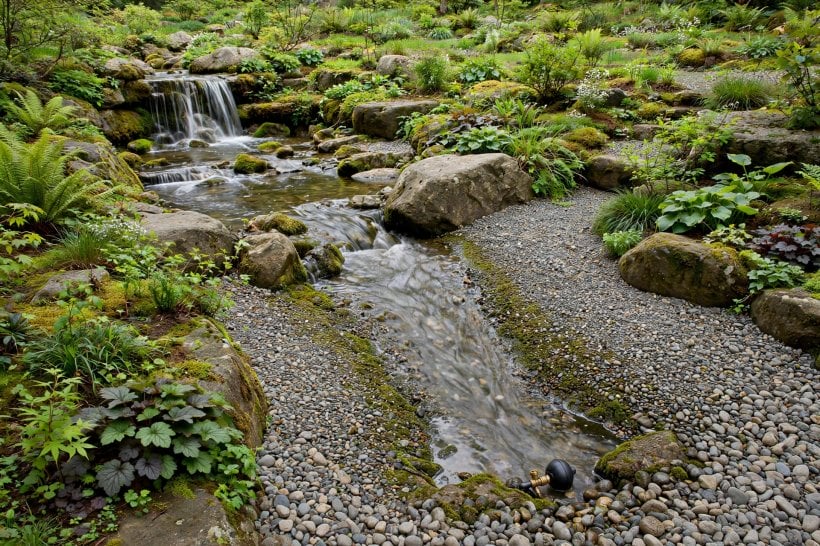

Placement is planned before a single rock moves: visible from the patio, because the viewing seat is where the falls will actually be enjoyed; partially obscured, with foliage framing the view — the discovered waterfall beats the exposed one; and near power, because the pump needs a GFCI outlet within cord reach, so the electricity is planned before the rocks. Finally, choose the style: the disappearing stream, whose water vanishes into a gravel reservoir with no visible pond — the safe, low-maintenance choice — or the pond waterfall, whose falls land in a basin that adds a reflective pool and the fish option. Either style can anchor the wider planting schemes in our roundup of tiny house landscaping ideas.

3. The Reservoir: Liner and Basin

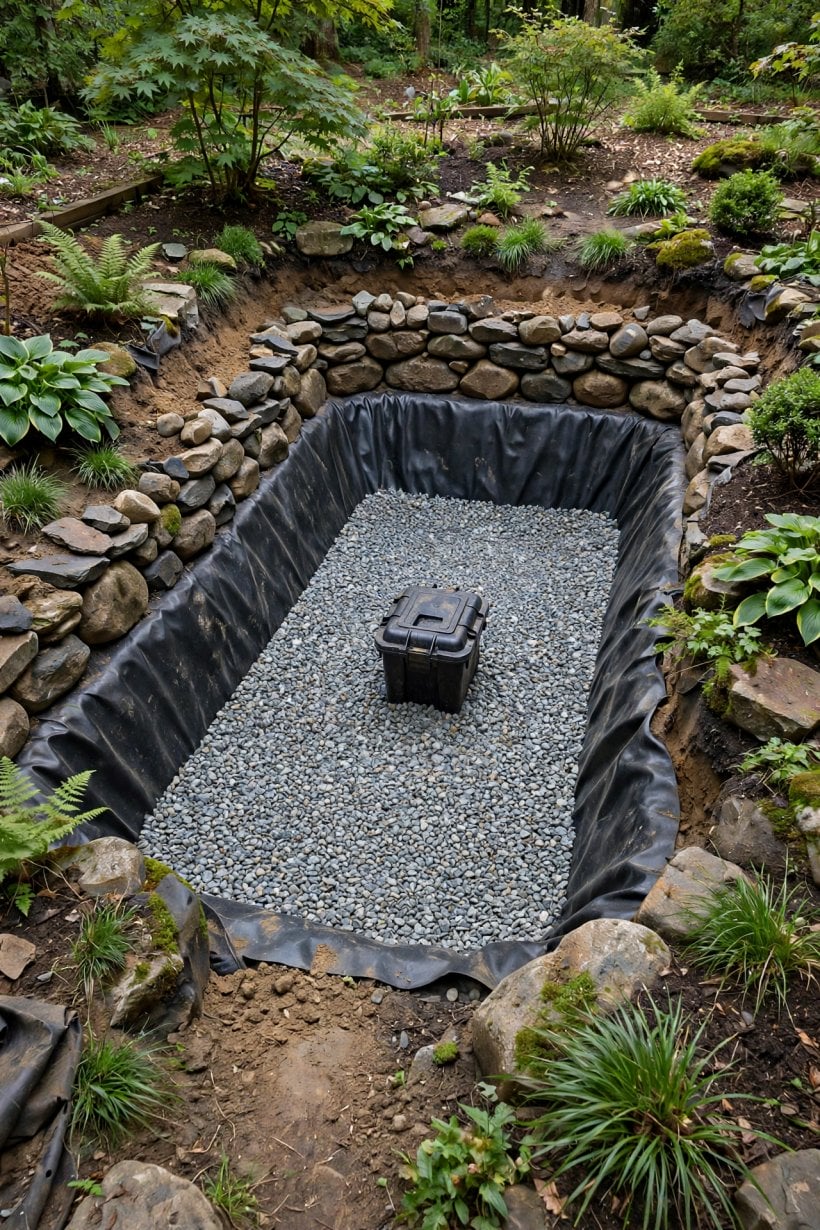

Every waterfall is a loop, and the reservoir is where the loop rests. For the pondless style, excavate a basin 2–3 ft deep and line it with EPDM rubber liner — 45 mil is the standard, and it lasts 20+ years. Fill the basin with aqua blocks or gravel around a pump vault: the water hides in the gravel, an invisible reservoir feeding a visible stream. For the pond style, excavate the basin shape at 2 ft deep minimum — shallower water overheats and grows algae — line it with the same EPDM with 1 ft of overlap at the edges, and lay geotextile underlayment beneath the liner to protect it from punctures.

Sizing follows one rule for both styles: the reservoir holds 2× the water in the stream. The pump must never run dry, and between evaporation and splash loss a stream sheds water steadily; a bigger reservoir simply means less topping up. The edge detail is the one that separates a build that ages well from one that frays: the liner is tucked under the border rocks, never left exposed, because sun degrades it — UV is the liner’s enemy — and the rocks hide everything, so the finished edge reads as stone meeting water with no black rubber in sight.

4. The Pump: Flow Rate and Head Height

The pump is the heart of the falls, and it is sized on two numbers, not one. The first is flow rate: 1,500–3,000 GPH serves a 2–4 ft waterfall, and the working rule is 100 GPH per inch of stream width — a 12-inch wide stream wants 1,200 GPH minimum, and more flow means more drama at the lip. The second number is the one beginners miss: head height, the vertical lift from the reservoir surface to the top of the falls. Pumps are rated at zero head, and the rating flatters them — a pump rated 3,000 GPH at 0 ft delivers roughly 1,500 GPH at 5 ft of head. So the selection process runs in a fixed order: measure your lift first, then read the pump’s performance at that height, and only then check that the delivered flow still clears the 100 GPH-per-inch rule for your stream’s width. A pump chosen by its box rating alone will starve the falls it was bought for; a pump chosen at the real head height sheets water over the weir stones the way the design promised.

5. Pump Type, Power and the Backup

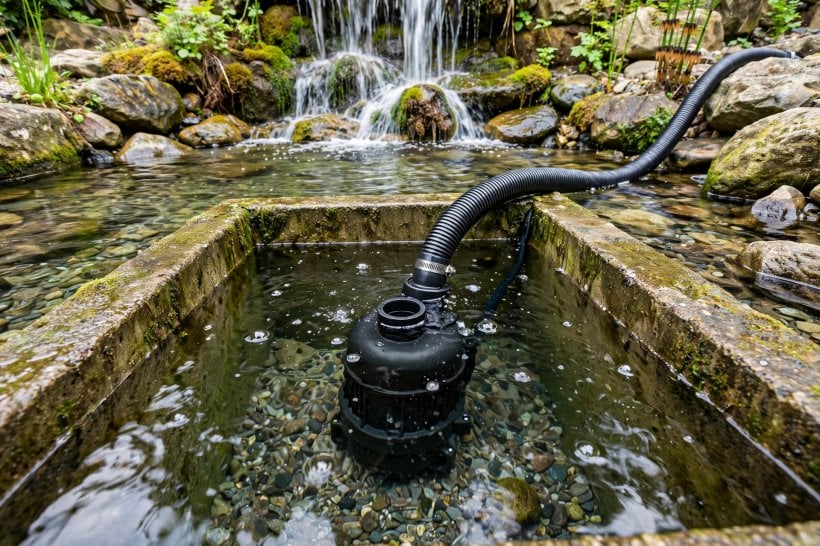

The standard choice is a submersible mag-drive pump: efficient, quiet, and priced at $100–300. Power draw runs 100–400W, and that wattage is the running cost of the whole feature — at 200W running 12 hours a day, the falls cost roughly $25 a month, which is the honest figure to hold against the pleasure of moving water. Solar pumps exist, but they rarely deliver waterfall flow; the realistic options are grid power, or a serious solar-plus-battery setup sized like a system rather than an accessory.

The backup device is unglamorous and essential: an auto-fill valve — the toilet-tank float, installed in the reservoir — that tops up evaporation automatically. It is the anti-burnout device, because the one failure that kills pumps is running dry, and the one loss a waterfall cannot stop is evaporation. Between the 2× reservoir sizing in section 3 and the float valve standing guard, the pump is protected by capacity and by automation at once. Choose the pump for your head height, budget its wattage like a utility, and let the float handle the weather.

6. Stone Placement: The Art of the Falls

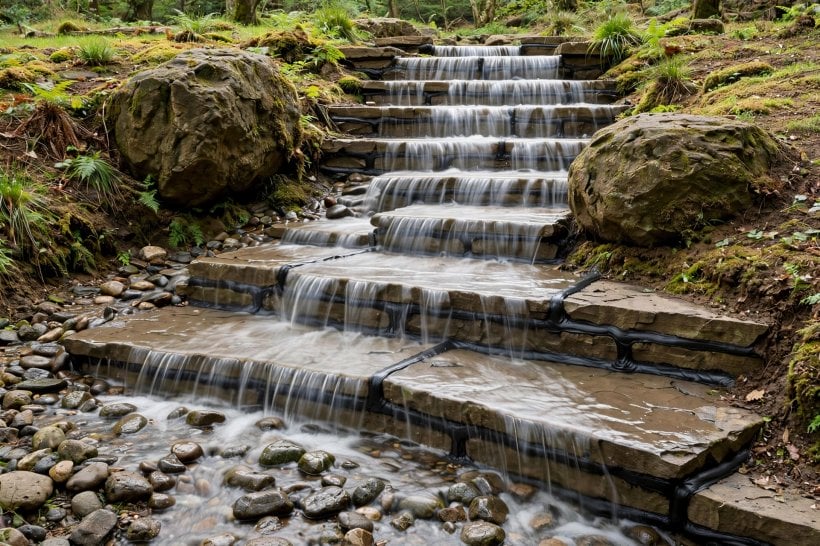

If the pump is the heart, the stones are the instrument. Weir stones — the flat stones forming each drop’s lip — define the waterfall’s character, because the water sheets over them; level each one side-to-side, or the water favours one corner and the sheet becomes a dribble. Character boulders flank the stream and supply the geology: bury them one-third deep and vary the sizes, following the composition rules in our guide to laying out big landscape rocks. Small cobbles line the stream bed, where they hide the liner, slow the water, and create the babbling texture that makes a stream sound like a stream.

The professional secret is foam: black waterfall foam sealant, worked into the gaps between weir stones so the water goes over, not through — the difference between a trickle and a sheet. Stone itself can be gathered cheaply or free using the quarry and site routes in our guide to sourcing free landscaping rocks. And the final step is a test, not a guess: run the water before the final foaming, and adjust the stones with the pump running. A waterfall is tuned, not just built.

7. Plumbing: The Hidden Works

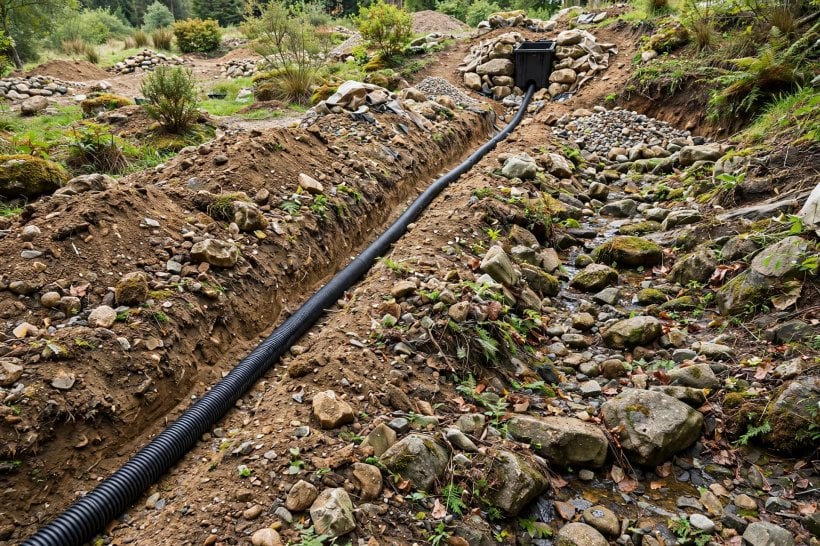

The plumbing succeeds by being invisible. The pipe run is flexible PVC or kink-free tubing of 1.5–2 inches, sized to the pump outlet — bigger pipe means less friction and more flow delivered at the top. The route is buried alongside the stream, never visible: the cardinal rule of the whole build is that if you can see pipe, you have failed, because one glimpse of tubing collapses the naturalistic illusion the design worked to create.

At the top of the falls sits the biofalls filter, the box the water passes through on its way over the lip: mechanical and biological filtration in one unit, which is what keeps pond water clear, with its pads cleaned monthly. A check valve on the pump outlet prevents backflow draining the stream when the pump stops — the anti-gurgle fitting that keeps the loop full and quiet. The electrical side is not a detail but a requirement: a GFCI-protected outlet with the pump cord routed safely, the code requirement near water, non-negotiable. The same move-water-deliberately thinking shapes our guide to building a river rock dry creek bed for drainage — there the water is storm runoff rather than a pumped loop, but the stone-and-channel discipline is identical.

8. Planting and Finishing: The Softening

Stone and water alone still read as construction; planting is what makes the falls look found rather than built. At the pond edge go the marginals — rushes, sedges and water iris — the transition plants whose roots sit in water while their foliage stands above it, softening the liner edge where rock meets pond. Around the falls, plant the damp-loving palette: ferns, hostas and moss. The waterfall’s spray zone is a genuine microclimate, cooler and damper than the rest of the garden, so plant for the conditions the falls create rather than the conditions around them; the shade-and-moisture planting in our guide to rock gardens for shade suits exactly these edges.

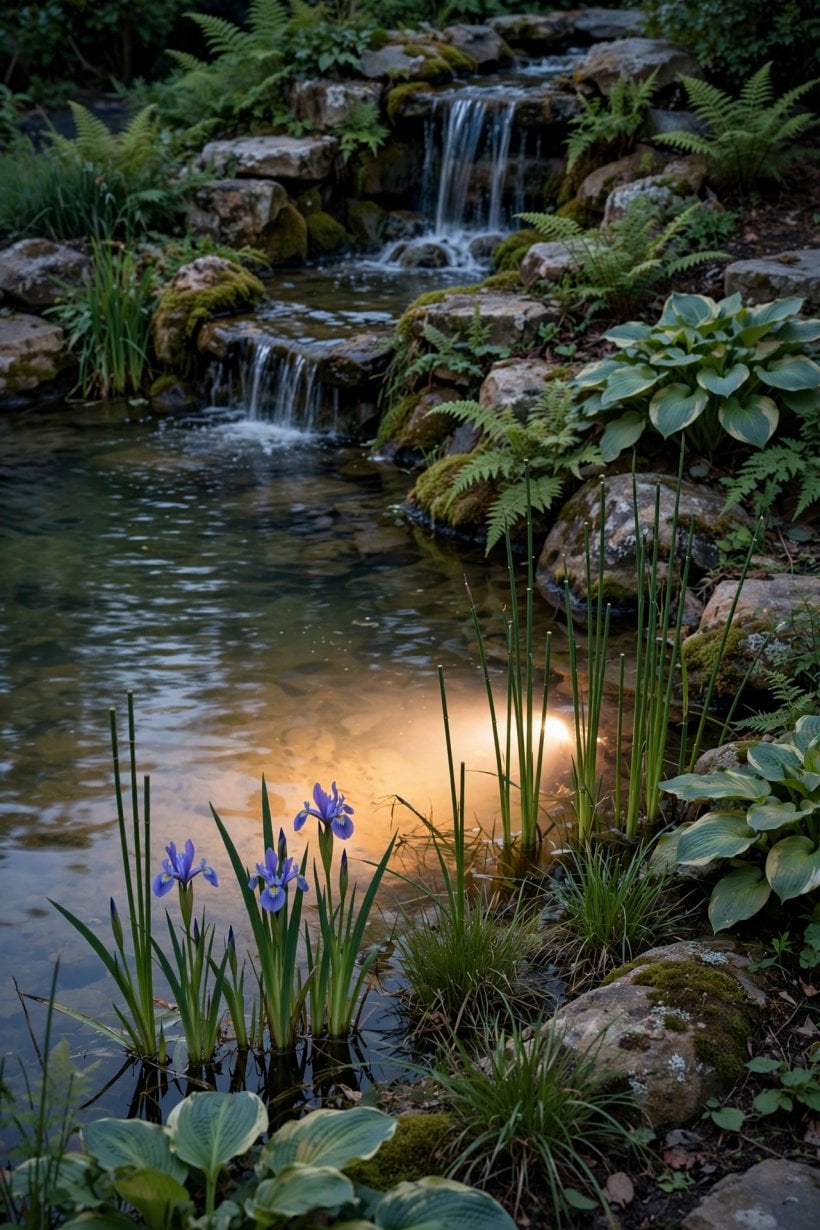

Fish complete a pond: goldfish or mosquito fish give algae control and delight in one package, with 2 ft of depth minimum for overwintering and a net over the pond in fall. Mulch near the water is gravel, not bark — bark floats into the pond, the obvious mistake made once. Last, lighting: submersible LED spots uplight the falls from the basin, and the after-dark waterfall is a different feature from the daytime one — the nighttime magic that doubles the hours the build earns its keep.

9. Maintenance: The Clear-Water Regimen

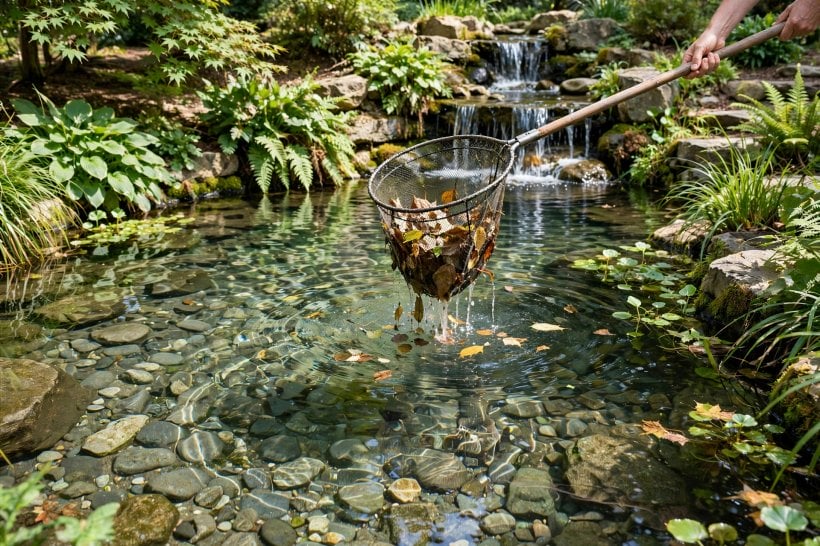

Clear water is a routine, not an accident. Weekly, skim debris with the net — two minutes of work, because leaves left in the water rot into algae food. Monthly, rinse the biofalls filter pads with a hose; never use chlorinated water on bio-media, which would kill the biological filtration the pads exist to host. The regimen is short, and it is the entire difference between a pond that stays gin-clear and one that greens over by midsummer.

Algae is the eternal battle, and it is fought with shade first: shade the pond 60% or more with plants or a sail, because sunlight grows algae and a shaded pond starves it. Barley straw extract is the gentle suppressant for lighter pressure. The UV clarifier is the nuclear option at $150, held in reserve for water that will not clear any other way. Work the regimen in that order — skim, rinse, shade, suppress, clarify only if needed — and the maintenance stays at minutes a week instead of becoming the chore that makes owners switch the pump off.

10. Seasonal and Winter Care

The seasons add three jobs to the weekly rhythm. Topping up is the constant one: evaporation draws the reservoir down, and while the auto-fill valve handles it automatically where one is fitted, the hose does the same job by hand. The marginals need dividing seasonally, because they outgrow their pots yearly — the spray zone that makes them thrive also makes them vigorous, and a divided marginal is next year’s planting for another edge of the pond, free.

Winter is the dividing line between climates. In freeze zones, pull the pump and store it indoors rather than letting ice work on it all season. Run a floating de-icer to keep a gas-exchange hole open in the ice — the fish need it, since a sealed pond suffocates slowly under a complete ice lid. It is the same protective instinct as the stone choices themselves, which our roundup of landscaping rock ideas compares for beds and paths: match the material and the routine to the climate you actually have, and the feature — falls, pond and fish together — comes through winter ready to run the day the ice leaves.

Final Considerations

Design for the viewing seat, size the reservoir generously, buy the pump for your actual head height, foam the weir stones so water sheets instead of trickling, hide every inch of pipe and liner, plant the spray zone lushly, and skim weekly. The convincing waterfall is not about the rocks — it is about the water behaving like water. Get the hydraulics right, size honestly, and keep the two-minute weekly habit, and the stones just have to stand there looking geological while the falls do the rest.
