Permeable Rock Pavers: Eco-Friendly Driveway and Patio Options

A thousand square feet of concrete sheds six hundred gallons of water in a single inch of rain — straight onto the neighbor, the street and the storm drain. Permeable pavers reverse that deal: rain falls through the joints and soaks into the ground where it belongs, and the driveway stops being a liability and starts working like a meadow.

1. Permeable Rock Pavers at a Glance

Permeable rock pavers are a hardscape system, not just a surface: a wearing course of stone or concrete units with open, aggregate-filled joints, laid over a deep reservoir of clean crushed stone that stores rain and releases it slowly into the soil. The pavers are the visible part, but the permeability lives in the base — which is why this guide spends as much time underground as on the surface. The table gathers the whole system in one place; the sections after it take the stormwater case, the four types, the reservoir base, site testing, driveway and patio design, installation, winter behaviour and maintenance apart.

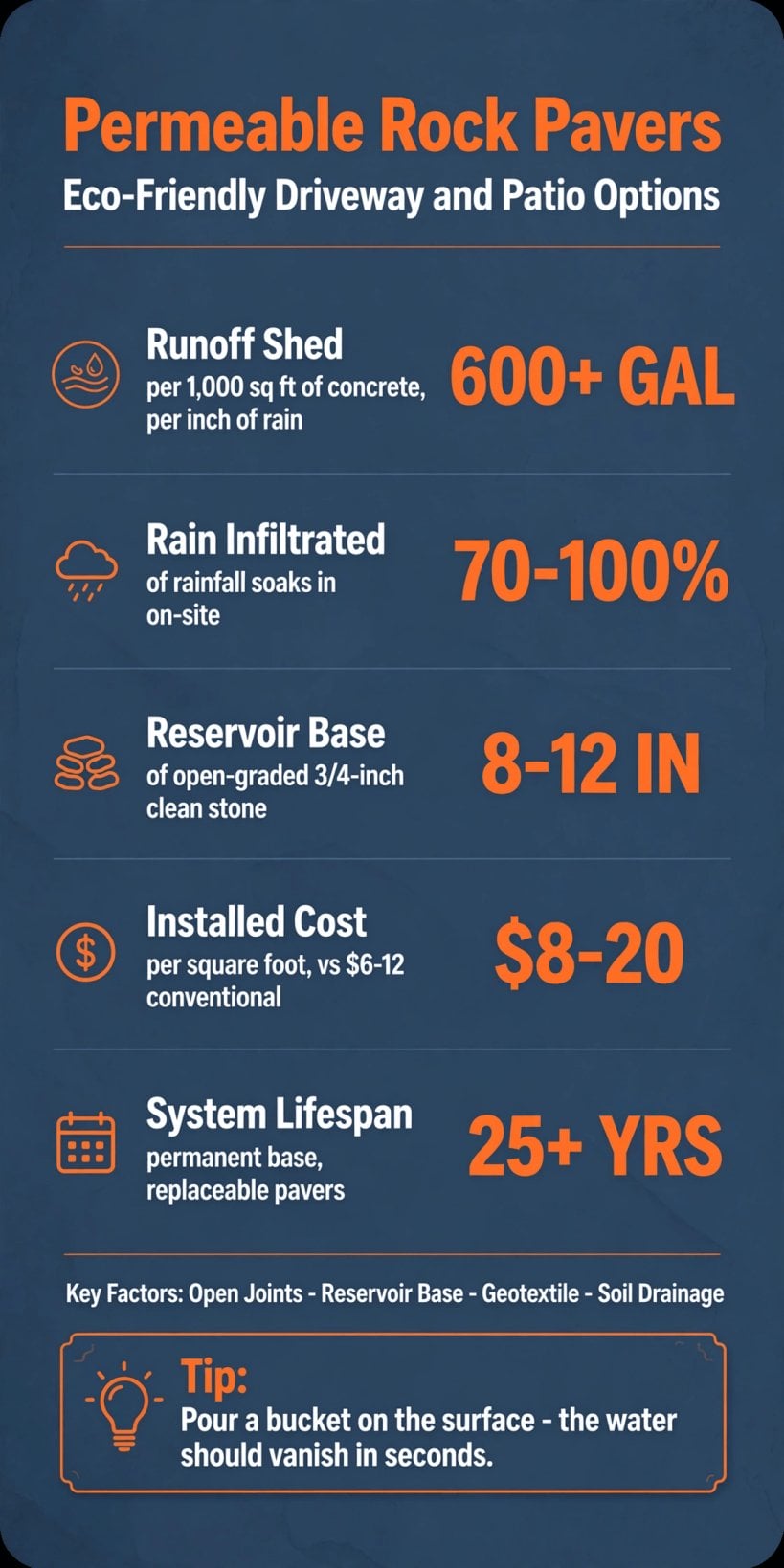

Six hundred gallons an inch, soaked in on-site instead of shed — the permeable bargain on one card.

Read the table as a chain: the joints admit the water, the reservoir stores it, the soil beneath accepts it, and every other attribute — depth, cost, lifespan, upkeep — follows from how honestly those three jobs are done. A permeable surface on a conventional base fails the chain at the second link, which is why the construction sections matter more than the catalogue of pretty surfaces. Built whole, permeable hardscape is the drainage infrastructure of a small lot wearing a driveway’s clothes — the same ground-first logic that drives xeriscaping with rocks and native plants.

2. Why Permeable: The Stormwater Case

Conventional pavement sheds water, and shed water becomes everyone’s problem: runoff that erodes soil, floods streets and carries the lot’s dirt into the storm drain. The original guide puts a number on it — 1,000 sq ft of concrete sheds 600+ gallons in a single inch of rain. Permeable paving answers with infiltration: 70–100% of the rain that lands on it soaks in on-site, recharging groundwater and eliminating puddling.

There is a ledger entry on the permeable side, too: stormwater fee credits. Many municipalities discount or waive stormwater fees for permeable installations, because a lot that keeps its own rain is a lot the public drainage system never has to serve. And the tiny-lot advantage is structural: small lots have little room for drainage infrastructure — swales, dry wells and drains compete for the same few square feet as the house — so a surface that IS the drainage infrastructure solves the space problem by deleting it.

Cold climates add a fourth argument, the freeze-thaw advantage: permeable pavements resist frost heave better than conventional ones, because water drains down through the system instead of freezing in place inside it. A surface that never holds water against itself has far less ice to expand against its own joints — a point §9 returns to when it takes up snow and winter behaviour in full.

3. The Four Types: PICP, Open-Grid, Natural Stone and Stabilized Gravel

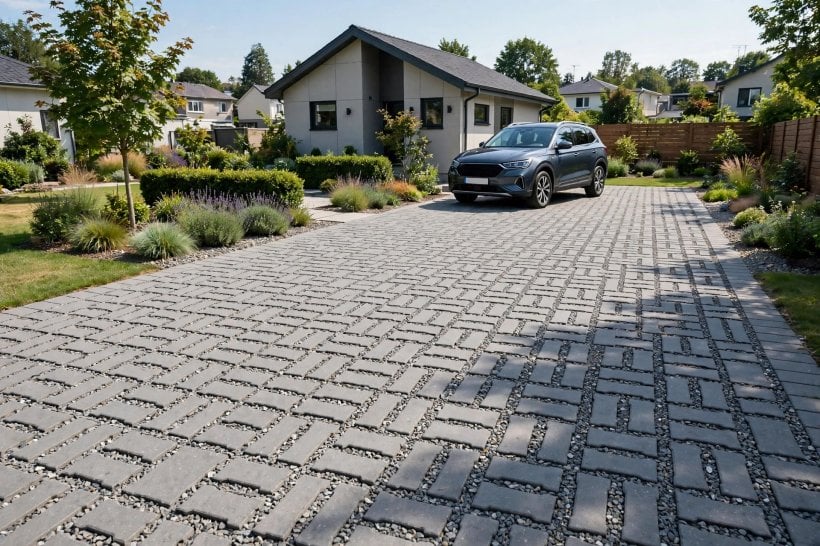

The engineered standard is the permeable interlocking concrete paver — PICP. Its joints are deliberately wider than a conventional paver’s and filled with small aggregate, giving 5–20% open area across the surface. It is load-rated for driveways and is the municipal choice: the system a city specifies when it wants permeability it can put a specification number on.

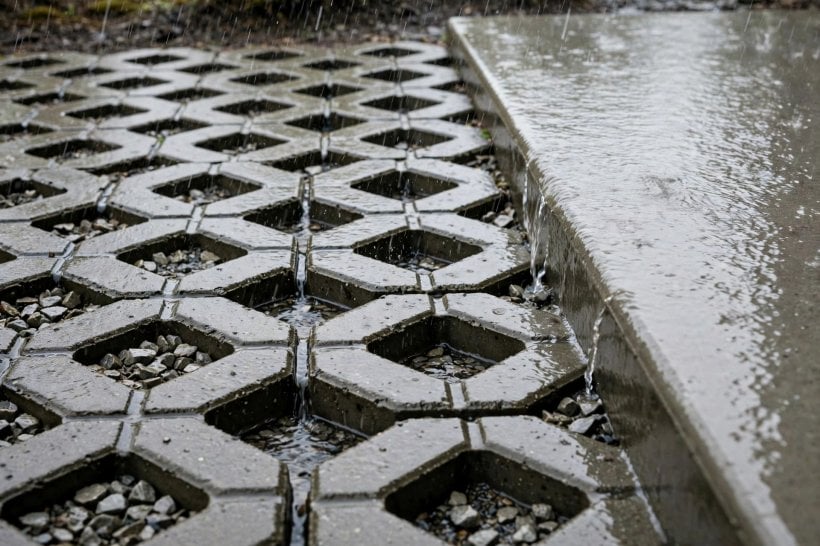

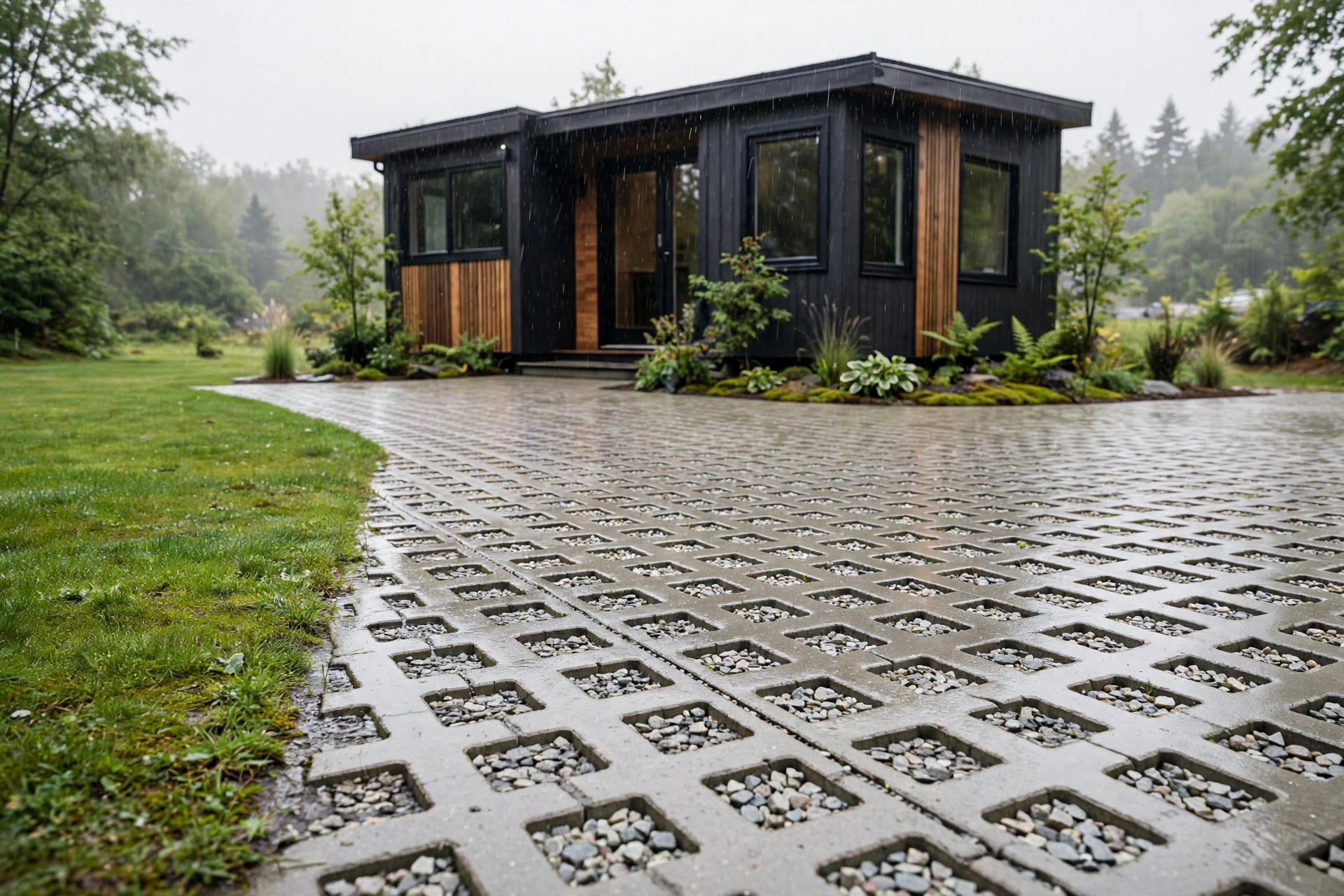

Open-grid pavers trade surface for openness: a concrete lattice whose cells are filled with gravel or grass, at 40%+ open — the most permeable option of the four. The fill decides the duty: grass-grid serves occasional parking, gravel-grid serves regular use. Natural stone on a permeable base is the third type — flagstone or fieldstone with wide aggregate joints, the rockscape patio: beautiful, permeable, and the aesthetic match for yards built around stone, where the same layering of boulders, drifts and open ground is composed in the rockscape ideas for small yards. The fourth type removes the paver altogether: porous gravel, stabilized in honeycomb grids that contain the stone — wheelchair-friendly gravel, the accessible permeable path, and the direct cousin of the gravel path with rock borders built for garden routes.

Cost frames the choice without deciding it: permeable systems run $8–20 per square foot installed, against $6–12 for conventional paving. The premium buys stormwater performance — infiltration, fee credits and a drained base — rather than a different look, since finished permeable and conventional driveways can be nearly indistinguishable from the street. What differs is entirely underneath, which is the subject of the next section.

4. The Reservoir Base: Where Permeability Actually Lives

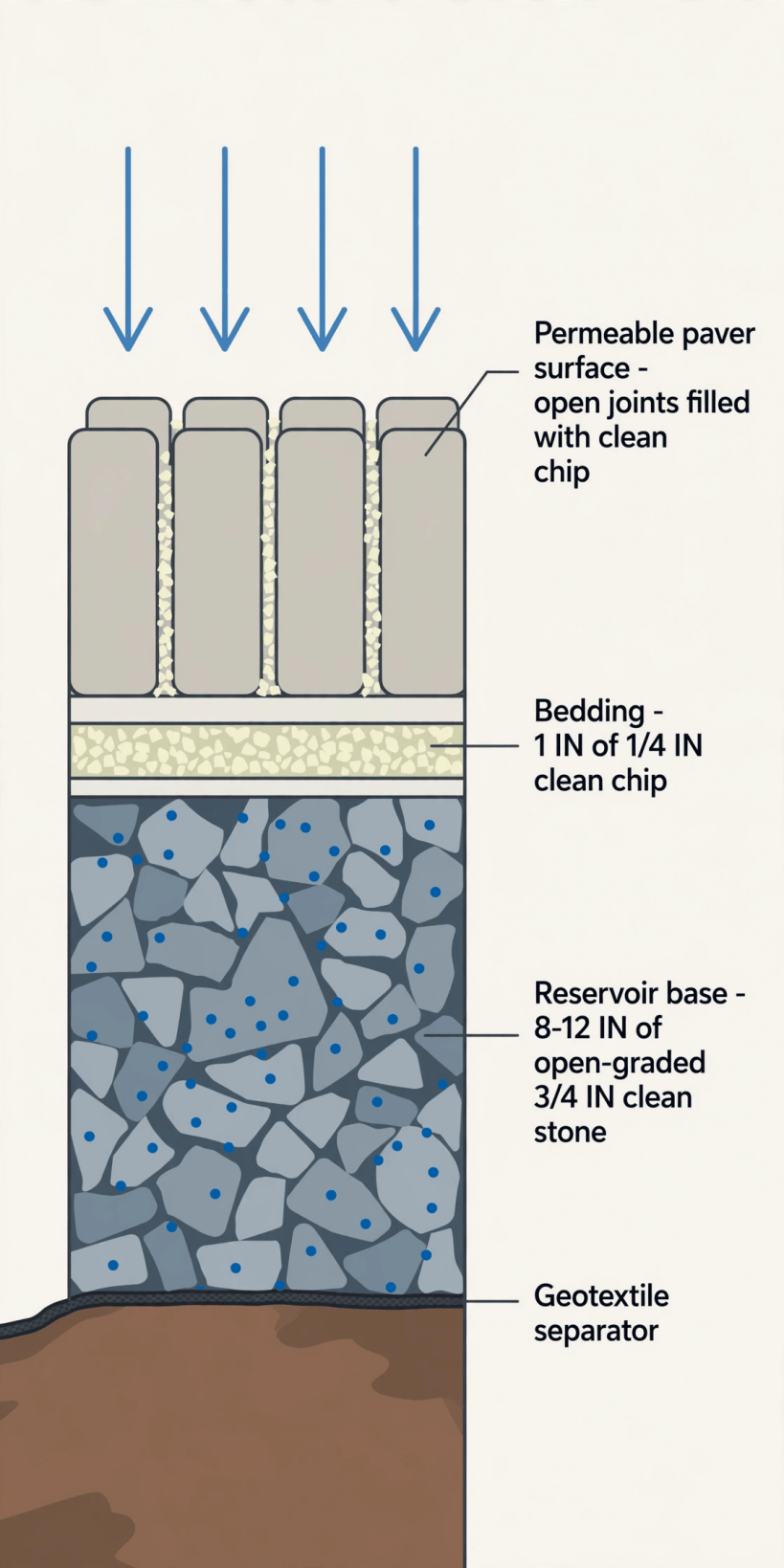

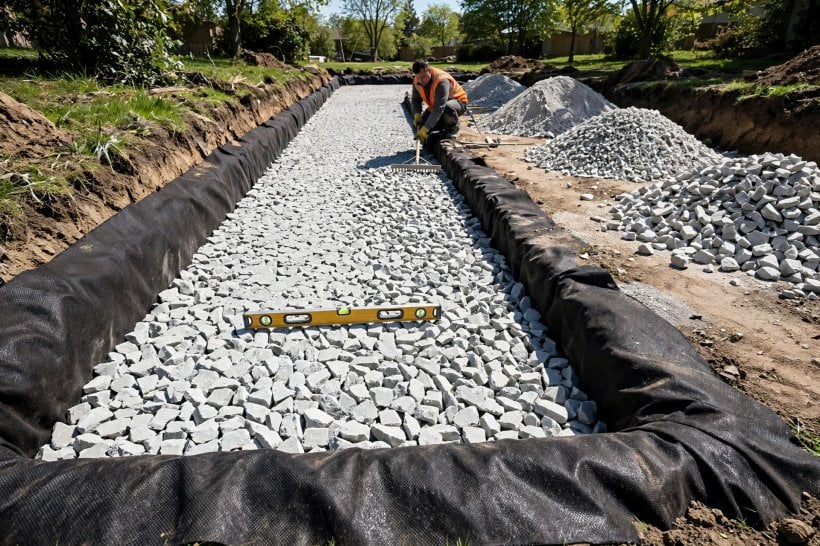

The original guide states the secret plainly: permeable pavers on an impermeable base are not permeable. The base does the work; the pavers are just the wearing course. The reservoir layer is 8–12 inches of open-graded crushed stone — 3/4-inch clean stone with no fines — a void-rich bed that stores rain as it arrives and releases it slowly to the soil below. Fines are the enemy: stone dust and small particles fill the voids the water needs, so the specification is clean stone, washed of everything that would clog it.

Between soil and stone goes the geotextile — the separator. It prevents the soil migrating up into the reservoir over years of wetting and loading, which is the slow failure that turns a reservoir into mud-flavoured gravel. Above the reservoir sits the bedding course the pavers actually rest on: 1 inch of 1/4-inch clean chip, screeded flat as the levelling course. The original is emphatic about what the bedding is not: NOT sand. Sand clogs — it washes into the reservoir voids and seals them — so the conventional paver habit of a sand bed is precisely the habit this system forbids.

Read the three layers as one machine. The joints admit water at the speed the rain delivers it; the reservoir holds the surplus the soil cannot yet accept; the geotextile keeps the parts from contaminating each other. Remove any layer and the others degrade: no reservoir, and a downpour ponds; no separator, and the reservoir silts up from below; sand bedding, and the profile clogs from above. The surface patterns of §3 are interchangeable. This profile is not.

5. Soil, Slope and Site Assessment: Test Before You Dig

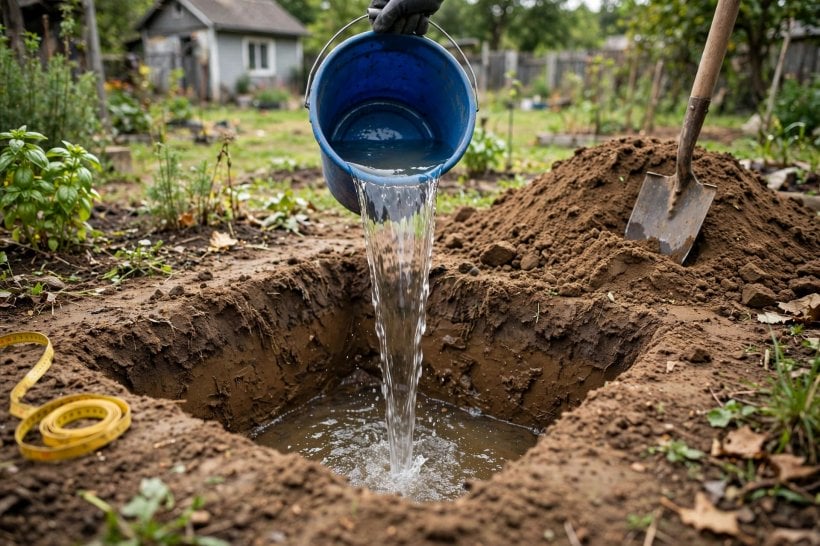

The one variable no catalogue can specify is the soil under your lot, because the reservoir’s stored rain has to go somewhere — into the ground. So the build begins with a test: a percolation test, timing how the site’s soil actually drains. The base must drain; a reservoir over soil that accepts water is a storage-and-release system, while the same reservoir over soil that refuses it is a pond with a paver lid.

Clay soils are the hard case the original names: they need deeper reservoirs — more storage to hold rain while the slow soil catches up — or underdrains that give the stored water an engineered exit. Neither fix is guesswork; both follow from the test result, which is why the assessment comes before excavation rather than after the first flooded winter. It is the same site-reading discipline the natural rock retaining wall guide recommends before stone is stacked against a slope: the ground’s behaviour, measured, decides the structure’s dimensions.

Slope is the second site fact. A permeable surface on a gentle grade infiltrates where the rain lands; on a steep one it sheds water downhill inside its own reservoir faster than the soil can take it. Terraced thinking — breaking a slope into level cells that each hold their own water — keeps the system honest on steep lots, the approach worked through in the guide to rock gardens on slopes. The smaller and more level the lot, the more completely the standard profile of §4 applies as written.

6. Driveway Design: Loads, Hybrids and the Oil Question

A driveway is the demanding application, and the engineered systems are built for it: PICP and open-grid pavers handle passenger vehicles, load-rated when the base beneath them is built to the manufacturer’s specification. The depth follows the duty — typically 10–12 inches of reservoir base for driveways against 6–8 inches for patios — because the reservoir is also the structure: it carries the vehicle while it stores the rain. Follow the manufacturer specs for base depth; the rating lives in the pairing of unit and base, not in the paver alone.

Layout offers a money-saving hybrid: permeable construction for the parking pad, conventional or gravel construction for the driving lane. The pad is where a car sits for hours, dripping whatever it drips in one place — capturing those drips where they fall is the environmental point — while the lane is merely passed over. Building permeability only where it earns its keep reduces cost while keeping the function. The driveway is also the largest single surface in most front yards, and how it sits against path, beds and street is the composition question taken up in front yard rock landscaping.

Oil is the honest issue, and the original does not dodge it: dripped oil infiltrates along with the rain. The mitigation is biological — the aggregate reservoir hosts oil-eating microbes, and bioremediation in the stone bed is real — but it is slow, and a chronically leaking vehicle will outpace it. The practical rule follows: use drip pans for leakers. Permeability is a stormwater answer, not a licence to let the car bleed into the ground it parks on.

7. Patio Design: Flagstone, Wide Joints and the Outdoor Room Floor

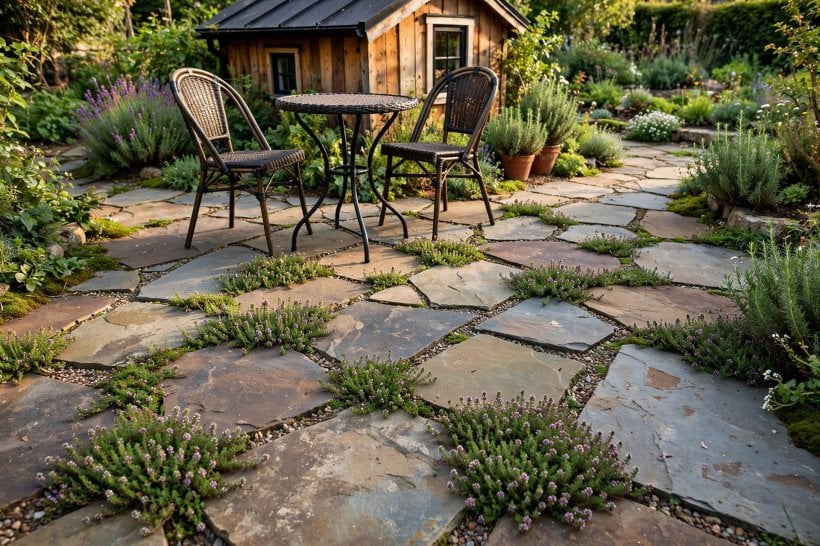

The patio is where the system shows its face, and the classic permeable patio is flagstone with 1–2-inch aggregate joints: beautiful, walkable and draining in a single detail. The pattern logic is irregular — the natural look — tuned by zone: tight joints in dining areas, where chair legs and table feet want a stable, even floor, and wider joints in planting zones, where the seams can soften into green. Choosing the stone itself — the flat, split faces of flagstone against rougher fieldstone — is its own comparison, worked through in the guide to flagstone vs fieldstone.

The joints can be planted. Creeping thyme or moss between the stones makes the living patio — it softens the stone, handles foot traffic, and thyme smells incredible when walked on. Plantable joints turn permeability from a plumbing feature into the patio’s character: the seams that drink the rain are the same seams that carry the green. The patio’s lighter duty shows below ground, where its reservoir base runs at the 6–8-inch depth of §6 rather than the driveway’s 10–12 — a patio over-built to driveway depth is money buried for nothing.

Two details decide whether the room feels finished. Furniture stability: chairs and tables stand stable on the compacted surface only if the base beneath was screeded carefully — wobbly café tables ruin patios. And edge restraint: stone or steel edging contains the field, because permeable pavements spread without restraint. The contained edge is structural, not decorative — it keeps the joints’ spacing, and therefore the infiltration, exactly as built.

8. Installation: The DIY-Friendly Parts and the Pro Parts

Installation divides cleanly by scale. Patios and paths are DIY-able end to end — excavate, lay the geotextile, build the stone base in lifts, screed the bedding, lay the pavers, sweep in the joint aggregate — a weekend project for 200 sq ft. Driveways are the hire-out: compaction and grading at vehicle scale want the professional’s equipment, where a plate compactor rental handles patios but driveways want the pro’s roller. The boundary is consequence — a patio that settles is an afternoon’s fix; a driveway that settles under a car is a rebuild.

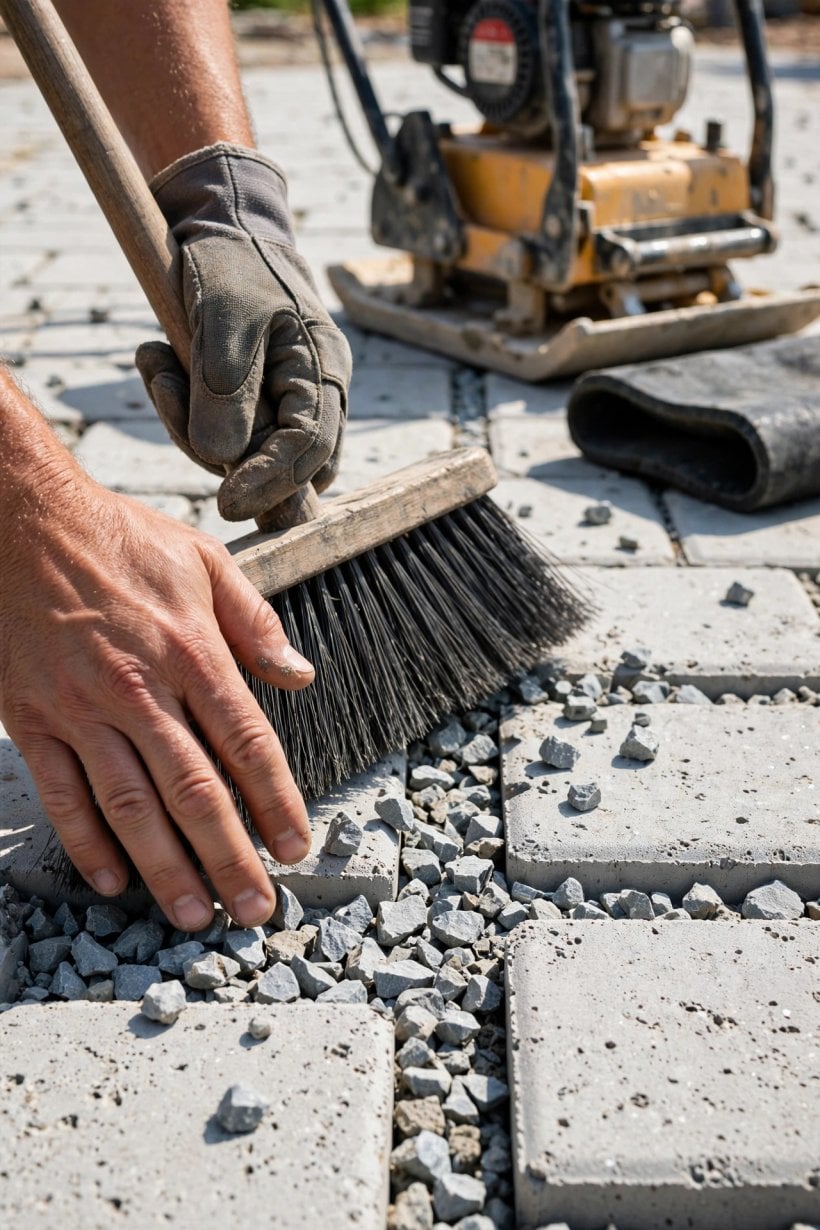

The joint fill is the step where the system’s permeability is literally installed: 1/4-inch clean angular chip, swept into the joints, compacted, and re-swept to top them up. Angular chip locks; the joints ARE the permeability, the open area the whole design exists to create. So the prohibition bears repeating in the imperative: never use sand or stone dust in the joints — they clog, and a clogged joint field is a conventional pavement with extra steps. Compaction has its own small discipline: run the plate compactor with a mat, which protects the paver faces — the rubber mat is the $20 accessory that prevents scuffs across a finished surface.

Sequence protects quality. The base goes down in lifts, each compacted before the next, because a reservoir’s voids must survive construction, not be crushed out of it. The bedding is screeded once and not walked on. The pavers are laid, the joints filled and compacted, then filled again — chip settles under the plate, and the second sweep leaves the joints full to the surface, where the rain arrives.

9. Snow, Ice and Freeze-Thaw: The Cold-Climate Behaviour

Winter is where the system’s physics pay their second dividend. Section 2 stated the principle: permeable pavements resist frost heave better, because water drains instead of freezing in place. In practice, the freeze-thaw cycles that pry conventional joints apart work on a surface whose water has already left — the reservoir below may hold moisture, but it holds it in voids designed for volume change, not in a saturated bed pressed against the pavers’ undersides.

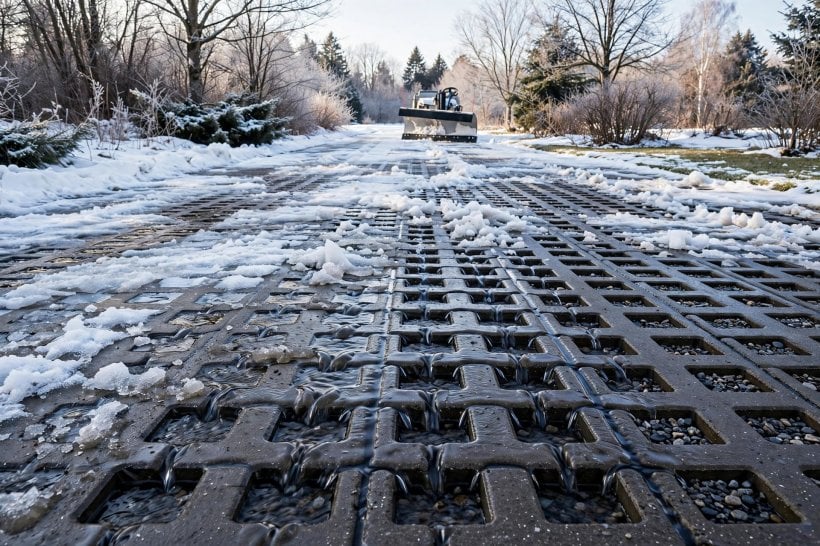

Clearing snow has one equipment rule: plow with a rubber edge. Metal blades catch paver edges — chipping faces and levering units — while a rubber edge rides over the joints the system depends on. The thaw behaviour rewards the patience: permeable surfaces melt faster in thaw cycles, the drainage advantage working in reverse, as meltwater leaves through the joints instead of sheeting across the surface to refreeze at the margins overnight.

The winter prohibition mirrors the summer one. No sand for traction: sand clogs the joints exactly as sand bedding would, filling the open area one storm at a time. The original’s prescription is the rubber-edged plow and patience — let the system’s own drainage do the de-icing work, and keep the joints open for the rain that returns in spring. Where winter is the long season, this behaviour alone can justify the premium of §3: a surface that heaves less, melts faster and asks for no clogging amendments.

10. Maintenance: Keeping It Permeable for 25+ Years

The lifespan sets the stakes: 25+ years, because the base is permanent and the pavers are replaceable individually — a damaged unit lifts out and a new one drops in, without disturbing the system around it. What the decades ask in return is one annual task: vacuum or sweep the joints. Sediment is the permeability killer — wind-blown dust, leaf litter and tracked soil settle into the joint chip and slowly seal the open area — and a shop-vac pass or a stiff broom restores the flow the design was built with.

The nevers are as important as the task. Never seal permeable pavers: sealer defeats the purpose — the original calls it the obvious-but-done mistake, a glossy film poured over the very openness the owner paid for. Never treat the joints with polymeric sand: polymeric sand is NOT for permeable joints, because it sets into exactly the impermeable crust the system forbids. Weeds in the joints are handled mechanically — pull them, or flame-weed them — since the aggregate joints are weed-able by design.

And there is a test, satisfyingly simple: pour a bucket. Water poured on the surface should vanish in seconds. If it ponds, the joints have clogged, and the remedy is the annual task itself — vacuum the joints and test again. Permeability is not a property installed once but a condition kept, measured in seconds with a bucket and restored with a vacuum. Keep the joints open and the system of §4 keeps its promise for the full 25+ years the base was built to last.

Final Considerations

Build the reservoir base — open-graded stone, geotextile, no sand anywhere — choose PICP for driveways and flagstone for patios, fill the joints with clean chip, vacuum them yearly, and never seal. Permeable hardscape costs a little more and asks a little maintenance; in exchange, the rain stays home, the fees drop, and the lot drains like a meadow instead of a parking lot. On a small lot, where the surface has to be the drainage, that exchange is not a premium feature. It is the design working as intended.
