How to Seal and Weatherproof Tiny House Sill Plates and Corners

Walls do not leak; joints do. The line where your wall meets the floor and the corners where walls meet each other are the two leakiest seams in any framed building — and in a tiny house, highway wind pressure hunts for exactly these gaps. A thimble of water per storm becomes a rotted sill plate in five years. This guide seals both joints properly, in the order that works.

How to Seal Tiny House Sill Plates: At a Glance

Learning how to seal tiny house sill plates — and the corners that frame into them — is really learning one principle: no single product seals a joint, but a layered system does. A foam gasket, a sealant bead, exterior flashing and an interior air seal stack at the sill; sealed stud joints and a taped weather barrier handle the walls and corners; flexible, highway-rated products hold it together at speed. The ten sections below follow the build order: the sill system layer by layer, corners framed and sealed, the wall barrier, the openings, the highway factor, and the test that proves the work.

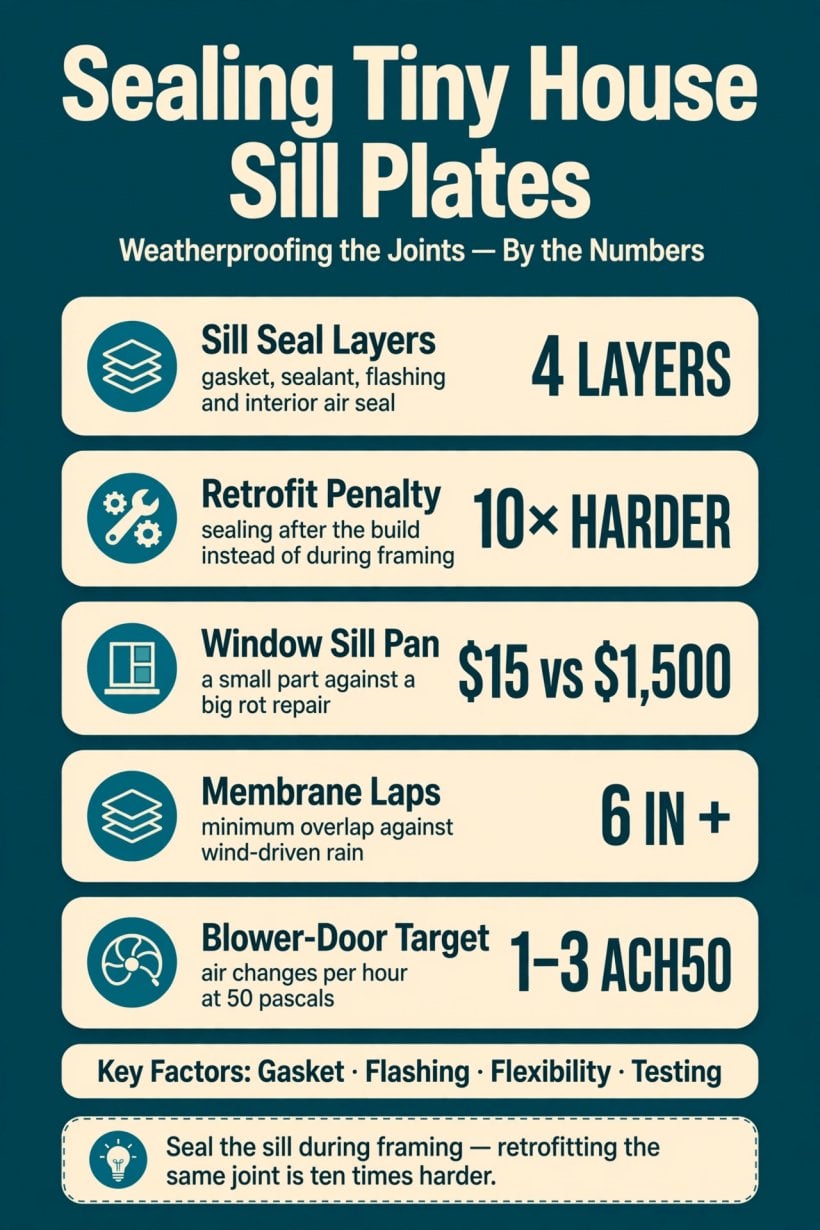

Sealing by the numbers: four layers at the sill, a ten-times retrofit penalty for sealing late, a $15 sill pan standing against $1,500 of rot, and a blower-door target of 1–3 ACH50.

1. The Leaks Live in the Joints

Walls don’t leak — joints do. The sill plate, where the wall meets the floor or the trailer, and the corners, where walls meet each other, are the two leakiest joints in any framed structure. Everything else in the envelope is comparatively easy to get right: those are fields, and the joints are seams — and seams are where systems fail.

A tiny house makes the problem sharper, not smaller: a far greater share of its envelope is joint rather than field, and a house on wheels adds highway wind exposure no site-built house ever faces — moving air pressurises every seam, hunting for the gap the way water hunts for a low point. The house this guide assumes is the one chosen from the options in our tiny house trailer buying guide — a framed house on a steel trailer, built to travel. In that house, these two joints decide whether the build is tight or drafty, dry or quietly rotting.

2. The Sill Plate: Anatomy of the Critical Joint

The sill plate is the bottom horizontal member of the wall, sitting on the subfloor — or directly on the trailer in some builds. It is a simple piece of lumber doing an unforgiving job, and it leaks for three structural reasons. First, wood-on-wood, or wood-on-steel, never seals by itself: the joint breathes with every temperature and moisture cycle, opening and closing microscopically as the materials move. Second, the plate is the coldest framing member in the wall, bridging thermally to the outside — and cold surfaces are where moving air drops its moisture. Third, it is the hardest joint in the house to reach once the build is finished, buried behind finishes on both faces.

The joint also carries three distinct loads, and a proper seal has to answer all of them. Air infiltration: the stack effect pulls cold air in at the sill, because warm air rising draws replacement air through the lowest leaks it can find. Water: wind-driven rain finds the wall-to-floor joint and works into it storm after storm. And insects: the sill joint is the number-one ant and termite entry, a ground-level gap leading straight into the wall. The plate is part of the framed structure covered in our guide to how to frame a tiny house on its trailer, but its sealing is a discipline of its own — with a deadline. Seal this joint during framing, because retrofitting it afterwards is ten times harder. That ratio runs through everything below: the sill is sealed in layers, in order, while it is still reachable.

3. Sealing the Sill I: The Gasket and the Sealant Bead

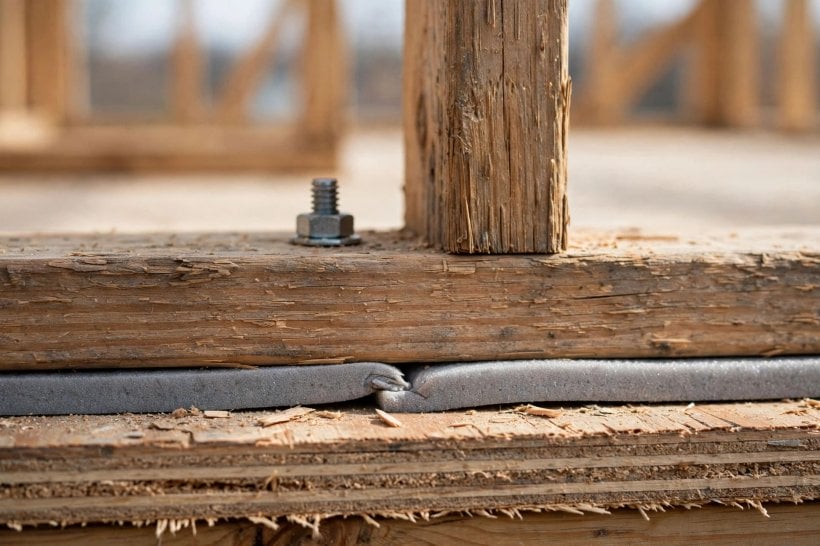

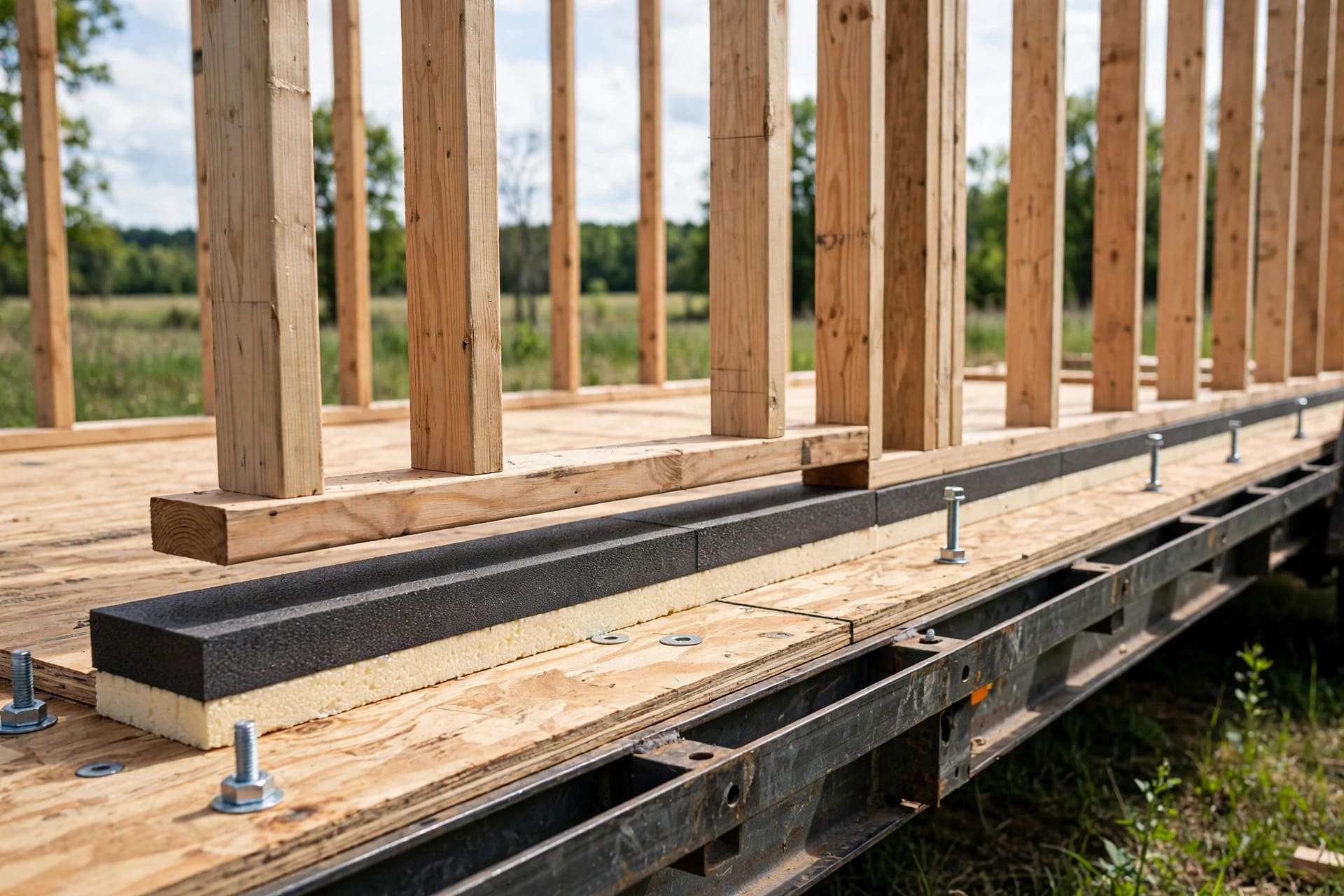

The layered system starts underneath the plate, before the wall is even stood up. Layer one is the sill gasket: a strip of closed-cell foam laid under the plate along the whole perimeter. The gasket is the air seal — as the plate is drawn down, the foam compresses and fills the irregular joint between two surfaces that are never perfectly flat. It also works as the capillary break against the subfloor, interrupting the path by which moisture wicks up into the wall framing. Knowing how to seal tiny house sill plates begins here, with a cheap foam strip doing two kinds of work at once.

Layer two goes under the gasket: a continuous bead of sealant — acoustical sealant or butyl — run along the subfloor where the plate will land. This is the belt-and-suspenders layer, sealing whatever the compressed foam misses and holding the line for the life of the building. The product choice matters more than the technique. Acoustical sealant and butyl stay flexible for decades, moving with the joint as it breathes. The common substitutes fail on exactly that point: silicone grows brittle with age, and latex caulk cracks — a rigid or embrittled bead in a moving joint is a future leak installed on day one. Run the bead continuously and set the plate into it while it is fresh, so gasket and sealant compress into a single redundant seal.

4. Sealing the Sill II: Flashing and the Interior Air Seal

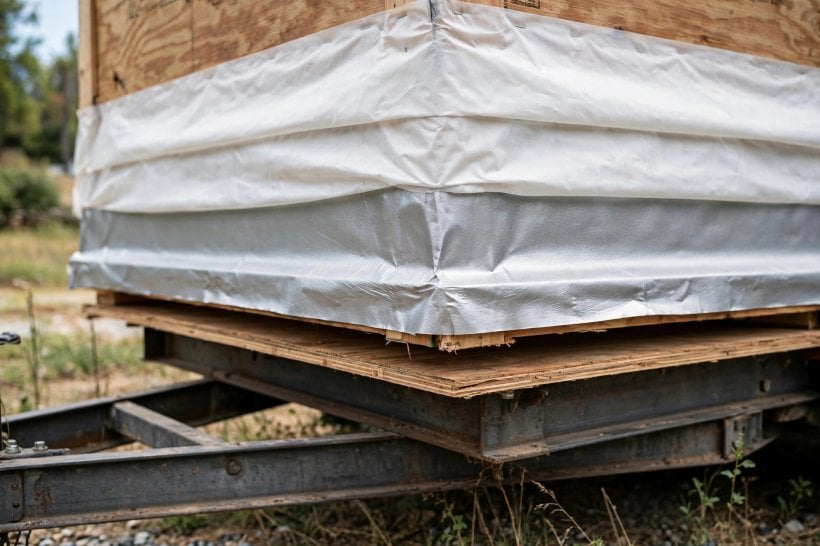

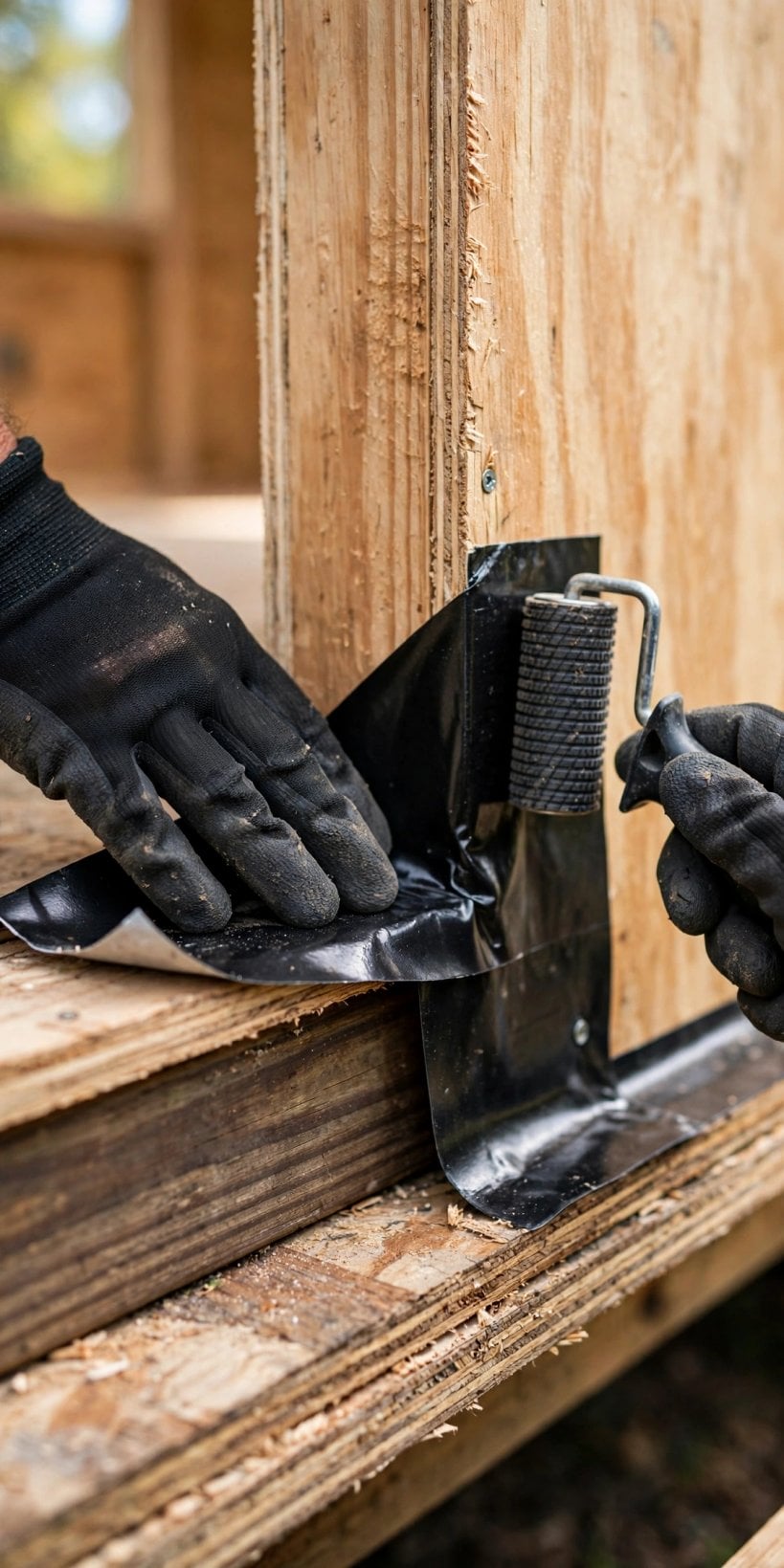

Layer three works from the outside: exterior flashing. A peel-and-stick membrane, or metal flashing, laps from the wall sheathing down over the sill and the subfloor edge, tying the joint into the wall’s water management. Its job is shedding: wind-driven rain at the base of the wall is directed past the joint, outward and down. The lap direction is the whole game — water flowing down the sheathing must step onto the flashing and off the building, never behind it; get it backwards and you have built a funnel aimed at the plate.

Layer four closes the system from inside: the interior air seal. Caulk or foam the plate-to-subfloor joint, making the final air barrier continuous at the base of the wall. This layer is accessible exactly once — before the drywall goes on — so the rule is simple: do it then, or accept never doing it. On a trailer build, one more element stacks beneath everything: the steel-to-wood gasket, an EPDM layer between the subfloor and the steel frame, so the sill system sits on an already-sealed foundation joint. The bolted connection through this same joint — the plate, the subfloor and the frame drawn together — is detailed in our guide to securing a tiny house to its trailer frame; sealing and bolting are two halves of the same perimeter, done in the same pass, while the joint is still reachable.

5. Corners: Framing That Leaves Room for Insulation

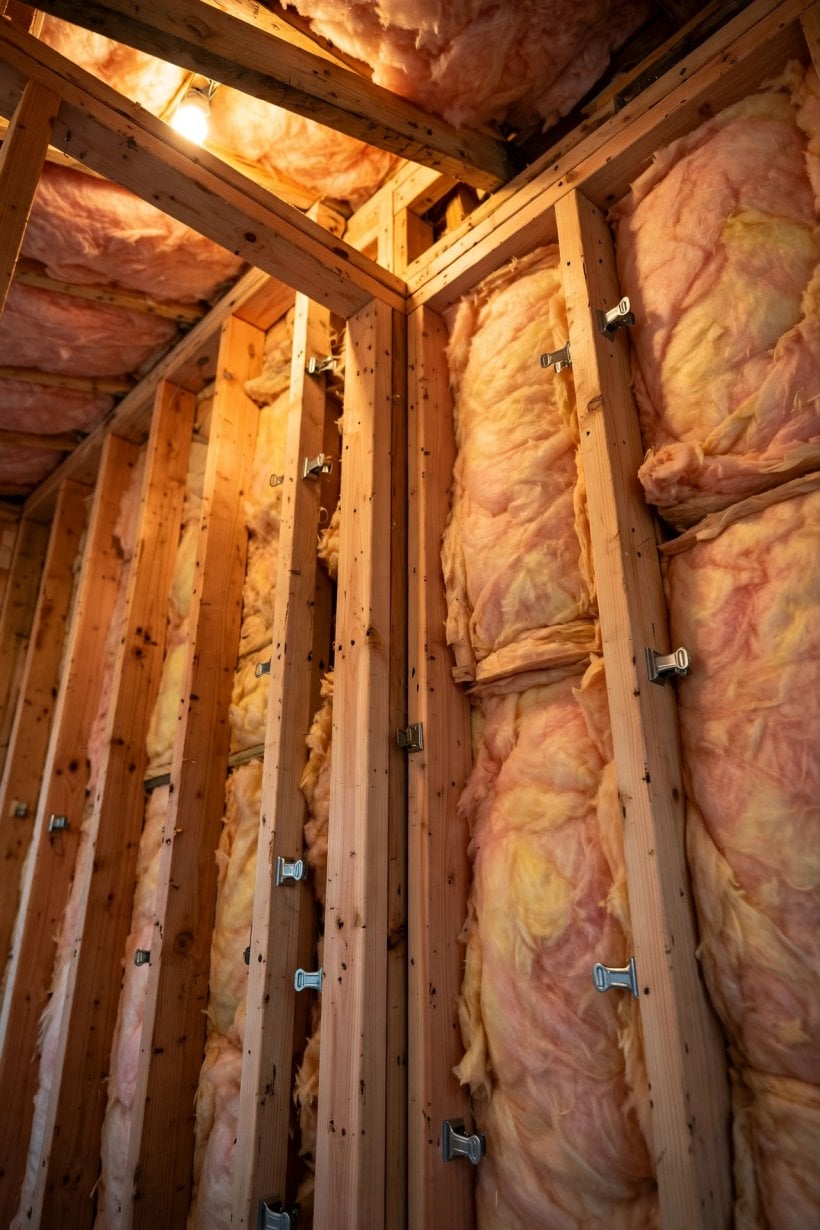

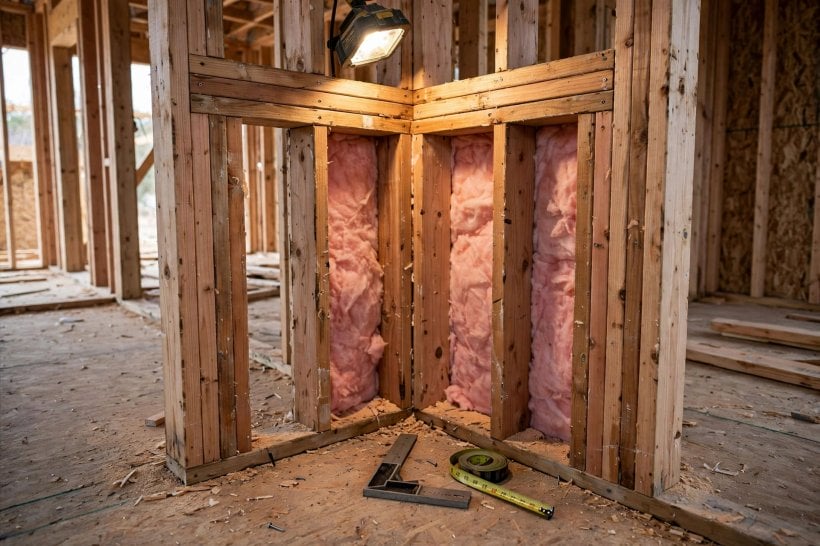

Where two walls meet, the corner concentrates every problem the sill has and adds one of its own: it is a structural, thermal and air-sealing challenge in a single stud bay. Start with the framing, because the framing decides whether the corner can ever be insulated properly. The California corner — a two-stud corner used with drywall clips — leaves the cavity open and reachable, so insulation can fill it completely from inside. The traditional three-stud corner is stronger on paper and weaker in the wall: the middle stud is an uninsulated thermal bridge, a wooden fin conducting heat straight through the assembly, unless you insulate behind it before it is closed in.

Whichever corner you frame, insulate the cavity fully. The corner void is the forgotten space in framed walls — the bay nobody quite reaches, left hollow while every other cavity is filled. An uninsulated corner becomes the coldest spot in the wall — where interior moisture condenses, and where mold grows behind furniture, in the one place nobody looks. The insulation materials and methods that fill these cavities are compared in our guide to how to insulate a tiny house — the point here is sequencing. The corner has to be framed for insulation first and insulated before it is closed, once both faces are finished, the void is sealed in whatever state you left it, for the life of the house.

6. Corners: Sealing Inside and Out

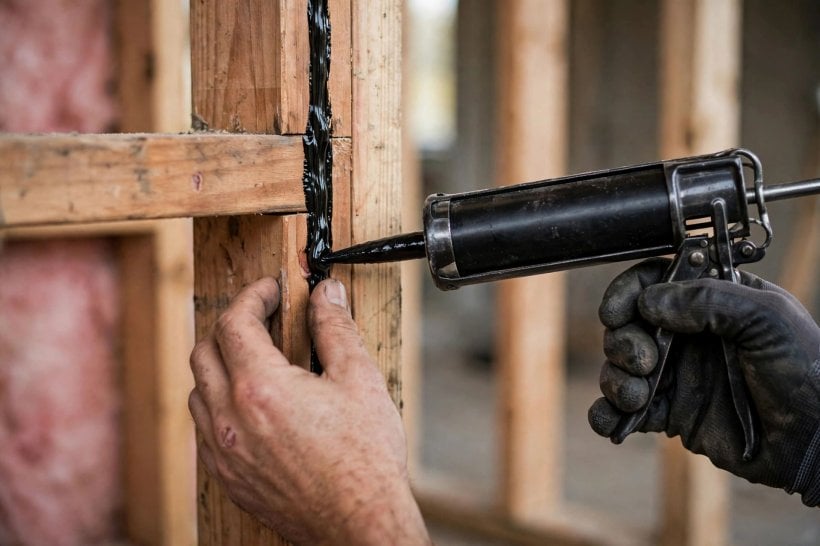

Framing leaves the corner ready; sealing makes it tight. From inside, caulk the stud-to-stud joints — the corner’s interior seams leak air just as the sill does, because butted lumber is a joint, and every joint breathes. Seal those seams before the insulation goes in; afterwards they are buried and unreachable. From outside, foam and membrane the exterior corner: the sheathing corner gets peel-and-stick membrane wrapped around it, because the outside air barrier must be continuous around the corner, not stopped at each face and restarted. A barrier that breaks at every corner is a barrier in name only.

Then verify, because corner work is invisible once the finishes go on. The diagnostic is an infrared camera on a cold day: on a leaky house the corners glow cold in the image, each cold streak marking a missed seal or an empty cavity. It is the same cold-weather behaviour that shapes the winter discipline in our guide to tiny house living in cold climates. Run the camera while the walls are still open or the finishes still young, and every failure it shows is still cheap to fix: another bead of sealant, another wrap of membrane, another batt tucked into a void. The corner you verify is the corner you never have to think about again.

7. Sheathing Seams and the WRB

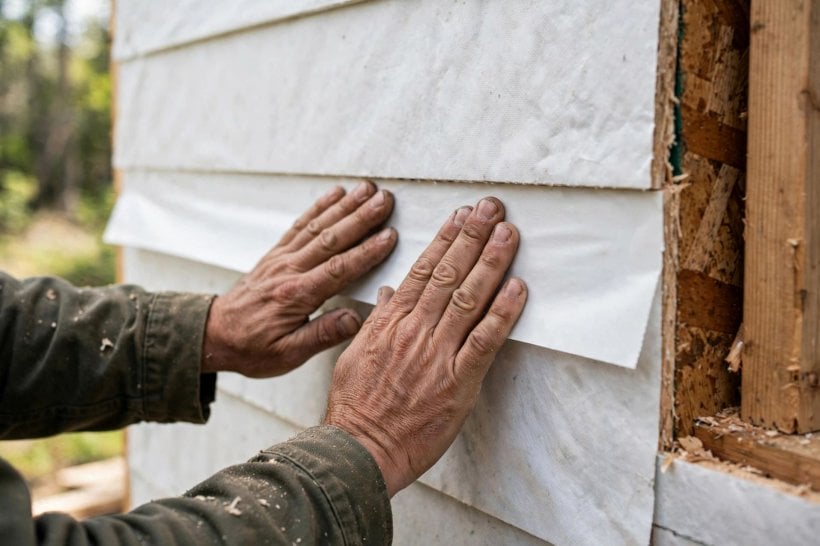

Above the sill and around the corners, the wall’s raincoat takes over: the weather-resistive barrier — housewrap or peel-and-stick — whose continuity at the joints matters more than the material itself. Rule one: tape every seam. Housewrap tape — not duct tape, which fails — goes on every horizontal and vertical seam, and a fully taped WRB is an air barrier as well as a water barrier. Rule two: shingle-lap every course, upper courses over lower, so water sheds down and out across each lap; a reverse lap is a funnel into the assembly.

Rule three: seal every penetration individually. Each pipe, wire and vent that passes through the wall gets a flashing boot or a membrane patch — the Swiss-cheese wall, every hole sealed on its own terms. The same membrane discipline, applied to a room that is wet by design, is what our guide to waterproofing a tiny house bathroom builds on. And rule four ties the whole wall back to where this guide began: the WRB must lap over the sill flashing. That single overlap creates the continuous drainage plane — water running down the wall flows past the sill joint on the outside face, never behind it — and it is the detail that makes the sill’s four layers a system instead of a stack of unrelated products.

8. Windows and Doors: The Opening Perimeter

Every window and door is a hole cut in the air barrier, and holes are detailed, not hoped shut. The foundation of the detail is the sill pan flashing, installed under every window and exterior door: a sloped pan with a back dam and end dams that catches any water reaching the opening and returns it outside. It is the single best window-leak prevention there is — a fifteen-dollar part that prevents fifteen hundred dollars of rot, the best ratio in the entire build. Jamb flashing — peel-and-stick up the sides — laps shingle-style over the pan, so the laps shed in sequence. Over the top goes head flashing — the critical reverse detail most DIYers get wrong: it laps under the WRB above it, so wall water flows over the flashing and out, never behind it.

The air seal at an opening is a separate layer from the water detailing, and both are needed. Around the frame’s interior, low-expansion foam — or backer rod and caulk — closes the rough-opening gap, because windows leak air at the rough opening, not through the glass; the air barrier’s continuity runs around the frame, not through the unit. Finish with the exterior trim: sealed at the top, open at the bottom. Trim caulked shut all the way around traps whatever water gets behind it against the framing; leaving the bottom joint uncaulked gives that water a way out. An opening detailed this way stops being a hole in the barrier and becomes part of it.

9. The Highway Factor: Sealing for Motion

Everything so far applies to any framed house. A tiny house on wheels adds the load no site-built house carries: sixty-five-mile-per-hour wind pressure working on every seam, for hours at a time, plus the constant flexing of a structure on a trailer suspension. Sealing for motion starts with product selection: flexible sealants only. Acoustical sealant, butyl and polyurethane stay elastic through the flexing; hard-setting caulk on an exterior joint is a crack scheduled in advance, because the house flexes and rigid sealant cannot.

Fastening and laps follow the same belt-and-suspenders logic. Flashing is held by fasteners and adhesive together — adhesive alone peels in the wind until a lap lifts and the seam behind it is exposed. Overlaps are generous: six inches or more on membranes, because wind-driven rain at speed climbs, driven upward into laps that would shed a still-air storm without noticing. The flexing that makes all of this necessary — and the bracing that limits it — is the subject of our guide to preventing tiny house framing from twisting on the highway. And the discipline closes with inspection: the post-trip walk-around includes a seal inspection, every time. Cracked sealant at the sill or corners gets re-done before the next rain — a ten-minute repair on the day it is found, against the five-year rot clock from the introduction.

10. Testing: Prove It’s Tight

Sealing is a claim; testing is the proof. The gold standard is the blower door test: a professional pressurises the house with a calibrated fan and measures the leakage directly. Tiny houses should hit one to three air changes per hour at fifty pascals — 1–3 ACH50 — and a result above five means the sealing failed somewhere, whatever the walls look like. The number reports what the joints actually do — which is the point of testing before the finishes make every fix expensive.

No blower door available? The DIY methods find the same leaks more slowly. An incense stick on a windy day, held at the sill, the corners and the outlets, shows every leak in its drifting smoke. A wet hand at the joints feels what the smoke shows. The infrared camera from the corner work returns here as the whole-house instrument: cold streaks at the sill and corners are air leaks, photographed. And then the loop closes: fix and retest. Sealing is iterative — test, seal, test again — until the numbers hold. A tight house also has to breathe deliberately rather than accidentally, which is why a build sealed to this standard pairs with the mechanical fresh-air system in our guide to tiny house ventilation with HRV and ERV systems: tight by design, ventilated by design, with no reliance on leaks for either.

Final Considerations

Gasket and seal the sill in layers, frame corners for insulation and seal them inside and out, tape the WRB into a continuous drainage plane, pan-flash every opening, use flexible sealants for the highway, and test with a blower door or incense until the numbers hold. The pattern underneath every section is the same: joints fail, fields don’t — so the joints get the layers, the laps and the verification. Seal them like the house depends on it, because the energy bill, the rot warranty and the comfort all do. Seal in this order and the house is tight where it counts: at the seams, where the leaks have always lived.
