Nobody moves into a tiny house dreaming about the bathroom — but everybody ends up thinking about it. Thirty square feet has to hold a real shower, a toilet you can actually use, and somehow a washing machine. These ten layouts pass that test: wet baths, pocket-door tricks, separated Japanese-style baths and laundry integrations, with the plumbing dimensions that separate a working micro-bath from an expensive mistake.
1. Tiny House Bathroom Layouts at a Glance
Start with the arithmetic, because the arithmetic is the whole problem. A toilet needs 21 inches of clear space in front of the bowl. A shower needs 30×30 inches minimum by code, and 32×32 is the honest minimum anyone who has used one will accept. A standard washer-dryer pair eats 54 inches of wall. Added up honestly, a conventional bathroom wants roughly 55 square feet — and the tiny house offers 30. The layouts below close that gap with one discipline: overlap. Every footprint serves two functions — the shower floor is the bathroom floor, the hallway is the laundry room, the vanity is the hamper. The table gathers the ten answers and the dimensions they all answer to.
| Attribute | Detail |
|---|---|
| The Brief | A full shower plus laundry inside 30 sq ft |
| The Gap | Conventional fixtures want ~55 sq ft; the tiny house gives 30 |
| The Method | Overlap — one footprint serving two functions |
| Layout 1 | The Classic Wet Bath (5×6) — the whole room is the shower |
| Layout 2 | The Split Wet-Dry (6×5) — a 30×48 shower zone behind glass |
| Layout 3 | The Combination Washer-Dryer Bath (5×6) — a 24×24 ventless combo inside |
| Layout 4 | The Hallway Laundry Nook — a 5×5 bath plus a hall closet pair |
| Layout 5 | Corner Shower + Pocket Door (6×5) — the door swing reclaimed |
| Layout 6 | The Japanese-Style Separated Bath (5×6) — two 3×5 rooms |
| Layout 7 | The Under-Stair Bath — dead volume under the loft stair |
| Layout 8 | The Outdoor Shower Hybrid — the shower leaves the house entirely |
| Layout 9 | The Laundry-Bath Combo Wall — every wet function on one 8-ft wall |
| Layout 10 | The Fold-Away Shower Seat Bath (6×5) — accessible from day one |
| The Dealbreakers | Drain slope of 1/4 inch per foot, and venting sized to the room |
Thirty square feet, a 30×30 shower, 21 inches of knee room and one 24×24 box that washes and dries — the micro-bath budget on one card.
2. Thirty Square Feet, Engineered: The Overlap Principle
The tiny house bathroom is where floor plans go to die, and it dies by addition. Lay the non-negotiables side by side — the toilet’s 21 inches of clear floor, the shower’s 30×30 code minimum, the 54 inches of wall a standard washer-dryer pair consumes — and the honest total is roughly 55 square feet of dedicated, single-purpose space. A tiny house bathroom gets 30. The missing 25 square feet cannot be found; they have to be overlapped away.
Overlap is a design discipline, not a compromise. In a wet bath, the shower floor and the bathroom floor are the same floor, so the shower’s footprint is charged once instead of twice. In a hallway nook, the laundry’s footprint is charged to circulation space that already exists. In the combo-wall layout, one plumbing wall serves shower, toilet and washer alike. Every layout in this guide answers the same question: which two functions can honestly share one footprint? The wider collection of tiny house bathroom designs stretches the principle further; here it is applied at its tightest.
3. Wet Baths: The Whole Room Is the Shower

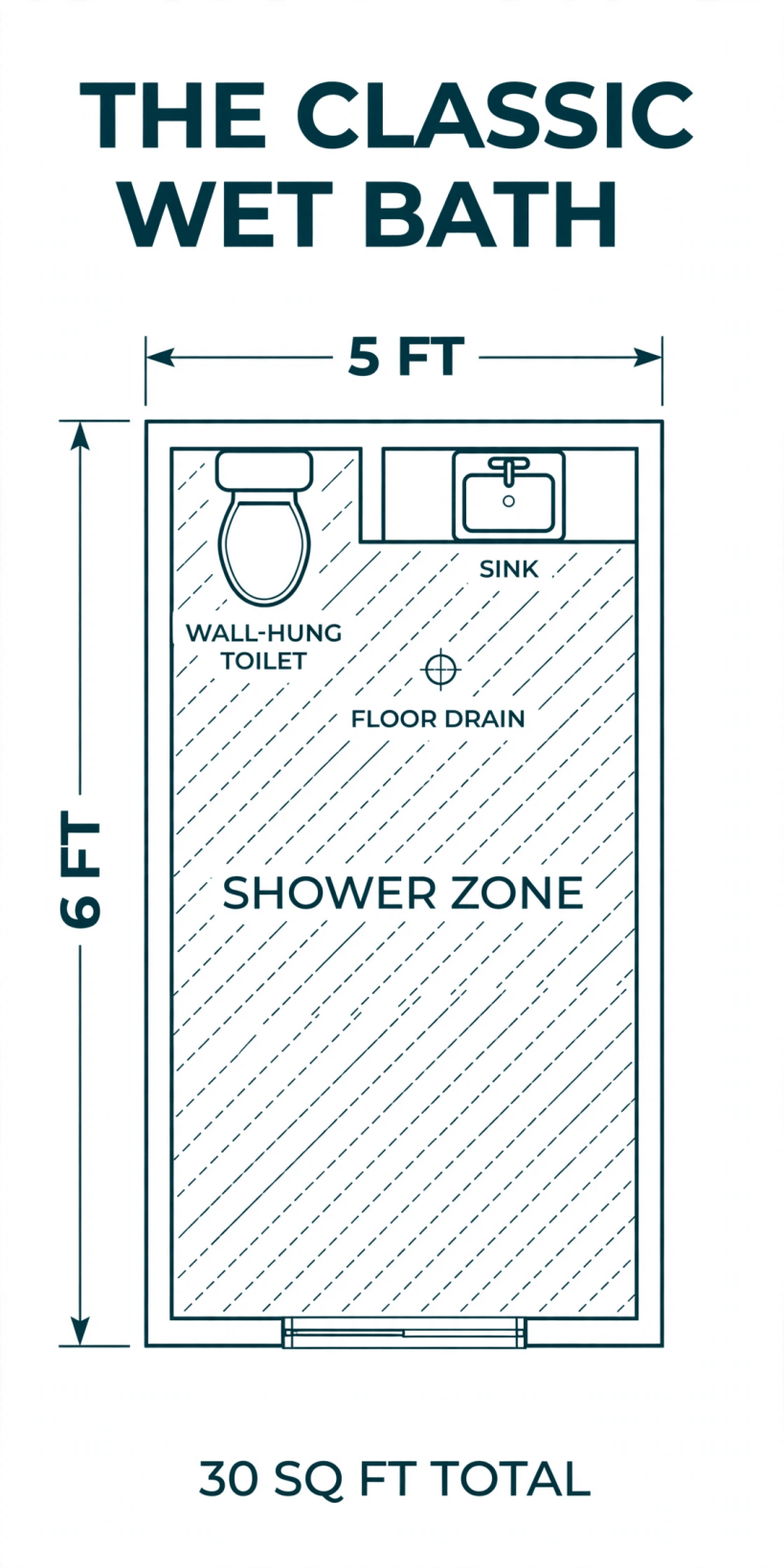

The classic wet bath (5×6) is the highest-density bathroom known to residential construction: the entire 5×6 room is the shower. A wall-hung toilet, a small wall-mounted sink, and a single floor drain with the whole floor sloped at 1/4 inch per foot toward it — you shower standing where you brush your teeth. The laundry goes in a 24-inch-wide stackable unit recessed into the hallway wall directly outside the bathroom door, sharing the bathroom’s water supply and drain through the common wall. The waterproofing spec is the price of admission: cement board plus liquid-applied membrane on every wall surface to 72 inches, and the floor membrane lapped up the walls 6 inches minimum. A wet bath that is not fully tanked is a future rot repair.

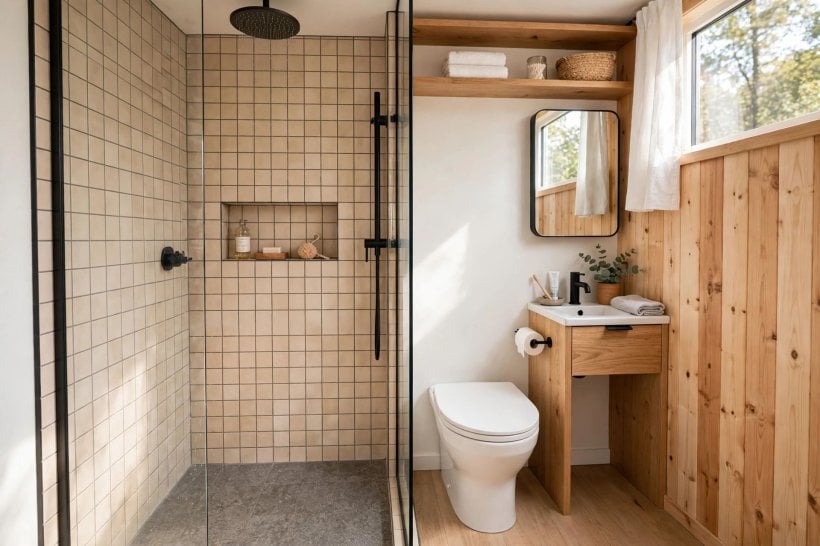

The split wet-dry (6×5) softens the concept for people who dislike a soaked toilet seat. A glass panel — or a shower curtain on a ceiling track — divides the 30 square feet into a 30×48-inch shower zone on one side and a dry zone with the toilet and a compact 16-inch-deep vanity on the other. The stackable washer-dryer lives in a 27-inch-deep closet carved from the adjacent bedroom wall, back-to-back with the shower plumbing wall, so hot, cold and drain runs stay under 6 feet. One plumbing rule governs both versions: keep the washing machine within 8 feet of the main drain stack. Longer runs invite slow drainage and the dreaded washer-drain gurgle through the shower trap. And because a tanked room holds moisture like a terrarium, the ventilation sizing in §10 is not optional in a wet bath — the moisture-management logic behind our dehumidifier sizing calculator starts from exactly this room.
4. Laundry Inside the Wet Zone: The Combo Unit and the Combo Wall
The boldest way to fit laundry into 30 square feet is to stop exiling it. A ventless combination washer-dryer unit is 24×24 inches — roughly half the footprint of a stacked pair — and in the combination bath (5×6) it sits inside the bathroom itself, in the corner opposite the shower, so the laundry never leaves the wet zone. Drying takes longer with a combo unit, typically 2 to 3 hours for a full load, but in a 30-square-foot bathroom the trade is almost always worth it. The electrical note is the catch to plan around: most 120V combo units draw 11 to 13 amps, so give the bathroom a dedicated 20-amp circuit — sharing with a hair dryer or a space heater will trip the breaker mid-cycle.

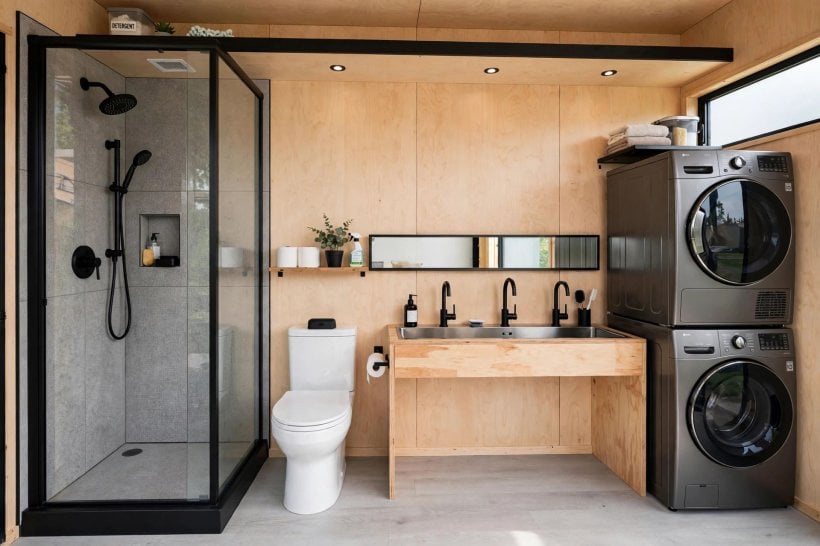

The laundry-bath combo wall takes the same idea to the scale of an 8-foot-wide tiny house on wheels: every wet function runs along a single 8-foot exterior wall — a 32-inch shower at one end, the toilet in the middle, a 24-inch stackable at the other end, and a narrow trough sink mounted above the washer. One plumbing wall means one drain line, one vent stack, and all supply lines in a single insulated chase — also the easiest wall to keep from freezing. The freeze rule: keep this wall interior rather than on the exterior sheathing side, or box it with R-15 insulation on the cold side plus heat tape on the supply lines. How that wall connects to the rest of the house’s systems is the subject of the tiny house utilities guide.
5. Laundry Outside the Bath: The Hallway Nook and the Pocket Door

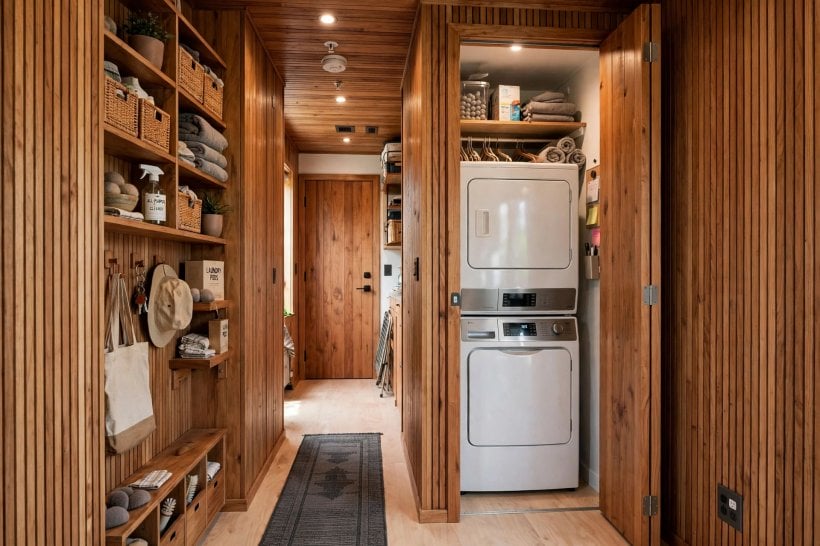

Sometimes the bathroom simply cannot grow, and the laundry has to be stolen from somewhere else. The hallway laundry nook keeps the bathroom at a tight 25 square feet — 5×5, with a 32-inch corner shower, a wall-hung toilet and a pedestal sink — and takes the laundry from the hall: a 30-inch-deep hallway closet with bifold doors holds a stacked pair, and the bifold doors mean zero swing clearance is needed in the hall. This is the best layout for narrow 8-foot-wide THOWs where the bathroom cannot grow past 5 feet in any direction. If the dryer is vented, one number rules the closet’s placement: the vent run must stay under 25 equivalent feet, subtracting 5 feet per 90-degree elbow. In a tiny house that is rarely a problem — but route it before you frame, not after.
The corner shower + pocket door layout (6×5) attacks a different waste: the door itself. A 32×32-inch neo-angle corner shower frees the opposite corner for a 24-inch stackable unit, with the toilet tucked between them — but the secret weapon is the pocket door. A swinging bathroom door needs more than 21 square feet of swing clearance, which in a 30-square-foot room is catastrophic; a pocket door reclaims all of it. Two build rules keep the trick honest. Frame the pocket with a proper steel-stud pocket kit, not site-built 2x4s, or the door will drag within a year. And because pocket doors transmit more sound than solid swing doors, specify a solid-core pocket door slab and add acoustic seal brushes top and bottom if privacy matters.
6. Separated and Stacked: The Japanese Bath and the Under-Stair Bath
The Japanese-style separated bath (5×6) borrows the unit-bath concept and splits the room by function instead of by wet and dry: a small dry vestibule — toilet and sink, 3×5 — separated by a door from a dedicated shower room, also 3×5, with its own drain. The shower room doubles as the laundry drying space on a retractable wall-mounted line. The separation is a genuine quality-of-life upgrade in a family tiny house: one person can shower while another uses the toilet, which no amount of clever fixture placement in a single room can offer. The cost is ventilation: two wet zones need real exhaust, sized by the math in §10, and ducted straight through the roof or gable wall — never into the attic or a wall cavity.

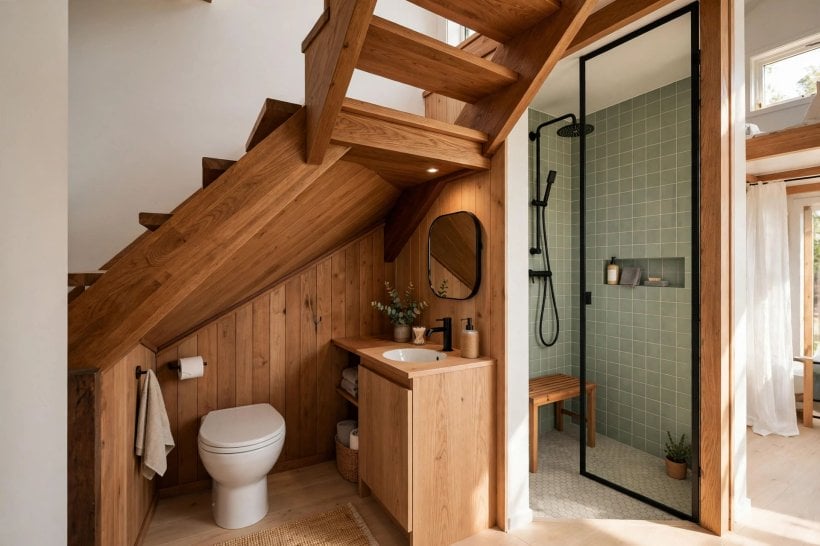

The under-stair bath finds its room elsewhere: in lofted tiny houses, the volume under the stair run is dead space roughly 3 feet wide, 7 feet long, and 4 to 6 feet tall at the high end. Fit the toilet and a small sink under the low end, and put a 30×30 shower at the tall end, where headroom reaches 6.5 feet. The stackable laundry goes in the bedroom closet directly above, stacked vertically over the plumbing to keep drain runs short. One caution decides whether the layout is legal as well as clever: most codes require 6 feet 8 inches of headroom at the shower, but tiny houses on wheels typically fall under ANSI or NOAH standards rather than the IRC — know which standard your build is certified to before you frame. It is why the tiny house floor plans calculator asks about ladders and stairs first.
7. The Outdoor Shower Hybrid: Moving the Biggest Fixture Outside

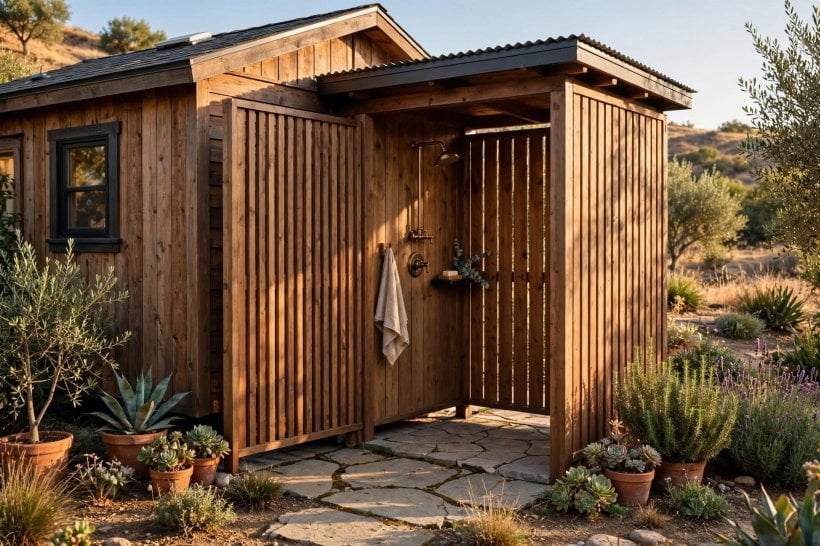

In warm climates, the most elegant layout move is subtraction. An enclosed outdoor shower — 4×4, with privacy screening and a simple roof — removes the largest fixture from the interior entirely, leaving the indoor 30 square feet for a full half-bath plus a stacked washer-dryer, with room to spare. Suddenly the overlap problem that governs every other layout in this guide simply relaxes: the toilet gets its clearance, the laundry gets its wall, and nobody showers where they brush their teeth.
Two details keep the hybrid honest. Plumb the outdoor shower on the same wall as the indoor bathroom to share supply lines — the shortest possible runs, inside the house’s one plumbing wall — and add a freeze-proof sillcock-style shutoff if temperatures ever dip, so the outdoor branch can be drained before it can burst. The privacy engineering is the original’s own: a 6-foot privacy screen with a 12-inch gap at the bottom reads as intentional design rather than an afterthought, and the gap keeps the floor dry by allowing airflow. It is the same fixtures-in-the-right-room judgement that governs the wettest indoor room — the planning logic in our tiny house kitchens guide applies it to sinks and stoves; here it decides which side of the wall the shower belongs on.
8. One Wall, Warm Pipes: Freeze Protection and the Fold-Away Shower Seat Bath
Every layout in this guide concentrates its plumbing — a common wall, a single insulated chase, a stacked closet above the bathroom — and concentration has a winter price. A tiny house on wheels exposes its floor and walls to cold air on every side, and pipes gathered into one wall freeze together if that wall is detailed as an afterthought. The combo wall’s rule generalizes: keep the plumbing wall interior where you can; where you cannot, box it with R-15 insulation on the cold side and add heat tape.

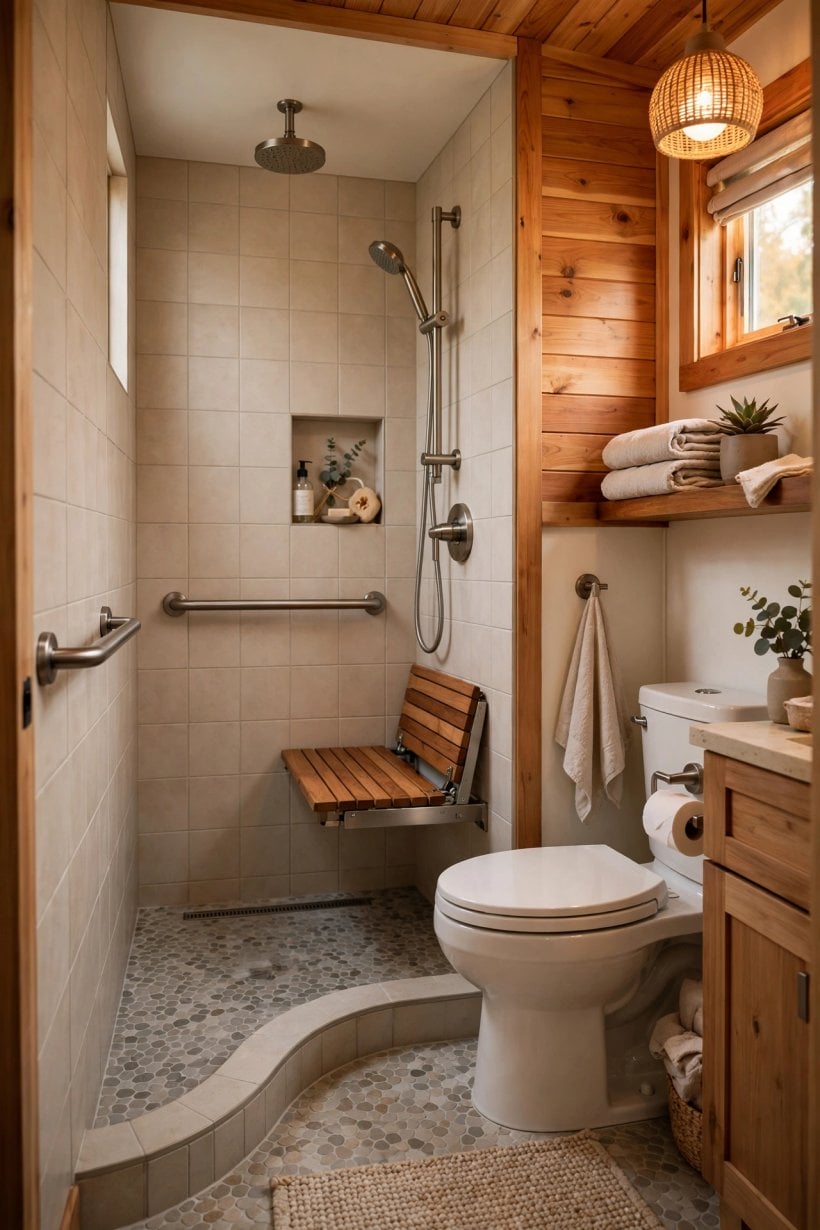

The tenth layout designs accessibility in from day one rather than retrofitting it. The fold-away shower seat bath (6×5) is built around a 36×36 curbless shower — the “comfortable” size from §9’s list, with no lip to step over — fitted with a fold-down teak bench that carries a seated bather and folds flat against the wall when it is not needed. Behind the tile, grab-bar blocking is set at 33 to 36 inches on two walls, ready for bars whenever they are wanted; the build rule that keeps the option honest is to photograph every piece of blocking, with dimensions, before the drywall goes up. A comfort-height toilet and a floating vanity with knee clearance complete the room, and the stackable laundry unit moves to an adjacent closet behind a 32-inch door. The price is real: this bathroom costs about 15 percent more to build. What it buys is a room that works for every body for the life of the house.
The drainage side matters just as much in the cold. Short runs — the split wet-dry’s sub-6-foot runs, the washer within 6 to 8 feet of the stack — are not just gurgle insurance; they are fewer inches of pipe holding standing water in a freezing chase. That is why the freeze question belongs in the layout decision, not the first cold snap. The trade-offs behind the R-15 figure are worked through in the insulation strategy analyzer.
9. The Non-Negotiable Dimensions
Layouts are negotiable; dimensions are not. Whatever arrangement the previous sections settle on, the fixtures inside it answer to a short list of numbers, and a bathroom drawn against any of them fails in daily use rather than on paper. The shower: 30×30 inches is the code minimum, 32×32 the honest minimum, 36×36 comfortable. The toilet: 21 inches clear in front of the bowl, and 15 inches from the centerline to the side wall. Those two clearances are why the wall-hung toilet recurs through this guide — a wall-hung bowl returns inches of floor to exactly the zone the 21-inch rule measures.
The laundry numbers are just as fixed. A stacked pair needs 27 inches wide × 30 inches deep × 76 inches tall for a full-size set — the envelope the hallway nook’s 30-inch-deep closet and the split wet-dry’s 27-inch-deep closet are both drawn around. A combo unit’s footprint is 24×24 inches, at 33 to 39 inches tall — low enough to sit under a counter or a trough sink. The door: 28 inches is the absolute minimum for a bathroom, and a pocket door saves roughly 20 square feet of swing against it. And the vent fan: 1 CFM per square foot of bathroom, 50 CFM minimum, ducted to the exterior, on a timer or humidistat control. Commit those numbers before the layout, and the layout becomes a drawing exercise instead of a negotiation.
10. Drainage and Venting: The Invisible Dealbreakers

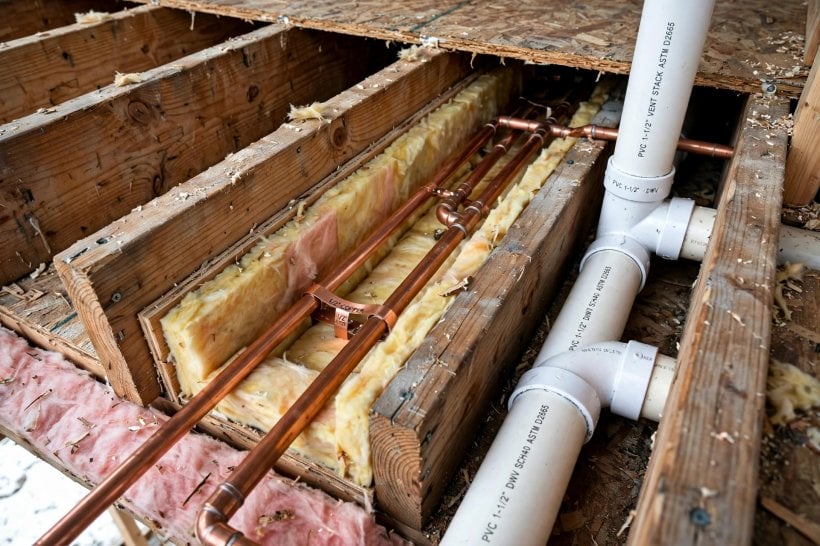

Small bathrooms fail at the drain, not the fixtures. A washing machine discharges 15 to 20 gallons in a few minutes; if the 2-inch drain line has insufficient slope — less than 1/4 inch per foot — or the vent is undersized, the shower trap gurgles and gray water backs up. In a tiny house on wheels, where the whole drain system may run just 12 inches below the floor, slope is precious. The discipline is threefold: keep the washer within 6 to 8 feet of the main stack, maintain the full 1/4-inch-per-foot slope with no sags, and vent every fixture individually. It is the least glamorous paragraph in tiny house design and the most expensive to ignore.
Venting has a second half: the room itself. Size the exhaust fan at 1 CFM per square foot — 50 CFM minimum in these rooms — and duct it straight through the roof or gable wall, never into the attic or a wall cavity, where the moisture simply relocates the rot. The separated Japanese bath doubles the duty: two wet zones, each needing real exhaust. A bathroom that drains and breathes correctly disappears from daily thought; one that does not announces itself every laundry day — hardest in the shared family arrangements of the 2-bedroom tiny house floor plans, where one 30-square-foot bath serves everyone.
Final Considerations
Thirty square feet is not a compromise; it is a design brief. The ten tiny house bathroom layouts in this guide all honour the same brief — a full shower, a usable toilet, and the laundry, inside a footprint a conventional bathroom would reject — and they differ only in where they find the overlap: the shower floor, the hallway, the stair void, the outdoors, or a single hard-working wall. Pick the layout that matches your climate, your household and your tolerance for togetherness, then plumb it like you mean it: full slope, short runs, every fixture vented, every membrane lapped. Do that, and the smallest room in the house stops being the test of the whole build — the same discipline that lets the 100 sq ft tiny house floor plans work at the scale of a whole house works here at the scale of a single room. A well-drained, well-vented 30-square-foot bath with laundry beats a cramped 50-square-foot afterthought every single time.
