10 Tiny House Trailer-Specific Floor Plans: Designing Around Fenders and Axles

The wheel wells always win. They rise a foot above the deck, exactly where your floor plan wanted the kitchen, and no amount of wishing moves an axle. Every tiny house on wheels is two structures pretending to be one — and the trailer’s demands come first, every single time.

1. Tiny House Trailer-Specific Floor Plans at a Glance

Tiny house trailer-specific floor plans start from the steel and work upward: the wheel wells, the fender line, the axle group and the hitch are drawn first, and the rooms are fitted around them. That reversal is the whole discipline. Wheel wells rise 8 to 12 inches above the deck inside the living space, fenders define where walls can bear, axle placement dictates the center of gravity, and the gooseneck or tongue eats the first 3 to 5 feet of the plan before a single room is drawn. The ten plans that follow each take one trailer architecture — tandem axle, triple axle, gooseneck, bumper-pull, spread axle, drop axle, deck-over, utility flatbed, fifth wheel — and turn its intrusions into the layout itself: wheel-well window seats, kitchens centered over the axles, and split levels the hitch geometry hands you for free. The table gathers the system in one place; the sections after it take each plan apart.

102 inches of legal width, 13.5 feet of legal height and a wheel well 8 to 12 inches tall in the middle of your kitchen — the trailer plan on one card.

2. The Trailer Is the Floor Plan: Wheel Wells, Fenders and the Hitch

Every tiny house on wheels is two structures, not one: the house and the trailer beneath it. The trailer brings non-negotiable intrusions into your floor plan. Wheel wells rise 8 to 12 inches above the deck inside the living space. Fenders define where walls can bear. Axle placement dictates the center of gravity, and the gooseneck or tongue eats the first 3 to 5 feet of the plan. Architects who design THOWs without designing the trailer end up with beautiful drawings that cannot be built — the kitchen lands on a wheel well, the heavy bathroom sits behind the axles, and the house sways its way down the highway. These ten layouts start from the trailer and work up, which is why each plan’s name names the trailer first and the room second.

That ordering has a practical consequence for anyone still at the choosing stage: the trailer decision comes before the layout decision, not after it. If you are matching a household and a mobility pattern to a plan archetype first, the tiny house floor plans calculator settles the archetype; the trailer underneath it then dictates how much of that archetype survives contact with the wheel wells. The plans below are ordered the way the original survey ordered them — from the commonest intrusion, the tandem-axle wheel well, to the architectures that delete the intrusion entirely.

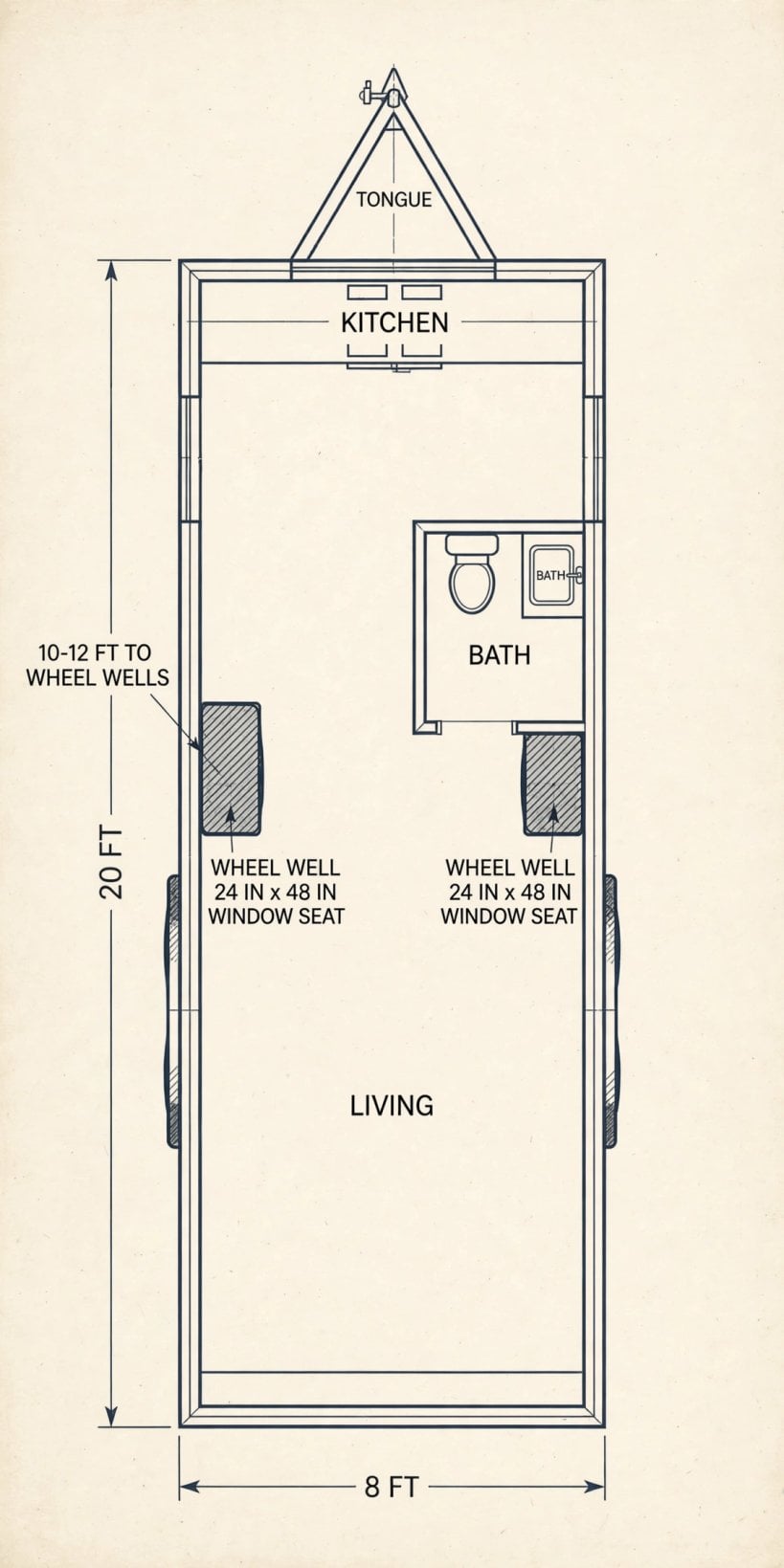

3. Plan 1: The Wheel-Well Window Seat (8×20, Tandem Axle)

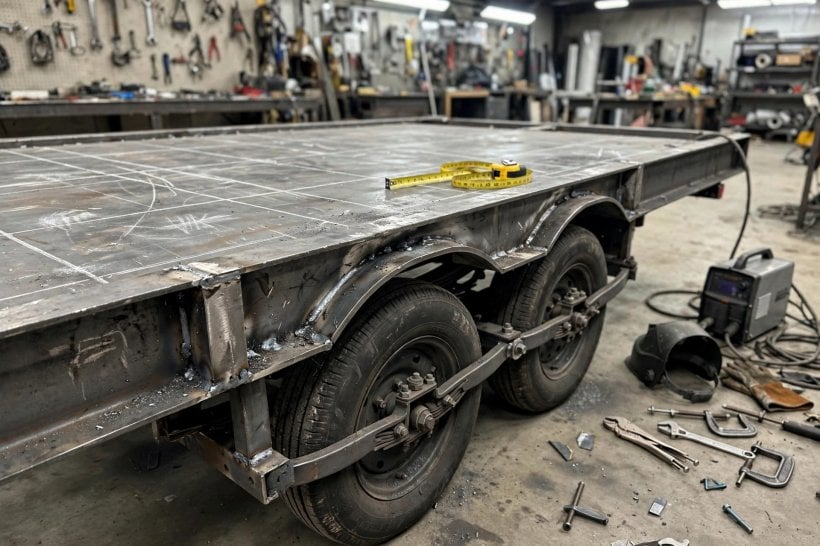

On a standard 8×20 tandem-axle trailer, the wheel wells intrude roughly 24 inches wide by 48 inches long on each side, centered around 10 to 12 feet from the tongue. Instead of fighting them, box each well in plywood and top it with a cushion: two window seats, perfectly positioned for the view. The floor plan flows around them naturally — kitchen on one side of the wells, living on the other — and the “obstruction” becomes the most fought-over seat in the house. It is the purest expression of this guide’s premise: the intrusion is not hidden, it is promoted.

One clearance spec governs the boxing, and it is measured at the worst case, not the average case: maintain 3 inches of air gap between the top of the tire and the underside of the wheel-well box at full suspension compression. Measure at the bump stops, not at rest — a box built to the resting gap will meet the tire the first time the suspension bottoms out on a rough road. Everything else about the plan is forgiving; that 3 inches is not.

4. Plan 2: The Fender-Line Kitchen (8×24, Triple Axle)

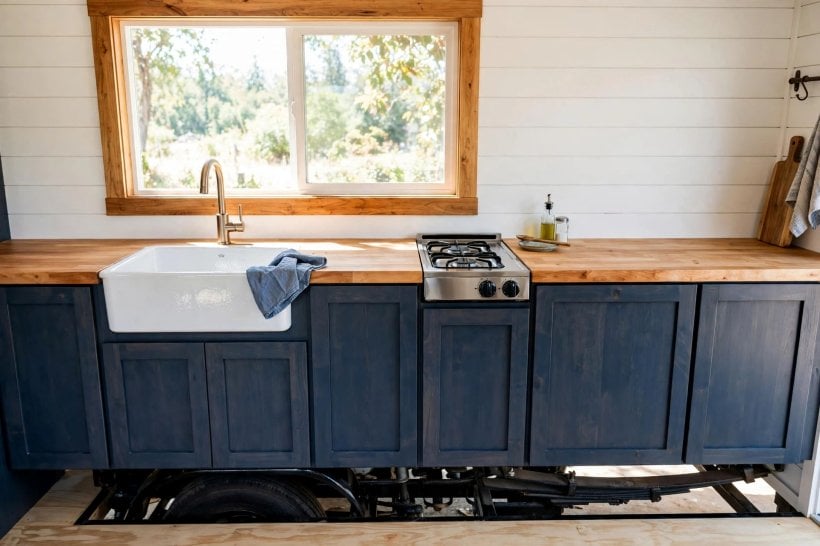

The second plan hides the intrusion inside the cabinetry instead of seating on it. Line the kitchen counter directly over the axle group, where the wheel wells are: a 24-inch-deep base cabinet swallows a 12-inch wheel-well intrusion completely. The cabinet interior loses a little volume at the back, but the countertop runs straight and clean, and the room reads as if the wells were never there. This is the highest and best use of wheel-well space — dead volume inside cabinets instead of dead volume in the room.

The weight logic is what elevates the trick from joinery to engineering. The kitchen is the heaviest room in the house — appliances, water, stone counters — and centering it over the axles puts the mass where the trailer wants it, directly over the suspension. The fender line and the balance point turn out to be the same line, so the plan that hides the wheel wells best is also the plan that tows best. On the triple-axle 8×24 the principle scales: the longer axle group gives the counter run more supported length to work with, and the wells disappear into the deepest cabinets in the house.

5. Plans 3 and 4: The Gooseneck Master Suite and the Tongue-Forward Utility

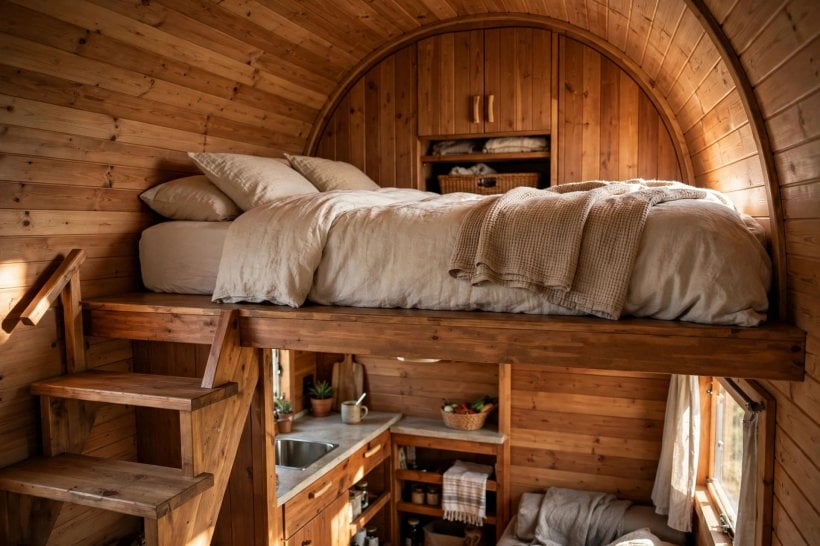

The gooseneck plan spends the hitch itself. A gooseneck trailer’s hitch extends 7 to 8 feet over the truck bed, creating an elevated platform roughly 7×8 feet at 4 to 5 feet above the main deck. That platform is the natural master suite: queen bed on the platform, wardrobe in the nose curve, and a privacy curtain or sliding door at the step up. The elevation separates sleeping from living more effectively than any partition wall — the suite is not a room divided from the house, it is a level above it. The wider family of over-hitch layouts is drawn out in the gooseneck tiny house floor plans guide, where the platform is treated as the plan’s prime real estate.

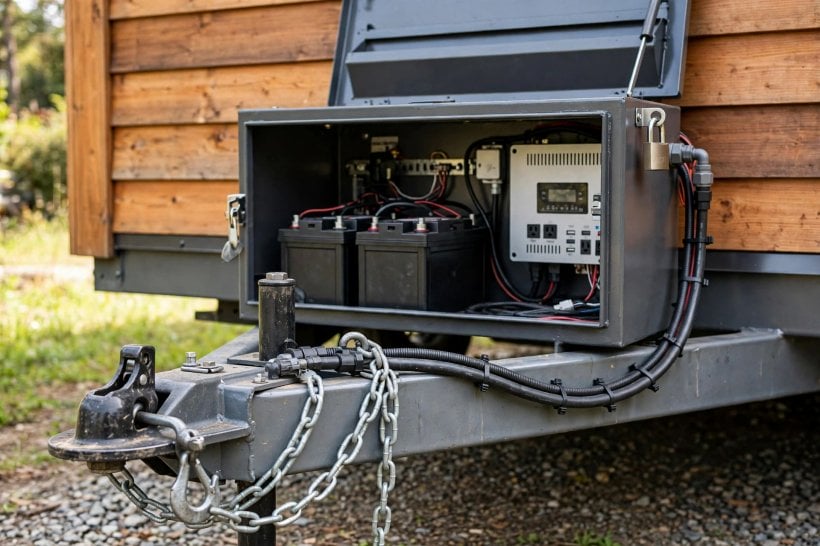

The pin weight is the design constraint that comes with the platform: the gooseneck pin should carry 15 to 25 percent of total trailer weight, so the bedroom storage — clothes, heavy items — is designed toward the front of the platform to help hit that number. The bumper-pull answer to the same hitch problem runs the opposite direction. On a bumper-pull 8×20, the first 4 feet behind the coupler is tongue structure that cannot carry living space, but it can carry utilities: frame a lockable exterior utility bay over the tongue holding batteries, inverter, water filtration and the electrical panel, all accessible from outside without entering the house, and the interior floor plan starts clean at the 4-foot mark with zero compromises. The tongue weight makes the arrangement pay twice — bumper-pull tongues want 10 to 15 percent of total weight on the hitch, and batteries over the tongue, at 200+ pounds for a serious bank, are the easiest way to get there.

6. Plans 5 and 6: The Split-Axle Garage Plan and the Drop-Axle Lowrider

Spread-axle trailers — axles at 12 and 20 feet instead of grouped together — distribute weight more evenly and tow with less sway, and they hand the floor plan a gift no grouped trailer can: the 8-foot bay between the axle groups has no wheel wells at all, a clean rectangle perfect for the bathroom-laundry core. Put all the plumbing in the clean bay and all the wheel-well boxing in the kitchen and living zones, where cabinets hide it. The trade-off is honest: spread axles scrub tires in tight turns, so if the house will be moved frequently through tight sites the tire wear cost is real; for a twice-a-year move, it is negligible. The wet-core planning that bay invites follows the same one-wall discipline as the tiny house bathroom layouts, where every wet function is concentrated to keep runs short.

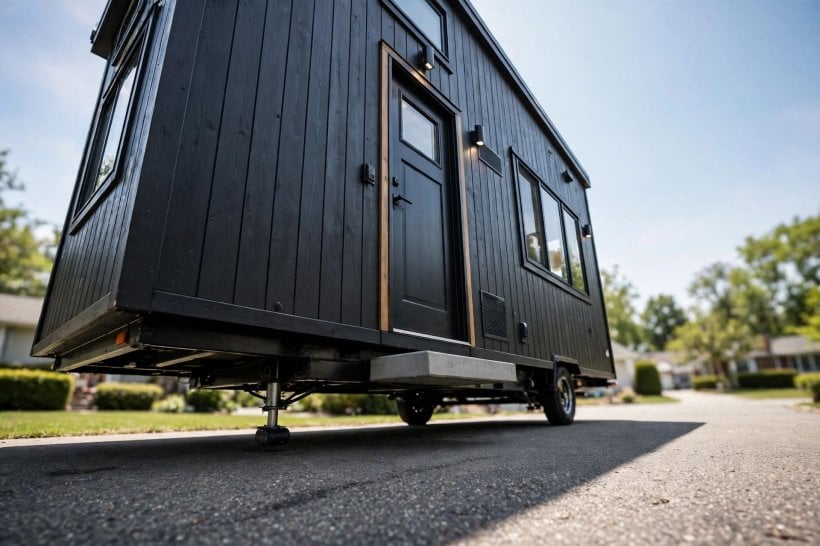

The drop-axle plan attacks height instead of width. Drop axles lower the deck to 18 to 20 inches off the ground, versus 28+ inches for straight axles, which buys 8 to 10 inches of interior height without raising the roofline — or lets you lower the roofline while keeping 9-foot ceilings. The floor plan win is the entry: a single 7-inch step instead of three, which transforms accessibility, so the entry door is designed over the dropped section and the threshold practically disappears. That one-step entry is the same climb-free instinct the single-story tiny house plans apply to the whole house. The trade is 6 to 8 inches of lost ground clearance — fine for paved parks and driveways, risky for rutted rural land — so the site decides the axle before the axle decides the plan.

7. Plans 7 and 8: The Fenderless Deck-Over and the Axle-Forward Weight Plan

The deck-over trailer deletes the problem at the source: the deck sits above the wheels entirely, so there are no wheel wells inside the house at all, and the full 102-inch width is usable floor. The floor plan becomes beautifully simple — a clean rectangle with zero intrusions, designed like a foundation house that happens to move, the same freedom the bent footprints in the L-shaped tiny house floor plans enjoy on a slab. The cost is deck height, typically 32 to 36 inches off the ground, which means taller stairs and a higher center of gravity. The height budget closes the section: at 36-inch deck height plus 9-foot walls plus roof, you are flirting with the 13.5-foot legal limit, so keep the roof pitch modest — 6/12 or less — or shorten the walls.

The eighth plan adapts the trailer to a floor plan that refuses to adapt. Some plans demand a heavy rear — an outdoor kitchen, a rear deck with a hot tub, a workshop — and when the weight sits behind the axles, the trailer fishtails. The fix is axle placement: order the trailer with axles 60 to 65 percent of the way back from the tongue, instead of the standard 55 to 60 percent, shifting the balance point rearward to match the load. The floor plan stays exactly as designed; the trailer adapts to it. The ordering note is the section’s hard edge — axle position is set when the trailer is built, not after, so finalize the floor plan’s weight map before ordering steel, or live with the standard placement. It is the mechanical cousin of the expandable tiny house floor plans, where the trailer is likewise engineered around the rooms rather than the other way round.

8. Plans 9 and 10: The Removable-Fender Flex Plan and the Fifth-Wheel Split Level

The flex plan starts from a flatbed utility trailer with bolt-on fenders instead of a dedicated THOW trailer. The fenders unbolt for the build — giving a clean 102-inch deck to frame on — then bolt back on for transport. The floor plan can cantilever 6 inches past the deck on each side during the build, with the fenders covering the overhang on the road: the hack that lets standard lumber dimensions work on a trailer base. Its legal line is exact: 102 inches is the federal limit before oversize permits, so cantilever to exactly 102, not a quarter inch more, and verify your state’s enforcement tolerance.

The fifth-wheel plan closes the set with the split level the hitch hands you. A fifth-wheel trailer’s raised forward section, over the truck bed at 5 to 6 feet above the main deck, creates a natural split level: main living at deck height for 16 to 18 feet, then three steps up to the bedroom-bath suite over the hitch. The steps themselves become storage drawers, and the elevation change zones the house without a single partition wall; fifth-wheel hitches also tow more stably than bumper pulls at highway speed. The step storage is worth its own arithmetic: three 36-inch-wide steps at 7-inch rises yield nine cubic feet of drawer volume. In a tiny house, the stair is a dresser that you walk on.

9. Trailer Dimensions Reference: The Numbers Every Plan Answers To

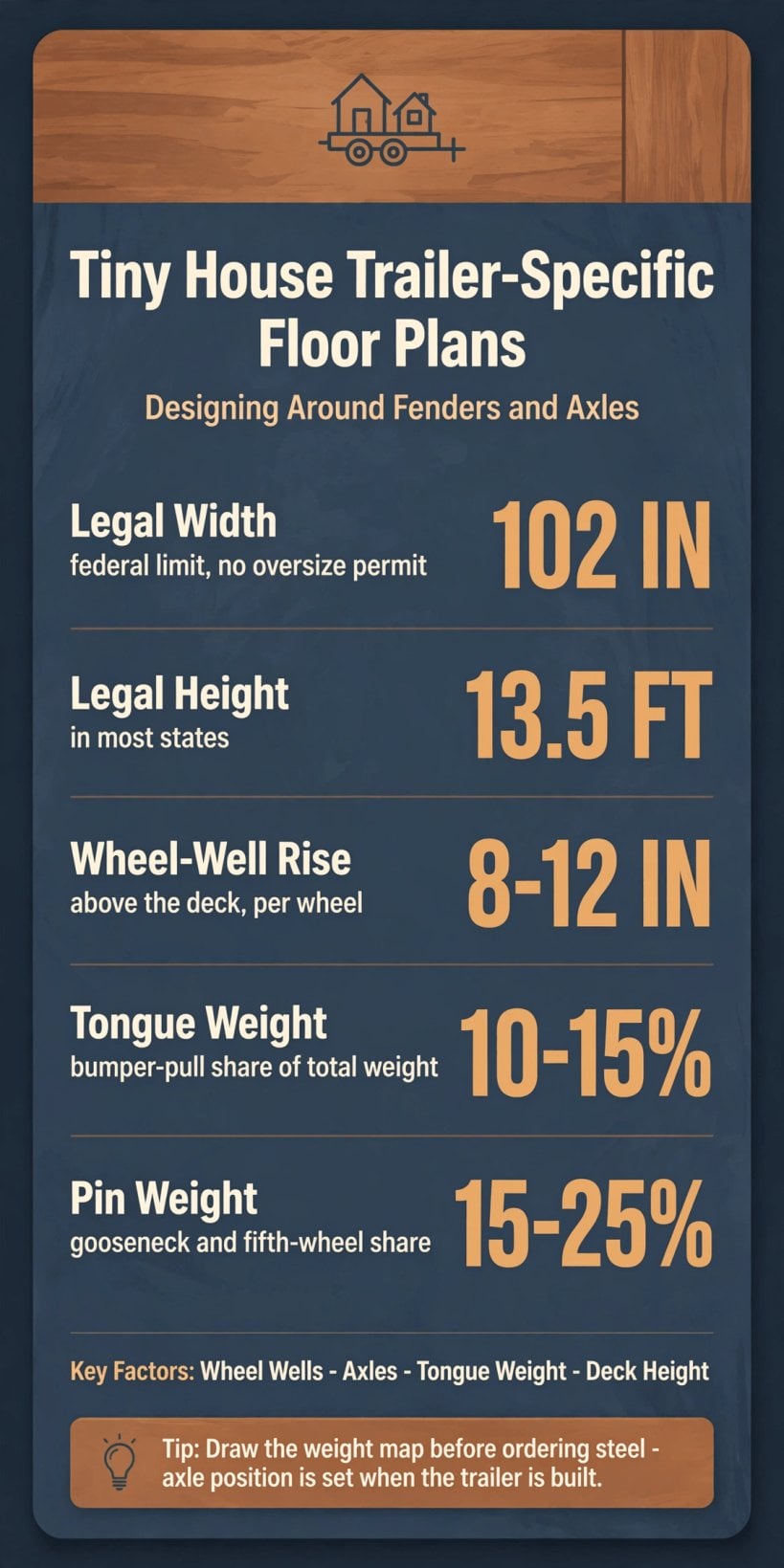

Every plan above is an application of one short reference, and the reference is the part of this guide to check before ordering steel. Legal width: 102 inches — 8.5 feet — without oversize permits, federal. Legal height: 13.5 feet in most states, 14 feet in some western states; verify per state on your route, because the deck-over plan of §7 spends nearly all of it. Wheel-well intrusion: typically 8 to 12 inches high, 24 inches wide, 48 inches long per wheel — the box that §3 seats on and §4 hides in cabinetry. Tongue weight on a bumper pull: 10 to 15 percent of total trailer weight. Pin weight on gooseneck and fifth wheel: 15 to 25 percent. Deck height: 28 to 32 inches standard, 18 to 22 inches with drop axles, 32 to 36 inches deck-over.

Read as a system, the reference explains the plans. The window seat exists because the intrusion line is exactly seat-sized; the fender-line kitchen exists because the intrusion depth is exactly cabinet depth; the gooseneck suite exists because the pin-weight line rewards mass over the hitch. Even the height line reaches beyond this guide — it is the same 13.5-foot budget that governs the tiny house floor plans with rooftop decks, where every inch of deck build-up is spent against the same ceiling. The numbers are few enough to memorize, and every one of them vetoes a drawing that ignores it.

10. Designing the Weight Map

Before finalizing any THOW floor plan, draw the weight map: mark every load over 100 pounds — water tanks, batteries, appliances, masonry, the kitchen — and confirm the center of mass sits just forward of the axle group. The original’s example is the one to remember: a 500-pound freshwater tank at the rear bumper will make a 10,000-pound house sway, while the same tank over the axles disappears. The weight map is where the ten plans converge — the fender-line kitchen is a weight-map decision drawn as cabinetry, the tongue battery bay is a weight-map decision drawn as storage, and the axle-forward plan is a weight map that reached the trailer order itself.

That is also why the map is drawn before the steel is ordered, not after the house is framed. Axle position, spread and drop are all set at the trailer build; the floor plan can be redrawn in an afternoon, but the trailer underneath it cannot. A plan whose heavy rooms sit over the axles, whose batteries sit over the tongue and whose stored mass leans toward the pin will tow like it was designed, because it was. The floor plan is not finished until the weight map balances.

Final Considerations

The trailer is not the compromise in a tiny house on wheels; it is the foundation, literally. These plans succeed when the house and the trailer are designed as one system — the heavy rooms over the axles, the wheel wells hidden in cabinetry or promoted to window seats, the hitch geometry shaping the plan instead of being fought by it. The ten plans split into two philosophies: absorb the intrusion (window seats, fender-line kitchens, clean spread-axle bays) or delete it (deck-over width, drop-axle height, a fifth wheel’s split level) — and the weight map arbitrates between them, because it is drawn from the loads the household actually owns. Choose the trailer for the life the house will live, draw the wells before the walls, and the houses that tow best will keep being the houses that were designed from the wheels up.
