Stand up in the wrong spot and a tiny house roof tells you the truth about its floor plan. Comparing shed roof vs gable roof tiny house floor plans comes down to one metric: usable headroom where you actually live. A single slope hands you one tall wall and one low one; a gable splits the height down the middle ridge. This guide reads all ten plans — five of each — through that lens.

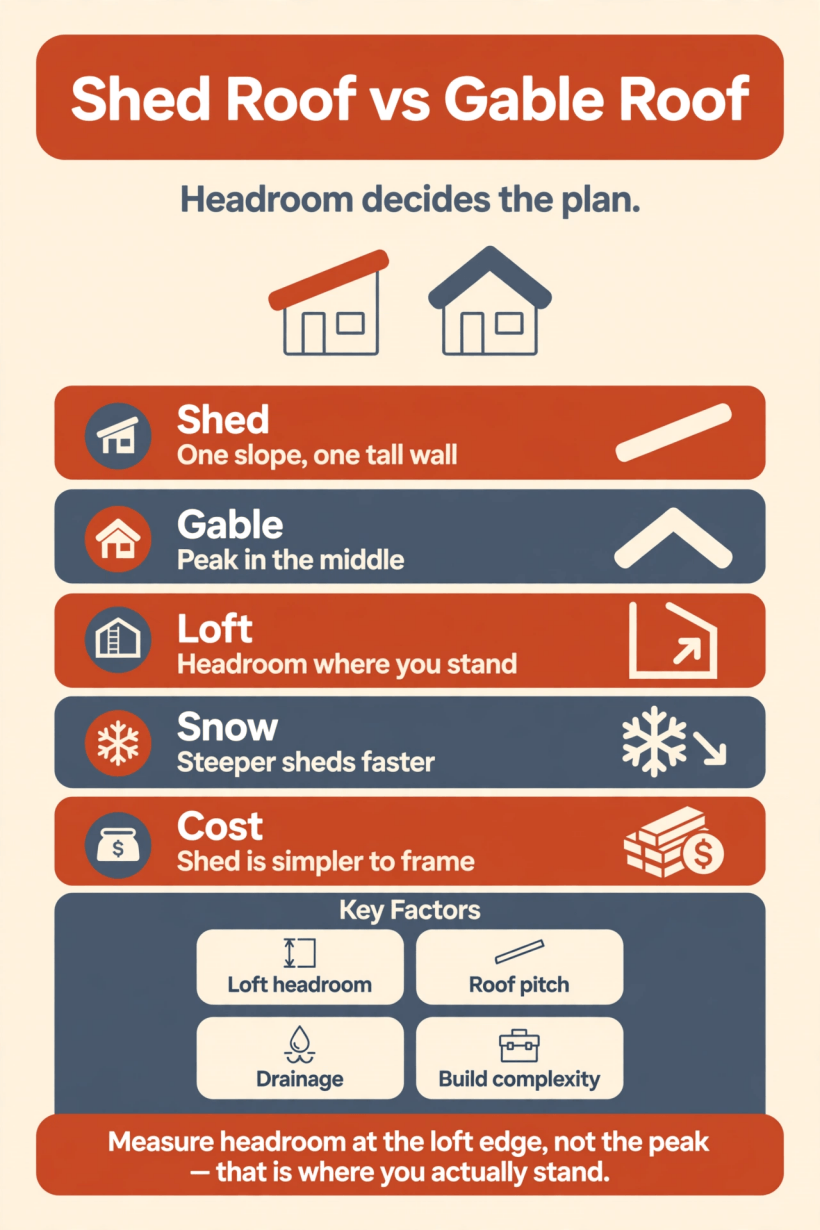

1. At a Glance: The Two Roofs in Brief
Neither roof wins in the abstract. Each one takes the same total volume and distributes it differently: the shed concentrates height along one wall, the gable concentrates it along the centre line. Everything else — where the loft works, where windows belong, how the framing goes together, and where the rain ends up — follows from that single geometric decision. Use the table as the short version, then read the ten plans that follow as two families answering one question: where do you need to stand upright?
| Attribute | Shed roof | Gable roof |
|---|---|---|
| Shape | One continuous slope from a high wall to a low wall | Two slopes meeting at a central ridge |
| Tallest point | Along the high wall, at one edge of the plan | Along the ridge, down the middle of the plan |
| Loft behaviour | Loft works on the high side only | Loft runs down the centre, under the ridge |
| Window opportunity | The high wall takes a natural clerestory band | Windows favour the two gable ends |
| Framing | Simplest of the two: no ridge beam, no valleys | More parts, but symmetric and conventional |
| Drainage | All water leaves by one low eave | Water splits to two eaves |
| Best for | Asymmetric plans, lofts on one side, modern looks | Symmetric plans, central lofts, traditional styling |
The comparison at a glance: one slope concentrates the headroom on a single wall, while a central ridge shares it down the middle of the plan.
2. Shed Roof Plans: The Tall-Wall Advantage

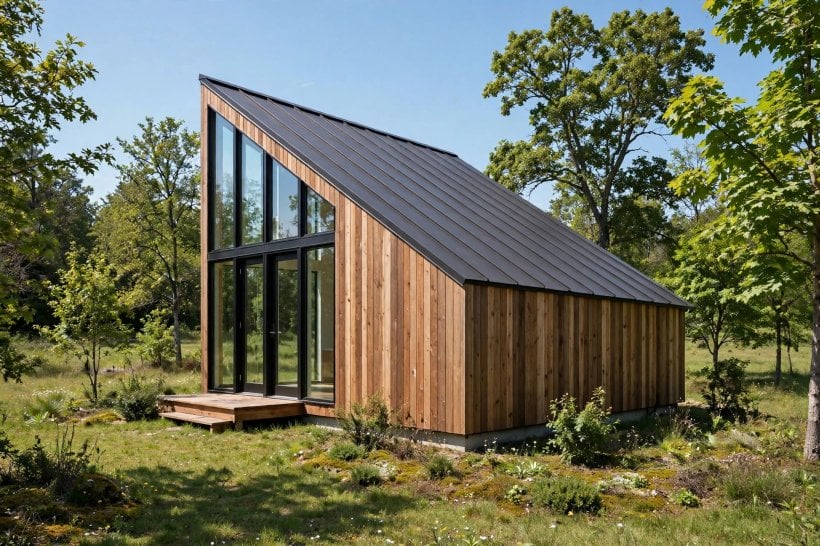

The five shed plans all exploit the same asset: a tall wall. The High-Wall Loft Shed (8×24, 3/12 slope) is the purest version. Across 8 feet of width the roof rises 24 inches, so an 8-foot low wall pairs with a 10-foot high wall, and the high side hosts a genuine sleeping loft with 4.5 feet of headroom at its tallest. The plan zones itself: tall functions on the high wall, kitchen and bath tucked under the 8-foot ceilings on the low side. At 3/12, every foot of run from the low wall gains 3 inches of ceiling, so the loft needs about 12 feet of run to reach sit-up height — the ladder or stair is planned to land exactly there.

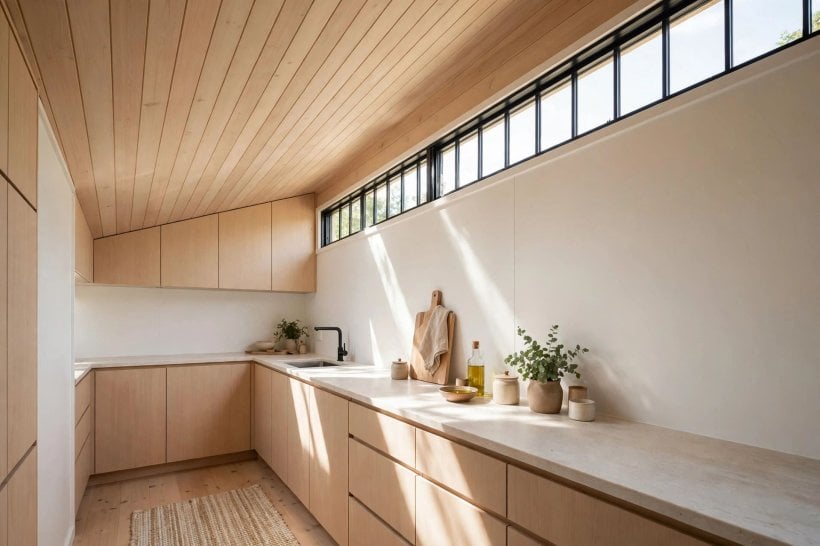

The Clerestory Shed (8×20, 4/12 slope) steepens the pitch until the high wall reaches 10 feet 8 inches, enough for a continuous band of clerestory windows above the kitchen counter. The kitchen sits under that band, the living zone holds the middle, and the bedroom rests at the low end, where 8-foot ceilings feel cosy rather than cramped. The Split-Shed Duplex (10×24) turns two opposing slopes toward each other so the tallest space lands in the middle: living and kitchen in the bright centre, bedrooms in the lower wings. The Low-Slope Modern Shed (8×20, 2/12 slope) rises just 16 inches, gives up the loft entirely, and commits to single-storey living under 9-foot ceilings. And The Shed-Roof Gooseneck (5/12 slope) stacks the slope’s height gain on top of the gooseneck platform, giving the over-cab bedroom a genuine 5.5 feet of headroom — a pairing explored further in these gooseneck tiny house floor plans.
3. Gable Roof Plans: The Classic Peak

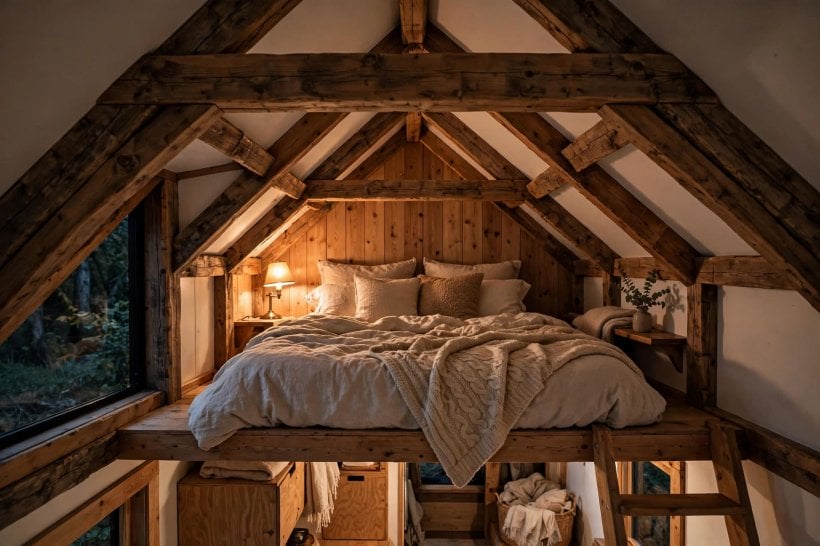

The gable family answers with symmetry. The Classic Ridge Loft (8×24, 10/12 gable) is the traditional tiny house section: the pitch lifts the ridge 6.5 feet above the 8-foot wall top, and a full sleeping loft runs down the centre underneath it. Kitchen and bath take one end, living takes the middle, and because the section is symmetric, windows and doors can go almost anywhere — the plan is never pushed to one side the way a shed pushes it. Loft access is honest work either way: a ships ladder or alternating-tread stair fits in about 4 linear feet, while a full staircase needs 8 to 10.
The Vaulted No-Loft Gable (8×20, 12/12 gable) deletes the loft and vaults the whole interior to a 12-foot ridge, trading sleeping platform for cathedral volume. The Cross-Gable L (8/12 gables) gives a living wing and a sleeping wing their own ridges, zoning the home without interior walls. The Gambrel Barn Loft (8×20) bends each slope in two, so the loft keeps 5 or more feet of headroom across most of its area instead of only near the ridge. Finally, The Saltbox Asymmetric Gable (8×24) stretches one slope and shortens the other, pushing the ridge off-centre — the most characterful roof on the list, in the same family as the dramatic pitches in these gothic-style tiny house layouts.
4. Loft Headroom: Where Each Roof Wins
Start with maximum height. With 8-foot walls, a shed at 4/12 tops out at 10 feet 8 inches on its high wall; a gable at 10/12 reaches 11 feet 4 inches at the ridge. But the gable’s number exists only along a line down the centre of the house, while the shed’s lower peak runs the full length of one wall — which is why a shed loft works as a band along the high side and a gable loft as a strip down the middle.
What matters is not the peak but the area under usable height. A standard gable keeps generous headroom across roughly the central portion of the loft; the gambrel profile widens that share dramatically, holding 5 or more feet across about 70 percent of the loft against roughly 40 percent for a standard gable. The shed plays a different game: headroom is excellent at the wall and falls steadily across the width, so the bed, the dressing spot and the stair landing must all be sequenced along the slope. Plans that treat ceiling height as a design material in its own right — see these tiny house plans with high ceilings — start from the same discipline: measure headroom at the loft edge, where you climb in and sit up, not at the peak, where nobody stands.
5. Drainage, Snow and Weather Behaviour

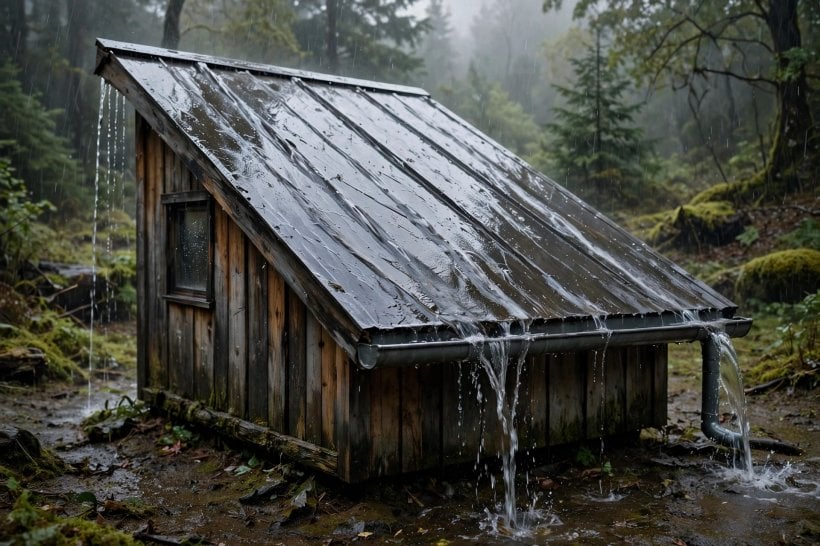

On shedding weather, the original comparison calls it a tie: both roofs shed rain and snow well when pitched above 4/12. The differences are in where the water goes. A gable splits runoff between two eaves, so each side of the house receives half the roof’s weather. A shed sends everything — every litre of rain and every sliding slab of snow — off a single low edge. That is a gift for water collection and a hazard if the low eave hangs over the entry door, the deck or a neighbour’s path; orient the slope so the drop zone lands somewhere harmless.
Two details decide whether each roof stays watertight. On the Split-Shed Duplex, the opposing slopes create a valley where they meet, and that valley needs a wide membrane under the roofing rather than shingles alone — it is the one flashing detail on the shed list that must be perfect. On low slopes the roofing material itself changes: below 3/12, shingles are not rated, so the Low-Slope Modern Shed relies on a single-ply membrane such as TPO or EPDM. Snow follows the same logic as rain: steeper pitches clear themselves faster, and a single slope clears in one direction only, which makes the shed’s drop zone a design decision, not an afterthought.
6. Framing Complexity and Build Cost Drivers
Framing simplicity is the shed’s clearest win. One slope means one repeated rafter, no ridge beam, no valleys and no hips; the structure is a single plane held up by a tall wall and a short one. The gable adds a ridge and a second slope, but stays symmetric, so every rafter pair mirrors its neighbour and conventional span thinking still applies. Complexity creeps in at the variations: the Cross-Gable L needs a proper valley rafter sized for the combined load where its two ridges meet, the gambrel needs a flashed trim board at the break where its slope changes, and the saltbox’s off-centre ridge produces unequal rafter spans and asymmetric loads that deserve an engineer’s check rather than rule-of-thumb tables.
Those structural differences, not the roofing material, are the real cost drivers: labour follows the number of junctions, and junctions follow the number of slopes and valleys. A plain shed has the fewest, a plain gable a few more, and every variation is paid for in framing time and flashing care. Builders who want the shed’s simplicity in its purest form can study the construction sequence in this frame shed roof tiny house guide, which walks the single-slope structure from wall plates to finished roof.
7. Clerestory and Window Options Under Each Roof
Windows are where the shed quietly out-scores the gable. Its high wall is a natural clerestory band: a continuous run of glazing that costs less per square foot than the same area in individual windows, needs simpler flashing, and delivers more even daylight across the room below. The Clerestory Shed puts that band over the kitchen counter, so the work surface is lit all day while the low end of the plan stays private and cosy. The shed’s tall wall also accepts full-height glass in a way no gable wall can, which is why so many modern tiny exteriors are really just a tall glazed wall under one slope.
The gable answers at its ends. Gable-end walls are flat, full-height triangles of usable wall, ideal for a feature window over a living space or a loft window at the ridge — and in the Cross-Gable L, gable-end windows in both wings drive genuine cross-ventilation. What the gable cannot easily do is a window band along its long walls, because those walls are capped by the eaves. Roof shape also decides solar geometry: a single slope is one clean, unbroken plane that can be oriented toward the sun, a relationship developed in these solar-ready tiny house layouts. For a deeper catalogue of band-window plans, see the dedicated clerestory window tiny house layouts.
8. Which Roof for THOW, Which for Foundation
On wheels, the roof shape spends a fixed budget: the road caps the total height of the house, so every inch the roof form wastes is an inch of interior headroom lost. The shed spends that budget asymmetrically, banking height on the side where the loft or the standing zone sits, which is why it suits THOW layouts so well — and why the Shed-Roof Gooseneck, stacking slope height on platform height, produces the best sleeping quarters of any plan here. The Classic Ridge Loft remains the default THOW gable for the opposite reason: its central loft and symmetric section waste nothing down the middle, where the bed actually goes.
On a foundation, the height budget relaxes and the plan can chase volume instead. The Vaulted No-Loft Gable’s 12-foot ridge, the Cross-Gable L wrapped around a courtyard or deck, and the Split-Shed Duplex’s tall central hall are all foundation pleasures: they assume the house stays put, that snow and drainage can be handled site by site, and that extra framing complexity is a one-time cost rather than weight and height carried down a highway. Rule of thumb: if the plan must travel, let the roof be simple and the headroom targeted; if the plan stays, let the roof be expressive and the headroom generous.
9. Reading the 10 Plans: Matching Roof to Layout
Read the ten shed roof vs gable roof tiny house floor plans as a matching exercise. Start from the room that needs height. If your non-negotiable is a loft you can sit up in along one wall, with the kitchen glowing under a window band, you are describing the shed family — the High-Wall Loft Shed for the loft, the Clerestory Shed for the light. If your non-negotiable is a central loft over a symmetric, anywhere-windows plan, you are describing the Classic Ridge Loft. If you want the loft but resent the crawl space at its edges, the Gambrel Barn Loft is the gable family’s direct answer.
Then read for the plan’s second demand. No loft at all? The Low-Slope Modern Shed and the Vaulted No-Loft Gable solve the same brief with opposite gestures — one flattens and simplifies, the other raises the ridge and makes volume the luxury. Two wings or two zones? The Split-Shed Duplex and the Cross-Gable L both zone without corridors, one with opposing slopes, one with crossing ridges. Character first? The saltbox carries the most history per square foot, and pays for it in framing. The right roof is the one whose section drawing already looks like the life you described.
10. Mistakes When Choosing by Looks Alone
The first mistake is falling for a silhouette. A roof chosen from the street has not yet been lived under; the same pitch that reads as charming outside decides whether you dress standing up or sitting down inside. The second mistake is measuring headroom at the peak. Peaks are marketing numbers — the honest test is headroom at the loft edge, at the stair landing and over the kitchen counter, the three places a body actually rises to full height.
The third mistake is forgetting where the weather lands: a shed roof empties its entire sky onto one side of the house, and more than one entry door has been placed, unthinkingly, directly under the drop. The fourth is roofing a low slope like a steep one — shingles below their rated pitch invite the leaks the membrane exists to prevent. The fifth is borrowing trouble with variations: a cross-gable valley or a gambrel break framed casually will find water, because water always finds slope transitions. And the last mistake is drawing the floor plan first. Every plan in this guide was drawn in section before it was drawn in plan, because in a tiny house the section is the plan.
Final Considerations
Roof pitch is not a styling choice in a tiny house; it is a space-planning choice with structural consequences. The shed concentrates height on one wall and framing simplicity in one plane; the gable concentrates height on the centre line and flexibility in a symmetric section. Model the interior volume in section, verify headroom at every function — sleeping, cooking, dressing, climbing — and let the roof earn its keep. The best roof is not the prettiest one on the plot. It is the one that gives you somewhere to stand.
