Underfloor Heating in Tiny Houses: Hydronic vs Electric Radiant Heat Systems

There is a special misery to swinging your feet out of bed onto an ice-cold floor in January. Forced-air heat makes it worse: the ceiling roasts while the floor stays freezing, which is exactly backwards from how human comfort works. Radiant floors fix it by warming the surface you actually touch — silently, invisibly, and with no vents at all. The only real question is which system earns its place under your floor: hot water or electric cable.

1. Underfloor Heating in Tiny Houses at a Glance

Underfloor heating in tiny houses comes down to two ways of warming the same floor mass. Hydronic systems circulate hot water through tubing; electric systems run resistance mats or cables. Both are silent, dust-free and invisible, both eliminate the cold spots forced air leaves behind, and both suit a small space where there is no room for ductwork in 2×4 walls. Where they part company is running cost, response time and — decisively — where your power comes from. The table gathers the comparison in one place; the sections after it take each system, and the energy math that separates them, apart.

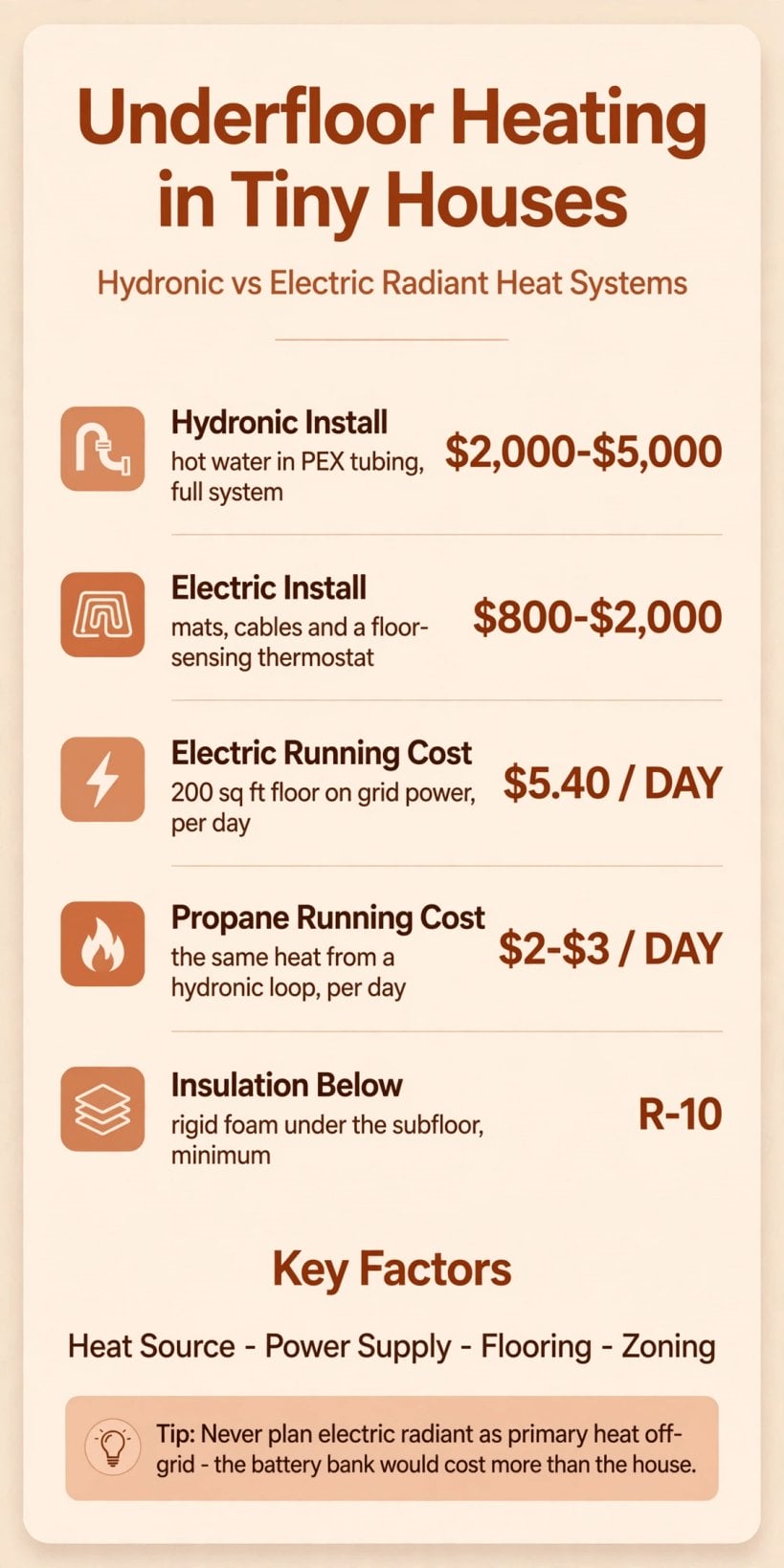

Two systems, one floor: the running-cost math — not the install price — is what separates hydronic from electric.

Read the table as a sequence of trades rather than a contest with one winner. Hydronic asks for more money and more machinery up front, then repays it every day in cheap heat and a pump that sips power. Electric asks for almost nothing up front — a mat, a thermostat, a circuit — then bills you for every hour it runs. Everything else in this guide is a consequence of those two bargains: the flooring rules, the insulation rules and the zoning strategy all exist to protect whichever bargain you choose.

2. How Radiant Floors Work: Heat That Starts at Your Feet

Both systems do the same physical job: they warm the floor mass, and the warmed floor radiates heat upward into the room. In a hydronic loop, a boiler or water heater sends water at 100–140°F through tubing embedded in or under the floor, and a manifold, pump and thermostat divide the flow into zones. In an electric system there is no water at all — resistance mats or loose cables under the flooring convert electricity directly into heat, and a floor-sensing thermostat cycles them on and off.

The reason the format suits a small house so well is geometric. The floor is the largest surface you touch, and it is also the coldest zone in a tall small space, because warm air rises away from it. Radiant heat reverses that: the warmth starts exactly where your feet are. There is no ductwork to fit inside 2×4 walls, nothing blows dust around the room — a genuine advantage for allergy sufferers — and the system is silent and invisible in a way no vented heater can match. If you are still settling how a house this size covers its basic services before choosing a heating system, the overview of getting started with a tiny house sets the context the floor decision sits inside.

A warm floor also changes how the rest of the room feels at a given air temperature. Because the heat arrives by radiation from below rather than by convection from a vent, there are no hot and cold patches to dodge, and the whole footprint — corners included — becomes usable floor. In a house where every square foot is already spoken for, a heating system that hands you back the cold corners is doing double duty.

3. Hydronic Underfloor Heating: Hot Water, Pumps and Manifolds

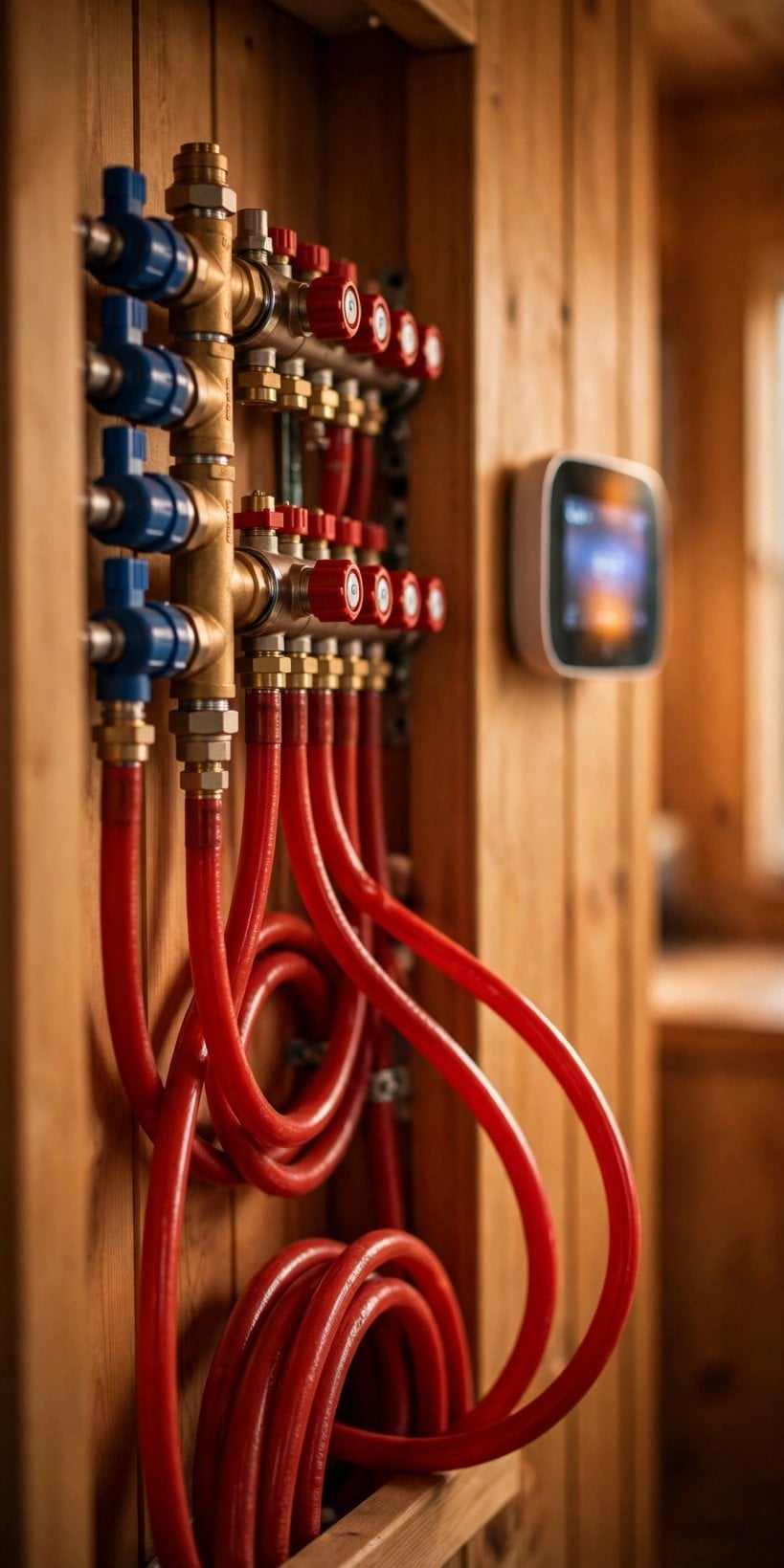

A hydronic system is a small plumbing circuit with a heating job. The heat source — an on-demand propane water heater, a small boiler, or a wood-fired outdoor boiler — heats the water. The water travels through 1/2-inch oxygen-barrier PEX tubing laid at 6–8-inch spacing, stapled to the subfloor or seated in aluminum transfer plates that spread its heat. A circulator pump keeps it moving — a tiny load, just 20–60W — while a manifold with zone valves, an expansion tank and the controls divide the house into separately heated zones.

Installation is decided before the finished floor exists. The tubing goes down first — in a thin slab, in a gypcrete pour, or in a dry panel system. The dry panels deserve a tiny-house builder’s attention: they add only 3/4 inch of height, which matters in a house where every inch of headroom is negotiated. Total cost runs $2,000–$5,000 for a tiny house, and the heat source is the variable — a propane on-demand heater you already own changes the math considerably, as the wider breakdown of the true cost of tiny houses shows for every system in the house.

The strengths and weaknesses are two sides of the same machinery. Hydronic heat is cheap to run on propane or wood, it zones beautifully, and the tubing itself lasts 50+ years. Against that, the system is complex — pump, manifold and controls are all parts that can fail — it responds slowly, because the floor mass takes an hour or more to warm, and it carries a freeze risk no electric system has: a hydronic loop in an unoccupied winter house must be drained or filled with antifreeze, or the cold it was installed to defeat will burst it.

4. Electric Underfloor Heating: Mats, Cables and a Thermostat

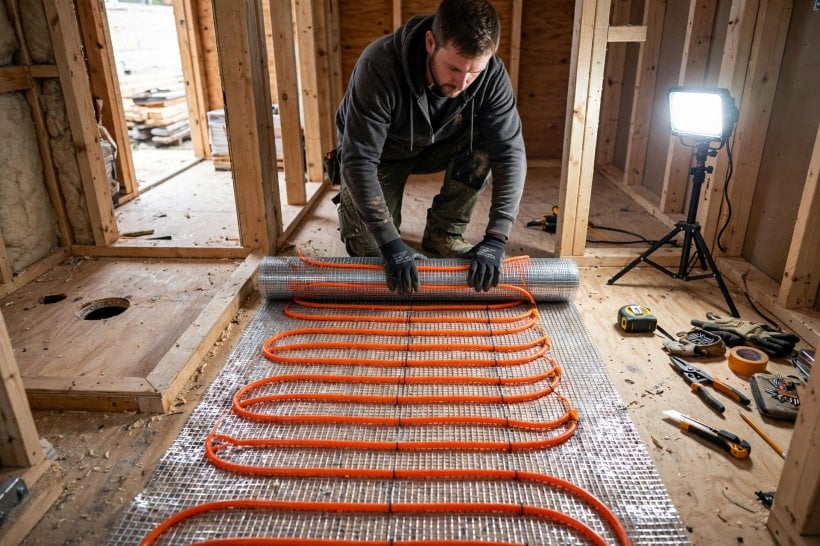

The electric system strips the idea down to three parts: the heating element, a floor-sensing thermostat, and a dedicated 15–20A circuit to feed them. The element is either a heating mat — cable pre-spaced on a mesh, the easiest form to install — or loose cable laid by hand for custom layouts. Roll out the mat, embed it in thinset under tile, or lay it under an approved flooring, connect the thermostat, and the job is done. It is a weekend DIY project where the hydronic equivalent is a trade installation.

The price matches the simplicity. An electric system costs $800–$2,000 for a tiny house, with the mats themselves running about $8–$15 per square foot. What that money buys is responsiveness and reliability: the floor is warm in 30–60 minutes instead of an hour or more, each room zones independently, and with no moving parts, no water and no freeze risk there is very little in the system that can break. Compatibility is the one check that cannot be skipped — most mats work under tile, stone and some LVP, and the flooring manufacturer’s approval decides which.

That combination — cheap to buy, fast to warm, nothing to maintain — makes electric radiant the easiest heating decision in this entire guide, provided one condition holds. The condition is not in this section; it is in the energy math that follows, and it is the reason the same system can be a bargain in one house and a budget error in another.

5. The Energy Math: What a Warm Floor Costs Per Day

Start with a typical electric load. A 200-square-foot floor at 15W per square foot — typical output — draws 3,000W when running. On a 50% duty cycle through winter, that is 36kWh a day. At grid power of $0.15/kWh the bill is $5.40 a day, roughly $160 a month: the most expensive way to heat the house. The off-grid version of the same arithmetic is worse. Thirty-six kilowatt-hours a day from solar needs a roughly 9kW array in winter — an absurd fit-out for a tiny house, before the battery bank that would store it is even priced.

Now run the identical heat through propane. The same warmth costs about $2–$3 a day at roughly $3 a gallon — half the grid-electric cost — and the only electrical load it creates is the circulator pump, around 40W, which a modest solar setup powers without thinking about it. That asymmetry is the whole story of this comparison, and it generalises: a heating system’s appetite has to be matched to the supply behind it, the same discipline the breakdown of how much energy a tiny house uses applies to every load in the house.

So the verdict is structural, not marginal. Electric radiant is a grid-tied luxury — lovely bathroom floors on shore power, where the grid absorbs the appetite. Hydronic is the off-grid workhorse, because its fuel arrives in a tank rather than through a wire. Never plan electric radiant as primary heat off-grid: the battery bank required to feed it would cost more than the house.

6. Flooring Compatibility: What Can Sit on a Radiant Floor

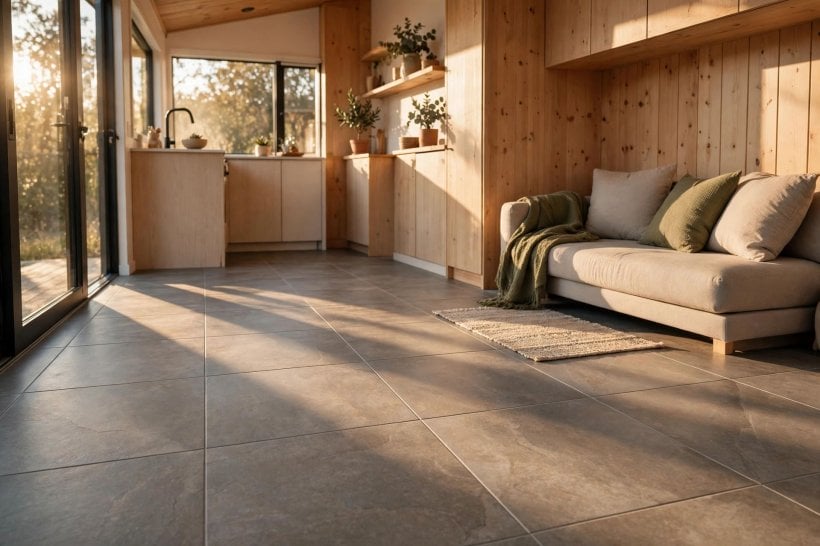

Radiant heat and flooring have to agree, because the floor finish is the system’s radiator — everything the tubes or cables produce has to pass through it. Tile and stone are the ideal partners: they conduct heat beautifully, which is why the classic radiant floor is a tiled one. Luxury vinyl plank can work, with a check attached — many LVPs are radiant-approved to an 80°F floor temperature, and that rating has to be verified before installation, not discovered after.

Wood splits by type. Engineered wood works within limits — floor temperature caps apply and acclimation matters — because its layered construction tolerates the warmth. Solid hardwood is the risky option: heat drives movement and gapping in solid boards, and the guidance is to avoid it in tiny houses. Carpet fails on physics rather than durability: it insulates against the heat and defeats the purpose entirely, so it never belongs over a radiant floor.

The practical tiny-house combination follows directly: tile in the bathroom, where radiant matters most under bare feet, and radiant-approved LVP everywhere else — the practical combination the original comparison lands on. It puts the best conductor where the comfort payoff is highest and a verified, tolerant finish across the rest, and it keeps the flooring decision and the heating decision as one decision, which is what they always were.

7. Installation Details: Insulation Below, Edges and Height

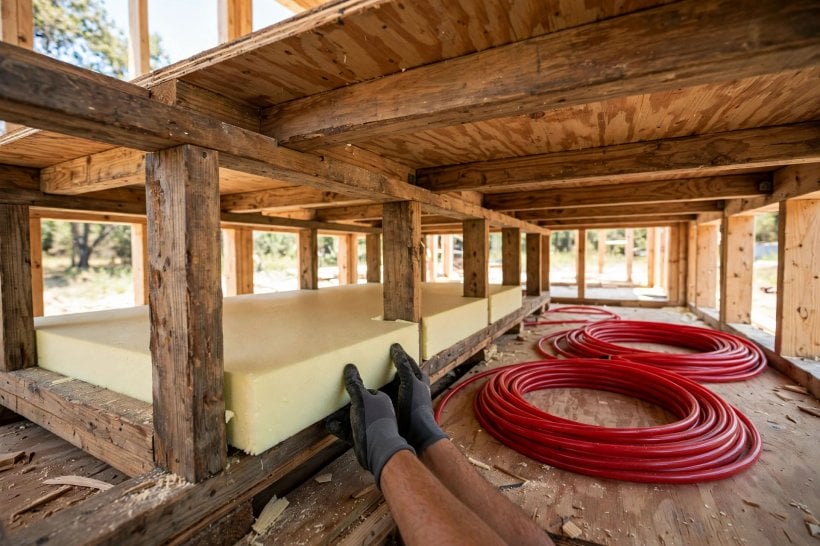

The first installation rule points down. Radiant heat travels downward as readily as upward, so the floor build-up must be insulated beneath the tubes or mats — rigid foam under the subfloor, R-10 minimum. Skip it and a share of every heating bill warms the crawlspace instead of the room. The perimeter needs the same attention: the slab or floor edge bleeds heat, so the edge is insulated as deliberately as the field of the floor.

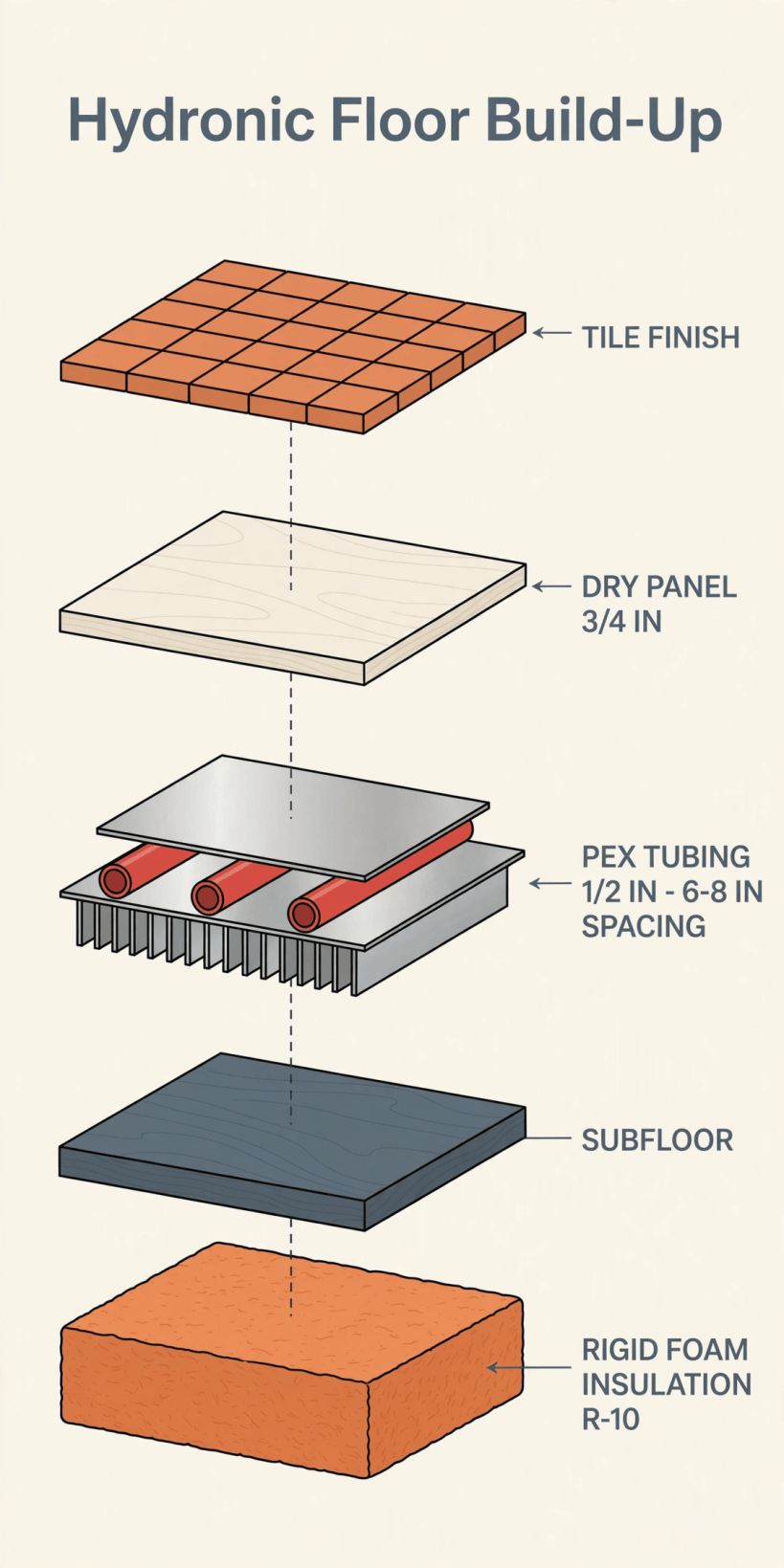

Height is the second budget, and in a tiny house it is as real as the money. Dry-panel hydronic adds about an inch to the floor build-up — the 3/4-inch panels plus what sits over them — so the buildup is planned before framing, not discovered after. Every layer of the floor sandwich, from the foam below to the finish above, is part of the heating design; a floor planned as a system performs like one, and a floor assembled from afterthoughts leaks heat at every seam. The same is true of the house’s structure generally — the load and buildup decisions behind a floor are cousins of the ones counted in the weight limits of tiny houses, where what goes into the build is decided on paper first.

Zoning is planned at this stage too, because the manifold and the thermostat wiring follow the floor layout. The bathroom gets its own zone — warm floors exactly where bare feet land, even when the main zone idles — a small decision at install time that the next section takes up in full.

8. Thermostats and Zoning: Keeping Running Costs Down

A radiant floor is controlled at the floor, not at the wall. The right thermostat pairing is a floor sensor — embedded in the floor itself, measuring what actually matters — working with an air sensor that reads room comfort. The combination prevents overshoot: the floor sensor stops the system cooking the finish past its limit, while the air sensor stops it heating a room that is already comfortable. Either sensor alone leaves one of those failure modes open.

Zoning turns that control into savings. A hydronic manifold with zone valves, or separately thermostatted electric mats, lets each part of the house ask for heat on its own schedule. The bathroom is the standing example: its zone can hold warm floors for the morning while the main zone idles, instead of the whole house being heated to serve two bare feet. In a system whose running cost is the deciding factor, zoning is not a luxury feature — it is how the daily numbers of the energy math stay at the low end of their range.

Response time shapes the strategy. A fast electric floor, warm in 30–60 minutes, can be scheduled tightly around use. A hydronic floor mass, taking an hour or more to come up to temperature, rewards the opposite discipline: steady, low, continuous running rather than deep setbacks and recoveries. Match the thermostat programme to the physics of the system under it, and the controls stop fighting the floor.

9. Hydronic Heat Sources: Propane, Boilers and Wood

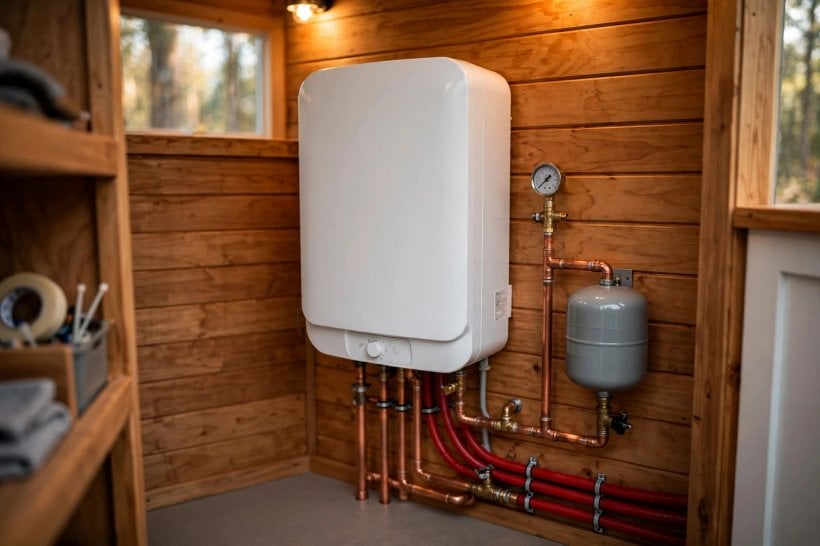

A hydronic loop is only as good as what heats its water, and four sources present themselves. The propane on-demand water heater is the tiny-house standard: you likely already own one for domestic hot water, a combi setup lets it heat both the house and the taps, and the heater itself runs $500–$1,200. One appliance, two jobs, and an off-grid-friendly fuel — the pick of the four.

The small boiler is the specialist: more efficient for heating-only work, but $2,000 or more, and overkill for 300 square feet. The wood stove with a water coil is the off-grid romantic option — free heat, honestly earned, with the catch stated plainly: the fire must burn continuously, and there is no thermostat and no automation standing behind it. The electric boiler is the simplest to install and the easiest to reject: it hands the loop the same brutal operating cost as electric mats, combining hydronic complexity with electric running costs. How these sources are fed, supplied and drained belongs to the same service planning covered by the tiny house utilities guide — power, water and waste decided as one system, not three surprises.

The pattern across the four is the pattern of the whole comparison. The best source is the one whose fuel the house already carries and whose appetite the supply can feed indefinitely — which is why the propane combi, sharing its work with the domestic hot water, wins in most tiny houses, and why the bathroom zone it feeds is planned with the same care as the wet room itself in the tiny house bathroom layouts.

10. Choosing Your System: Match the Heat to the House

The decision collapses into a short sequence of questions. Where does the house’s energy come from? If the answer is the grid, electric radiant is a legitimate luxury — cheap to install, fast, zoned by room, and at its best under bathroom tile. If the answer is a propane tank and a modest solar array, hydronic is the only primary-heat answer the arithmetic supports. How is the house used? Intermittent heating punishes a slow floor mass; continuous occupation rewards it. And what sits on the floor? A tiled bathroom and LVP living space accept either system; a plan built around solid hardwood has already made half the decision badly.

Cost then sorts itself honestly. Electric wins the purchase — $800–$2,000 against $2,000–$5,000 — and loses the decade, at roughly $160 a month in winter against $2–$3 a day. Hydronic wins the decade and asks for the machinery, the freeze discipline and the install planning up front. Neither is the better system in the abstract; each is the better system in a specific house, on a specific supply, under a specific floor.

Final Considerations

Radiant floors are the most comfortable heat a tiny house can have — and the choice is clear once the supply is named. Hydronic, propane-fired, is the off-grid primary heater: cheap to run, zoned, and built on tubing that lasts 50+ years. Electric mats are the grid-tied luxury: a bathroom floor that warms in half an hour and asks for nothing but a circuit. Insulate below at R-10 minimum, zone the bathroom, mind the flooring compatibility, and size the heat source honestly. Warm feet change everything about winter in a small space.
