Tiny House Wind Resistance: Aerodynamic Design Tips for Towing on Highways

Aerodynamically speaking, a tiny house on wheels is a brick with windows. At highway speed it punches a hole in the air the size of a garden shed, and your fuel gauge pays for every molecule of it — while crosswinds shove the whole tall, light rig sideways. This guide puts real numbers on the drag, the fuel cost and the stability, and shows which shape tweaks genuinely help.

Tiny House Wind Resistance: At a Glance

Tiny house wind resistance is the hidden tax on every highway move: a boxy house has a drag coefficient around 0.8–1.0, roughly triple a modern car’s, and towing one typically returns 6–9 mpg where an aerodynamic RV of similar weight manages 10–14. You cannot make a tiny house sleek, but you can cut drag 15–30% with a sloped nose, a clean roof, an enclosed belly and a tamed wake — and you can keep the rig planted in crosswinds with correct tongue weight, sway control and the discipline to slow down. The ten sections below follow the air itself: the shape problem first, then the drag bill, where drag is born, the front, roof and rear of the house, the crosswind threat and its defences, the structural loads the wind applies, and the pre-flight checklist that ties it all together before every move.

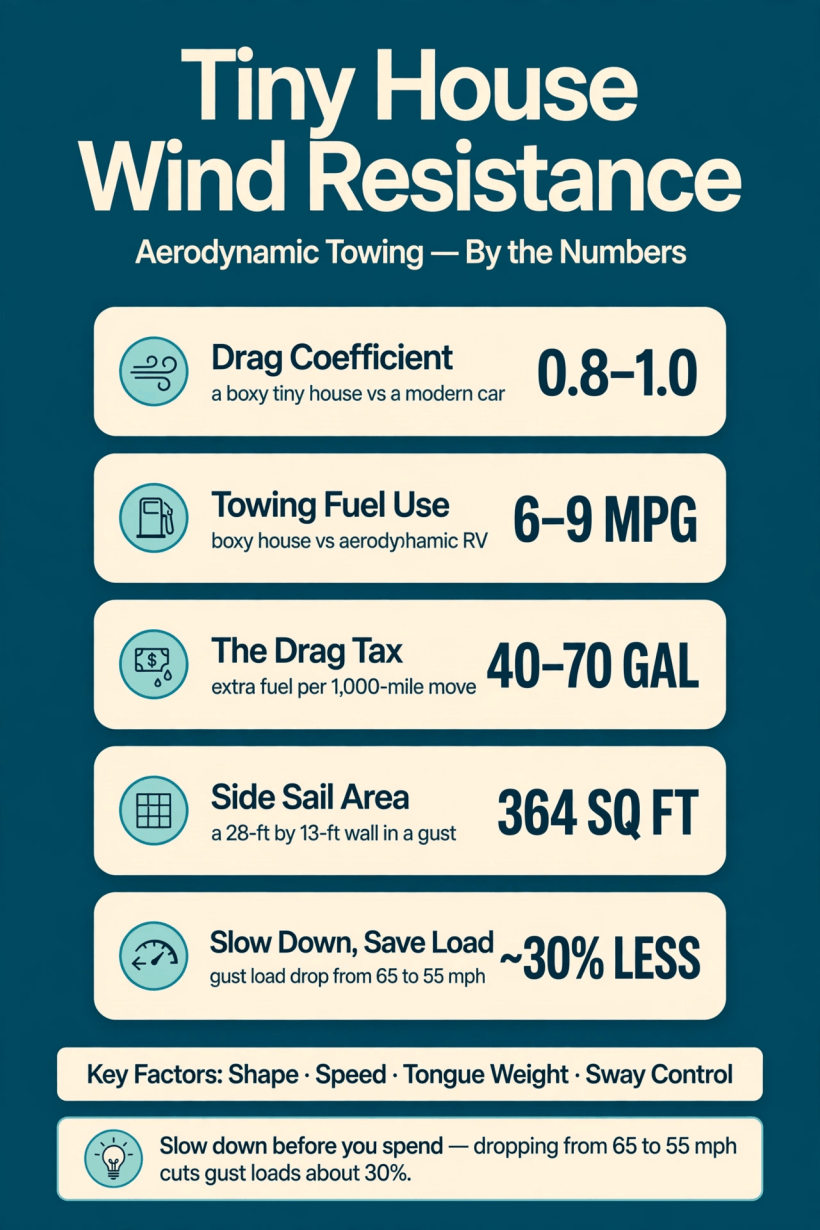

Wind resistance by the numbers: the drag coefficient that triples your fuel bill, the sail area that turns a gust into thousands of pounds of shove, and the simple speed drop that buys most of it back.

1. A Barn Door at 65 MPH

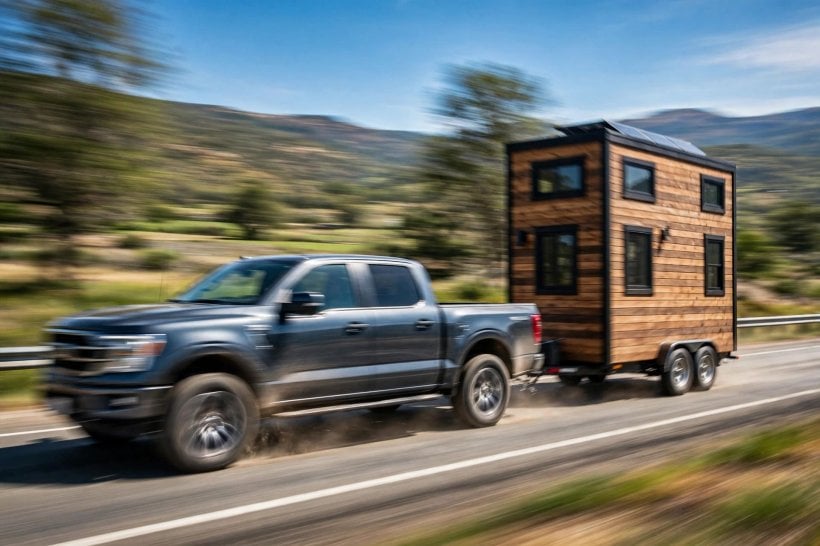

Start with the honest picture. A tiny house on wheels measures about 8’6″ wide and 13’6″ tall — the frontal area of a garden shed, the flat faces of a barn door, and none of the tapering a vehicle designer would draw on purpose. At rest, none of that matters. At highway speed it matters more than almost anything else about the move: wind resistance dominates fuel consumption, crosswinds threaten stability, and the same air that costs you gallons also stresses the structure of the house itself, mile after mile.

Smart aerodynamic design does not pretend otherwise. It does not make a tiny house sleek — nothing will — it makes the house survivable: cheaper to tow, calmer in gusts, and gentler on its own frame. This guide covers the fluid mechanics that actually matter to a tiny house owner, in the order the air meets the house. First the bill drag presents, then the four places drag is created, then a pass over the front, roof and rear of the rig, then the crosswind problem — the one that threatens more than your fuel budget — and finally the structural design and checklist habits that keep a tall house safe at speed. A few smart choices, made once at build time and a few minutes before each move, are worth gallons per trip and a far steadier rig.

2. Drag: The Fuel Thief

Drag is the force of the air pushing back against the house, and its size is summarised by the drag coefficient, Cd. A modern car slips through the air with a Cd a boxy tiny house can only envy: the house sits around 0.8–1.0, roughly triple the car’s figure. That single number explains your fuel receipts. Towing a boxy 12,000-lb tiny house typically returns 6–9 mpg, against 10–14 mpg for an aerodynamic RV of similar weight — the weight is comparable, the shape is not, and the shape is what the engine is fighting at 65 mph.

Put the drag tax in trip terms. On a 1,000-mile move, the boxy house burns roughly 40–70 extra gallons compared with the slippery RV — some $150–250 spent purely on pushing air aside. That is why aerodynamics belongs in the same budget conversation as the tow vehicle and the route: our tiny house moving guide breaks down what a move really costs, and drag is the line item most owners never see itemised. The encouraging half of the physics is that you do not need to eliminate drag to save real money — you cannot eliminate it at all. The measures in the next four sections can cut it by 15–30%, and that saving repeats on every single move for the life of the house.

3. Where Drag Is Born: The Four Sources

Before fixing drag, it helps to know where it is created, because the four sources are not equal. The first and largest is the flat front face. Air striking a vertical wall cannot flow around it smoothly, so pressure builds in front of the house and the engine pays to sustain it — this pressure drag is the #1 factor, ahead of everything else combined. The second source waits at the other end: behind the trailer, the airflow separates and collapses into a turbulent wake, a low-pressure zone that quite literally sucks the rig backward as it travels.

The third source is the roof. Every protrusion up there — vents, air-conditioning units, anything standing proud of the roofline — trips the airflow and becomes its own small drag generator; section 5 takes them one at a time. The fourth source is not on the house at all: the gap between truck and trailer, where air spills into the space between the two vehicles and churns — a turbulence factory that adds drag neither vehicle would produce alone. Keep these four in mind as a map: front, rear, roof, gap. The next three sections walk the map in order, and nearly every fix in them is cheap, permanent, and paid back on the first long move.

4. The Front: Nose Design

Since the front face is where drag is born, it is also where the biggest wins live. The single most effective drag reducer is a sloped or curved nose: a front that leans back at 30–45° over the gooseneck or bumper gives the air a ramp instead of a wall. Even a simple angled transition panel beats a flat face — the airflow stays attached longer and the pressure buildup shrinks. The same thinking applies at the corners: radius the vertical front corners, because sharp corners separate the airflow violently, while even a 6″ radius measurably calms it.

Builders who want the solved version buy it: v-nose trailers, purpose-built with a pointed front, are the commercial answer, and our tiny house trailer buying guide covers how to choose the platform the house sits on. Whichever front you have, keep it clean — no protruding lights, brackets or storage boxes on the front face, because every bump trips the airflow you just smoothed. Finally, the configuration itself matters: a gooseneck trailer tucks the house’s nose in behind the truck cab, so the truck punches the hole in the air and the trailer follows in cleaner flow — worth 10–20% less drag than a bumper-pull before you change a single panel.

5. The Roof: Keep It Clean

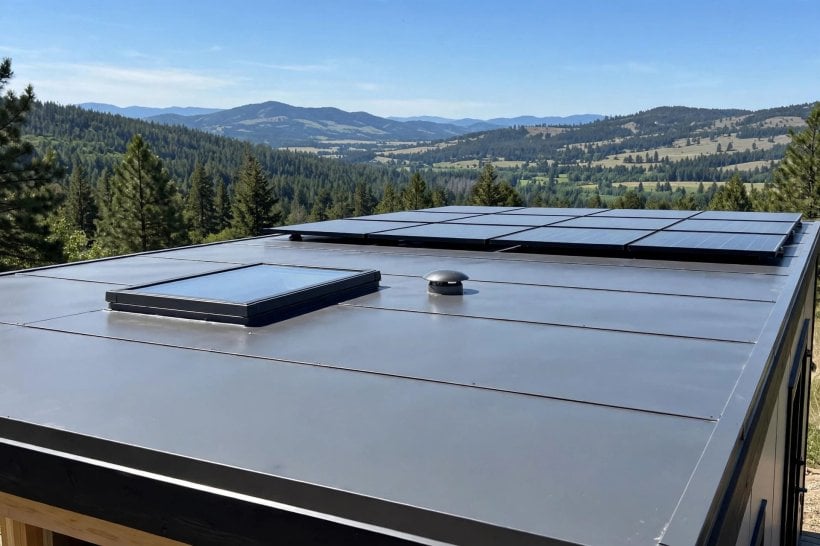

Roof protrusions are drag multipliers because they sit at the top of a 13-foot wall, right in the fastest-moving air. Work through the usual suspects. Vents: choose low-profile mushroom vents instead of tall stacks, or route the venting through a side wall where it costs nothing aerodynamically. Skylights: recess them flush — a bubble skylight is a small parachute bolted to your roof. The mini-split’s outdoor unit belongs low on the side or rear of the house, never on the roof, where it would be both a drag source and a sail.

Solar panels deserve their own warning: an array tilted up for sun is, at highway speed, a wing. Tilt-flat for travel — lay the panels flat and lock them there before any highway move, every time. And finish the silhouette properly: a slightly rounded roof-to-wall transition beats a sharp corner, letting the airflow turn the edge instead of tearing away from it. The rule that governs the whole roof is simple enough to tape inside a cupboard door: if you can see it from the front, the wind sees it harder — streamline it or remove it.

6. The Rear: Taming the Wake

The rear of the trailer is the forgotten frontier of tiny house aerodynamics. As the house passes, airflow cannot follow the abrupt back wall, so it separates into that turbulent, low-pressure wake described in section 3 — a zone that pulls backward on the rig for every mile of the trip. The proven fix, borrowed from freight trailers, is the boat-tail: tapering the last 2–3 feet of the body so the air closes in more gently. Even a mild taper cuts wake drag measurably. It is rare on tiny houses, but the physics is not in doubt.

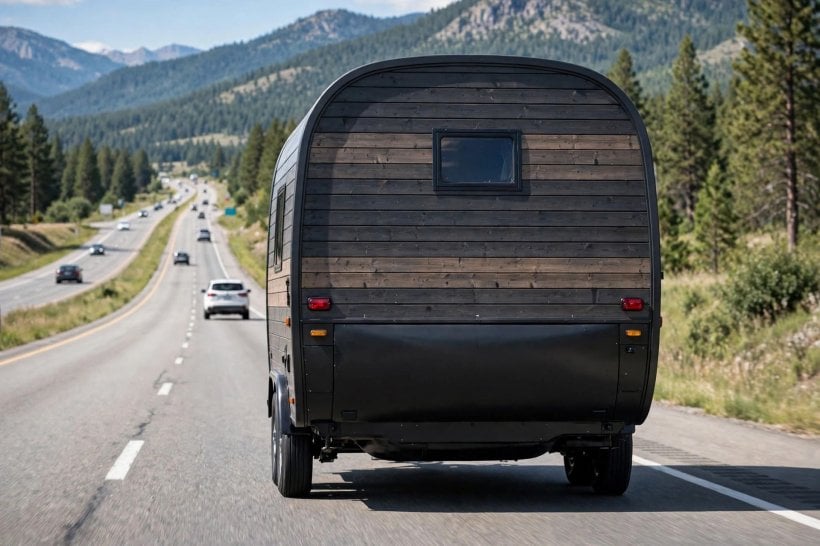

Short of a taper, round the rear corners so the flow stays attached a moment longer before letting go, and look underneath: the underbody is a major drag source in its own right, all turbulent flow around axles, tanks and frame members. Enclosing it with skirting or a smooth belly pan calms that flow and does double duty, shielding pipes and tanks from road debris and weather. Even the mud flaps play a part — positioned right behind the truck’s rear wheels, they cut the spray and turbulence thrown up into the trailer’s front. Small changes at the back pay disproportionately, precisely because almost nobody makes them.

7. Crosswinds: The Stability Threat

Drag costs money; crosswinds threaten lives. Turn the house side-on to the wind and the numbers change character completely. A 28-ft-long, 13-ft-tall side wall is 364 square feet of sail, and a 40 mph crosswind gust against that area generates thousands of pounds of lateral force — a shove delivered not steadily but in hammer blows, each gust arriving faster than a driver can correct for it. This is the force that pushes rigs across lanes and, in the worst cases, over.

Two facts about that force govern everything in the next section. First, it acts on the whole side of the house, high up — the leverage of a 13-foot wall on a trailer chassis is exactly why a tall, light rig feels crosswinds so much more than a low, heavy one. Second, wind force rises with the square of speed: the wind does not get a little stronger as you drive faster, it gets stronger quadratically, because the rig’s own motion adds to the apparent wind. That square law is the owner’s best friend as well as the threat — it means slowing down buys safety at a bargain rate, as the defences show next.

8. Staying Planted: The Defences

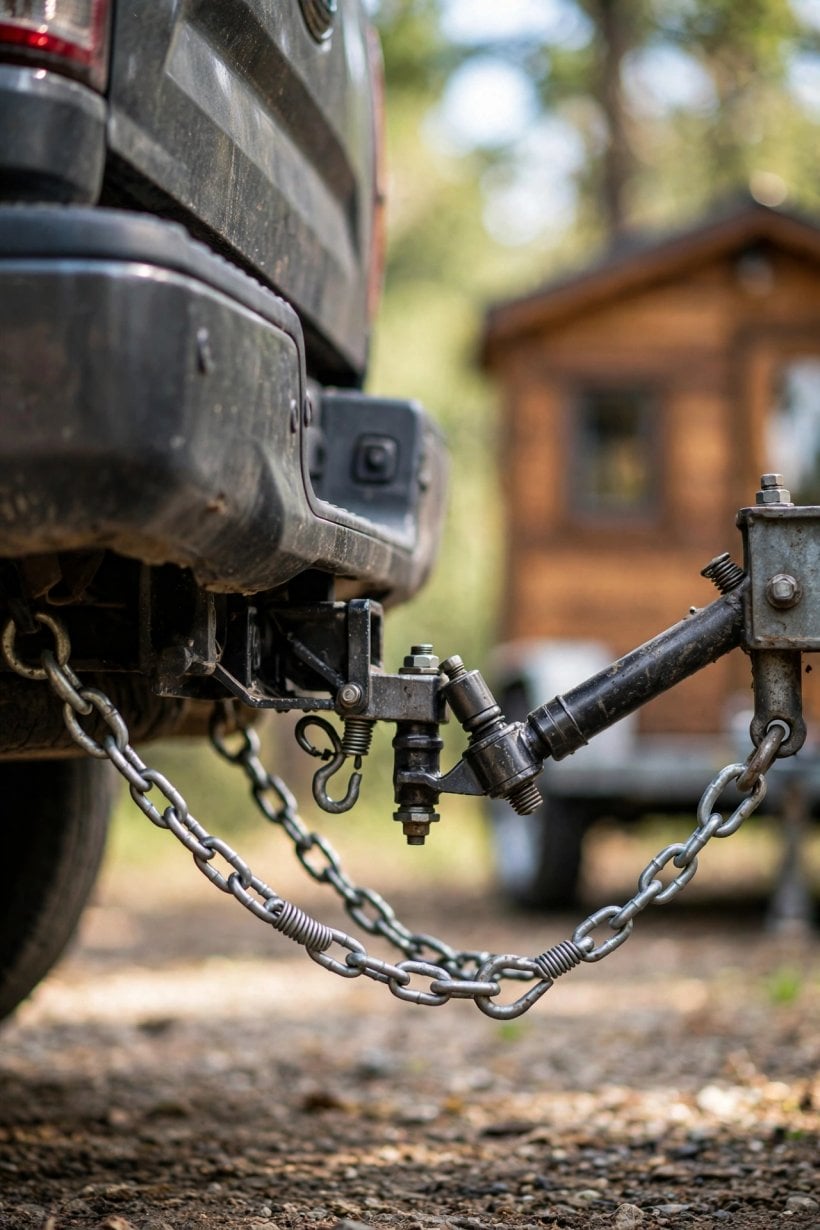

The defences against crosswinds begin at build and loading time. Keep the centre of gravity low: the heavy items — batteries, water tanks, appliances — belong at floor level, never in lofts or high cabinets. Get the tongue weight right: 10–15% of the trailer’s weight on the hitch is the anti-sway foundation everything else builds on, and the weighing method in our guide to how to calculate the weight of a tiny house makes it a measurement rather than a guess. Then fit sway control — friction or dual-cam — and treat it as mandatory, not optional; the hardware choices sit alongside hitch selection in our towing guide to trucks and hitch weights.

On the road, technique takes over. Slow down in crosswinds: because force rises with the square of speed, dropping from 65 to 55 mph cuts gust loads by roughly 30% — the cheapest stability you will ever buy is a lighter right foot. And know when to stop altogether. In sustained crosswinds of 40+ mph with gusts, pull over and park. The house will still be there when the wind drops; it might not be if you press on. There is no schedule, delivery date or campsite reservation that outvalues the rig arriving upright — waiting out weather is seamanship, not failure.

9. Structural Wind Loads: Designing the House

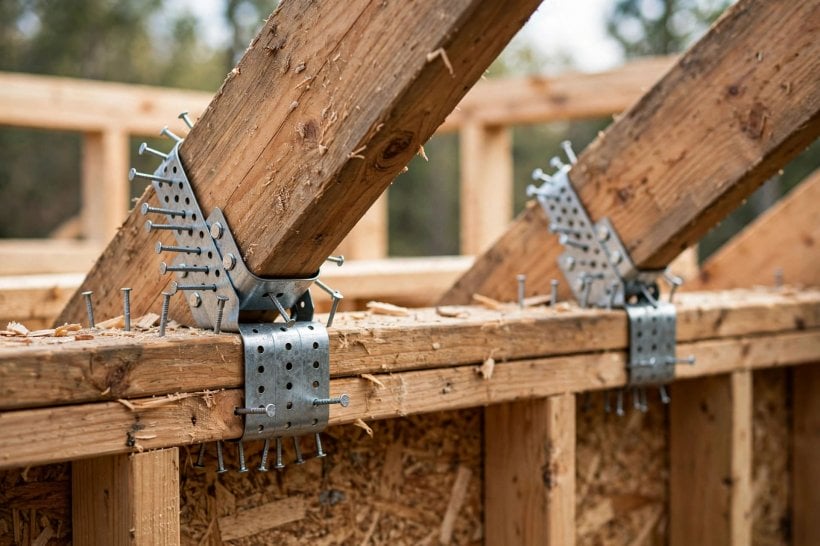

Wind does not just push the trailer around; at speed it tries to peel the house apart, and the house has to be designed for that. The first attack is uplift: air accelerating over the roof creates lift, the same physics that flies aircraft, working on a roof that would rather stay attached. The defence is unglamorous and cheap — hurricane ties at every rafter, the roughly $2 connectors that lock the roof structure to the walls. The second attack is racking: lateral wind loads try to parallelogram the walls, and the answer is shear resistance — shear walls or diagonal bracing, with the wall sheathing, properly nailed, acting as the shear system. Do not skimp on the nailing schedule; it is structural, not cosmetic.

Underneath both is one principle: the continuous load path. Roof-to-wall connections must resist uplift and lateral force together — straps plus sheathing plus bolts, an unbroken chain carrying wind loads from the rafters all the way down to the trailer frame, the bolting end of which is detailed in our guide to securing a tiny house to its trailer frame. Racking resistance in particular lives or dies on framing discipline, as our companion guide to preventing tiny house framing from twisting on the highway shows. The same connections pay off parked: a house engineered for 65 mph towing handles most storms sitting still — anchored properly per the tie-down advice in our guide to keeping your tiny house safe.

10. The Towing Checklist: Aero Edition

Everything above converges on a few minutes of discipline before every highway move. Solar panels: flat and locked. Roof vents: closed and locked — a vent that lifts at speed becomes a scoop. Awnings: fully retracted and locked; an awning deploying at 65 mph destroys itself and endangers everyone behind you. Windows and doors: latched, because a window that opens at speed can rip clean off. Loose items inside: secured, remembering that the house flexes and bounces and everything unsecured migrates.

Then the running gear and the sky. Tyre pressures go to maximum sidewall pressure — under-inflation combined with a crosswind is a sway recipe — and the rolling hardware behind those tyres deserves the same respect as in our guide to choosing trailer axles for a 14,000-lb tiny house. Finally, check the forecast before you hitch, not after: wind advisories are move-cancellers. Rescheduling costs a day; fighting 50 mph gusts can cost the house. Walk the list, in order, every time — the aero edition of the checklist is short because the expensive lessons were already learned by somebody else.

Final Considerations

You cannot make a tiny house aerodynamic — but you can make it much less of a brick. A sloped nose, a clean roof, an enclosed belly and a calmer wake cut the fuel bill measurably; correct tongue weight, real sway control and a low centre of gravity protect the safety margin; and the discipline to slow down, or stop, when the wind rises protects everything else. Think of it as two separate design briefs sharing one house: drag is a fuel bill, crosswind is a safety margin. Design for both, drive for both, and the highway becomes a road again rather than a risk.
